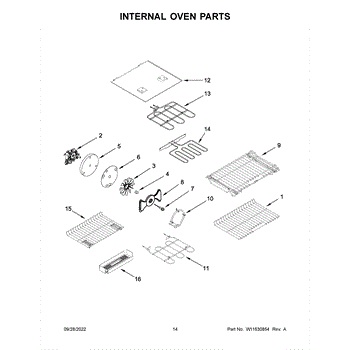

Parts for Kitchenaid KFDD500ESS10: Internal Oven Parts

The Rack is an OEM part for Whirlpool wall ovens. It provides a durable surface for baking and cooking food items. These racks are engineered to maximize capacity while withstanding high heat.

Causes of a bad rack include standard wear and tear from regular cleaning cycles in addition to exposure to grease buildup despite cleaning. Racks support significant weight loads during cooking cycles.

Symptoms of a bad rack include:

• Visible bends, cracks, or detachment of rack elements
• Lack of support leads to spilled/dropped food safety concerns
• Food or debris lodged in rack imperfections promotes residue buildup
• Compromised rack integrity reduces usable oven space for cooking

This Whirlpool OEM replacement rack directly fits the original location and restores full cooking functionality. Models also include Maytag, KitchenAid, Jenn-Air, and select Kenmore ovens for lasting performance.

The Range Fan Motor is an OEM component specifically designed for Whirlpool electric ranges. It powers the convection ventilation system that removes smoke, steam, and odors from the cooktop and oven. The motor circulates air evenly to enhance cooking performance.

Causes of a bad fan motor can include heat damage accumulated over time. General wear from powering the ventilation system daily also contributes to internal degradation. Improper cleaning allowing moisture poses another failure risk.

Symptoms of a bad fan motor include:

• Vibration or grinding noises from within the fan housing
• Reduced or erratic air movement across the range
• Failure to engage or turn on as intended
• Thermal overload or burnt smells from motor overheating

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This retaining nut secures components on compatible Whirlpool appliances to restore proper fastening and reduce looseness. A simple replacement for stripped or missing nuts that helps stop rattling and keeps parts held in place. What it does:

• Threads onto matching bolts or studs to fasten panels, brackets, or assemblies
• Restores tight connections that can cause vibration, noise, or looseness when worn or missing
• Commonly used where a small, serviceable nut is required for secure assembly
• Helps prevent components from coming detached during normal use

• Disconnect power and follow appliance-specific safety procedures before servicing
• Use the correct size wrench or socket; start threads by hand to avoid cross-threading
• Tighten securely but avoid overtightening to prevent damage to studs or mating parts
• If threads are damaged, replace the mating stud or fastener as needed

This replacement screw fastens appliance panels and small internal components to restore secure mounting and reduce rattling or movement. It's a direct-replacement style fastener used where factory screws have become missing, worn, or damaged. What it does:

• Secures panels, brackets and accessory parts in their original mounting locations.
• Restores proper fit to reduce vibration, rattling or loose covers.
• Replaces stripped, rusted, or missing screws that prevent proper alignment.
• Small, low-profile fastener intended for factory thread and hole sizes.

• Disconnect power and water before starting repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug; avoid over-tightening to prevent thread damage.
• Keep small parts away from children and pets during installation.

This is an oven rack that is made for use on an range. The oven rack is inserted into the oven and there is likely more than one per unit. It creates a stable place to place ovenware for baking inside of the oven. They function similarly to shelves.If the oven rack begins to rust, it will need to be replaced. These can also sustain damage if they experience forceful impact with a heavy object. Over time, they may deteriorate and need to be replaced. Some people may wish to wear work gloves to protect their hands during the replacement process as these can become very dirty. It is essential to let the original oven rack cool completely before removing it from the oven for replacement. This part is sold individually and is sourced straight from the manufacturer. This particular oven rack is compatible with ranges that are manufactured by the KitchenAid and Maytag brands.

This broil element replaces the upper heating element in electric ovens to restore broiling and top-heat cooking performance. It provides the heating surface used for browning, searing, and finishing dishes under the oven broiler. What it does

• Replaces a damaged or burned-out upper broil element to restore broiling heat
• Heats from the top of the oven for browning, melting, and finishing foods
• Common symptom: broiler cycles but fails to heat, produces no or weak top heat
• Also used when the element shows visible damage, breaks, or sparks

• One upper broil element

• Disconnect power to the appliance before starting—verify power is off at the breaker
• Allow the oven to cool completely and handle the element by insulated areas only
• Remove the oven racks and access the element mounting screws/terminals; support the element when disconnecting wiring
• Test fit and power up briefly to confirm operation after installation

This replacement heat shield protects the oven cavity and nearby components from extreme heat, helping prevent damage to wiring and surrounding parts for safer, more reliable oven operation. What it does:

• Deflects and dissipates radiant heat away from sensitive components and insulation
• Prevents heat-related damage to wiring, control housings, and nearby panels
• Helps maintain proper oven airflow and temperature distribution when installed correctly
• Common symptoms of a failed shield include scorched or melted insulation, visible warping, or a persistent burning smell

• One heat shield

• Disconnect power (and gas, if applicable) before starting any repair
• Handle carefully—edges may be sharp; wear gloves and eye protection
• Inspect mounting tabs and fasteners and replace any damaged hardware
• If you discover additional damage (wiring, insulation, panels), replace those parts as needed

The Broiler Element is an OEM part for Whirlpool ranges. It serves as the heating element responsible for the broiler function used to finish cooking and browning foods under direct heat. The broiler element allows for two-sided infrared cooking above the oven cavity.

Causes of a bad broiler element can include cracks in the ceramic coils after prolonged heating cycles, corrosion of heating coils from spills or steam, or loose or damaged connections to the power supply.

Symptoms of a bad broiler element include:

• Inadequate or unstable heating from the broiler
• The broiler failing to reach desired temperatures
• "Burning" smell or smoke during broiling

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air and select Kenmore oven models.

This bake element replaces the oven's lower heating element to restore reliable baking and roasting performance. It provides the heating surface that warms the oven cavity for even cooking. What it does:

• Heats the oven cavity from the bottom for baking and roasting
• Restores proper oven temperature when the original element is burnt out or visibly damaged
• Helps eliminate cold spots and uneven baking caused by a failed element
• Works with the oven's control system to reach and maintain set temperatures

• One bake (lower) oven heating element

• Disconnect power to the appliance at the breaker or unplug before starting work
• Handle the element and terminal connections carefully to avoid bending or breaking
• Verify correct fit and secure electrical connections; restore power and test the element before reassembling panels

This replacement oven rack restores a stable cooking surface for cookware and bakeware, letting trays and pans sit securely while you bake or roast. It provides a durable, slotted surface that slides into factory rack supports. What it does:

• Holds cookware and bakeware securely on oven rack supports
• Slides smoothly for easy loading and unloading of pans and trays
• Restores proper rack positioning when an original rack is bent, warped, or missing
• Helps prevent tipping by providing a level, stable surface for dishes

• Allow the oven to cool and disconnect power before handling or installing the rack.
• Position the rack with the rolled front edge facing forward and slide into the desired oven support level.
• Do not force the rack; if it binds, remove and reseat on the support rails.

The RESERVOIR STEAM RACK is an OEM part specifically designed for Whirlpool ranges. This steam rack reservoir serves as a key component, allowing moisture to be released into the oven during cooking to maintain optimal moisture levels and improve food texture.

A damaged or malfunctioning steam rack reservoir can compromise the oven's ability to regulate moisture effectively. Causes of a faulty reservoir might include cracks, wear, or damage due to prolonged use or exposure to high temperatures.

Symptoms of a defective RESERVOIR STEAM RACK may include:

• Inability to maintain proper moisture levels during cooking
• Visible signs of damage or wear on the reservoir
• Reduced performance in food texture or moisture retention while cooking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.
