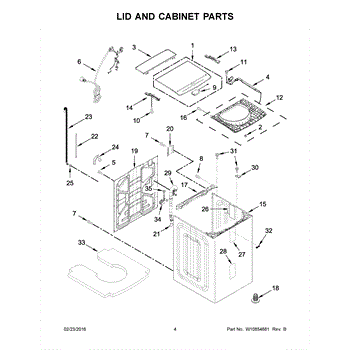

Parts for Whirlpool WTW9500EC0: 03 - Lid And Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This wire harness routes power and signals between the appliance control and internal components, restoring reliable electrical connections for proper operation. Use it to replace a damaged or corroded harness that causes intermittent or complete component failure. What it does:

• Carries power and control signals between the control board and motors, switches, sensors, or valves
• Restores secure connector-to-connector connections when original wiring is frayed, broken, or burned
• Helps resolve symptoms such as no power to components, intermittent operation, or specific component failures
• Prevents shorts or arcing from damaged insulation or loose terminals

• Disconnect power (unplug or shut off breaker) before starting any repair
• Handle connectors carefully; align terminals and push until they click to ensure full engagement
• Route harness along original clips and channels; avoid sharp edges and heat sources
• If terminals are corroded or pins are bent, replace harness rather than attempting repairs

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Speaker is an OEM component specifically designed for Whirlpool brand washers. It alerts users with chime tones or voice prompts during cycle operation or any error states. Precise acoustic engineering allows for clear audio reception even amid operating vibrations.

Symptoms of a bad speaker include:

• No audio tones or voice prompts were heard
• Muffled, distorted, or unusually loud sounds
• Speaker making rattling or buzzing noises

Causes can be damage from water damage, defects in the audio circuitry, or aging components.

This speaker ensures optimal user communication. Without it, you cannot verify cycle progress or troubleshoot issues. Its dependable performance maintains the washer's convenience.

This Whirlpool OEM part fits perfectly while extending the equipment's lifespan. It is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Color: Chrome Shadow


Color: White


This leveling foot threads into the appliance base to fine-tune height and keep the unit stable and level. Replacing a worn foot helps stop wobble, vibration, and noise for safer, smoother operation.

• Provides corner support and height adjustment for accurate leveling
• Helps reduce rocking, rattling, or "walking" during use
• Can improve door alignment and sealing on an unlevel unit
• Replaces cracked, stripped, or missing leveling foot

• Disconnect power and, if applicable, shut off water or gas before servicing
• Protect flooring; carefully tip or brace the unit to access the foot
• Unthread the damaged foot and thread in the new one by hand; adjust to level
• Use a level to tighten any lock nut if present

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This wire shield is a molded protective cover that helps keep wiring routed and protected from heat, abrasion and moving parts. It prevents chafing and reduces the risk of shorts for a safer appliance operation. What it does:

• Covers and routes wiring to protect insulation from heat and friction
• Prevents wires from contacting sharp edges or moving components
• Helps stop intermittent shorts, arcing, or wiring damage that can cause odor or failures
• Maintains proper wire position to support consistent electrical connections

• One wire shield

• Disconnect power to the appliance before beginning any work
• Secure with existing clips or fasteners; do not force or modify the part
• If wiring insulation is melted or damaged, replace wiring/harness before reassembly

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

A U-bend retainer designed to secure a U-shaped heating element or tubing in place, preventing movement and vibration for reliable operation. Fits as the replacement hold-down clip used on compatible Whirlpool HVAC and appliance assemblies. What it does:

• Secures U-shaped element or tubing to the appliance frame or mounting bracket
• Prevents rubbing or vibration that can lead to wear or noisy operation
• Helps maintain proper spacing and alignment of the element for consistent performance
• Used where a compact, U-shaped clamp is required to hold components safely

• One U-bend retainer clip as shown

• Inspect the surrounding area and replaced part for damage before installing
• Use basic hand tools; align clip over the U-bend and fasten to the designated mounting point
• Disconnect power and allow components to cool before attempting repair
• Replace with the exact OEM fasteners

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Sound Shield is an OEM replacement part for Whirlpool washers. It is a sheet metal panel installed behind the tub that helps reduce noise and vibration during spin cycles. With absorptive insulation, the sound shield dampens noise produced internally.

Symptoms of a damaged sound shield include:

• Excessively loud operation, especially during high-speed spins
• Rattles, clanks, or resonant noises from inside the washer
• Potentially weakened structure allowing tub movement
• Causes of a damaged sound shield can include tears or dents sustained over many high-speed spin cycles. Constant vibration may cause stress cracks or loose rivets.

 It is also compatible with some  Whirlpool, Maytag, Amana, and Kenmore brands.

The Absorber is an OEM part for Whirlpool washing machines. It plays a role in minimizing vibrations and noise during operation by damping the mechanical movements within the machine.

Causes of a bad Absorber can include the natural wear and tear from continuous use, degradation due to exposure to harsh chemicals or extreme temperatures, and mechanical failure from excessive loads or unbalanced cycles.

Symptoms of a bad Absorber include:

• Increased vibration or shaking during operation.
• Unusual noises like thumping or banging during the spin cycle.
• The washing machine moving excessively or "walking" across the floor.
• Uneven wear and tear on other washing machine components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This sound absorber is an OEM-style insulation pad designed to reduce washer cabinet noise and rattling for a quieter cycle. It mounts inside the appliance cabinet to help dampen vibration and airborne sound. What it does:

• Dampens vibration and reduces cabinet noise during spin and agitation
• Helps minimize rattling from internal components for a quieter operation
• Supports stable operation by providing a cushioned barrier between parts and the cabinet
• Commonly replaced when padding is torn, missing, or compressed

• One sound absorber insulation pad

• Disconnect power and water supply before starting any repair
• Access may require removing outer cabinet or panels; follow your model's service manual
• Use proper fasteners and placement as shown in OEM diagram; avoid altering material

The Hose is an OEM part for Whirlpool washing machines. This hose connects the drain pump to the outer drain hose, allowing water to empty from the washer.

Flexible yet durable, the drain hose withstands pressure during spin cycles without risk of bursting or kinking. Consistent drainage is vital for fully removing water after each cycle.

Causes of a bad hose can include cracks from extended use, mineral or soap buildup restricting flow, or stressed connections that have weakened over time.

Symptoms of a bad drain hose include:

• Incomplete drainage of water at the end of cycles
• Puddles or leaks near the pump or drain area
• Sloshing sounds of retained water inside the machine
• Enlarged hose diameter from constant pressure

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small tension spring restores the return force in the top lock mechanism so it latches securely and releases smoothly. Replacing a fatigued spring helps the lock operate consistently and keeps the panel/top properly secured.

• Provides the return/tension force for the lock lever or arm
• Helps the lock engage fully and stay secured under vibration
• Restores proper latch feel and consistent lock/unlock action
• Common signs include a loose/floppy lock, poor engagement, or the lock not returning to position

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Note the spring's routing/orientation before removal
• Use needle-nose pliers; mind sharp edges and pinch points
• After installation, manually check lock movement for smooth travel

Screw: 8-16 x 3/8 inch.

This factory fastener secures appliance panels and components for a tight, rattle-free fit. Replace a missing, stripped, or corroded screw to keep assemblies aligned and performing as intended.

• Fastens panels, brackets, or assemblies in place
• Helps reduce vibration and rattling caused by loose hardware
• Maintains proper alignment of parts to prevent premature wear
• Common signs you need it: missing screw, loose panel, vibration/buzzing noises, or hardware that won't tighten

• Disconnect power; for gas or water-connected appliances, shut off supply lines before service
• Match the screw to the original; verify size, length, and thread before installation
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug only—do not overtighten, especially into plastic or thin sheet metal
