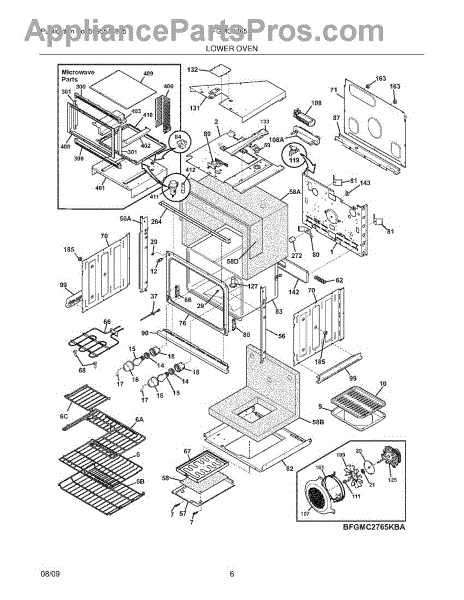

Parts for Frigidaire FGMC2765KWA: 07 - Lower Oven Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement cover restores a clean, secure fit over an opening on your appliance, helping shield internal components from dust, moisture, and debris. Replace a damaged or missing cover to maintain proper protection and appearance. What it does:

• Shields internal parts from grease, dust, and debris intrusion
• Helps maintain proper airflow and component protection as designed
• Reduces vibration or rattling from loose or broken panels
• Restores a finished, factory look when the original is cracked or missing

• 1 cover

• Disconnect power to the appliance before servicing
• Note fastener locations and orientation for correct reinstallation
• Reuse original screws/clips unless your unit specifies otherwise
• Use gloves and caution—panel edges and surrounding metal can be sharp

This bushing guides and supports a rotating shaft to reduce wear and keep moving parts aligned, restoring smooth, quiet operation. Fits specific Frigidaire appliances—use the OEM part number to fit for your model. What it does

• Supports a rotating shaft or drum to prevent metal-on-metal contact
• Reduces friction and wear that can cause squeaks, grinding, or rough rotation
• Helps maintain proper alignment for consistent appliance performance
• Commonly replaces worn or damaged bushings that allow excessive play

• Disconnect power before servicing and access the affected assembly per your model's service manual
• Remove the worn bushing and any debris; press or tap the new bushing into place squarely
• Inspect mating shaft/surface for scoring or wear; replace or repair if damaged
• Use only OEM-recommended lubricants if specified by the manufacturer; do not assume grease is required

This replacement electrical wire restores a damaged or faulty connection in compatible Frigidaire appliances, helping re-establish reliable power or signals to components. Use it when wiring is cracked, melted, or showing corrosion. What it does:

• Replaces a worn or damaged single conductor wire used in internal appliance circuits
• Restores continuity to fix intermittent power, component failure, or nonfunctional controls
• Prevents shorts caused by exposed or frayed insulation when installed correctly
• Matches OEM routing and connection points when used with the original harness and terminals

• Disconnect power before inspecting or replacing any internal wiring
• Verify wire routing and terminal fit with the original part; secure with appropriate connectors or clips
• Do not splice with incompatible gauge or insulation types; follow appliance wiring diagrams

This support assembly secures and stabilizes an appliance component to the cabinet or frame, restoring proper alignment and reducing vibration. Ideal when a broken or worn support causes movement or instability of the affected area. What it does:

• Provides structural mounting to keep panels, controls, or other components properly aligned.
• Reduces vibration, rattling, or visible sagging caused by a failed or loose support.
• Restores reliable attachment after damage, deformation, or worn mounting points.
• Matches OEM diagram locating for direct-replacement fit when replacing the faulty part.

• Disconnect power and unplug the appliance before starting any repair.
• Follow the OEM diagram for correct placement and fastener locations.
• Use appropriate hand tools and wear gloves to avoid sharp edges; inspect surrounding mounting hardware and replace if damaged.

The Turntable Tray is an OEM part for Frigidaire microwaves. It sits inside the microwave and rotates food to ensure even cooking and heating. Made of durable glass, this tray is designed to withstand high temperatures and the repetitive motion of the microwave's turntable motor.

Damage can occur due to accidental drops, placing heavy items on the tray, or thermal stress from repeated heating cycles.

Symptoms of a bad turntable tray include:

• Cracks or chips on the glass surface
• Unstable or wobbling movement during operation
• Inability to rotate smoothly
• Food not heating evenly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement appliance label provides the factory identification and safety information fastened to the appliance so you can read model/serial and safety/warning text clearly. It restores legible markings for servicing and ownership records. What it does

• Shows the appliance identification, model/serial or rating area and factory safety/warning text so technicians and owners can service data.
• Helps ensure required safety and operating instructions remain visible and readable.
• Replaces a torn, faded, or missing label that can make identification and troubleshooting harder.
• Supports accurate parts ordering and service by restoring the original markings.

• One replacement label

• Peel-and-stick replacement; clean and dry the surface thoroughly before applying.
• Align carefully and press from one edge to the other to avoid bubbles; firm pressure ensures adhesion.
• Do not stretch or trim the label unless explicitly specified by the equipment instructions.
• For safety, disconnect power or follow manufacturer safety precautions before working near electrical components.

This is a replacement screw used to secure appliance components and panels so assemblies stay stable and aligned. It provides a straightforward fix when a mounting fastener is missing, stripped, or damaged. What it does

• Secures panels, brackets, or trim to prevent movement and vibration
• Stops rattling or loose parts caused by missing or damaged screws
• Restores proper fit and alignment of the affected assembly
• Works wherever the OEM-designated screw of this size and thread is required

• Turn power off or unplug the appliance before working on electrical areas
• Use the proper-size driver to avoid stripping the head
• Start threads by hand, then tighten until snug — do not overtighten
• If the original screw is corroded or the hole is damaged, inspect mating parts for repair before installing

This motor drives the fan or mechanism in your cooking appliance to move air as designed. Replacing a worn or seized motor restores proper airflow and quieter operation for consistent baking, cooling, or venting performance, depending on model.

• Powers the appliance's fan or drive to circulate air or move exhaust
• Helps maintain even temperatures or ventilation during operation
• Replaces a noisy, slow, or non-spinning motor
• Common signs: fan won't run, weak airflow, humming/grinding noise, overheating, or a tripped breaker

• Disconnect power at the breaker; shut off gas supply for gas models
• Access location varies by model; remove the necessary panels to reach the motor
• Note wiring and rotation; transfer any brackets, grommets, or the fan blade from the original, if required
• After installation, verify smooth, quiet operation and correct airflow

This mounting bracket secures appliance components in place to restore stable operation and alignment. It's a simple, durable replacement that helps prevent loose parts and rattling for safer, quieter performance. What it does:

• Provides structural support for internal components and assemblies
• Holds panels, modules or hardware in correct alignment to prevent movement
• Helps eliminate rattling, vibration noise, or loose-fitting parts
• Restores proper fit where a worn or broken bracket allowed misalignment

• Turn off power to the appliance and unplug before beginning work
• Remove only the panels or fasteners necessary to access the old bracket
• Reuse original fasteners or replace with equivalent-size hardware; tighten securely

Evaporator fan motor that circulates cold air over the evaporator coil to help maintain even refrigerator temperatures. Replacing a failing motor restores airflow, reduces warm spots and frost buildup, and cuts down on excessive fan noise. What it does:

• Spins the evaporator fan blade to move cold air through the evaporator and into the cabinet.
• Promotes even cooling to prevent warm zones and food spoilage.
• Stops or reduces abnormal noises caused by a worn or seized motor.
• Helps prevent frost accumulation linked to poor airflow.

• Disconnect power to the appliance before beginning any repair.
• Handle the motor and fan blade carefully; ensure the fan blade is seated properly on the shaft.
• Remove evaporator/fan housing panels and retain screws and clips for reassembly; verify wiring connectors match before reconnecting.

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

This thermal switch is a temperature-sensitive safety device used in many ranges and wall ovens. It opens or closes an electrical circuit at a set temperature to protect internal components and help maintain safe operation. What it does:

• Monitors temperature and opens/closes a circuit at a specified threshold
• Protects the appliance from overheat conditions
• Cuts power to heating circuits or controls a cooling/vent fan, depending on model
• Common symptoms of failure include: oven or certain functions won't run, unit shuts off mid-cycle, or operation returns only after cooling

• 1 thermal switch

• Disconnect power at the breaker before servicing
• Access location varies by model
• Move wires over one at a time to the new switch and secure it firmly to its mounting surface
• After replacement, verify proper airflow and cooling to prevent repeat overheating

The Convection Fan Motor Kit is an OEM replacement part for Frigidaire ovens. This kit includes the motor responsible for driving the convection fan, which circulates hot air within the oven cavity to ensure even cooking and consistent temperatures during convection baking or roasting.

Over time, causes of a bad convection fan motor can include electrical wear, overheating due to heavy use, or damage from grease or debris buildup. Additionally, worn-out bearings in the motor can impair its performance.

Symptoms of a bad convection fan motor include:

• The fan not spinning or operating inconsistently
• Uneven cooking results in convection mode
• Strange noises such as rattling or grinding during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Note: Convection fan motor 5304467898 replaces earlier fan motors with a cooling blade. The fan motor doesn't include the cooling blade as it is no longer required.

Bake element restores oven heat by producing the radiant heat needed for baking and roasting. Replacing a worn or damaged bake element helps the oven reach and maintain set temperatures for more consistent cooking results. What it does:

• Heats the oven cavity to provide direct radiant heat for baking and roasting.
• Use when the element shows visible breaks, blistering, or does not glow when the oven is set to high.
• Common symptom indicators: oven won't reach set temperature, uneven baking, or longer-than-normal cook times.
• Works as a direct replacement for the oven's lower/bake heating element.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Allow the oven to cool completely and wear gloves to avoid sharp edges.
• Match the part to your model and terminal layout before installing; tighten connections securely.

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

This fuse and fuse holder assembly replaces the appliance's inline protective fuse and its mounting holder to restore proper overcurrent protection and reliable electrical connection. Use this part when a blown fuse or damaged holder interrupts power. What it does

• Protects appliance circuits by interrupting power when a fault or surge occurs
• Provides a secure, replaceable mounting point for the protective fuse
• Commonly associated with symptoms like no power, intermittent power loss, or an appliance that won't start
• Restores a safe electrical path when the original fuse or holder is damaged or corroded

• One fuse and one matching fuse holder

• Disconnect power to the appliance before inspecting or replacing the fuse and holder
• Verify the replacement matches the original fuse type and holder configuration before installation
• Inspect wiring and connectors for heat damage; replace damaged wiring or connectors as needed

This fuse and fuse holder assembly replaces the appliance's inline protective fuse and its mounting holder to restore proper overcurrent protection and reliable electrical connection. Use this part when a blown fuse or damaged holder interrupts power. What it does

• Protects appliance circuits by interrupting power when a fault or surge occurs
• Provides a secure, replaceable mounting point for the protective fuse
• Commonly associated with symptoms like no power, intermittent power loss, or an appliance that won't start
• Restores a safe electrical path when the original fuse or holder is damaged or corroded

• One fuse and one matching fuse holder

• Disconnect power to the appliance before inspecting or replacing the fuse and holder
• Verify the replacement matches the original fuse type and holder configuration before installation
• Inspect wiring and connectors for heat damage; replace damaged wiring or connectors as needed

Specs: 8 x 0.750

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This appliance screw fastens panels, brackets, and other components inside the unit. Replace a missing, rusty, or stripped fastener to restore a secure fit and help prevent rattles, misalignment, or premature wear.

• Secures appliance components such as panels, brackets, and covers
• Restores proper fit when an original screw is missing or stripped
• Helps reduce vibration and noise from loose parts
• Common signs: loose or misaligned parts, rattling, or a missing screw

• Disconnect power before servicing
• Match the new screw to the original for size and thread before installing
• Hand-start threads to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if they were used with the old screw

This spacer sets the correct gap between mating parts in your appliance's assembly, preventing rubbing and misalignment. Replace a missing or worn spacer to restore a solid fit, reduce noise, and protect surrounding components.

• Maintains proper spacing between components for correct alignment and operation
• Reduces metal-to-metal contact, squeaks, and premature wear
• Helps fasteners and panels seat securely
• Typical symptoms when failed: loose or rattling parts, uneven gaps, or visible wear marks

• Disconnect power; for gas models, shut off the gas. Allow the appliance to cool completely.
• Access the assembly per your model's diagram; note the original orientation/stack-up before removal.
• Reuse original fasteners if serviceable; hand-start threads and tighten snugly to avoid damaging the spacer.
• Verify alignment and clearances before fully reassembling. Quantity and location vary by model.

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
