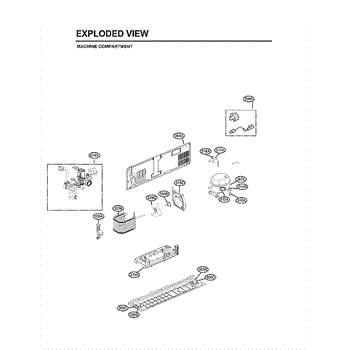

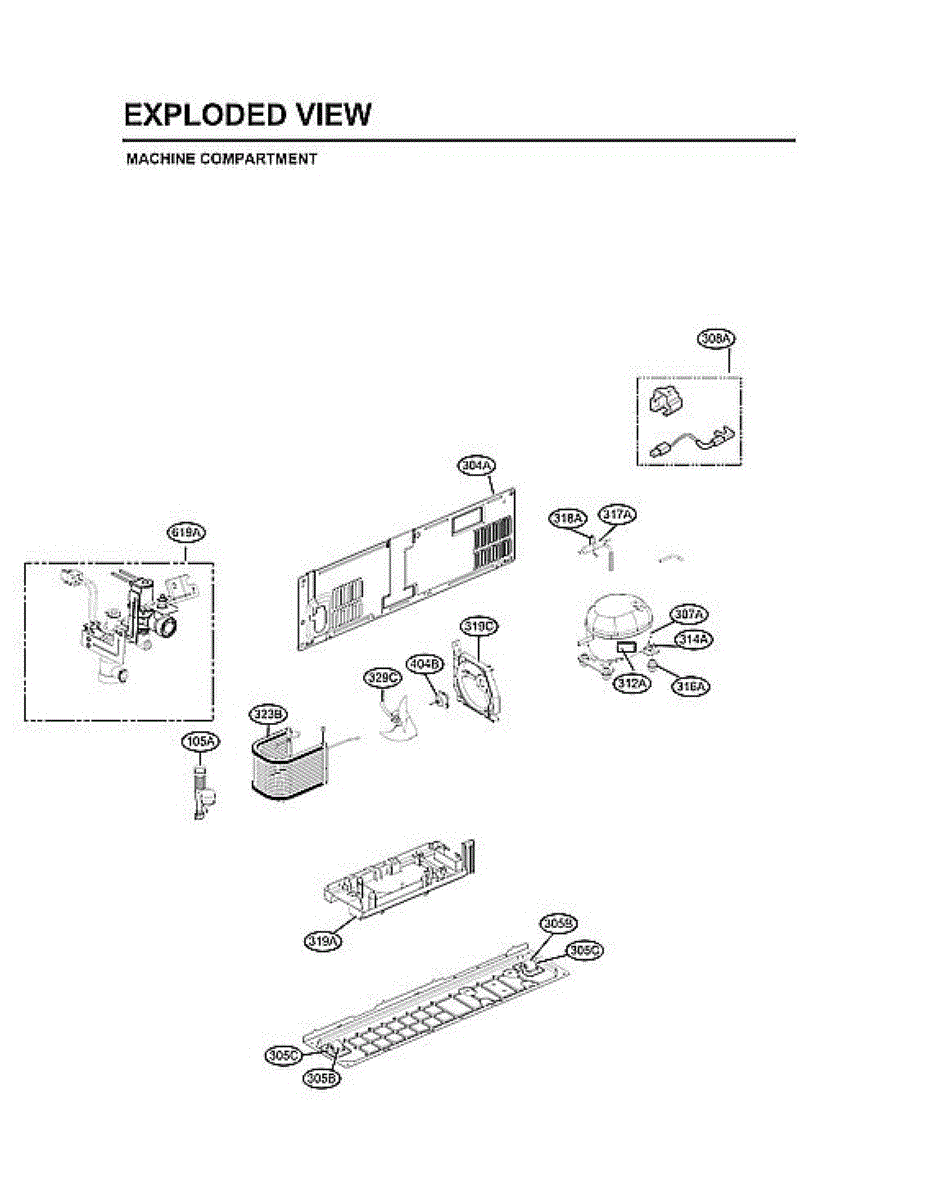

Parts for Lg LRSOC2306S/00: Machine Compartment Parts

This drain tube assembly routes and removes wash water from the tub to the drain system, helping prevent water buildup and allowing normal drain cycles. It replaces worn or damaged drain tubing for reliable water flow. What it does:

• Channels discharged water from the washer tub to the household drain
• Prevents leaks and water pooling caused by cracked, split, or collapsed tubing
• Supports normal draining and pump operation by maintaining a clear path for flow
• Helps reduce the chance of odor or mildew from standing water in the drain line

• Disconnect power and shut off water supply before starting any repair
• Secure with existing or new clamps to prevent kinks and leaks
• Inspect adjoining hoses, fittings, and the pump outlet; replace damaged components as needed
• After installation, run a short drain cycle to check for leaks and proper flow

The Link is an OEM part for LG refrigerators. It serves as an integral connector between the refrigerator door and cabinet, facilitating smooth opening and closing of the door. With durable construction and precise engineering, the link is designed to withstand the rigorous motion of hundreds of door openings without compromising functionality.

Symptoms of a bad link include:

• Doors that do not close or seal properly
• Excessive noise or vibration from the door area
• Damage, bending, or breakage of the connecting pieces
• Misalignment impairing proper door operation

Causes can stem from normal wear and tear over many years of use. Replacing a faulty link restores the refrigerator door's designed motion for convenient access to the interior.

This OEM LG part fits seamlessly while extending the product's useful life. This part is also compatible with Kenmore models featuring LG's refrigerator link assembly design.

This duct assembly routes airflow inside the appliance to restore proper ventilation and performance. It replaces a damaged, crushed, or disconnected duct to help reduce restricted airflow and related operation issues. What it does:

• Channels air through the appliance's ventilation path to maintain correct airflow
• Helps resolve symptoms caused by restricted or misdirected airflow, such as reduced drying/venting performance or overheating warnings
• Replaces ducts that are cracked, collapsed, or disconnected and may cause unusual noises or airflow loss
• Works as the internal airflow connector between housing components

• One duct assembly

• Disconnect power (and gas if applicable) before beginning any service
• Handle edges carefully; use gloves to avoid cuts from sheet metal
• Secure all clamps/fasteners; check seals and clearances before returning the appliance to service

This ice bucket assembly collects and stores ice from the refrigerator ice maker, keeping ice contained and ready for dispensing or removal. Replaces a cracked, warped, or damaged ice bucket to restore normal ice storage and handling. What it does:

• Holds ice produced by the refrigerator ice maker so cubes stay contained and accessible
• Guides ice toward the dispenser or allows manual removal from the freezer compartment
• Restores proper fit and alignment when a broken or cracked bucket causes jamming or leaks
• Reduces spillage and helps keep surrounding compartment surfaces cleaner

• One ice bucket assembly

• Disconnect power to the appliance before starting and follow basic electrical safety
• Remove any ice and open the freezer/compartment access to clear space for replacement
• Slide the old bucket out along its guides, then seat the new bucket so it aligns with the tracks and ice maker output
• Reconnect power and run one or two cycles to ensure proper ice delivery and fit

This ice bucket assembly holds and stores ice made by the refrigerator's icemaker, providing a removable container for convenient access and clean storage. Designed to replace a cracked, warped, or damaged ice bucket to restore proper ice handling. What it does:

• Collects and contains ice produced by the icemaker.
• Guides ice toward the dispenser or auger so ice can be retrieved or dispensed.
• Prevents ice from spilling into the freezer compartment.
• Restores proper fit and alignment when an old bucket is cracked, broken, or missing.

• One ice bucket assembly.

• Unplug the refrigerator or disconnect power before servicing to prevent injury.
• Remove the old bucket by sliding it out of the freezer shelf/compartment per your model's procedure; install the replacement by seating it until it clicks or aligns.
• Handle the bucket carefully to avoid cracking plastic tabs; do not force parts that resist.

This drawer tray assembly replaces a cracked, broken or missing inner refrigerator drawer to restore storage and containment for produce and other foods. It fits the refrigerator's lower compartment and keeps items organized and supported. What it does:

• Replaces a damaged or missing drawer that no longer slides, seals, or holds items securely
• Restores proper food containment and helps prevent items from falling onto lower shelves
• Stops cracks or breaks from catching or spilling contents when the drawer is opened
• Works with existing drawer rails and supports to provide smooth in-and-out operation

• Unplug the appliance or shut off power before attempting repairs to avoid electric shock
• Remove contents and existing damaged drawer; inspect slides and rails for wear before installing the new tray
• Align the tray with rails and slide fully into place; verify smooth operation and even seating
• If rails or stops are damaged, replace those components for proper fit and function

This replacement drawer tray assembly restores a broken or worn drawer surface so stored items sit securely and the drawer functions smoothly. Fits original mounting points to replace cracked, warped, or damaged trays. What it does:

• Provides a stable surface for storing produce and packaged foods
• Replaces cracked, split, or warped drawer trays that allow items to slide or fall
• Restores proper fit and alignment so the drawer opens and closes smoothly
• Helps prevent leaks or spills from reaching lower compartments when tray edges are intact

• Disconnect power and remove all items from the drawer before installing
• Lift out the old tray and align the replacement with the OEM mounting points; slide into place until it seats
• Avoid forcing the tray; if resistance occurs, check for obstructions or damaged rails

This refrigerator shelf assembly replaces a damaged or missing shelf to restore storage space and stable support for food and containers. It fits into existing shelf rails and gives a flat, easy-to-clean surface for everyday use. What it does:

• Provides a stable, level surface for storing food and containers inside the fridge
• Replaces cracked, chipped, or missing shelves that cause items to tip or slide
• Helps restore original organization and usable space in fixed shelf positions
• Compatible with the fridge's existing shelf supports and rail system

• One refrigerator shelf assembly

• Disconnect power to the appliance before removing or installing shelves to avoid electrical hazards
• Remove items from adjacent shelves before replacement to prevent breakage
• Handle the shelf carefully—support edges when sliding into or out of rails to avoid chipping
• If shelf does not slide in smoothly, check for obstructions or damaged rails before forcing

This shelf assembly replaces a cracked, chipped or missing refrigerator shelf to restore usable storage space and stable support for food and containers. It provides a solid, level surface so items sit securely. What it does:

• Replaces broken or damaged shelving that no longer supports items safely
• Restores a flat, stable surface for storing plates, bowls, and containers
• Helps prevent spills by replacing warped or uneven shelving
• Matches OEM fit to slide or rest into existing shelf supports

• Remove all food from the shelf area before replacing the shelf
• Lift out the old shelf and carefully seat the new shelf into the existing supports
• Wear cut-resistant gloves when handling glass or sharp edges

A replacement TV cover assembly that restores the cabinet's fit and appearance while protecting internal components from dust and damage. Designed to match factory fit for a clean, finished look. What it does:

• Replaces cracked, broken or missing outer cabinet cover
• Secures and protects internal circuitry, boards, and wiring
• Restores proper fit and finish to reduce light leaks and loose panels
• Helps prevent debris and accidental contact with internal parts

• Disconnect the TV from power and any external devices before service.
• Handle the cover carefully to avoid scratching; use soft work surfaces.
• Removal/replacement typically requires removing screws and any attached brackets—retain fasteners for reassembly.

This ferrite magnet is a replacement magnetic element used in compatible appliance assemblies to help secure components and maintain proper alignment. It restores magnetic retention and reduces shifting or misalignment during operation. What it does:

• Provides magnetic retention for panels, assemblies or components that rely on ferrite magnets
• Helps maintain proper alignment and secure closure where magnets are used
• Can reduce noise and vibration related to loose magnetic components
• Useful when a brittle, cracked or weak magnet no longer holds parts in place

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Handle the magnet carefully; ferrite material is brittle and can chip or shatter if dropped or struck
• Keep magnets away from sensitive electronics and credit cards; avoid pinching fingers between strong magnets
• If the original magnet is bonded or embedded, some adhesive or light trim may be needed for proper fit.

This freezer door foam assembly replaces the insulating foam inside a freezer door to help restore proper door sealing and temperature stability. It's a direct-fit door insulation used when the existing foam is torn, flattened, or water-damaged. What it does:

• Replaces deteriorated or compressed foam that can allow cold air loss and frost buildup.
• Helps improve internal temperature consistency by restoring the door's insulating layer.
• Reduces strain on the compressor from excessive run time caused by poor insulation.
• Common symptoms this part can address: visible foam damage, persistent frost/ice on the door, or higher-than-normal freezer temperatures.

• High-level replacement — remove the door panel or inner liner to access and replace the foam.
• Handle carefully to avoid tearing the foam; ensure proper positioning before reassembling the panel.
• Disconnect power to the appliance before beginning work to avoid electrical hazards.
• If adhesive or clips are required, use OEM-specified materials or refer to the model's service instructions.

This replacement door gasket assembly restores the airtight seal around a refrigerator door to help maintain stable temperatures and reduce frost and moisture buildup. Use it to replace torn, warped, or leaking gaskets and improve sealing. What it does:

• Seals the refrigerator door to keep cold air in and warm air out.
• Helps reduce frost and moisture inside the compartment.
• Commonly replaced when the gasket is cracked, warped, compressed, or allows noticeable air leaks.
• Installing a good seal can help the appliance maintain set temperatures more consistently.

• Disconnect power and remove food/media from the door area before starting.
• Clean the door channel and gasket seating area to ensure proper adhesion/seating.
• Align the gasket evenly and engage all retaining tabs or adhesive per the original orientation.

This genuine replacement door stopper cushions and controls a hinged appliance door to prevent slamming and keep the door aligned for smooth opening and closing. Restores proper door motion and reduces stress on the hinge and seals. What it does:

• Acts as a buffer between the door and cabinet, slowing and softening door movement
• Helps keep the door properly aligned to improve sealing and reduce wear on hinges
• Commonly replaces worn or broken stoppers that cause the door to slam, stick, or hang unevenly
• Designed to match the original fit and mounting points for straightforward replacement

• One door stopper

• Disconnect power and/or empty the appliance door area before starting work
• Use basic hand tools; remove fasteners or trim as needed to access the stopper
• Compare the new stopper to the old part for orientation before installing
• Test door operation after installation and re-tighten any fasteners if needed

This door basket mounts to the inner door of your refrigerator to store bottles, jars, and condiments. Replace a cracked or missing bin to restore secure, organized door storage and keep items from shifting as the door moves.

• Attaches to the door liner to hold beverages, jars, and condiments
• Restores usable door storage when the original bin is cracked, warped, or missing
• Helps keep items upright and accessible during opening and closing
• Common symptoms: broken/cracked bin, loose fit, falls off, or won't stay seated

• Empty the old bin; lift up and out to remove. Align the new bin on the door tabs and press down until fully seated
• No tools typically required
• Handle plastic carefully; avoid forcing or over-flexing the bin
• After install, distribute weight evenly and avoid overloading

Restore a tight seal on your refrigerator door with this door gasket assembly. A fresh, flexible gasket helps keep cold air in and warm air out, maintaining proper temperatures and reducing frost and moisture around the door.

• Creates an airtight seal between the refrigerator door and cabinet to maintain consistent cooling
• Helps reduce condensation, frost, and warm spots near the door
• May help if the door won't close fully, the gasket is torn or warped, or temperatures fluctuate
• Magnetized edge engages the cabinet for a secure seal when the door is closed

• Unplug the refrigerator before beginning; wear cut-resistant gloves
• Soften the gasket in warm water or with gentle heat to ease installation and improve fit
• Remove the old gasket carefully, noting retainer/channel orientation; press new gasket fully into the track
• Check door alignment and perform a dollar-bill test around the perimeter to confirm a uniform seal

This is the door-mounted storage bin for your refrigerator. It replaces a cracked or missing basket and restores safe, organized space for bottles, jars, and condiments so items stay secure and easy to reach.

• Mounts to the inner door liner to hold bottles, jars, and small items
• Restores proper door storage when the original bin is cracked, warped, or missing
• Helps keep items upright and accessible during normal door use
• Common signs it's needed: cracks, broken tabs, bin falls off, or won't seat securely

• Disconnect power to the refrigerator before servicing
• Empty the old bin; lift it up to release from the door slots
• Align the new bin's tabs with the slots and press down until it locks in place
• Verify a secure fit before loading; avoid overloading per your owner's manual

The door basket is an OEM replacement part for LG refrigerators. This part is designed to provide storage space on the lower portion of your refrigerator door, allowing you to neatly organize and store various items such as condiments, jars, and bottles. It offers a sturdy and reliable storage solution, ensuring that your items are securely held in place while still being easily accessible.

A bad door shelf bin can occur due to wear and tear, cracks, or breakage. If you notice symptoms such as a loose or wobbly shelf bin, difficulty in keeping items in place, or missing or broken parts, it's time to replace the the worn-out or damaged lower door shelf bin with this genuine OEM part.

Symptoms of a bad door shelf bin include:

• Loose or wobbly shelf bin
• Difficulty in keeping items in place
• Missing or broken parts

This OEM LG part can also be used on Kenmore/Sears appliances.


This upper hinge assembly secures the top door to the cabinet and provides the pivot point needed for smooth, supported opening and closing. It restores proper door alignment and reduces rubbing or uneven gaps. What it does

• Provides a secure pivot and mounting point for the top refrigerator/freezer door.
• Keeps the door aligned to help maintain an even seal and proper closing.
• Reduces door sag, rubbing, or binding when opening and closing.
• Helps eliminate loose or noisy door movement caused by a worn hinge.

• Unplug the appliance or disconnect power before beginning work.
• Support or remove the door to prevent dropping; have a helper if needed.
• Basic hand tools required; follow OEM torque and alignment guidance—do not overtighten fasteners.
• Check door alignment and gasket seating after installation and adjust as needed.

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

The Compressor, Set Assembly is an OEM part for Whirlpool refrigerators. This assembly includes the compressor and additional modules required for proper operation, such as the condenser coil, filter drier, accumulator, and discharge line. Working together, these components circulate refrigerant through the fridge to maintain consistent internal cooling.

Causes of a bad compressor assembly can include leaks within the sealed system that allow refrigerant to escape over time. The compressor motor may also decline in performance or fail due to years of operation.

Symptoms of a failed compressor assembly include:

• Abnormal vibrations or loud noises from the rear of the fridge
• Inability to maintain proper internal fridge and freezer temperatures
• Refrigerant charge loss leading to inefficient or inadequate cooling

This OEM Whirlpool part is compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This holder secures the dryer-related assembly in place to reduce movement and wear, helping maintain proper alignment and quieter operation. It's a simple replacement that restores part stability in the appliance. What it does:

• Secures a dryer assembly or component to the appliance frame to prevent shifting
• Helps reduce vibration and rubbing noises caused by a loose part
• Maintains correct alignment so related parts operate smoothly
• Used when the existing holder is cracked, broken, or missing

• Disconnect power before replacing any dryer components to avoid shock or injury
• Access location and removal steps vary by model; follow the appliance's service manual or exploded view
• Keep fasteners and adjacent parts organized for reassembly; replace any damaged clips or screws

This fan guide directs airflow inside the appliance to improve cooling efficiency and protect the fan assembly. It replaces a worn or broken guide so the fan blades run without rubbing and airflow stays properly channeled. What it does:

• Channels air from the fan to the correct internal passageways for consistent cooling
• Keeps fan blades centered and prevents contact with surrounding components
• Helps reduce vibration and noise caused by a damaged or loose guide
• Common symptom: noisy fan, blade rubbing, or uneven cooling in the compartment

• One replacement fan guide

• Disconnect power before servicing to avoid shock or injury
• Remove access panels and the fan assembly to reach the guide
• Inspect adjacent fan blades and mounts for damage; replace any worn parts
• Reassemble panels and test operation before returning appliance to service

This condenser assembly wire harness routes power and signals to the refrigerator condenser and fan components, restoring proper condenser operation and improving cooling reliability. Replaces a damaged or disconnected condenser wiring assembly. What it does:

• Provides the electrical connection between the condenser, fan motor, and control components.
• Restores power and signal continuity to condenser components when wiring is frayed, burned, or broken.
• Helps eliminate intermittent condenser or fan failures and related cooling issues.
• Matches OEM connector types and routing for correct fit and function when installed.

• Disconnect power to the appliance before attempting any service to avoid shock or injury.
• Verify connectors and routing match the original harness; secure wiring away from moving parts and heat sources.
• Use proper tools and follow OEM service instructions.
• Inspect associated terminals and components for damage and replace as needed to ensure reliable operation.

This fan assembly circulates air within the appliance to maintain steady temperatures and efficient cooling. Replacing a worn or noisy unit restores proper airflow, reduces hot or cold spots, and helps protect other components. What it does:

• Moves air through the appliance and across cooling components for even temperature distribution
• Helps remove heat and moisture as designed for efficient operation
• Replaces a seized, slow, intermittent, or noisy fan/motor assembly
• Common symptoms include weak or no airflow, temperature fluctuations, or abnormal humming/rattling sounds from the fan area

• 1 fan assembly

• Disconnect power before servicing; allow any iced or brittle plastic areas to warm/defrost
• Remove access panels/ducts as needed; note wire routing and take photos for reference
• Transfer any reusable brackets, grommets, or screws from the original assembly
• Ensure the blade spins freely and wiring is clear of the fan path before reassembly and testing

The Evaporator Fan Blade is an OEM replacement part for LG refrigerators. It is a key component located inside the refrigerator that works to circulate cold air evenly throughout. The fan blade spins rapidly to distribute chilled air from the evaporator coil and refrigeration system, ensuring proper airflow and consistent temperatures across all shelves and compartments.

Symptoms of a bad evaporator fan blade include:

• Inconsistent or improper interior cooling temperatures
• Hot or warm spots developing inside the refrigerator
• Strange noises such as clicking or grinding emanating from the rear wall

Causes of a bad evaporator fan blade can be wear and tear over time, an accumulation of dust or debris on the blades restricting airflow, or accidental damage like dents or cracks to the blades affecting their ability to spin smoothly.

This OEM LG part is also compatible with select Sears/Kenmore brand models.

The SWITCH, MAGNET is an OEM part for LG refrigerators. It is a switch designed to function in conjunction with the magnetic door seal, indicating to the refrigerator when the door is open or closed. This allows the refrigerator to regulate temperatures properly based on door positioning.

Symptoms of a bad switch, magnet can include:

•  Temperature control issues, with the fridge struggling to maintain proper coolness levels
•  The fridge fails to switch to energy-saving modes when the door is closed
•  Lights not turning on or off correctly when the door is opened or closed

Replace yours today with this genuine OEM LG part to ensure consistent and reliable temperature control. This OEM LG part is also compatible with Sears/Kenmore.

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

This DC motor assembly powers the appliance's drum/drive system, restoring rotation and normal operation when the original motor fails. Designed as a direct replacement to bring back reliable starting and consistent spinning. What it does

• Replaces a failed DC drive motor to restore drum or drum-driven movement
• Stops symptoms like no start, intermittent spinning, or a humming motor
• Helps eliminate grinding, unusual noises, or sudden stops caused by motor failure
• Works with the appliance's existing wiring and mounting points when compatible

• Disconnect power before attempting any repair to avoid electric shock.
• Handle the motor carefully; avoid pulling on wires or connectors.

The Fan Motor Assembly is an OEM part for LG refrigerators. It is responsible for circulating air throughout the refrigerator and freezer compartments to maintain consistent temperatures. By ensuring proper airflow, the fan motor helps to keep your food fresh and evenly cooled.

Over time, fan motors can wear out or become damaged due to factors such as dust buildup, electrical issues, or general wear and tear from continuous use. A faulty fan motor can lead to uneven cooling, increased energy consumption, and potential spoilage of food.

Symptoms of a bad fan motor include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures in the fridge or freezer
• The refrigerator running constantly or cycling on and off frequently
• Frost buildup in the freezer section

This OEM LG part is also compatible with Sears/Kenmore.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

This main control board is the appliance's primary power and logic module, restoring control over cycles, power distribution and user commands when the original board fails. Use it to replace a faulty control/PCB assembly and regain normal operation. What it does:

• Manages power distribution and core control signals to motors, heaters and valves
• Interprets user inputs and runs the appliance's cycle logic
• Communicates status and error conditions to the user interface
• Common symptom match: appliance won't power on, won't start cycles, or shows intermittent/no control response
• Resolves intermittent operation, unexplained shutdowns or erratic cycle behavior when caused by a failed control board

• One main control board assembly

• Disconnect all power before starting work to avoid shock or damage
• Handle the board carefully; avoid static discharge and contact with exposed circuitry
• Some disassembly (control panel or console removal) and connector routing required

This sub PCB assembly is an electronic control board that processes inputs and switches components, coordinating specific appliance functions. Replacing a failed board can restore normal operation and resolve dead controls, error codes, or intermittent, unpredictable behavior. What it does:

• Distributes and regulates control power and switches loads via onboard relays/triacs
• Interprets signals from sensors and the user interface to execute commands
• Coordinates timing and operation of related components per the appliance's program logic
• Failure may present as no power, won't start, unresponsive or flickering display, random beeps, or recurring error codes

• 1 sub PCB assembly

• Disconnect power to the appliance before servicing; verify no voltage is present
• Use ESD protection and handle the board by the edges
• Photograph wiring; transfer connectors one at a time and ensure they are fully seated
• Secure the board with existing fasteners/standoffs; perform any required reset or diagnostic per your model's service info

This cover assembly protects the appliance control PCB and wiring from dust, moisture, and accidental contact to help maintain reliable operation. It provides a clean mounting point and helps prevent shorting or damage to the electronics. What it does:

• Shields the control printed circuit board from debris and incidental contact
• Helps route and secure wiring around the board to reduce strain and wear
• Reduces risk of short circuits caused by foreign objects or moisture
• Restores proper enclosure fit and alignment after board service or replacement

• Disconnect power and unplug the appliance before servicing to prevent shock or injury
• Remove access panels as required to reach the control board; handle PCB and cover carefully to avoid damaging components
• Secure the cover with the original mounting hardware; only use screws specified by the manufacturer
• Replace damaged components before re-energizing the appliance

This deodorizer is an in-cabinet air filter that helps reduce food odors inside the refrigerator for fresher-smelling compartments. Simple replacement restores the unit's odor-control function. What it does:

• Adsorbs and reduces common food and musty odors in the fresh food compartment
• Helps maintain a neutral-smelling interior between deep cleans
• Addresses symptoms such as persistent or lingering refrigerator smells
• Operates passively with the fridge's internal air circulation—no electrical connection

• One (1) deodorizer cartridge

• Disconnect power or unplug the refrigerator before accessing internal components
• Locate the deodorizer in the fresh food compartment or upper interior wall per your model's layout
• Remove the old cartridge and snap the new deodorizer into the holder; no tools typically required
• Do not wash or attempt to refill the cartridge; replace with a new unit

This sensor PCB assembly detects and relays sensor signals to the appliance control system, restoring accurate sensor feedback and communication when the original sensor board fails or malfunctions. Designed as a direct replacement board. What it does:

• Reads sensor inputs and converts them to signals the main control board can interpret.
• Replaces a failed or intermittent sensor board that causes incorrect readings or sensor-related error codes.
• Can resolve symptoms such as unexpected sensor faults, control errors, or appliances not responding to sensor changes.
• Matches the OEM board function; verify model compatibility before ordering.

• Always disconnect power before servicing to avoid shock or shorting the board.
• Use ESD precautions and handle the PCB by its edges to prevent static damage.
• Ensure all connectors are fully seated and the board is mounted in the original orientation.

This water filter assembly replaces the refrigerator's water filtration module to help restore clear-tasting water and steady flow. Fits models that use the AGF80300705 assembly and installs at the refrigerator water inlet. What it does:

• Filters sediment and common taste/odor contaminants to improve drinking water quality
• Restores reduced water flow caused by a clogged or failing filter module
• Helps reduce visible particulates and cloudiness in dispensed water
• Prevents unfiltered water from reaching the dispenser/ice maker when installed

• Turn off refrigerator water supply before replacing the assembly to avoid leaks
• Hand-tighten connections; avoid overtightening fittings to prevent damage
• Run and discard the manufacturer-recommended initial volume of water after install to flush the system

The Ice Maker Assembly Kit is an OEM part for LG refrigerators. It includes the ice maker along with all related components needed for installation and operation. This assembly works with the freezer to automatically produce ice cubes on demand.

Causes of a bad ice maker assembly include wear and tear over time, failure of electronic functions that control ice production, or buildup and blockages that prevent proper ice ejection.

Symptoms of a bad assembly include:

• Insufficient or inconsistent ice production
• Ice cubes jammed or clumped together
• Strange noises from the ice maker area
• Error codes displayed related to ice functions

This OEM LG part is also compatible with select Sears/Kenmore models.

This ice dispenser assembly is the in-door module that channels ice through the dispenser and supports the operating components. Replacing a worn assembly restores reliable dispensing and helps reduce jams, leaks, and frost around the chute.

• Directs ice from the bucket through the chute to the dispenser outlet
• Houses and aligns the actuator/switch that engages the auger
• Maintains sealing around the chute to limit warm air and frost buildup
• Common symptoms: no ice dispensing, intermittent dispensing, lever unresponsive, ice clogs or frost at the dispenser opening

• Disconnect power and turn off the water supply before servicing
• Remove the dispenser bezel/control panel carefully to access the assembly
• Note wire connections and transfer any screws, clips, or gaskets from the original assembly as needed
• After reassembly, restore power and test both cubed and crushed ice dispensing

This tank assembly holds and delivers refrigerated water to the dispenser/ice system, restoring proper water flow and preventing leaks from a cracked or damaged reservoir. Replaces the broken or leaking water storage tank to restore normal dispensing. What it does:

• Holds chilled water for the dispenser and ice-making subsystem.
• Replaces cracked, warped, or leaking tanks that cause drips or puddling in the cabinet.
• Restores steady water delivery when the dispenser flow is weak due to a damaged reservoir.
• Works with the refrigerator's valves and tubing to maintain supply for the dispenser/ice functions.

• One water tank assembly as shown.

• Disconnect power and shut off the water supply before beginning service.
• Drain remaining water from the reservoir and tubing to avoid spills.
• Handle the tank carefully to avoid cracking; tighten fittings per manufacturer guidance.
• After installation, restore water and power, then check all connections for leaks and proper dispensing.

Replacement tube connector (mechanical) that secures and routes tubing in compatible LG appliances, helping restore proper fluid flow and reduce leaks from loose or damaged connections. A literal OEM-style connector used where a secure tube-to-component join is required. What it does:

• Joins and secures tubing to appliance components or chassis to maintain a stable connection
• Keeps tubing aligned to prevent kinks or dislodging that can interrupt flow
• Commonly replaced when you see dripping, visible leaks, loose tubing, or poor water flow
• Fits the original mounting interface for reliable mechanical retention

• Disconnect power and shut off the water supply before starting any repairs
• Inspect tubing and nearby fittings for damage; replace any compromised tubing before installing the connector
• Seat the connector fully and secure per the appliance's service instructions; avoid overtightening which can damage tubing
• After installation, restore water and power and check the connection for leaks during a short test cycle

This valve assembly controls the flow of incoming water to the appliance, restoring proper filling and water delivery for ice makers, dispensers, or wash cycles. Replaces a failed or leaking inlet valve to stop leaks and restore normal operation. What it does:

• Opens and shuts to let water into the appliance when a cycle or dispenser calls for it.
• Stops water flow when the appliance is off to prevent overfilling or flooding.
• A common fix for no-water-to-dispenser, no-ice production, or continuous filling issues.
• Resolve visible leaking or hard water drips near the valve body or hose connections.

• Disconnect power and turn off the water supply before servicing.
• Take photos of wiring and hose connections before removal to aid reassembly.
• Use basic hand tools; do not overtighten fittings or connectors.
• After installation, restore power/water and test for leaks and correct operation.

This connector tube is a molded inline water connector used on select refrigerators to join water lines and help deliver water to the dispenser or ice maker. It restores a secure path for water flow and helps stop leaks. What it does

• Joins two sections of the refrigerator water line to maintain continuous water flow.
• Creates a sealed connection to prevent dripping or leaking at a damaged or worn joint.
• Helps restore water delivery to the ice maker or dispenser when a broken connector is the cause.
• Compatible with the refrigeration plumbing layout where a short molded connector is required.

• One connector tube as shown.

• Turn off the water supply and unplug the appliance before starting work.
• Inspect tubing ends and fittings; trim damaged tubing and use correct push-fit or compression fittings as required.
• Tighten connections securely but avoid overtightening plastic fittings; check for leaks after restoring water.

This electrical wire-harness connector links wiring to the appliance's control or component, restoring a secure electrical connection and helping eliminate intermittent power, no-start, or erratic component behavior. What it does:

• Provides a secure mating point between the wiring harness and an appliance control, motor, or sensor
• Restores reliable electrical contact when the original connector is damaged, corroded, or loose
• Can stop symptoms like intermittent operation, loss of power to a component, arcing, or related error codes
• Designed to match the OEM shape and terminal arrangement for a direct replacement

• One connector

• Disconnect power (unplug or switch off circuit breaker) before servicing to avoid shock
• Verify the connector matches the original by comparing terminal count, shape, and wire colors before installation
• Inspect mating terminals and wiring for damage; repair or replace harness wires if needed
