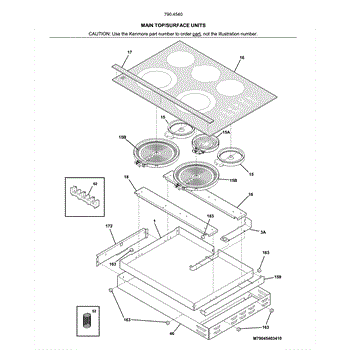

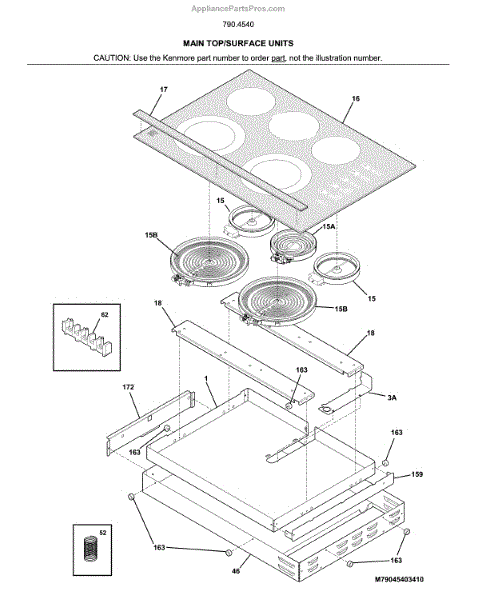

Parts for Kenmore 790.45409411 (79045409411, 790 45409411): Main Top / Surface Units Parts

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dual Element is an OEM part for Frigidaire ranges. This element features two heating zones, allowing for versatile cooking options by providing both high and low heat settings on the same burner. It ensures efficient and consistent heating, making it ideal for various cooking tasks. It contains a 9-inch, 1200-watt element and a 6-inch, 1300-watt element, combining for 2500 watts at 240 volts

Causes of a bad dual element can include electrical issues, wear and tear from regular use, or physical damage such as cracks or breaks in the heating element. These issues can lead to inconsistent heating or complete failure of the element.

Symptoms of a bad dual element include:

• Burner not heating up
• Inconsistent or uneven heating
• Element not switching between high and low heat
• Visible damage to the element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

These are replacement countertop mounting screws that secure the appliance to the countertop or cabinet, restoring a stable, flush fit and preventing movement or gaps. Sold as a 2-pack for quick, direct replacement. What it does

• Secures the appliance countertop or trim to the cabinet or counter to keep the unit from shifting.
• Helps eliminate rocking, gaps, or uneven alignment caused by missing or loose mounting screws.
• Restores proper fit and finish where original mounting hardware has been lost or damaged.
• Works with factory mounting points and standard driver heads for straightforward replacement.

• Two countertop mounting screws.

• Use the correct-size driver to avoid stripping the screw head.
• Tighten until snug; avoid over-tightening which can strip threads or damage the cabinet/countertop.
• Keep original brackets and hardware; replace only the missing or damaged screws as needed.

This replacement mesh screen captures lint and debris to help protect airflow and components in the appliance. It restores proper filtering where a torn or clogged screen causes reduced performance or visible debris buildup. What it does:

• Acts as a fine mesh filter to catch lint, fibers, and large particles before they reach internal components
• Helps maintain proper airflow and reduces risk of blockages that can cause reduced performance
• Common symptom: visible lint or debris passing through, restricted airflow, or a damaged/tear in the existing screen
• Straightforward, passive part with no electronics or moving pieces

• One replacement mesh screen

• Inspect surrounding housing and mating surfaces; replace with matching part orientation
• Typically installs by snapping or sliding into a dedicated frame—no specialized tools usually required
• Clean nearby areas of lint and debris before installing the new screen
• Always disconnect power to the appliance before performing service to avoid injury

Specs: 10-32 X 0.375

This replacement wire harness routes power and control signals between the range's control board and components to restore reliable electrical connections and operation. It replaces a damaged or worn wiring assembly to help resolve intermittent or failed component function. What it does

• Provides dedicated wiring and connectors between the control PCB and heating elements, switches or sensors
• Restores reliable electrical connections that can fail from wear, heat damage or chafing
• Common symptom link: fixes intermittent operation, components that won't power on, or controls that respond erratically
• Prevents open or shorted circuits when installed in good condition and routed securely

• Disconnect power (unplug or shut off breaker) before starting any repair
• Take photos or label connectors before removal to ensure correct reassembly
• Avoid pulling on individual wires; remove and install by the connector housings to prevent terminal damage
• Secure harness away from sharp edges and high-heat areas and verify all connectors seat fully

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application
