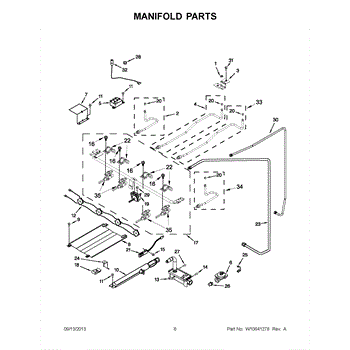

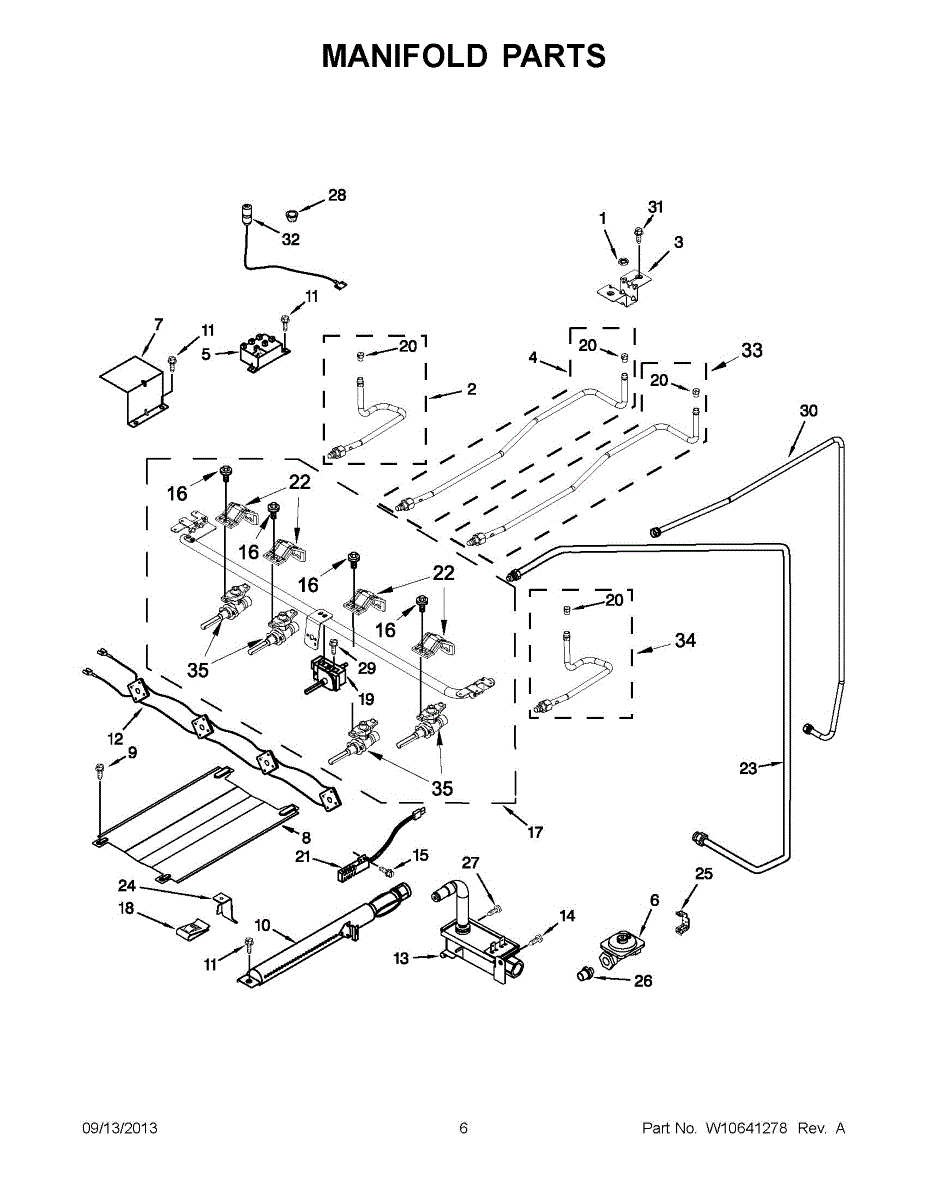

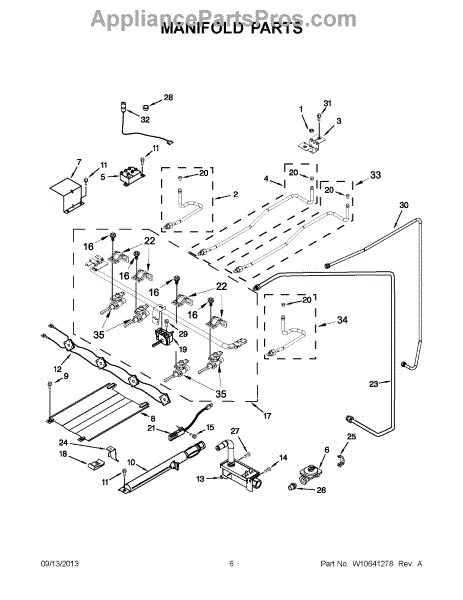

Parts for Amana AGG222VDW2: 04 - Manifold Parts

A small lock-style nut that secures a threaded shaft or fastener to prevent loosening from vibration and normal use. Restores a firm connection so the appliance parts stay aligned and operate quietly and reliably. What it does:

• Locks a threaded connection in place to prevent backing off from vibration
• Keeps rotating or mounted components secured to reduce wobble or movement
• Helps stop noises caused by loose fasteners or shifting parts
• Restores proper fit where a worn or missing nut allowed play

• Disconnect power (and water if applicable) before starting any repair
• Use the correct size wrench/socket and hold mating hardware to avoid twisting other components
• Inspect threads for damage; replace mating fasteners if stripped
• Tighten securely to OEM guidance; avoid over-tightening which can damage threads

Used for the front burner.

Used for the rear burner.

The Spark Module is an OEM replacement part for Whirlpool ranges. This module generates and distributes the electrical current needed to ignite the range burners. Dependable sparking is essential for safe and efficient burner ignition.

Causes of a bad spark module can include cracked circuit boards, worn-out electrodes, or malfunctions in the module's timing mechanism.

Symptoms of a bad spark module include:

• Burners failing to light or taking excessive time to ignite
• Constant tripping of the oven or range thermal fuse
• Visible flames or smells coming from under the burners
• Inability to start or maintain oven/range heating functions

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This gas pressure regulator controls the flow of natural gas or LP to the cooktop and oven valves, helping restore correct burner and oven flame performance for safe, even heating. What it does

• Regulates incoming gas pressure to the appliance's valve system so burners and oven receive consistent fuel flow
• Can correct symptoms such as burners that burn too high or too low, uneven heating, or oven temperature inconsistencies
• Works as part of the appliance's gas delivery system to maintain steady flame behavior
• Designed as a direct replacement to restore original gas flow control

• One regulator

• Turn off gas supply and electrical power before beginning service
• Inspect gas fittings and connections; use approved fittings and test for leaks after installation
• Do not modify the part; replace with the exact regulator specified for the appliance

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Restore reliable heating with this oven burner assembly. It channels gas through calibrated ports to produce a stable, even flame across the burner, promoting consistent ignition and uniform oven temperatures when baking. What it does:

• Directs gas from the oven valve and provides the flame path for heating
• Works with the igniter to light the oven flame
• Helps maintain even heat distribution throughout the oven
• Typical symptoms of a failed burner: delayed or no ignition, weak/uneven flame, sooting, popping on ignition, or slow/uneven preheating

• 1 oven burner assembly

• Disconnect power and shut off the gas supply; allow the oven to cool completely
• Remove oven racks and the oven bottom panel to access the burner
• Note igniter alignment and transfer any reusable mounting hardware from the original burner
• Restore gas/power, check all connections for leaks, and verify a steady, properly aligned flame

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This gas valve assembly controls gas flow to a cooktop or oven burner, restoring proper ignition and temperature control for safe cooking. Replaces a failed or leaky valve to help appliances light and operate correctly. What it does:

• Regulates gas flow to a single burner or oven gas circuit
• Stops gas flow when control is off to prevent leaks
• Can cause burners or oven to not light, not heat, or to cut out when faulty
• Helps eliminate clicking/ignition issues when valve operation is restored

• One gas valve assembly

• Turn off gas supply and electrical power before servicing
• Inspect gas fittings and use a leak test after installation
• Do not attempt installation if you are not comfortable working with gas appliances

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This is a replacement screw used to secure panels, trim, or small components on compatible Whirlpool appliances. Installing the correct fastener restores proper fit and helps stop rattles or loose trim. What it does:

• Secures trim, panels, or control components to prevent movement and rattling
• Replaces missing or damaged hardware that can cause gaps or loose parts
• Helps maintain proper alignment of panels and movement-free operation
• Used wherever a factory screw of this size and head style is specified

• Always disconnect power (and water, if applicable) before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install by hand until threads engage, then tighten snugly—do not overtighten
• Keep removed hardware organized before final reassembly

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

The Thrmst-fix is an OEM component compatible with Whirlpool ranges. It serves as the module responsible for heating cooking surfaces like stovetop burners or bake/broil elements.

Symptoms of a faulty Thrmst-fix can include:

• Inconsistent or uneven heating between surface areas
• Burners or elements taking longer than normal to reach temperatures
• Intermittent or surging control issues when adjusting temperatures
• Hotspots or cool spots on cooking surfaces that won't regulate

Causes may stem from normal wear over extended and frequent use of heating elements. Mineral buildup affecting electrical connections could cause control or regulation issues as well.

This OEM replacement part works with Maytag, KitchenAid, Jenn-Air, and select Kenmore electric range models too.

Natural gas.

Replacement burner orifice (1.25) that controls gas flow to the burner for proper flame and cooking performance. Use when an orifice is clogged, damaged, or the wrong size for correct burner output. What it does:

• Regulates gas flow to the burner so the flame burns steadily and the cooktop reaches expected heat.
• Helps correct weak, uneven, or sooty flames and inconsistent burner heating when the orifice is the cause.
• Restores proper burner output after clogging, corrosion, or damage from wear or debris.

• Turn off the appliance power and shut off the gas supply before replacing.
• Verify the orifice size required for your fuel type and appliance before installation; do not file or modify the part.
• Tighten securely but avoid overtightening; check all connections for leaks after installation using an approved leak-detection method.
• If you smell gas or suspect a leak, turn off the gas immediately.

The Oven Igniter is an OEM part for Whirlpool ovens responsible for igniting the gas burner that heats the oven. It works by drawing electrical current through the igniter filament, heating it to a high temperature until it glows and ignites the gas to start the cooking process.

Symptoms of a failing Oven Igniter include:

• Oven not heating up at all
• Igniter glowing without igniting the gas
• Weak flame or delayed ignition
• Increased gas smell

Causes of a bad Oven Igniter can range from normal wear and tear, which reduces the igniter's efficiency over time, to physical damage or a buildup of dirt and grease that can interfere with its operation. A malfunctioning igniter can lead to uneven cooking, wasted gas, and in some cases, safety hazards due to the accumulation of gas without ignition.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This gas pressure regulator controls the flow of natural gas or LP to the cooktop and oven valves, helping restore correct burner and oven flame performance for safe, even heating. What it does

• Regulates incoming gas pressure to the appliance's valve system so burners and oven receive consistent fuel flow
• Can correct symptoms such as burners that burn too high or too low, uneven heating, or oven temperature inconsistencies
• Works as part of the appliance's gas delivery system to maintain steady flame behavior
• Designed as a direct replacement to restore original gas flow control

• One regulator

• Turn off gas supply and electrical power before beginning service
• Inspect gas fittings and connections; use approved fittings and test for leaks after installation
• Do not modify the part; replace with the exact regulator specified for the appliance

3/8 to 9/16

The Clip is an OEM part for Whirlpool ranges. This part holds the surface igniter in place, ensuring that it remains properly positioned to ignite the gas burner efficiently.

Causes of a bad surface igniter clip can include wear and tear from regular use, damage from high heat exposure, or breakage due to improper handling during maintenance.

Symptoms of a bad surface igniter clip include:

• The igniter not staying in place
• Difficulty in lighting the burner
• The burner not igniting at all
• Visible damage or deformation of the clip

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This surface burner spark electrode creates the electrical arc that lights the gas at your cooktop/range burner. Replace a cracked or fouled electrode to restore quick, reliable ignition on the affected burner and reduce repeated clicking.

• Generates the high-voltage spark that ignites surface-burner gas
• Promotes fast, consistent ignition and stable flame startup
• Common symptoms: burner won't light, lights intermittently, or sparks weakly at one burner while others work
• Visual clues: cracked porcelain insulator, bent tip, or heavy buildup on the electrode

• Disconnect power and shut off gas supply before servicing
• Remove grate, cap, and burner head to access the electrode
• Transfer mounting hardware from the old electrode
• Route and reconnect the lead securely; keep it away from heat and sharp edges, then test for proper spark before reassembly

The Surface Burner Ignitor is an OEM part for Whirlpool gas ranges. This part ignites the gas to create a flame on the burner, allowing for efficient cooking.

Causes of a bad ignitor can include wear and tear from regular use, electrical issues, or physical damage to the ignitor element.

Symptoms of a bad surface burner ignitor include:

• The burner not lighting or taking longer to light
• Clicking sounds without ignition
• Weak or inconsistent flame
• The smell of gas without ignition

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This rear venturi tubing directs water flow and helps create the suction needed for proper drain and recirculation functions in the washer. Replacing a worn or cracked venturi restores reliable water flow and reduces leaks or siphoning issues. What it does:

• Channels water to the venturi assembly to help create suction for proper draining and recirculation
• Prevents leaks and unwanted siphoning when intact
• Helps maintain correct water flow during fill and drain cycles
• Can cause filling/draining problems or gurgling noises when cracked or clogged

• Disconnect power and turn off water supply before starting any repair
• Access may require removing the washer cabinet or rear panel; follow your service manual
• Inspect clamps and adjacent hoses; replace clamps if corroded or damaged
• Replace with this OEM venturi tubing for best fit

This front burner gas tube routes natural gas from the manifold to a front surface burner on compatible gas ranges for a stable flame and dependable ignition. Replace if kinked, corroded, or leaking.

• Directs natural gas from the manifold to a front cooktop burner
• Helps maintain proper flow for consistent flame height and reliable ignition
• Restores performance when the original tube is blocked, bent, or damaged
• Common symptoms: front burner won't light, weak/uneven flame, gas odor, visible cracks or kinks

• Shut off gas supply and power; allow the appliance to cool before servicing
• Support fittings with two wrenches; avoid overtightening and do not kink the tube
• Transfer any reusable orifices/seals from the original if applicable; replace damaged seals
• After installation, restore gas and check all joints for leaks with a soap-and-water solution

This surface burner valve controls the flow of natural gas to a cooktop or range-top burner. Replacing a worn valve restores smooth flame adjustment and helps prevent leaks for safer, reliable everyday cooking performance. What it does:

• Regulates gas flow to one surface burner as you turn the control knob
• Provides a positive OFF shutoff to stop gas when the knob is off
• Helps deliver consistent flame levels from simmer to boil
• Common symptoms: burner won't light or is inconsistent, flame won't adjust, gas odor near the knob, or the knob is stiff/loose

• Disconnect power and shut off the gas supply before servicing
• Remove the knob and access the manifold; transfer burner tubing and any brackets/spark switch from the original valve to the replacement
• Use two wrenches on compression fittings; tighten securely without overtightening
• After reassembly, leak-check connections with soapy water and verify proper flame; follow your model's conversion procedure if changing gas type
