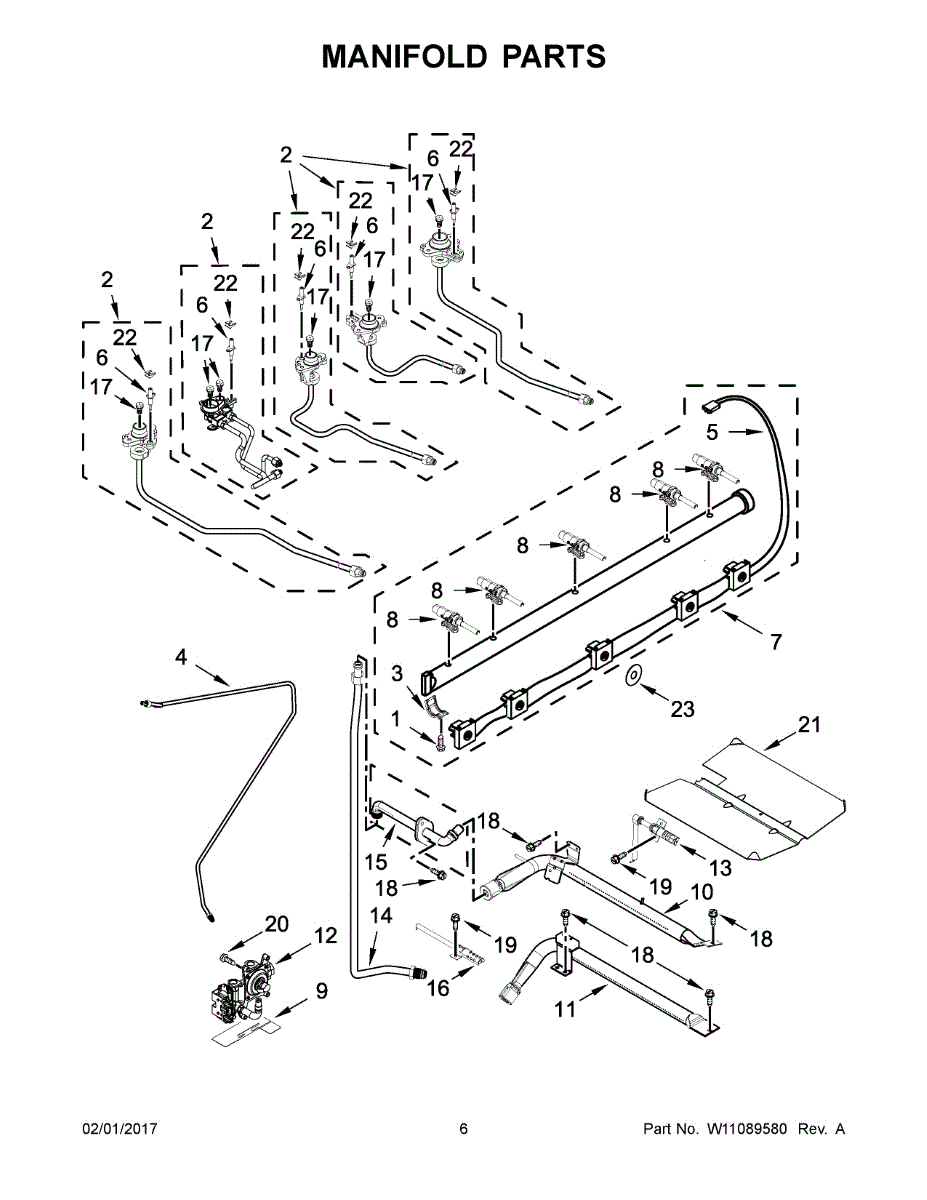

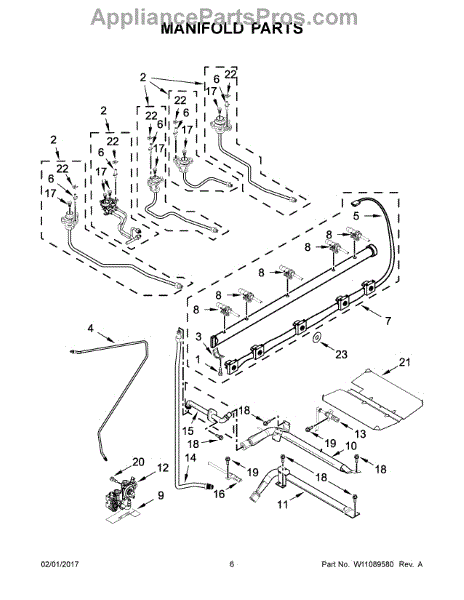

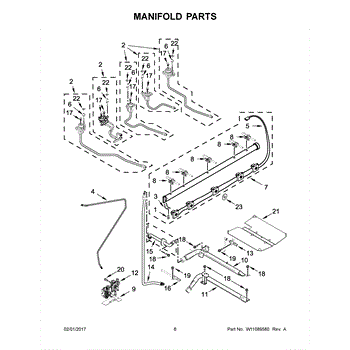

Parts for Kitchenaid KSGG700EBS1: 04 - Manifold Parts

This replacement mounting screw secures panels and small components on compatible Whirlpool appliances, restoring proper fit and reducing rattles or loose parts for a solid, finished appearance. What it does

• Fastens control panels, trim pieces, or internal brackets to the appliance chassis
• Helps stop panel vibration, rattling, or misalignment caused by missing or worn fasteners
• Restores secure attachment after disassembly for service or part replacement
• Simple hardware replacement that maintains original fit and function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and stop when snug — do not overtighten to prevent damage to mating parts
• Keep removed hardware organized to ensure correct reassembly

This replacement orifice holder secures the burner orifice to the gas valve so fuel is delivered correctly to the burner assembly. It restores stable gas flow and proper burner operation in compatible gas appliances. What it does:

• Holds the burner orifice in place on the gas valve or burner tube
• Helps maintain correct fuel flow for consistent burner flames
• Works as a direct-fit replacement for the original factory-mounted orifice holder

• One orifice holder

• Turn off the appliance and shut off the gas supply before beginning work
• Disconnect power to the appliance if electrical components are present
• Use proper tools and follow the appliance manufacturer's service instructions

This spark switch harness connects the oven/range ignition switch to the spark module so burners or the oven igniter can receive the ignition signal. It restores proper spark delivery for safe, reliable ignition. What it does:

• Transfers the ignition switch signal to the spark/ignition circuit so burners or the oven igniter can spark
• Helps resolve symptoms like clicking at the control, intermittent or no spark at the burner/oven, or failure to light
• Maintains correct connector alignment and wiring routing for the ignition system
• Designed to work with the range/oven ignition components it connects to

• One spark switch harness

• Disconnect electrical power to the appliance before inspecting or replacing the harness
• Shut off gas supply when working on gas ignition components
• Handle connectors and wiring gently; ensure all connections are fully seated and routed clear of heat or moving parts
• After installation, restore power and test ignition from each burner/oven function to proper operation

The Surface Ignitor is an OEM part for Whirlpool ranges and cooktops. This component is responsible for generating the spark needed to ignite gas burners on the cooktop or oven pilot light.

Causes of a bad Surface Ignitor can include wear and tear over time due to repeated use during ignition. Physical damage is also possible.

Symptoms of a failed surface ignitor include:

• Inability to ignite any gas burners
• Repeated sparking sounds but no ignition
• Yellow burner flames instead of blue

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This surface burner spark electrode creates the spark that lights the gas on your range or cooktop. Replacing a worn or cracked electrode restores reliable ignition so burners light quickly and consistently when you turn the knob.

• Produces a high-voltage spark at the burner to ignite the gas flame
• Helps resolve: burner won't light, no or weak spark at that burner, needs manual lighting, intermittent ignition
• Damage or contamination on the ceramic insulator can prevent proper arcing
• Direct replacement for the failed electrode at the affected burner

• Disconnect power and shut off gas supply before servicing
• Allow unit to cool completely
• Remove burner cap and head to access the electrode; transfer mounting hardware if reused
• Handle the ceramic insulator carefully; reconnect lead securely and align the tip near the burner head as originally positioned

This surface burner igniter creates the spark that lights a gas cooktop or range burner. The attached wire lead simplifies hookup and helps restore quick, dependable ignition when a burner won't light or only lights intermittently.

• Generates a high-voltage spark at the burner to ignite gas
• Restores reliable burner lighting and consistent flame startup
• Common symptoms: burner won't ignite, no visible spark, intermittent lighting, or a chipped/cracked ceramic insulator
• Replaces a worn or damaged electrode to eliminate the need for manual lighting

• Disconnect electrical power and shut off gas before servicing
• Allow the cooktop/range to cool; handle the ceramic tip carefully to avoid damage
• Match the igniter position/orientation to the original for proper spark at the burner
• Route the lead away from sharp edges and heat; make a secure connection to the harness, then test for spark before reassembly

This surface burner igniter is the spark electrode that lights the flame on your gas cooktop or range. Replacing a worn electrode restores reliable ignition at the affected burner for fast, consistent lighting.

• Generates a high-voltage spark at the burner to ignite gas
• Positions and insulates the tip for consistent flame lighting
• Common symptoms: burner won't ignite or no spark at that burner
• Other signs: needs a match to light, intermittent/erratic spark, cracked ceramic

• Disconnect power and shut off gas supply; allow appliance to cool
• Remove burner cap and head to access the electrode; note wire routing and mounting
• Transfer any bracket/clip from the original part if required and set proper gap/position near the burner port
• Restore power and gas, then test ignition at the repaired burner

The Burner Valve is an OEM part for Whirlpool ranges. It is responsible for controlling the flow of gas to the surface burners for precise heat regulation during cooking.

A bad surface burner valve can occur due to wear and tear, clogs, or damage to the valve mechanism. If you notice symptoms such as difficulty in igniting the burner, uneven flames, or gas leaks, it may be time to replace the surface burner valve.

Symptoms of a bad surface burner valve include:

• Difficulty in igniting the burner
• Uneven flames or inconsistent heat
• Gas leaks around the valve area

Repair your range by replacing the faulty or worn-out surface burner valve with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Burner Valve is an OEM component specifically designed for Whirlpool gas ranges. Located underneath each cooktop burner, the brass valve controls the flow of gas to its associated burner.

Causes of a bad burner valve include corrosion buildup within the valve restricting gas flow over time. Wear and tear to the shaft valve or spring components could render a burner inoperable.

Symptoms of a bad burner valve include:

• Inconsistent or unreliable burner ignition
• Reduced burner flame height and intensity
• Complete failure to ignite a single burner

Compatible with additional brands including Kenmore, Jenn-Air, and most KitchenAid models.

This Valve-Brnr is an OEM part for Whirlpool Ranges. It regulates the flow of gas to the burner for cooking. Wear, corrosion, or gas leaks can cause issues with this component.

What Causes a Bad Valve-Brnr:
Wear and tear, corrosion, or gas leaks within the valve can lead to gas flow issues or potential safety hazards.

Symptoms of a Bad Valve-Brnr:

• Inconsistent flame or no ignition on the burner
• Gas odors around the range
• Difficulty adjusting or controlling burner flame

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This broil burner assembly supplies the focused heat for the oven's broiling function so you can brown and crisp foods quickly. It replaces a worn or damaged broil burner to restore proper broil performance. What it does:

• Directs and emits the high, concentrated flame used during oven broiling.
• Restores even browning and searing when the broil function produces weak or spotty heat.
• Addresses issues such as little/no broil flame or uneven broiling when burner damage or clogging is present.
• Works with the oven's gas supply and ignition system to produce consistent broil heat.

• One broil burner assembly

• Turn off and disconnect gas supply and electrical power before attempting service.
• Follow OEM service manual or parts diagram for correct alignment and secure mounting.
• Use proper tools; verify gas connections are leak-free and ignition lights properly before use.

This gas pressure regulator controls and stabilizes the incoming gas supply to your appliance, helping burners and the oven receive a consistent flow. Replacing a failing regulator can restore steady flames and more reliable heating performance. What it does

• Reduces and regulates incoming gas line pressure to appliance specifications
• Helps maintain consistent burner flames across the cooktop and oven
• Can address weak or uneven flames affecting multiple burners
• May help resolve ignition issues caused by insufficient or inconsistent gas flow

• 1 gas pressure regulator assembly

• Disconnect power and shut off the gas supply before servicing; work in a well-ventilated area away from open flames
• Note gas flow direction; transfer any fittings from the old regulator as required
• Use approved gas-rated thread sealant on NPT connections and tighten to manufacturer guidance
• After installation, restore gas and perform a thorough leak check with a soap-and-water solution on all connections

The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas in the oven burner to produce the heat needed for cooking and baking. The igniter ensures a consistent and reliable flame each time the oven is used.

Causes of a bad igniter can include normal wear and tear, electrical faults, or exposure to high temperatures over extended periods. A worn or damaged igniter may fail to produce the necessary spark or heat to ignite the gas.

Symptoms of a bad igniter include:

• The oven not heating up
• Uneven cooking or baking
• A delay in the oven igniting
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas tubing is the replacement flexible line that routes fuel from the gas valve to the burner assembly, restoring a secure gas connection for safe ignition and operation. Designed to match OEM fit and function. What it does

• Carries natural or LP gas from the control valve to the burner or main manifold.
• Restores a sealed gas path when original tubing is cracked, pinched, or disconnected.
• Helps eliminate symptoms such as gas smell near the appliance, burner failing to light, or intermittent pilot/burner operation.
• Works with appliance gas systems that use a flexible tubing connection.

• One gas tubing as shown.

• Turn off the gas supply and unplug the appliance before starting any work.
• Use correct fittings and thread sealant approved for gas.
• After installation, test all connections for leaks using a soapy water solution or a gas leak detector; never use an open flame.

This fitting is a small connector that joins or secures a fluid line inside the appliance, helping restore a safe, leak-free connection so water or other fluids flow where needed without escaping. What it does:

• Connects or secures a hose or tubing to an internal port so fluid can flow properly
• Helps stop leaks caused by cracked, loose, or worn fittings
• Restores a proper sealed connection when the original fitting is damaged or missing
• Works as a replacement plumbing connector used in common appliance water lines

• Fitting

• Turn off power to the appliance and shut off the water supply before starting
• Remove any retaining clips or clamps and replace the old fitting with the new one, ensuring a snug fit
• Use only the correct clamps or seals for your appliance; tighten to manufacturer guidance without over-torquing
• After installation, restore water and power, then check thoroughly for leaks during a test cycle

This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

This orifice spud directs gas flow into the burner for consistent ignition and flame control. It restores proper burner performance so cooking heats evenly and burners light reliably. What it does:

• Seats the burner orifice to control gas flow to the burner
• Helps maintain a steady, even flame for consistent cooking
• Can resolve weak or uneven flames and burners that struggle to light
• Works as the sealed interface between the gas manifold and burner tube

• One orifice spud

• Turn off the gas supply and disconnect power before servicing
• Inspect surrounding seals and gaskets for damage and replace if necessary
• Use basic hand tools; avoid overtightening to prevent damage

This orifice spud is the small gas burner fitting that holds the burner orifice and helps direct fuel to the burner for proper ignition. It restores correct gas flow to the burner assembly for reliable ignition and flame. What it does:

• Secures the burner orifice in the burner tube so the correct-sized jet is positioned for ignition
• Helps maintain steady, consistent gas flow to the burner
• Commonly replaced when burners fail to light or flame is weak/irregular
• Works with the burner tube assembly to ensure proper burner operation

• One orifice spud

• Turn off gas supply and unplug appliance before beginning service
• Use correct tools and replace only the part(s) explicitly specified for your model
• Do not overtighten fittings; follow torque guidance from the appliance manufacturer
• If you smell gas or suspect a leak after installation, stop immediately

Replacement orifice spud that controls gas flow to a burner for proper flame size and reliable cooking. Helps restore consistent ignition and heat so burners operate safely and efficiently. What it does:

• Meters gas from the manifold to the burner to produce the correct flame size for cooking.
• Ensures even, stable combustion for consistent heat across the burner.
• Common symptoms of a worn or clogged orifice spud include weak or uneven flames, burners that are slow to light, or poor cooking performance.
• A properly functioning orifice helps prevent fuel waste and supports safe appliance operation.

• Turn off the gas supply and electrical power to the appliance before starting any service.
• Replace with the correct OEM part and thread carefully; seat securely but avoid overtightening which can damage the part.
• After installation, check all connections for gas leaks and test the burner for proper flame shape and operation.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This clip is a small mounting retainer used to secure panels, harnesses, or trim pieces on compatible Whirlpool appliances. It provides a simple, reliable hold to keep components in place and prevent rattles or shifting during use. What it does:

• Secures plastic panels, trim, or wire harnesses to the appliance frame
• Helps prevent vibration noise by holding parts tight
• Keeps wiring and small components routed and out of the way
• Simple mechanical retention—no tools-specific hardware required for the clip itself

• One clip

• Disconnect power (and water, if applicable) before beginning any repair
• Inspect surrounding parts and alignment before installing the clip to avoid forcing it
• Use appropriate hand tools to remove panels or fasteners as needed; press clip into place until it snaps securely
• If the clip is brittle or broken, replace it rather than reusing damaged pieces

This switch seal is a replacement gasket that helps keep moisture and debris away from the appliance's door/control switch, protecting the switch assembly and helping restore reliable door detection and operation. What it does:

• Seals the area around the door/control switch to block water, lint, and grime.
• Helps prevent intermittent trips or failures caused by moisture or foreign material contacting the switch.
• Promotes consistent switch actuation and can extend the service life of the switch assembly.
• Useful when the existing seal is cracked, torn, flattened, or missing.

• Disconnect power before servicing to avoid electrical shock.
• Access typically requires removing the door trim or control panel—follow your model's service instructions.
• Inspect the switch and surrounding area for damage or corrosion and clean before installing the new seal.
