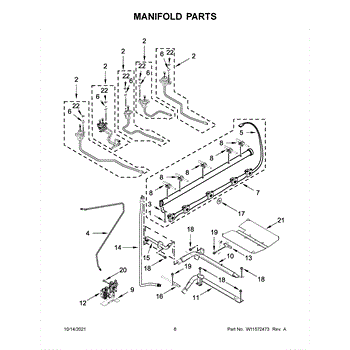

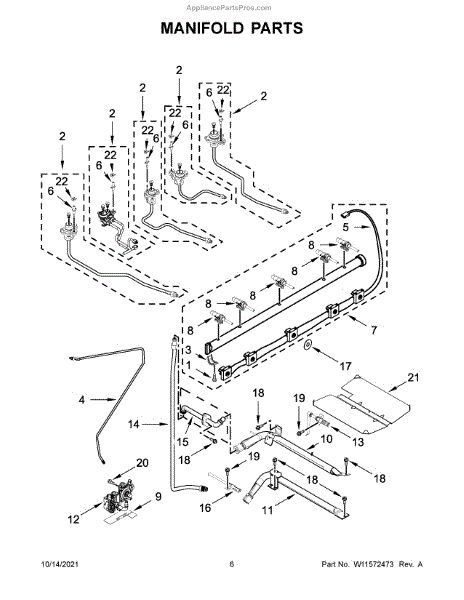

Parts for Kitchenaid KSGG700EBS3: Manifold Parts

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

This spark switch harness connects the oven/range ignition switch to the spark module so burners or the oven igniter can receive the ignition signal. It restores proper spark delivery for safe, reliable ignition. What it does:

• Transfers the ignition switch signal to the spark/ignition circuit so burners or the oven igniter can spark
• Helps resolve symptoms like clicking at the control, intermittent or no spark at the burner/oven, or failure to light
• Maintains correct connector alignment and wiring routing for the ignition system
• Designed to work with the range/oven ignition components it connects to

• One spark switch harness

• Disconnect electrical power to the appliance before inspecting or replacing the harness
• Shut off gas supply when working on gas ignition components
• Handle connectors and wiring gently; ensure all connections are fully seated and routed clear of heat or moving parts
• After installation, restore power and test ignition from each burner/oven function to proper operation

This surface ignitor lights the burner on compatible gas cooktops and ranges, restoring reliable spark ignition for normal burner operation. Replace a broken or weak ignitor to help restore consistent ignition and safer cooking. What it does:

• Generates the spark that lights the burner when the control is turned on
• Helps ensure quick, consistent ignition and reduces repeated clicking or delayed lighting
• Commonly replaces cracked, burned, or non-sparking ignitors
• Works with the cooktop's existing valve and electronic control to initiate flame

• Always disconnect power and shut off the gas supply before removing or installing the ignitor
• Handle the ceramic and electrode tip carefully—these components are fragile and can crack if dropped
• Reuse existing mounting hardware unless replacement is specified

A surface ignitor that produces the spark needed to light gas burners on compatible ranges and cooktops. Replaces a worn or failed ignitor to restore reliable ignition and consistent burner lighting. What it does

• Creates the spark at the burner to ignite gas when the control is turned on.
• Commonly used when burners click but fail to light or when a specific burner never ignites.
• Works with the cooktop's ignition system to provide consistent, repeatable sparking.
• Fits into the burner assembly and connects to the appliance's existing wiring and mounting.

• One surface ignitor (quantity: 1)

• Disconnect power to the appliance and shut off the gas supply before starting any service.
• Handle the ignitor by the ceramic/insulated areas; avoid touching the tip with bare hands to prevent contamination or damage.
• Confirm correct fit and secure all wiring connections; test ignition on a safe flame setting after reinstalling.

This surface ignitor is the electrode that creates the spark to light gas cooktop burners, restoring reliable ignition and consistent burner lighting for your range. Designed as a direct-fit replacement when the original ignitor fails. What it does:

• Produces the spark that ignites gas at the burner for normal start-up
• Replaces a cracked, burnt, or non-sparking electrode
• Helps stop continuous clicking or a burner that won't light
• Restores safe, consistent ignition when the original part is worn

• Turn off gas supply and disconnect power before servicing
• Handle the ceramic tip and electrode carefully to avoid damage
• Verify the part number matches your appliance before installation

The Burner Valve is an OEM part for Whirlpool ranges. It is responsible for controlling the flow of gas to the surface burners for precise heat regulation during cooking.

A bad surface burner valve can occur due to wear and tear, clogs, or damage to the valve mechanism. If you notice symptoms such as difficulty in igniting the burner, uneven flames, or gas leaks, it may be time to replace the surface burner valve.

Symptoms of a bad surface burner valve include:

• Difficulty in igniting the burner
• Uneven flames or inconsistent heat
• Gas leaks around the valve area

Repair your range by replacing the faulty or worn-out surface burner valve with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Burner Valve is an OEM component specifically designed for Whirlpool gas ranges. Located underneath each cooktop burner, the brass valve controls the flow of gas to its associated burner.

Causes of a bad burner valve include corrosion buildup within the valve restricting gas flow over time. Wear and tear to the shaft valve or spring components could render a burner inoperable.

Symptoms of a bad burner valve include:

• Inconsistent or unreliable burner ignition
• Reduced burner flame height and intensity
• Complete failure to ignite a single burner

Compatible with additional brands including Kenmore, Jenn-Air, and most KitchenAid models.

This Valve-Brnr is an OEM part for Whirlpool Ranges. It regulates the flow of gas to the burner for cooking. Wear, corrosion, or gas leaks can cause issues with this component.

What Causes a Bad Valve-Brnr:
Wear and tear, corrosion, or gas leaks within the valve can lead to gas flow issues or potential safety hazards.

Symptoms of a Bad Valve-Brnr:

• Inconsistent flame or no ignition on the burner
• Gas odors around the range
• Difficulty adjusting or controlling burner flame

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This broil burner assembly supplies the focused heat for the oven's broiling function so you can brown and crisp foods quickly. It replaces a worn or damaged broil burner to restore proper broil performance. What it does:

• Directs and emits the high, concentrated flame used during oven broiling.
• Restores even browning and searing when the broil function produces weak or spotty heat.
• Addresses issues such as little/no broil flame or uneven broiling when burner damage or clogging is present.
• Works with the oven's gas supply and ignition system to produce consistent broil heat.

• One broil burner assembly

• Turn off and disconnect gas supply and electrical power before attempting service.
• Follow OEM service manual or parts diagram for correct alignment and secure mounting.
• Use proper tools; verify gas connections are leak-free and ignition lights properly before use.

This oven bake burner feeds gas evenly along the flame ports to deliver a consistent bake flame. Replacing a warped, corroded, or clogged burner helps restore reliable preheat and even baking.

• Distributes gas along the burner rail during the bake cycle to produce an even flame
• Helps maintain stable oven temperatures and consistent cooking results
• Common symptoms: no heat in bake, very long preheat, or uneven baking
• Visible damage, rust, or blocked ports on the burner indicate replacement

• Disconnect power and shut off gas before servicing; allow the oven to cool
• Remove the oven bottom panel and flame spreader/shield to access the burner
• Note orientation; transfer any mounting hardware from the original and seat the burner over the orifice before securing
• Restore gas, check all connections for leaks with an approved solution, and verify proper ignition and flame

This gas pressure regulator controls and stabilizes the incoming gas supply to your appliance, helping burners and the oven receive a consistent flow. Replacing a failing regulator can restore steady flames and more reliable heating performance. What it does

• Reduces and regulates incoming gas line pressure to appliance specifications
• Helps maintain consistent burner flames across the cooktop and oven
• Can address weak or uneven flames affecting multiple burners
• May help resolve ignition issues caused by insufficient or inconsistent gas flow

• 1 gas pressure regulator assembly

• Disconnect power and shut off the gas supply before servicing; work in a well-ventilated area away from open flames
• Note gas flow direction; transfer any fittings from the old regulator as required
• Use approved gas-rated thread sealant on NPT connections and tighten to manufacturer guidance
• After installation, restore gas and perform a thorough leak check with a soap-and-water solution on all connections

The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas in the oven burner to produce the heat needed for cooking and baking. The igniter ensures a consistent and reliable flame each time the oven is used.

Causes of a bad igniter can include normal wear and tear, electrical faults, or exposure to high temperatures over extended periods. A worn or damaged igniter may fail to produce the necessary spark or heat to ignite the gas.

Symptoms of a bad igniter include:

• The oven not heating up
• Uneven cooking or baking
• A delay in the oven igniting
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas tubing is the replacement flexible line that routes fuel from the gas valve to the burner assembly, restoring a secure gas connection for safe ignition and operation. Designed to match OEM fit and function. What it does

• Carries natural or LP gas from the control valve to the burner or main manifold.
• Restores a sealed gas path when original tubing is cracked, pinched, or disconnected.
• Helps eliminate symptoms such as gas smell near the appliance, burner failing to light, or intermittent pilot/burner operation.
• Works with appliance gas systems that use a flexible tubing connection.

• One gas tubing as shown.

• Turn off the gas supply and unplug the appliance before starting any work.
• Use correct fittings and thread sealant approved for gas.
• After installation, test all connections for leaks using a soapy water solution or a gas leak detector; never use an open flame.

This fitting is a small connector that joins or secures a fluid line inside the appliance, helping restore a safe, leak-free connection so water or other fluids flow where needed without escaping. What it does:

• Connects or secures a hose or tubing to an internal port so fluid can flow properly
• Helps stop leaks caused by cracked, loose, or worn fittings
• Restores a proper sealed connection when the original fitting is damaged or missing
• Works as a replacement plumbing connector used in common appliance water lines

• Fitting

• Turn off power to the appliance and shut off the water supply before starting
• Remove any retaining clips or clamps and replace the old fitting with the new one, ensuring a snug fit
• Use only the correct clamps or seals for your appliance; tighten to manufacturer guidance without over-torquing
• After installation, restore water and power, then check thoroughly for leaks during a test cycle

This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

This switch seal is a replacement gasket that helps keep moisture and debris away from the appliance's door/control switch, protecting the switch assembly and helping restore reliable door detection and operation. What it does:

• Seals the area around the door/control switch to block water, lint, and grime.
• Helps prevent intermittent trips or failures caused by moisture or foreign material contacting the switch.
• Promotes consistent switch actuation and can extend the service life of the switch assembly.
• Useful when the existing seal is cracked, torn, flattened, or missing.

• Disconnect power before servicing to avoid electrical shock.
• Access typically requires removing the door trim or control panel—follow your model's service instructions.
• Inspect the switch and surrounding area for damage or corrosion and clean before installing the new seal.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This ignitor retaining clip secures the oven or range ignitor to the burner assembly so the ignitor stays properly positioned for reliable ignition. It's a small replacement part that restores proper ignitor mounting and alignment. What it does:

• Holds the oven/range ignitor in place on the burner assembly to maintain correct positioning
• Helps ensure consistent ignition by preventing the ignitor from shifting or coming loose
• Commonly replaced when the original clip is broken, bent, or missing
• Fits directly where the factory clip secures the ignitor to the burner housing

• Turn off power and gas supply to the appliance before starting any repair
• Access typically requires removing the oven burner or inner panel; follow the manufacturer service instructions
• Use appropriate tools to remove the old clip and secure the new clip without over-bending
