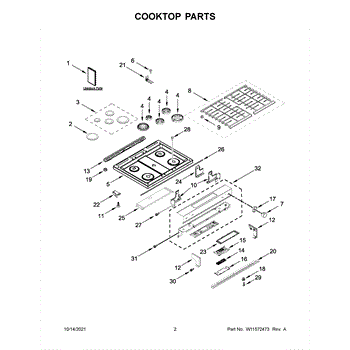

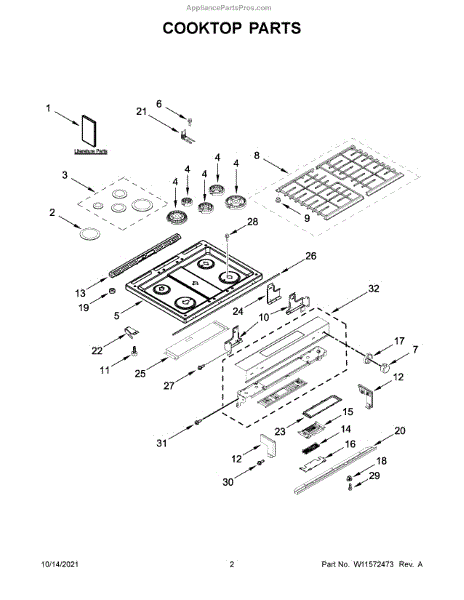

Parts for Kitchenaid KSGG700EBS3: Cooktop Parts

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Knob is an OEM part for Whirlpool ranges. It is responsible for controlling oven functions through its precise movements and settings.

Causes of a bad knob can include wear and tear over time resulting in loosening or difficult turning. Paint fading or peeling on the knob is also common.

Symptoms of a bad knob include:

• Functions not activating when turned
• Loose or wobbly movement when adjusting temperature or settings
• Faded, chipped, or peeling paint
• The knob coming off entirely

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Range Knob is an OEM component for Whirlpool gas ranges. Located on the control panel, this plastic knob adjusts baking temperatures and oven functions like Bake, Broil and Warm.

Symptoms of a bad range knob include:

• Difficulty rotating knob to numbered settings
• Loose or wobbly feel during selection
• Faded or illegible printed mode labeling

Causes stem from normal wear over extended use, repeated contact with pot handles, or other impacts compromising sturdiness.

Replace now with this OEM Whirlpool knob to restore precise oven control. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This genuine OEM part is a grate kit for stoves. A grate kit is the metal frame that sits on top of the burners providing a stable surface for pots and pans to sit on while cooking. If the grate kit is no longer sitting securely on the stove or is damaged or cracked, it will need to be replaced.To replace the grate kit, simply pull the old grate off the stove. Once removed, set the old grate kit to the side and proceed to set the new kit in its correct position. Make sure it locks into the stove properly and is secure. Try setting a pot or pan on the grate to make sure it sits evenly and securely.This replacement part is sold individually and is sourced directly from the manufacturer. It is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand stoves.

The Grate Foot is an OEM part for Whirlpool gas ranges. It attaches to the bottom of the cooktop grates, providing stability and preventing the grates from scratching the cooktop surface.

Common causes of a faulty grate foot include constant exposure to high temperatures, wear from frequent removal and cleaning of the grates, or physical damage from accidental impacts.

Symptoms of a bad grate foot include:

• The grates wobbling or not sitting level on the cooktop
• Scratches or damage appearing on the cooktop surface
• The grates making noise or shifting during use
• Visible wear, cracking, or missing pieces on the grate foot

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This drawer glide supports the appliance's drawer and provides a smooth, guided track for opening and closing. Replacing a worn or broken glide restores stable movement, proper alignment, and helps prevent sticking, dragging, or derailing. What it does:

• Provides the sliding interface between the drawer and the cabinet frame
• Keeps the drawer aligned for smooth in-and-out motion
• Reduces friction and noise from a worn or damaged glide
• Common fix for drawers that stick, bind, tilt, or pop off the track

• 1 drawer glide

• Disconnect power to the appliance before servicing
• Remove the drawer to access the glide and note the original orientation
• Release retaining tabs or remove mounting fasteners; transfer any reusable hardware
• Install the new glide, avoid overtightening fasteners, reseat the drawer, and test travel

The Trim Vent is an OEM component specifically designed for Whirlpool gas ranges. Located at the rear of the unit above the oven cavity, the trim vent serves an important safety and ventilation purpose.

Constructed of heat-resistant sheet metal with a powder-coated finish, the trim-vent features an internal layered baffle system and a rear-mounted exhaust fan. This facilitates the extraction of hot oven emissions and fumes up and out of the kitchen space.

This exhaust vent adheres to all codes and regulations regarding temperature ratings and venting performance. It attaches securely to the framework of the gas range with mounting brackets.

Symptoms of a bad trim-vent include:

• Excessive heat or smoke escaping from the oven cavity
• Improper venting of emissions leads to buildup of residue
• Detached, bent, or corroded vent body

Color: Black

This OEM part is also compatible with KitchenAid, Jenn-Air, Amana, Kenmore, and select GE gas range models.

The Control Board is an OEM part for Whirlpool ranges. It is the main circuit board that controls all electrical functions and components within the oven, from heating elements and fans, to timers and temperature sensors. A properly functioning control board is crucial for reliable and safe operation.

Causes of a bad control board can include liquid spills, power surges, or general wear and tear over time. Electronic components are susceptible to failure if exposed to excessive heat or electrical currents.

Symptoms of a bad control board include:

• Inoperative or unresponsive control panel
• Inability to bake or broil foods properly
• Fault codes that will not clear
• Improper temperatures or cooking times
• Repeated blowouts of fuses or circuit breakers

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Control Board is an OEM replacement part for Whirlpool ranges. It is responsible for controlling and regulating various functions of the range, such as temperature settings, timers, and cooking modes.

A bad control board can occur due to electrical malfunctions, component failure, or damage. If you notice symptoms such as unresponsive buttons, error codes on the display, or the range not functioning properly, it may be time to replace the control board.

Symptoms of a bad control board include:

• Unresponsive buttons or controls
• Error codes displayed on the control panel
• Malfunctioning or inconsistent temperature settings

Restore your range by replacing the faulty or damaged control board with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and support. Designed to replace damaged or missing brackets, it helps reduce vibration and prevent parts from shifting during use. What it does

• Provides a stable anchor point for internal components or panels
• Restores proper alignment and fit between the appliance cabinet and mounted parts
• Helps reduce vibration and rattling caused by loose or broken supports
• Commonly replaced when bracket is bent, cracked, or missing

• Inspect adjacent fasteners and mounting holes; replace any stripped screws or damaged hardware
• Use appropriate tools and mounting hardware for secure installation; torque to OEM recommendation if available
• Disconnect power before working on electrical appliances and follow all safety guidelines

Note: This is a kit of 5 bezels.

This insert is a small OEM component designed to fit into a specific location on your appliance to secure, align, or finish an assembly. Replacing a worn, damaged, or missing insert restores proper fit and clean appearance.

• Provides a snug interface or cover within the designated assembly
• Helps prevent looseness, vibration, or gaps in the connected part
• Replaces cracked, worn, or missing insert pieces
• Common symptoms include loose or wobbly parts, misalignment, or a missing cap/cover

• Disconnect power and shut off gas/water before servicing
• Refer to your model's parts diagram to confirm location and orientation
• Use non-marring tools to avoid cosmetic damage
• Seat the insert fully; do not overtighten adjacent fasteners

This replacement bumper cushions and protects the appliance door or panel, helping stop metal-on-metal contact, reduce noise, and prevent chipping or wear. Simple, low-profile part that restores smooth, quiet door operation. What it does:

• Cushions door or panel to prevent hard impacts and protect finishes
• Reduces rattling and vibration-related noise during operation
• Helps the door close more softly and sit flush with the cabinet
• Prevents premature wear where edges contact the cabinet

• Disconnect power to the appliance before starting any repair.
• Inspect the damaged bumper and surrounding area, then remove the old bumper by hand or with a non-marring tool.
• Press the new bumper into the original mounting location until fully seated; no special tools normally required.
• If the bumper mounts to a clip or bracket that's damaged, replace the bracket.

This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

Replacement gasket that restores a tight seal to the appliance door and helps prevent water or air leaks. Replaces worn, cracked, or compressed seals so the door closes properly and reduces moisture or heat loss. What it does:

• Seals the door opening to stop leaks of water, steam, or heated air.
• Helps maintain proper temperature and efficiency by preventing air exchange.
• Reduces condensation, odors, and cycling caused by a poor seal.
• Common signs you need this part: visible gaps or damage, leaks around the door, excess moisture, or poor heating/cooling performance.

• Disconnect power and water (if applicable) and allow the appliance to cool before starting.
• Clean and dry the mating surface to ensure a proper fit; remove old adhesive or debris.
• Align the gasket into the door channel or groove and press evenly; avoid stretching the material.
• If the door or mounting hardware is bent or damaged, repair those parts before installing the gasket.

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

This replacement mounting screw secures panels and small components on compatible Whirlpool appliances, restoring proper fit and reducing rattles or loose parts for a solid, finished appearance. What it does

• Fastens control panels, trim pieces, or internal brackets to the appliance chassis
• Helps stop panel vibration, rattling, or misalignment caused by missing or worn fasteners
• Restores secure attachment after disassembly for service or part replacement
• Simple hardware replacement that maintains original fit and function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and stop when snug — do not overtighten to prevent damage to mating parts
• Keep removed hardware organized to ensure correct reassembly

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This control panel is the user interface that lets you select oven/range functions and read status. Replacing a faulty panel restores responsive keypads, display feedback, and reliable control of cooking cycles. What it does:

• Houses the touchpads/buttons and display used to program the oven/range
• Sends user inputs to the range's main control so settings are executed
• Commonly replaces panels that have unresponsive buttons, blank or distorted displays, or incorrect user feedback
• Helps resolve intermittent control faults and some user-interface error conditions

• One control panel assembly

• Disconnect power at the breaker before attempting any service
• Handle the display and glass areas carefully to avoid damage or scratches
• Installation typically requires removing the cooktop or console trim and unplugging wiring harnesses; keep fasteners organized

The Display Wire Harness is an OEM part for Whirlpool ranges. It connects the control panel display to the range’s main control board, allowing for communication between the user interface and the appliance’s electronic system. This harness ensures that the display panel accurately shows information such as temperature settings, timer functions, and error codes.

Causes of a bad display wire harness can include regular wear and tear, electrical issues, or damage from heat exposure or physical impact. When the wire harness fails, it can disrupt the flow of information between the control panel and the main control board, affecting the operation and display functions of the range.

Symptoms of a bad Display Wire Harness include:

• The display panel not lighting up
• Inaccurate or flickering display readings
• Buttons on the control panel not responding
• Error codes appearing on the display

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Keypad Wire Harness is an OEM part for Whirlpool ranges. This component is essential for connecting the keypad to the control board, enabling communication between user inputs and the range's operational functions.

Causes of a bad keypad wire harness can include wear and tear from regular use, exposure to heat and moisture, or physical damage due to mishandling or accidental impact. Electrical issues such as short circuits or frayed wires can also lead to malfunctioning.

Symptoms of a bad keypad wire harness include:

• Unresponsive keypad buttons
• Intermittent or inconsistent range operation
• Error codes related to keypad communication
• The range not powering on or off correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This machine-thread screw secures brackets, panels, and trim inside your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces rattles, and keeps assemblies properly aligned. What it does:

• 10-32 machine-thread screw used to fasten metal components
• Maintains alignment and stability of panels, brackets, and trim
• Replace if threads are stripped, head is damaged, corroded, or missing
• Common symptoms: loose panel/handle, vibration noises, gaps or misalignment

• 1 screw

• Disconnect power (and gas, if applicable) before servicing
• Support the component and start threads by hand to avoid cross-threading
• Use the correct driver; do not overtighten to prevent stripping
• Match thread size and length specified for your model

The LP Bake and Broil Orifice Kit is an OEM replacement part for Whirlpool gas ranges and ovens. It is a kit containing specially-sized orifices that control gas flow to the bake and broil burners. This allows for optimal gas-air mixture and fuel efficiency specific to liquefied petroleum (LP) gas systems.

Causes of needing a replacement kit include worn or damaged orifices that alter proper gas flow and burner performance over time.

Symptoms include:

• Slow or uneven heating from one or multiple burners
• Burners that create hot or cool spots on cookware
• Ineffective or soft flames that impact cooking results
• Higher appliance operation costs due to inefficient fuel usage

This OEM kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Oven orifice kit with Bake orifice and "Male" Broil orifice. For an oven orifice kit with a "Female" Broil orifice, order part# W10859321. The Bake orifice is #56, Broil orifice is #100.
