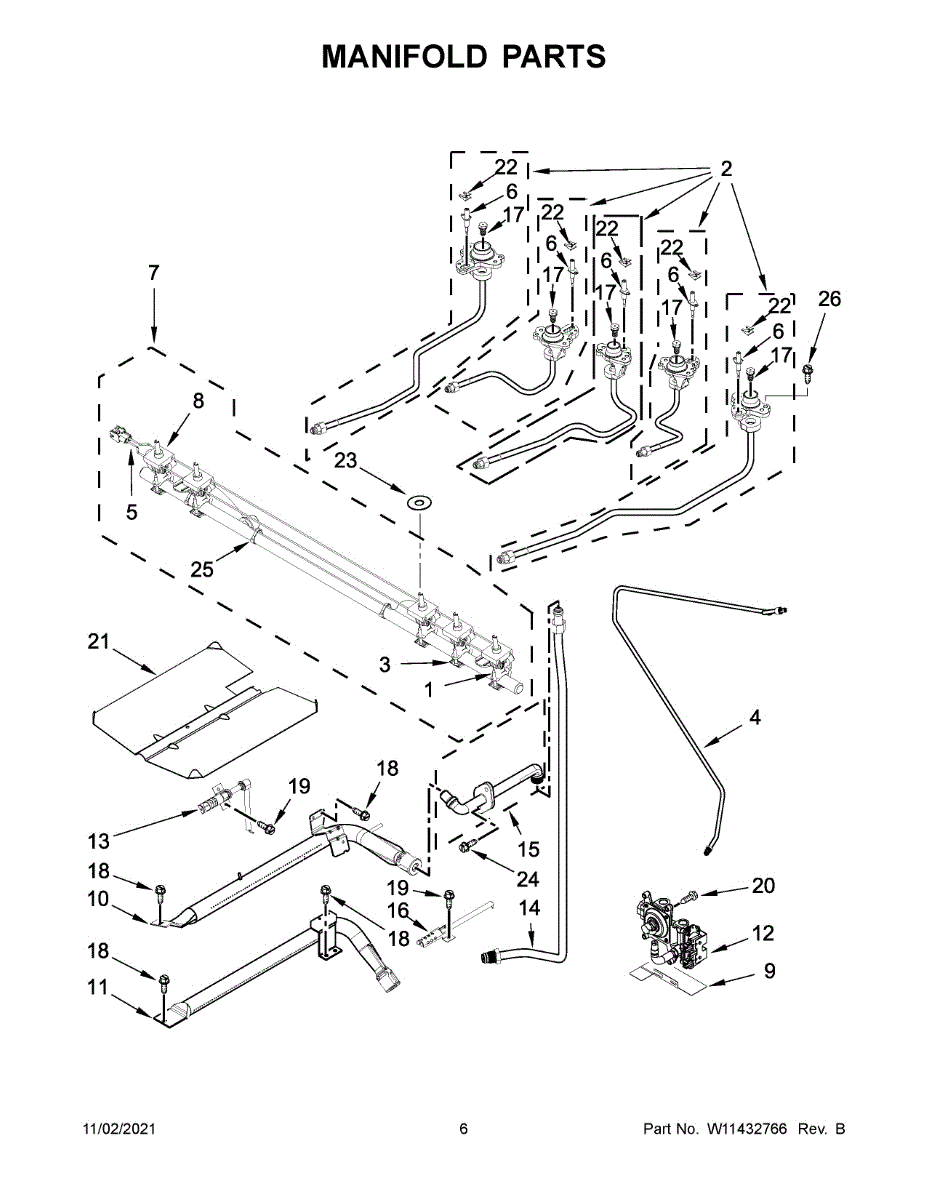

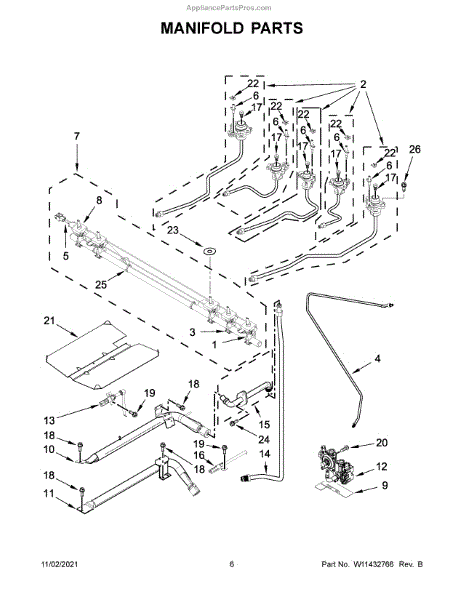

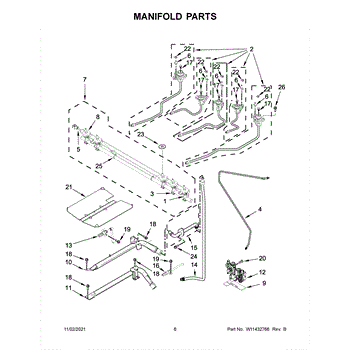

Parts for Maytag MGS8800FZ1: Manifold Parts

The Screw is an OEM part for Whirlpool cooktop. It is a small yet vital component that joins together other parts of the range to create a cohesive appliance. The screw is responsible for tightly securing internal components like the oven cavity walls, heating elements, and outer door during operation.

Causes of a bad screw can include wear and tear over time due to repetitive heating and cooling cycles, or damage from handling that results in bending or stripping of the threads.

Symptoms of a bad screw include:

• Detached or damaged internal range components
• Issues with the door like misalignment or inability to latch securely
• Improper heat circulation and hot or cold spots in the oven
• Component malfunctions if mounting positions are compromised

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This wire harness connects internal components to deliver power and signals so the appliance runs reliably. It replaces a damaged or worn harness to restore proper electrical connections and help eliminate intermittent operation. What it does:

• Routes and organizes electrical wiring between control and internal parts
• Restores lost or intermittent power to specific components caused by frayed or broken wires
• Prevents loose connections that can cause erratic behavior or shutoffs
• Replaces burnt or damaged wiring that may produce burning smells or visible damage

• Disconnect power (unplug appliance or shut off breaker) before starting any work
• Take photos of existing routing and connector positions to aid reassembly
• Match connectors and route the harness the same way as the original; secure with existing clips or ties
• If you see melted connectors, melted insulation, or other heat damage, verify surrounding parts and components for faults before reassembly

This surface ignitor lights the burner on compatible gas cooktops and ranges, restoring reliable spark ignition for normal burner operation. Replace a broken or weak ignitor to help restore consistent ignition and safer cooking. What it does:

• Generates the spark that lights the burner when the control is turned on
• Helps ensure quick, consistent ignition and reduces repeated clicking or delayed lighting
• Commonly replaces cracked, burned, or non-sparking ignitors
• Works with the cooktop's existing valve and electronic control to initiate flame

• Always disconnect power and shut off the gas supply before removing or installing the ignitor
• Handle the ceramic and electrode tip carefully—these components are fragile and can crack if dropped
• Reuse existing mounting hardware unless replacement is specified

This surface ignitor is the electrode that creates the spark to light a gas range burner, restoring reliable ignition for surface burners. It replaces a damaged or non-sparking ignitor to help the cooktop light quickly and safely. What it does:

• Produces the spark that ignites gas at a surface burner
• Replaces cracked, broken, or non-sparking electrodes
• Helps stop continuous clicking or no-ignition symptoms at the burner
• Works with the range's ignition system to restore normal burner operation

• Disconnect power and shut off the gas supply before starting any repairs
• Handle the ceramic electrode carefully to avoid cracking
• Verify the ignitor matches the original for fit and electrode orientation

A surface ignitor that produces the spark needed to light gas burners on compatible ranges and cooktops. Replaces a worn or failed ignitor to restore reliable ignition and consistent burner lighting. What it does

• Creates the spark at the burner to ignite gas when the control is turned on.
• Commonly used when burners click but fail to light or when a specific burner never ignites.
• Works with the cooktop's ignition system to provide consistent, repeatable sparking.
• Fits into the burner assembly and connects to the appliance's existing wiring and mounting.

• One surface ignitor (quantity: 1)

• Disconnect power to the appliance and shut off the gas supply before starting any service.
• Handle the ignitor by the ceramic/insulated areas; avoid touching the tip with bare hands to prevent contamination or damage.
• Confirm correct fit and secure all wiring connections; test ignition on a safe flame setting after reinstalling.

This manifold is the main gas distribution assembly that routes fuel to the burner valves for safe, consistent ignition and heating. It restores proper gas flow so burners and oven heat as designed. What it does:

• Distributes gas from the regulator to individual burner and oven valves
• Ensures even fuel delivery for consistent flame and cooking performance
• Commonly replaced when burners won't light, have weak or uneven flames, or the oven won't heat
• Works with existing valve and ignition components to restore normal operation

• One replacement manifold

• Turn off gas supply and electricity to the appliance before servicing
• Inspect gaskets and fittings; replace any damaged seals to prevent leaks
• Tighten fittings to manufacturer torque specs and check for leaks with soapy water or a gas leak detector

This surface burner valve controls gas flow to a single cooktop burner, restoring safe, reliable ignition and flame control for gas ranges. It's a direct-replacement valve used where the original valve failed or leaks. What it does:

• Regulates gas to an individual surface burner so the burner lights and holds a steady flame
• Commonly replaces valves that stick, leak, or fail to respond to the control knob
• Helps stop gas flow when the control knob is turned off to improve safety
• Works with range ignition systems to enable consistent lighting

• One burner valve

• Turn off gas supply and electricity to the appliance before beginning service
• Follow OEM service manual and use proper seals; replace any gaskets or fittings that are damaged
• Verify correct valve orientation and secure connections; test for leaks after installation

This surface burner valve regulates gas flow to a single cooktop burner through the control knob. Replacing a worn valve restores smooth flame control, reliable ignition, and a positive shutoff for safer, consistent cooking.

• Regulates and meters gas to one surface burner for off, simmer, and full-flame settings
• Works with the control knob and spark-ignition switch to light the burner
• Common symptoms: burner won't light or adjust properly, flame doesn't shut off completely, or the knob is hard to turn or wobbly
• If a gas odor is detected near the control area, stop use and service the appliance

• Disconnect electrical power and shut off gas before servicing; allow the appliance to cool
• Access the valve/manifold; note valve orientation and stem position before removal
• Transfer the spark switch, mounting clip, and fittings from the old valve as needed
• Apply an approved gas-rated thread sealant, tighten connections, and leak-test all joints with a soap solution before use

The Surface Burner Valve is an OEM part for Whirlpool cooktop ranges. As an internal fixture, each valve regulates gas flow to a specific burner allowing customized heating levels.

Symptoms of a bad surface burner valve include:

• Burners that will not ignite or only ignite at max capacity
• Inability to lower a burner's flame below the maximum setting
• Gas leaks characterized by unusual smells

Causes relate to regular use corrosion restricting valve movement or impact damaging stems preventing full aperture control. Neglect threatens safety.

This OEM Whirlpool part is also compatible with some Maytag, Jenn-Air, and KitchenAid ranges.

This broil burner assembly supplies the focused heat for the oven's broiling function so you can brown and crisp foods quickly. It replaces a worn or damaged broil burner to restore proper broil performance. What it does:

• Directs and emits the high, concentrated flame used during oven broiling.
• Restores even browning and searing when the broil function produces weak or spotty heat.
• Addresses issues such as little/no broil flame or uneven broiling when burner damage or clogging is present.
• Works with the oven's gas supply and ignition system to produce consistent broil heat.

• One broil burner assembly

• Turn off and disconnect gas supply and electrical power before attempting service.
• Follow OEM service manual or parts diagram for correct alignment and secure mounting.
• Use proper tools; verify gas connections are leak-free and ignition lights properly before use.

This oven bake burner feeds gas evenly along the flame ports to deliver a consistent bake flame. Replacing a warped, corroded, or clogged burner helps restore reliable preheat and even baking.

• Distributes gas along the burner rail during the bake cycle to produce an even flame
• Helps maintain stable oven temperatures and consistent cooking results
• Common symptoms: no heat in bake, very long preheat, or uneven baking
• Visible damage, rust, or blocked ports on the burner indicate replacement

• Disconnect power and shut off gas before servicing; allow the oven to cool
• Remove the oven bottom panel and flame spreader/shield to access the burner
• Note orientation; transfer any mounting hardware from the original and seat the burner over the orifice before securing
• Restore gas, check all connections for leaks with an approved solution, and verify proper ignition and flame

This gas pressure regulator controls and stabilizes the incoming gas supply to your appliance, helping burners and the oven receive a consistent flow. Replacing a failing regulator can restore steady flames and more reliable heating performance. What it does

• Reduces and regulates incoming gas line pressure to appliance specifications
• Helps maintain consistent burner flames across the cooktop and oven
• Can address weak or uneven flames affecting multiple burners
• May help resolve ignition issues caused by insufficient or inconsistent gas flow

• 1 gas pressure regulator assembly

• Disconnect power and shut off the gas supply before servicing; work in a well-ventilated area away from open flames
• Note gas flow direction; transfer any fittings from the old regulator as required
• Use approved gas-rated thread sealant on NPT connections and tighten to manufacturer guidance
• After installation, restore gas and perform a thorough leak check with a soap-and-water solution on all connections

The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas in the oven burner to produce the heat needed for cooking and baking. The igniter ensures a consistent and reliable flame each time the oven is used.

Causes of a bad igniter can include normal wear and tear, electrical faults, or exposure to high temperatures over extended periods. A worn or damaged igniter may fail to produce the necessary spark or heat to ignite the gas.

Symptoms of a bad igniter include:

• The oven not heating up
• Uneven cooking or baking
• A delay in the oven igniting
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas tubing is the replacement flexible line that routes fuel from the gas valve to the burner assembly, restoring a secure gas connection for safe ignition and operation. Designed to match OEM fit and function. What it does

• Carries natural or LP gas from the control valve to the burner or main manifold.
• Restores a sealed gas path when original tubing is cracked, pinched, or disconnected.
• Helps eliminate symptoms such as gas smell near the appliance, burner failing to light, or intermittent pilot/burner operation.
• Works with appliance gas systems that use a flexible tubing connection.

• One gas tubing as shown.

• Turn off the gas supply and unplug the appliance before starting any work.
• Use correct fittings and thread sealant approved for gas.
• After installation, test all connections for leaks using a soapy water solution or a gas leak detector; never use an open flame.

This fitting is a small connector that joins or secures a fluid line inside the appliance, helping restore a safe, leak-free connection so water or other fluids flow where needed without escaping. What it does:

• Connects or secures a hose or tubing to an internal port so fluid can flow properly
• Helps stop leaks caused by cracked, loose, or worn fittings
• Restores a proper sealed connection when the original fitting is damaged or missing
• Works as a replacement plumbing connector used in common appliance water lines

• Fitting

• Turn off power to the appliance and shut off the water supply before starting
• Remove any retaining clips or clamps and replace the old fitting with the new one, ensuring a snug fit
• Use only the correct clamps or seals for your appliance; tighten to manufacturer guidance without over-torquing
• After installation, restore water and power, then check thoroughly for leaks during a test cycle

This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

This orifice spud is a small gas flow insert that helps regulate burner fuel delivery for safe, consistent flame performance. Replaces a worn or damaged spud to restore steady ignition and proper burner operation. What it does:

• Controls the gas flow into a burner to help maintain a stable, even flame
• Commonly used when a burner has low, weak, or uneven flames or trouble staying lit
• Fits into the burner assembly to meter fuel to the burner ports
• Works with compatible gas range/oven burner components for correct flame shaping

• One orifice spud

• Turn off the gas supply and power to the appliance before servicing
• Remove burner cap and head to access the spud; use appropriate hand tools
• Thread or press the spud into place as required for your model; do not overtighten
• After installation, check burner ignition and flame; if you smell gas or see leaks, stop.

This orifice spud is the small gas fitting that directs fuel from the range/oven valve to the burner, helping maintain the correct gas flow for stable ignition and consistent flame control. What it does

• Seats in the gas valve or burner assembly to channel gas through the proper orifice
• Restores correct fuel flow when a damaged or clogged spud causes weak or no flame
• Helps correct symptoms like burners that won't light, low or uneven flame, or inconsistent cooking heat
• Works with the existing valve and burner components to re-establish reliable ignition

• One orifice spud

• Turn off the appliance gas supply and disconnect power before starting any work
• Remove grates and burner parts to access the valve/burner area; keep parts organized for reassembly
• Tighten to OEM torque; do not force fittings or overtighten threads

This orifice spud is the small metal fitting that meters gas to a cooktop or range burner, restoring proper flame size and heat control. It fits into the burner manifold to direct fuel flow for safe operation. What it does:

• Regulates gas flow to a specific burner for correct flame height and heat output
• Helps restore even or full-strength flames when a burner is weak or uneven
• Can resolve ignition difficulty or burners that won't stay lit when caused by a worn or damaged spud
• Works as a direct replacement for the corresponding burner orifice in the manifold assembly

• One orifice spud

• Turn off the appliance's gas supply and electrical power before servicing
• Use appropriate wrenches and avoid overtightening to prevent damage to threads
• After installation, check all connections for gas leaks with a soap solution; do not use an open flame

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This ignitor retaining clip secures the oven or range ignitor to the burner assembly so the ignitor stays properly positioned for reliable ignition. It's a small replacement part that restores proper ignitor mounting and alignment. What it does:

• Holds the oven/range ignitor in place on the burner assembly to maintain correct positioning
• Helps ensure consistent ignition by preventing the ignitor from shifting or coming loose
• Commonly replaced when the original clip is broken, bent, or missing
• Fits directly where the factory clip secures the ignitor to the burner housing

• Turn off power and gas supply to the appliance before starting any repair
• Access typically requires removing the oven burner or inner panel; follow the manufacturer service instructions
• Use appropriate tools to remove the old clip and secure the new clip without over-bending

This switch seal is a replacement gasket that helps keep moisture and debris away from the appliance's door/control switch, protecting the switch assembly and helping restore reliable door detection and operation. What it does:

• Seals the area around the door/control switch to block water, lint, and grime.
• Helps prevent intermittent trips or failures caused by moisture or foreign material contacting the switch.
• Promotes consistent switch actuation and can extend the service life of the switch assembly.
• Useful when the existing seal is cracked, torn, flattened, or missing.

• Disconnect power before servicing to avoid electrical shock.
• Access typically requires removing the door trim or control panel—follow your model's service instructions.
• Inspect the switch and surrounding area for damage or corrosion and clean before installing the new seal.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening so panels and parts stay aligned and stable during normal use. What it does:

• Fastens appliance panels, trim or internal components in place
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop panel vibration and maintain proper component alignment
• Matches OEM fit where specified for a secure installation

• One replacement mounting screw

• Verify screw size and fit before installation; use the correct screw location from your parts diagram
• Turn off and disconnect power to the appliance before accessing internal components
• Hand-start the screw to avoid cross-threading; tighten until snug—do not over-tighten
• Wear safety glasses and follow manufacturer service instructions when applicable

The LP Bake and Broil Orifice Kit is an OEM replacement part for Whirlpool gas ranges and ovens. It is a kit containing specially-sized orifices that control gas flow to the bake and broil burners. This allows for optimal gas-air mixture and fuel efficiency specific to liquefied petroleum (LP) gas systems.

Causes of needing a replacement kit include worn or damaged orifices that alter proper gas flow and burner performance over time.

Symptoms include:

• Slow or uneven heating from one or multiple burners
• Burners that create hot or cool spots on cookware
• Ineffective or soft flames that impact cooking results
• Higher appliance operation costs due to inefficient fuel usage

This OEM kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Oven orifice kit with Bake orifice and "Male" Broil orifice. For an oven orifice kit with a "Female" Broil orifice, order part# W10859321. The Bake orifice is #56, Broil orifice is #100.
