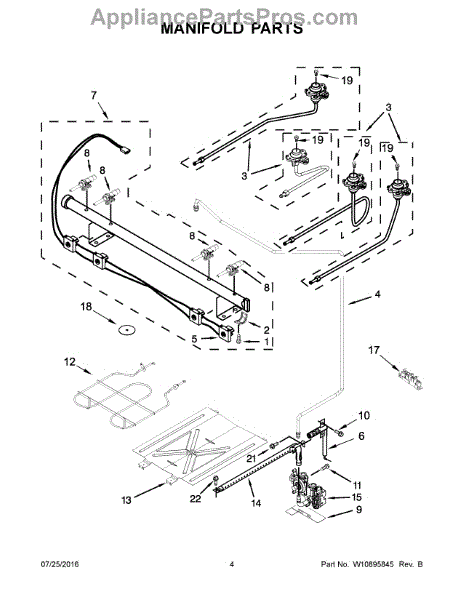

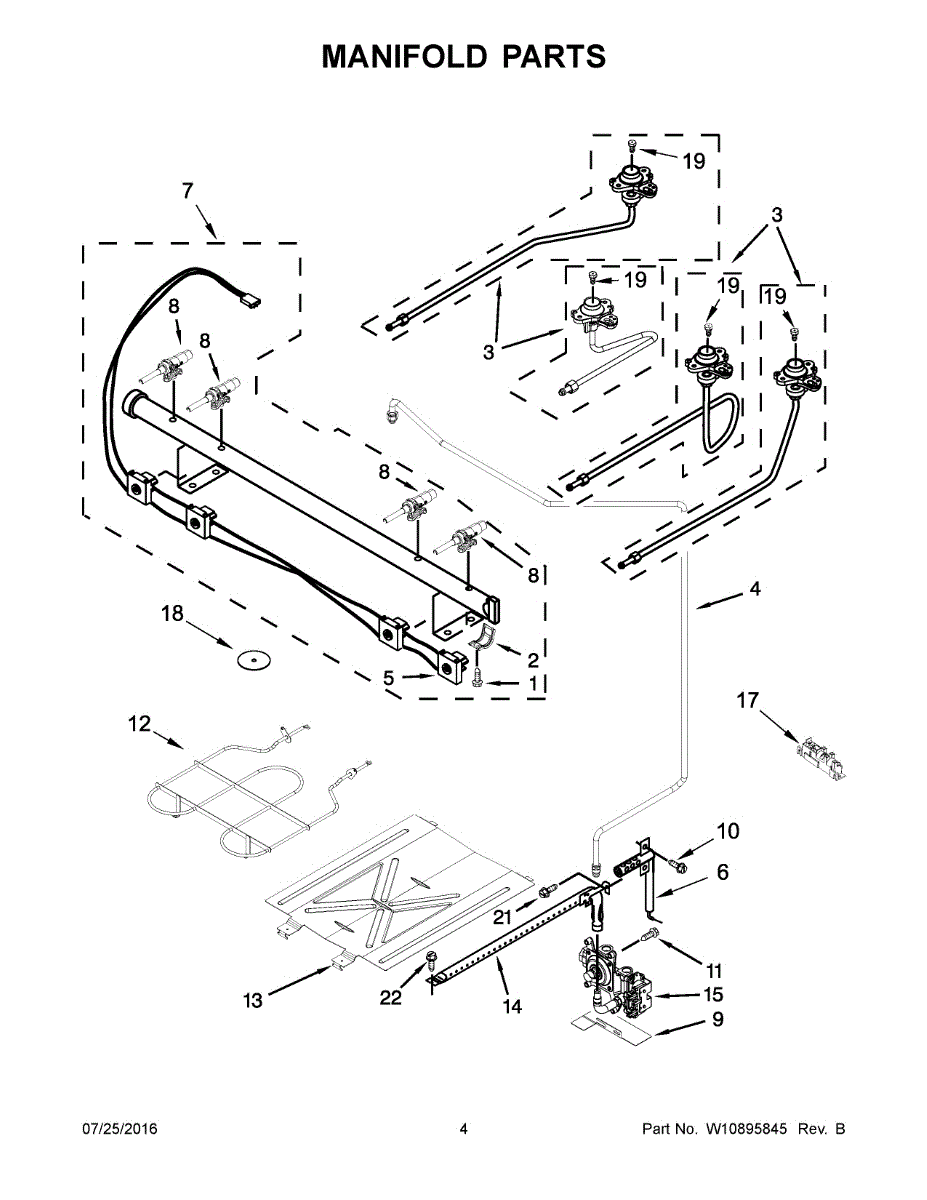

Parts for Whirlpool WEG515S0FB0: 03 - Manifold Parts

The Screw is an OEM part for Whirlpool cooktop. It is a small yet vital component that joins together other parts of the range to create a cohesive appliance. The screw is responsible for tightly securing internal components like the oven cavity walls, heating elements, and outer door during operation.

Causes of a bad screw can include wear and tear over time due to repetitive heating and cooling cycles, or damage from handling that results in bending or stripping of the threads.

Symptoms of a bad screw include:

• Detached or damaged internal range components
• Issues with the door like misalignment or inability to latch securely
• Improper heat circulation and hot or cold spots in the oven
• Component malfunctions if mounting positions are compromised

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Igniter is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, providing the heat necessary for baking or broiling. This igniter is critical for the oven’s functionality, as it must heat up to a specific temperature to open the gas valve and begin the combustion process.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up despite the gas being turned on.
• A gas smell indicating that gas is being released without ignition.
• Intermittent heating, where the oven fails to maintain a consistent temperature.

Causes of a bad oven igniter can include aging and wear that reduce the igniter’s ability to reach the required temperature, electrical issues such as faulty wiring or connections, or a malfunctioning safety valve that doesn’t open properly.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This manifold assembly routes gas to the cooktop's four burners so the range heats correctly. Replaces a damaged or leaking manifold to restore consistent burner ignition and flame delivery. What it does:

• Directs and distributes gas to each of the four cooktop burner valves
• Enables proper burner ignition and consistent flame at all four burners
• Helps stop gas leaks or uneven burner performance when the manifold is cracked or damaged
• Works with the range's valve and orifice system to maintain safe operation

• Manifold assembly (1)

• Turn off gas supply and power to the appliance before starting work
• Only install on compatible models and use proper gaskets/seals where required
• Tighten fittings to manufacturer torque specifications and check for leaks with a soap solution or approved leak detector

This burner valve controls gas flow to a surface burner, restoring proper ignition and flame regulation when the original valve fails. Ideal for replacing a worn or malfunctioning surface gas valve to regain reliable cooktop performance. What it does:

• Regulates gas flow from the supply line to a single surface burner for ignition and flame control.
• Replaces a valve that is sticking, broken, or no longer allowing consistent gas flow.
• Helps address symptoms such as a burner that won't light, a weak or uneven flame, or loss of burner control.
• Works as the direct replacement component that mounts behind the cooktop and connects to the burner orifices.

• One burner valve

• Turn off the appliance power and shut off the gas supply before starting any work.
• Installation typically requires removing the cooktop/top panel and disconnecting gas fittings—use proper tools and thread sealant approved for gas.
• Perform a gas-leak check after installation and before returning the appliance to service.

The Burner Valve is an OEM part for Whirlpool gas ranges. Located beneath each surface burner grate, it enables the control of gas flow to each cooking element allowing customized heat levels.

Symptoms of a bad burner valve include:

• Inability to adjust burner flames between simmer and boil
• Surface flames not igniting or extinguishing unexpectedly
• Discolored or misshapen valve bodies indicating internal damage
• Gas leaks detected around valve mounting connections

Causes of valve failure are typically due to wear over extended use or mineral scale accumulation in the valve orifice restricting precise regulation. Physical impacts may also crack the componentry.

This authentic Whirlpool replacement valve is compatible with select models including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas ranges.

The Burner Valve is an OEM component compatible with Whirlpool gas ranges. Located beneath each surface burner grate, it enables the control of gas flow to each cooking element allowing customized heat levels.

Symptoms of a bad burner valve include:

• Inability to adjust burner flames between simmer and boil
• Surface flames not igniting or extinguishing unexpectedly
• Discolored or misshapen valve bodies indicating internal damage
• Gas leaks detected around valve mounting connections

Causes of valve failure are typically due to wear over extended use or mineral scale accumulation in the valve orifice restricting precise regulation. Physical impacts may also crack the componentry.

This authentic Whirlpool replacement valve is compatible with select models including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas ranges.

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

The Screw is an OEM replacement part for Whirlpool ranges. This screw is used to secure various components of the range, ensuring that parts such as panels, brackets, or burners remain firmly in place during operation. It is designed to withstand the high-heat environment of a range, providing long-lasting durability.

Symptoms of a bad or missing Screw include:

• Loose or misaligned range components
• Rattling or unusual noises during operation
• Difficulty maintaining the range's structural stability

Causes of a failing or missing screw can include normal wear over time, accidental loss during maintenance or repairs, or damage from overtightening. Replacing faulty screws ensures the appliance remains safe and functional.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This flame spreader directs and evens the oven burner flame for more uniform heating and improved bake results. Replacement spreaders restore proper flame pattern and help reduce hot spots in the oven cavity. What it does:

• Distributes burner flame across the oven surface to promote even cooking and baking.
• Helps prevent concentrated hot spots that can cause unevenly cooked food.
• Can restore correct flame pattern when the existing baffle is warped, damaged, or missing.
• Supports stable burner operation by shielding and guiding the flame.

• Turn off power to the range and shut off the gas supply before servicing.
• Handle carefully to avoid bending or damaging the baffle; reinstall in the original orientation.
• Use appropriate hand tools and follow the oven's service manual for removal/installation steps.
• After installation, restore gas and power and check burner ignition and for any gas leaks per safety procedures.

This oven bake burner is designed for Direct Spark Ignition (DSI) ranges. It channels gas from the bake orifice and distributes an even flame under the oven floor for consistent baking performance and reliable light-off during the bake cycle.

• Distributes gas through burner ports to create an even bake flame
• Works with the DSI spark electrode to ignite the bake flame
• Can address uneven or weak flame patterns and delayed ignition in bake

• Disconnect power and shut off gas; allow the oven to cool completely
• Remove the oven bottom and flame spreader to access the burner
• Transfer any reusable mounting hardware or shields from the original burner
• After reassembly, restore gas/power and leak-test any disturbed gas connections per local code

The Gas Valve is an OEM part for Whirlpool gas ranges. Located behind each burner knob along the control panel, it regulates the flow of fuel to individual cooktop burners enabling customized heat levels.

Causes of a bad gas valve are typically mineral deposits accumulating within the valve internals over extended use, impairing proper gas regulation. Physical impacts that damage fragile internal mechanisms can also lead to malfunctions.

Symptoms of a failed gas valve include:

• Inability to toggle burners between low and high flame settings
• Burners igniting intermittently or remaining constantly on
• Gas smell detected near range installation area
• Visible corrosion and scale buildup externally on the valve

 Compatible models also include those by Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and Kenmore.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Whirlpool spark module is an OEM replacement part responsible for controlling the ignition and sparking of the gas burners in a Whirlpool range or cooktop. The spark module is typically located behind the control panel or near the burners, and it generates the electrical sparks needed to ignite the gas for cooking.

Causes of a bad module can include electrical surges, physical damage, or simply wear and tear over time.

This part fixes the following symptoms:

• Gas burners fail to ignite or have weak or inconsistent sparks
• Continuous sparking even after the burner is lit
• No spark at all when attempting to ignite the burners
• Unresponsive or non-functional burner control knobs
• Visible damage, such as burn marks or corrosion, on the spark module

The Whirlpool spark module can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This switch seal is a replacement gasket that helps keep moisture and debris away from the appliance's door/control switch, protecting the switch assembly and helping restore reliable door detection and operation. What it does:

• Seals the area around the door/control switch to block water, lint, and grime.
• Helps prevent intermittent trips or failures caused by moisture or foreign material contacting the switch.
• Promotes consistent switch actuation and can extend the service life of the switch assembly.
• Useful when the existing seal is cracked, torn, flattened, or missing.

• Disconnect power before servicing to avoid electrical shock.
• Access typically requires removing the door trim or control panel—follow your model's service instructions.
• Inspect the switch and surrounding area for damage or corrosion and clean before installing the new seal.

This orifice spud is a small gas flow insert that helps regulate burner fuel delivery for safe, consistent flame performance. Replaces a worn or damaged spud to restore steady ignition and proper burner operation. What it does:

• Controls the gas flow into a burner to help maintain a stable, even flame
• Commonly used when a burner has low, weak, or uneven flames or trouble staying lit
• Fits into the burner assembly to meter fuel to the burner ports
• Works with compatible gas range/oven burner components for correct flame shaping

• One orifice spud

• Turn off the gas supply and power to the appliance before servicing
• Remove burner cap and head to access the spud; use appropriate hand tools
• Thread or press the spud into place as required for your model; do not overtighten
• After installation, check burner ignition and flame; if you smell gas or see leaks, stop.

This orifice spud is the small gas fitting that directs fuel from the range/oven valve to the burner, helping maintain the correct gas flow for stable ignition and consistent flame control. What it does

• Seats in the gas valve or burner assembly to channel gas through the proper orifice
• Restores correct fuel flow when a damaged or clogged spud causes weak or no flame
• Helps correct symptoms like burners that won't light, low or uneven flame, or inconsistent cooking heat
• Works with the existing valve and burner components to re-establish reliable ignition

• One orifice spud

• Turn off the appliance gas supply and disconnect power before starting any work
• Remove grates and burner parts to access the valve/burner area; keep parts organized for reassembly
• Tighten to OEM torque; do not force fittings or overtighten threads

This orifice spud is the small metal fitting that meters gas to a cooktop or range burner, restoring proper flame size and heat control. It fits into the burner manifold to direct fuel flow for safe operation. What it does:

• Regulates gas flow to a specific burner for correct flame height and heat output
• Helps restore even or full-strength flames when a burner is weak or uneven
• Can resolve ignition difficulty or burners that won't stay lit when caused by a worn or damaged spud
• Works as a direct replacement for the corresponding burner orifice in the manifold assembly

• One orifice spud

• Turn off the appliance's gas supply and electrical power before servicing
• Use appropriate wrenches and avoid overtightening to prevent damage to threads
• After installation, check all connections for gas leaks with a soap solution; do not use an open flame

This orifice controls the flow of gas to a burner, helping produce the correct flame for safe, consistent cooking and baking. It replaces a worn or damaged gas metering jet to restore proper burner performance. What it does:

• Meter gas flow to a specific burner for correct flame size and heat output
• Helps maintain steady ignition and even cooking when functioning properly
• Commonly used when a burner shows a weak, uneven, or no flame
• Also replaces corroded or clogged jets that restrict gas flow

• Turn off the gas supply and power to the appliance before beginning work
• Use appropriate tools and avoid overtightening; match the replacement to the original part number
• Inspect for debris or corrosion and clean mating surfaces before installation

The LP Cnvrsn-Kit is an OEM part compatible with Whirlpool ranges. It allows a range to use liquid propane gas instead of natural gas. The kit includes all necessary components to safely convert the range.

Symptoms of a bad conversion kit include:

• Gas leaks around pipe connections
• Unable to light burners or ovens due to issues with gas flow
• Changes in flame color or uneven cooking performance

Causes of a bad conversion kit can include damaged or worn-out components that no longer regulate gas pressure properly or provide a secure connection.

This replacement kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
