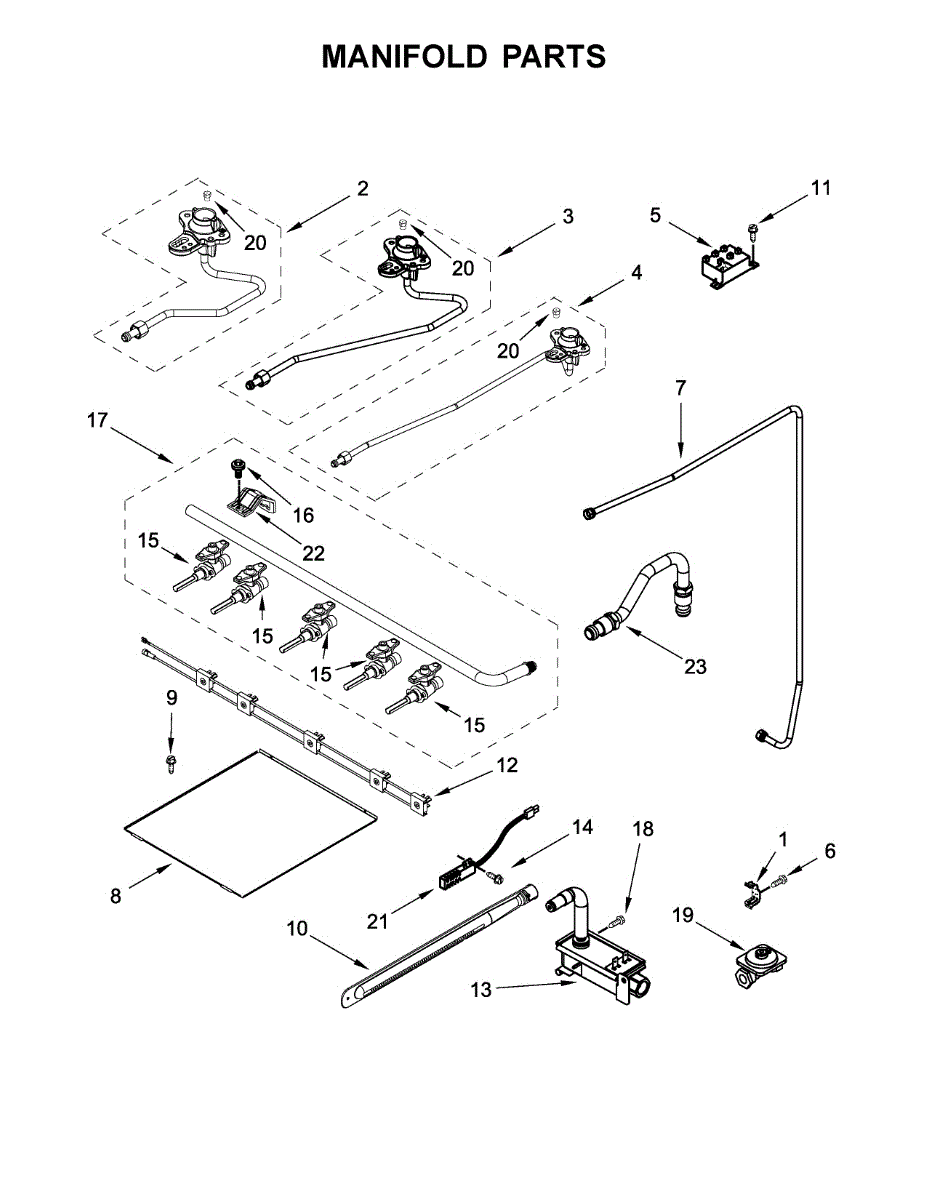

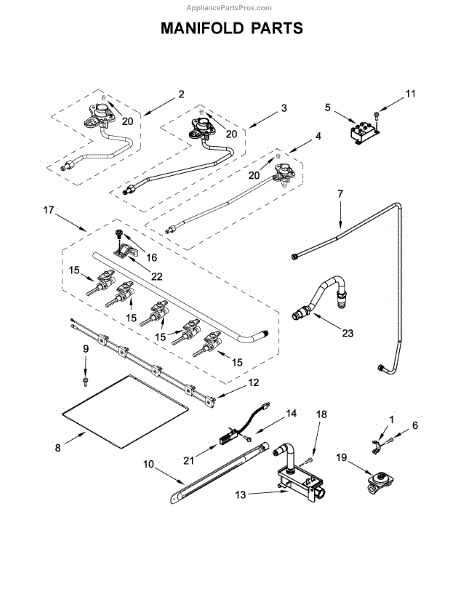

Parts for Whirlpool WFG505M0BS1: Manifold Parts

Mounting bracket for gas ranges. Secures components in place. Replace if bracket is bent, cracked, broken, or missing to ensure proper installation.

Regulates gas flow to surface burners on gas ranges. Replace if bent, broken, cracked, or leaking. Located beneath burner caps on the cooktop surface.

Replacement orifice holder for gas range surface burners. Securely holds the gas orifice in place beneath each burner. Replace if bent, cracked, or broken.

Small retainer secures internal components in proper alignment. Replace if cracked, broken, or missing to prevent rattling and part movement inside your range.

Secures the gas orifice and aligns it with the burner assembly on your gas range. Replace if cracked, damaged, or missing to restore proper gas flow path.

Securely holds the gas orifice in place for proper gas flow to range burners. Replace if worn, damaged from impact, or loose to restore stable burner operation.

Burners won't ignite or clicking but no spark? Replace the spark ignition module to restore reliable burner lighting on your gas range.

Loose or missing ground connection creating electrical safety concerns? This 8-32 x 3/8 ground screw secures grounding wires to the chassis. Quick fix.

Gas leaks or weak flames? This gas tubing routes fuel from valve to burner. Restores safe gas flow and reliable ignition. Requires adjustable wrench.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

Fix uneven heating or weak flames in your gas range with a new burner tube. Ensures proper gas flow to the burner for consistent cooking temperatures.

Mounting screw secures brackets, panels, and internal components in ranges. Replace missing, stripped, or corroded fasteners to restore secure fit.

Gas range burners won't light? This spark ignition switch and harness generates the spark needed for ignition. Fixes failed or weak ignition systems.

Fix an oven that won't heat or ignite even when the igniter glows. This gas safety valve controls gas flow to your range burner. DIY repair in 20 minutes.

Replacement mounting screw for gas range panels, trim, and internal components. Needed when original fastener is stripped, missing, or lost during repair work.

Fix unstable flames or poor flame control on your gas range with a new burner valve. Controls gas flow to surface burners for consistent cooking heat.

Fix burners that won't ignite or flames that won't adjust with this gas range burner valve. Controls gas flow to surface burners for precise heat.

Fix weak flames or burners that won't ignite by replacing a faulty surface burner valve. This gas valve restores precise flame control on your range.

Replacement screw for gas ranges. Used to secure panels, brackets, and internal components. Order a new screw if yours is stripped, missing, or damaged.

Fix burners that won't ignite or maintain flame with a new manifold pipe. Restores even gas flow from supply to valves for consistent burner performance.

Controls gas flow to burners and oven by stabilizing manifold pressure. Replace if cracked, damaged, or leaking to restore proper gas regulation.

Fix weak or yellow flames on your gas range burner with this precision natural gas orifice. Restores proper gas flow when clogged or damaged.

Burner orifice spud for gas ranges. Meters gas flow to control flame height. Replace if clogged, damaged, or when converting between natural gas and LP.

Replace a clogged, damaged, or missing burner orifice spud on your gas range. This brass fitting meters fuel flow to surface burners during gas conversion.

Fix uneven flames or convert from LP to natural gas with this #9 orifice spud. Meters precise gas flow to your range burner. Easy DIY installation.

Oven won't heat or takes forever to light? This igniter draws current to ignite the gas burner. DIY-friendly repair, typically 20-30 minutes with basic tools.

Mounting bracket for gas ranges. Secures components in place. Order a replacement if your original bracket is bent, broken, or missing.

If your gas range burner won't light or flames are uneven, damaged burner supply tubing may be cutting off fuel flow. This tube restores safe gas delivery.

Wire harness for gas ranges. Connects electrical components throughout the range. Replace if wires are frayed, damaged, or connectors are broken.

Wire harness for gas ranges. Connects electrical components inside your range. Replace if wires are frayed, damaged, or connections are loose or broken.

LP conversion kit for gas ranges. Includes orifices to convert your range from natural gas to liquid propane. Replaces cracked or missing orifices.
