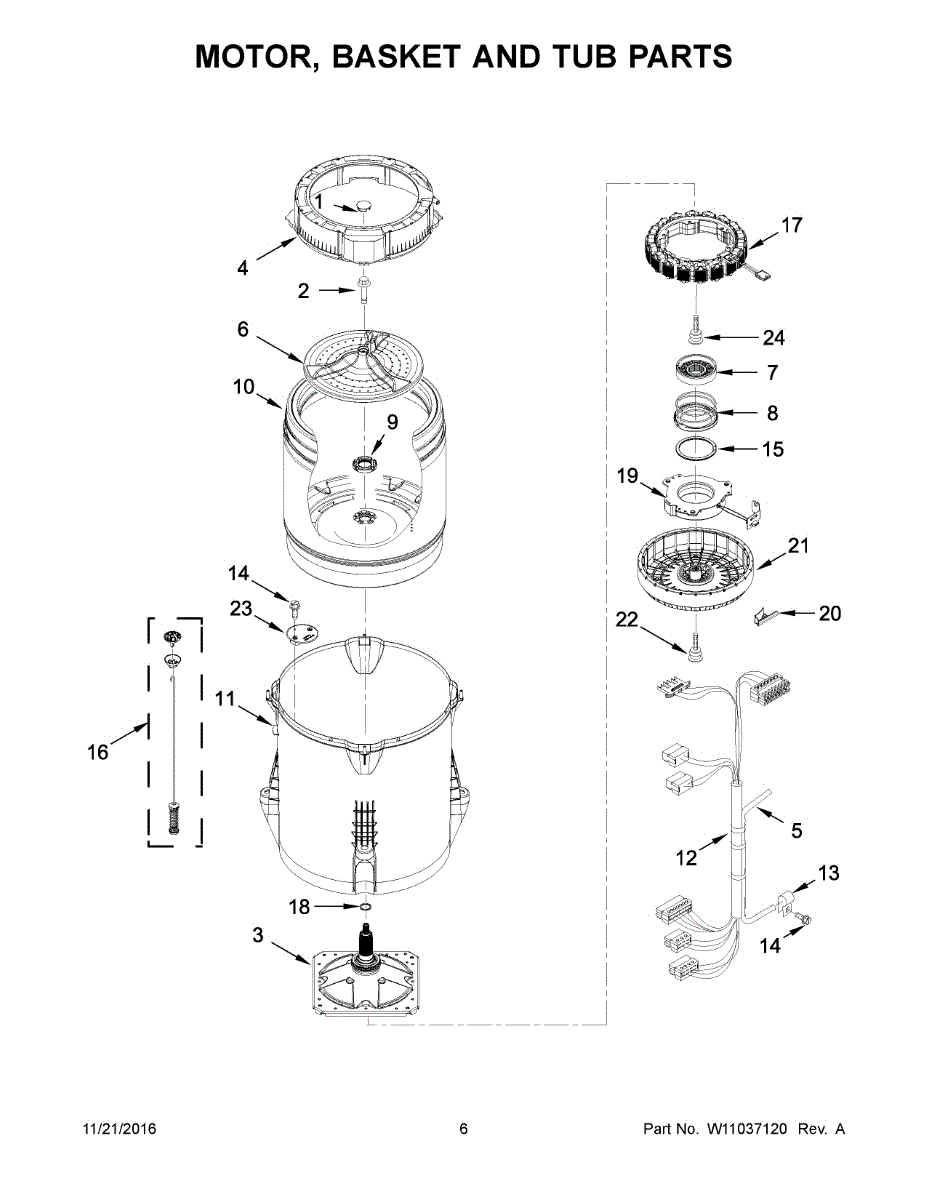

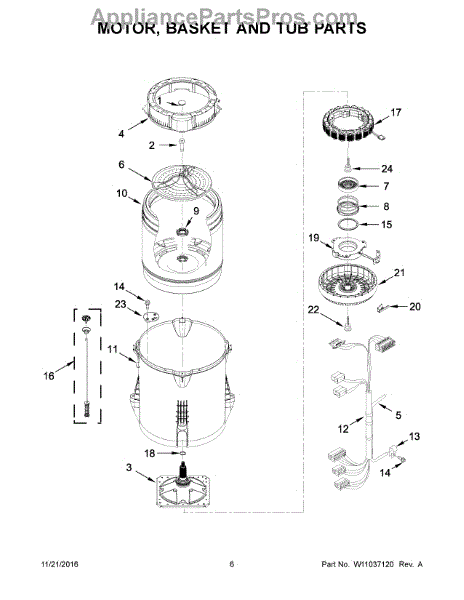

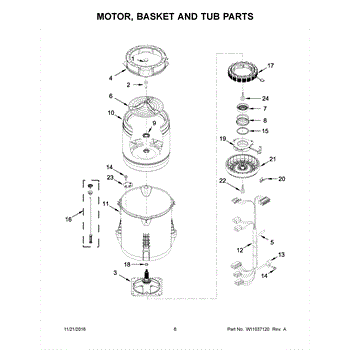

Parts for Whirlpool WTW8040DW2: 04 - Motor, Basket And Tub Parts

The Cap is an OEM part for Whirlpool washing machines. It provides a secure closure over the agitator post. The cap is designed with precision tolerances to fit snugly over the central agitator shaft.

Causes of a bad cap are typically wear and tear through repeated use and continuous exposure to detergents and other wash chemicals. Physical damage from dropping heavy loads could also potentially compromise the cap.

Symptoms of a bad cap include:

• Shifting or loose movement during the wash cycle
• Clicking or clanking sounds from a loose fit
• Improper stabilization of the wash basket

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool washing machines. This screw is used to securely attach the wash plate or agitator to the bottom of the washer's drum. This screw ensures that the wash plate remains firmly in place during the washer's operation, preventing movement that could lead to inefficient washing or damage to the machine.

Causes of damage to the screw can include corrosion over time, overloading of the washing machine which puts excess stress on the wash plate, or wear and tear from regular use.

Symptoms of a bad Screw include:

• The wash plate becoming loose or detached
• Unusual noises during the wash cycle, such as rattling or banging
• The washer failing to agitate properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Gearcase is an OEM part for Whirlpool washing machines. This component, also known as the transmission, is responsible for converting the motor's power into the mechanical action needed to agitate and spin the washer drum. It plays a crucial role in the overall operation and efficiency of the washing machine.

Over time, the gearcase can become worn or damaged due to heavy loads, continuous use, or lack of maintenance. A faulty gearcase can severely impact the washer’s performance and may require replacement to restore proper functionality.

Symptoms of a bad gearcase include:

• The washer not agitating or spinning
• Loud noises or grinding sounds during operation
• The washer leaking oil
• The drum not turning smoothly or at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The RING-TUB Top Loading Washer is an OEM component specifically designed for Whirlpool top-loading washers. The ring tub is cylindrical and houses the inner tub that holds water during the wash cycle. It allows for proper spinning of the tub during the drain and spin cycles to remove water from fabrics.

The ring-tub is subjected to rotational forces and vibrations during each cycle. Causes of a bad ring-tub include cracks, chips, or other damage due to stress and wear over time. Loose fasteners, broken mounting tabs, or a misshapen structure are also signs it needs replacement.

Symptoms of a bad ring-tub include:

• Water leaking from the tub during spin cycles
• Excessive noise or vibration
• Slow or inadequate draining of water
• The washer becomes imbalanced and off-center when spinning

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a clear plastic hose that runs from the water level switch to the bottom of the tub.

The Water Level Pressure Switch Hose is an OEM part for Whirlpool washers, playing a critical role in the accurate measurement of water levels within the machine.

Causes of damage to the Water Level Pressure Switch Hose can stem from natural wear and tear over time, leading to cracks or holes in the hose.

Symptoms of a bad Water Level Pressure Switch Hose include:

• The washer overfills or underfills, indicating a problem with water level detection.
• Unusual noises during the fill cycle, which may suggest air leaks in the hose.
• Error codes related to water level or filling issues displayed on the washer.
• The machine stops mid-cycle due to incorrect water level readings.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This washplate sits at the bottom of the tub in top-load washers. It rotates to move clothes and water through the detergent, restoring proper wash action and cleaning performance when the original plate is cracked, stripped, or worn. What it does:

• Mounts to the drive shaft/hub and spins to create the wash action in impeller-style top-load machines
• Circulates water and fabrics to loosen soils and improve cleaning
• Helps reduce tangling and promotes even garment movement during the cycle
• Failure symptoms can include weak or no agitation, poor cleaning, unusual grinding/knocking, or a loose/rocking impeller

• 1 washplate

• Disconnect power and turn off water supply before servicing
• Remove the center cap and hold-down bolt; pull the old washplate straight up—if stuck, rock gently and avoid prying against the tub
• Clear debris from the hub/splines; align and fully seat the new washplate, then reinstall the bolt and cap
• Run a short test cycle to ensure smooth operation with no rubbing or abnormal noise

The Clutch is an OEM part for Whirlpool washing machines. It is crucial for the proper functioning of the washer's spin cycle, connecting the transmission to the inner tub and facilitating the movement needed for spinning and agitating. The clutch ensures that the tub reaches the appropriate spin speed, thereby effectively removing water from clothes.

Causes of a bad clutch can include wear and tear from regular use, overloading the washing machine, or damage due to an imbalance during the spin cycle. When the clutch becomes faulty, the washing machine may struggle to spin or agitate correctly, affecting the overall efficiency of the appliance.

Symptoms of a bad clutch include:

• The washer not spinning or agitating properly
• Excessive noise during the spin cycle
• Wet clothes at the end of the cycle
• The washer stopping mid-cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Clutch is an OEM part for Whirlpool washing machines. It is crucial for the proper functioning of the washer's spin cycle, connecting the transmission to the inner tub and facilitating the movement needed for spinning and agitating. The clutch ensures that the tub reaches the appropriate spin speed, thereby effectively removing water from clothes.

Causes of a bad clutch can include wear and tear from regular use, overloading the washing machine, or damage due to an imbalance during the spin cycle. When the clutch becomes faulty, the washing machine may struggle to spin or agitate correctly, affecting the overall efficiency of the appliance.

Symptoms of a bad clutch include:

• The washer not spinning or agitating properly
• Excessive noise during the spin cycle
• Wet clothes at the end of the cycle
• The washer stopping mid-cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Spanner Nut is an OEM part for Whirlpool washing machines. This spanner nut secures the tub in place, ensuring it operates smoothly and without excessive vibration.

Causes of a bad washer nut-spanner can include wear and tear from extended use, over-tightening, or damage from improper handling during repairs.

Symptoms of a bad washer nut-spanner include:

• Excessive vibration or movement of the tub during operation
• Unusual noises such as banging or clanking
• The tub becoming loose or misaligned
• Difficulty in tightening or loosening the nut during maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This outer washer tub is the main exterior tub that surrounds the inner wash basket, helping contain water and support the tub assembly for dependable washing performance. It restores the washer's water-sealing and structural support. What it does:

• Houses the inner tub and helps contain wash water to prevent leaks
• Provides structural support for the tub assembly and associated seals/bearings
• Works with the inner basket, seals, and suspension to maintain proper wash action
• Can address symptoms such as visible leaks from the tub area or excessive tub movement/noise

• One outer tub (single piece as shown)

• Refer to your model's service manual for step-by-step removal and reassembly and follow OEM torque and seal replacement guidance
• Replace any worn seals, gaskets, or mounting hardware during installation to ensure a proper water-tight fit
• Disconnect power and water supply before beginning service to avoid shock or flooding
• Inspect those components and replace as needed

The Lower Harness is an OEM part for Whirlpool washers. This harness provides a secure and reliable connection for internal parts, allowing for seamless operation of your washer's electrical systems. It is responsible for transmitting power and signals to components such as the motor, control board, and sensors.

A bad lower wire harness can occur due to wear and tear over time, exposure to moisture or heat, or accidental damage. If you notice symptoms such as error codes on the display, intermittent power loss, or malfunctioning of certain washer functions, it may be time to replace this part.

Symptoms of a bad lower wire harness include:

• Error codes on the display
• Intermittent power loss
• Malfunctioning washer functions

Restore your Whirlpool washer by replacing the worn or damaged lower wire harness with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This clamp secures a washer or dryer hose to its connection to prevent leaks and keep the hose firmly in place during operation. It replaces worn or loose clamps that allow water to escape or hoses to detach. What it does:

• Holds a washer/dryer hose to a nipple, collar or fitting to maintain a sealed connection
• Prevents water leaks caused by loose or corroded clamps
• Stops hoses from slipping off during drain or fill cycles
• Restores proper hose retention and reduces risk of water damage

• Disconnect power and turn off the water supply before starting any repair
• Inspect hose and fitting for damage; replace hose if cracked or frayed
• Use appropriate pliers or a screwdriver for the clamp style; avoid overtightening to prevent hose damage
• Verify a leak-free connection after restoring power and water

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

The Clutch is an OEM part for Whirlpool washing machines. It is crucial for the proper functioning of the washer's spin cycle, connecting the transmission to the inner tub and facilitating the movement needed for spinning and agitating. The clutch ensures that the tub reaches the appropriate spin speed, thereby effectively removing water from clothes.

Causes of a bad clutch can include wear and tear from regular use, overloading the washing machine, or damage due to an imbalance during the spin cycle. When the clutch becomes faulty, the washing machine may struggle to spin or agitate correctly, affecting the overall efficiency of the appliance.

Symptoms of a bad clutch include:

• The washer not spinning or agitating properly
• Excessive noise during the spin cycle
• Wet clothes at the end of the cycle
• The washer stopping mid-cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Suspension Rod Kit is an OEM part for Whirlpool washing machines. This kit includes rods that connect the washing machine drum to the chassis, helping to absorb vibrations and prevent excessive movement during operation.

Causes of a bad Suspension Rod Kit can include deteriorating springs, worn mounts, or damage from excessive vibration over multiple cycles.

Symptoms of a bad Suspension Rod Kit include:

• Unusual noises during the spin cycle, such as banging or thumping sounds.
• The washing machine drum appearing off-balance, especially during the spin cycle.
• Excessive vibration or "walking" of the machine during operation.
• Clothes coming out more wrinkled than usual due to an unsteady spin.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the stator for the washer's direct-drive motor. The stationary coil generates the magnetic field the rotor uses to spin and agitate the basket, restoring smooth, reliable drive performance when the original windings fail.

• Creates the electromagnetic field that powers the direct-drive motor
• Works with the rotor to spin the basket and drive agitation
• Failure symptoms can include no spin, no agitation, or the basket not turning
• Intermittent or weak spin performance can also indicate a failing stator

• Disconnect power and turn off water before servicing; allow components to stop moving
• Access from the bottom of the washer; remove the rotor cover and center bolt, then lift off the rotor (strong magnets—handle carefully)
• Unplug the motor harness, remove stator mounting bolts, and note wire routing/orientation
• Install the new stator evenly, tighten bolts in a crisscross pattern, reconnect the harness, then reinstall the rotor and cover

The Washer is an OEM part for Whirlpool washing machines. It is a critical component that secures the agitator shaft or impeller to the transmission, allowing for the proper rotation and movement during the wash cycles.

Causes of a bad washer include general wear and tear, physical damage from impact or excessive force, or issues with the transmission or related components.

Symptoms of a faulty washer:

• Loud grinding or squeaking noises during operation
• The agitator or impeller not spinning or rotating properly
• Excessive vibration or shaking during wash cycles
• Potential leaks or damage to the tub due to improper rotation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

The Clutch is an OEM part for Whirlpool washing machines. It engages the transmission that drives the wash basket's rotation during agitation and spinning cycles. Without a functioning clutch, the washer cannot transition effectively between wash and rinse operations. The clutch measures 4-7/8 inches in diameter

Causes of a bad clutch can include wear from repetitive use over many years or damage to the clutch coil that triggers engagement. Parts may have weakened to a point where they no longer make full contact needed for proper shifting.

Symptoms of a bad clutch include:

• The washer basket not spinning or turning at all
• Agitation but no transition to spin or vice versa
• Loud grinding noises coming from the transmission area

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Motor Rotor is an OEM replacement part for Whirlpool washing machines. Situated within the transmission housing, this specialized metal component physically connects the drive motor to the outer brake housing that controls the drive shaft and wash basket movements during all cycles.

Causes of failure involve the wearing of motor bearings or cracking of cast magnesium surfaces from repeated rotations over extended usage periods.

Symptoms requiring replacement include:

• Vibration or shaking noises heard from inside cabinetry
• Cycles displaying mechanical faults or not advancing properly
• Grinding sounds impeding smooth motor operations
• Drive failure troubles identified through diagnostic codes

This Whirlpool replacement is also compatible with Maytag, KitchenAid, and select other brands utilizing common Whirlpool motor designs.

Replacement screw used to secure appliance components such as panels, brackets, and assemblies. Installing a fresh screw in place of missing, stripped, or corroded hardware restores a solid fit and helps prevent rattles, vibration, or shifting parts.

• Fastens panels, brackets, or internal assemblies in place
• Maintains alignment and stability of mounted parts
• Helps reduce noise and vibration from loose hardware
• Replace when a screw is missing, threads are stripped, or corrosion is present

• Disconnect power and, if applicable, shut off gas before servicing
• Access the mounting point and remove damaged hardware
• Start the new screw by hand to avoid cross-threading, then tighten with the correct driver; do not overtighten
• Recheck fasteners after reassembly

This pump drain filter helps protect the appliance's drain pump by screening out debris before it enters the pump. A clean, intact filter supports proper draining and helps prevent clogs and pump damage.

• Screens debris before it reaches the drain pump
• Helps maintain proper draining performance
• May resolve issues like slow or incomplete draining, standing water, or drain-related noises
• Replacing a damaged or missing filter can reduce repeat clogs

• Unplug power and shut off water supply before service
• Access location varies by model; have towels ready for any residual water
• Note orientation of the old filter for correct placement
• After installation, check for leaks and run a brief drain cycle to verify operation

This factory fastener secures appliance components so panels, brackets, and trim stay tight and aligned. Replace a missing or stripped screw to stop rattles, restore a secure fit, and keep parts mounted as designed.

• Fastens panels, brackets, covers, and trim to the chassis
• Restores proper alignment and reduces vibration or rattling
• Replaces missing, rusted, or stripped hardware
• Helps maintain a solid, factory-style fit after service

• Disconnect power (and water, if applicable) before servicing
• Match the original screw location and orientation; start threads by hand to avoid cross-threading
• Use the correct driver for the head type; tighten snugly without overtightening
• Reuse any original washers or clips if present
