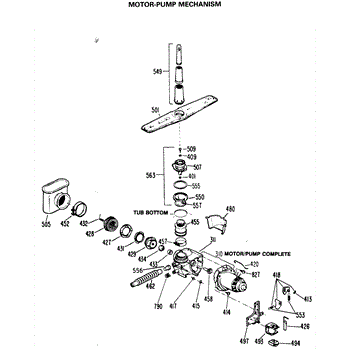

Parts for Ge HDA100S-45BW: 03 - Motor-Pump Mechanism Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Complete GE Pump and Motor Assembly is an OEM replacement part for GE dishwashers. This assembly is integral to the dishwasher’s functionality, as it combines both the pump and motor components that work together to circulate water during the wash and rinse cycles. The pump forces water through the spray arms, while the motor drives this process, ensuring thorough cleaning of the dishes.

Over time, the pump and motor assembly can wear out due to constant use and exposure to water and detergents. Additionally, debris or hard water buildup can clog the pump, causing strain on the motor and leading to failures. Electrical issues or damage from power surges can also impair the assembly's performance.

Symptoms of a bad pump and motor assembly include:

• The dishwasher not cleaning dishes properly
• Water not circulating or spraying during cycles
• Unusual noises, such as grinding or humming, coming from the dishwasher
• Water not draining properly from the tub
• The dishwasher not starting or completing cycles

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 retainers.

The Push-On Nut is an OEM part for GE appliances. This small component is typically used to secure various fittings and fastenings within appliances, ensuring they are tightly held and do not loosen over time. Its push-on design allows for easy installation, making it a straightforward solution for maintaining the structural integrity of your appliance components.

Symptoms of a failing Push-On Nut include:

• Loose components within the appliance
• Parts that seem to detach or move unexpectedly
• Unusual noises due to parts rattling or shaking
• Difficulty in securing components during repairs or maintenance

Causes of a bad push-on nut can include metal fatigue leading to loss of elasticity, corrosion from exposure to moisture, or general wear from repeated removal and installation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dishwasher Shaft Seal is an OEM part for GE dishwashers. This seal is located around the motor shaft and prevents water from leaking out of the dishwasher tub where the motor shaft enters.Seal for pump drain valve shaft. Instruction sheet included. Push-on nut may have to be cut off, order WR2X7054.

Over time, regular use can cause the seal to deteriorate, or debris and mineral deposits can lead to damage. A compromised shaft seal can result in water leaks, potentially causing damage to your kitchen floor and dishwasher components.

Symptoms of a bad dishwasher shaft seal include:

• Water leaking from the bottom of the dishwasher
• Puddles or water damage around the dishwasher area
• Unusual noises coming from the motor area due to water infiltration
• Visible wear or cracks on the seal

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This kit fits both D style and T style shafts.

The Solenoid Armature and Linkage is an OEM replacement part for GE dishwashers. It is responsible for controlling the dishwasher's draining process by operating the drain valve, which regulates the flow of water out of the dishwasher during the drain cycle.

Symptoms of a bad solenoid armature and linkage include:

• Dishwasher not filling with water or filling improperly
• Water leaks from the inlet valve area
• Dishwasher not advancing to the next cycle due to water flow issues
• Error codes or indicators related to water inlet problems

Causes of a bad solenoid armature and linkage can include mineral buildup or debris obstructing the valve, electrical malfunctions in the solenoid coil, or mechanical wear and tear of the linkage components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dishwasher models.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This sump clamp secures the dishwasher sump to the tub assembly, keeping the gasket compressed for a watertight seal. Replacing a weakened or corroded clamp helps stop leaks from the base and restores proper wash system sealing.

• Holds the sump firmly to maintain seal compression
• Helps prevent water leaking from the bottom of the dishwasher during operation
• Replace when the existing clamp is rusted, broken, stripped, or won't tighten

• Disconnect power at the breaker and shut off the water supply
• Remove the toe kick and, if needed, pull the dishwasher forward for access
• Position the clamp over the sump-to-tub joint and tighten evenly; do not overtighten
• Reseat the sump gasket and run a leak test after reassembly

This has male threads. For female threads use WD18X214

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

A replacement clamp that secures hoses or wiring to keep lines routed and stable, helping prevent rubbing, leaks and noise. Restores a reliable hold for tubing and harnesses so the appliance runs quietly and safely. What it does:

• Holds hoses, tubing or wire harnesses in place to reduce movement and chafing.
• Helps prevent leaks and water line abrasion caused by loose fittings.
• Reduces rattling or vibration from unsecured lines or cables.
• Keeps routing organized so adjacent components aren't stressed or worn.

• Disconnect power before servicing the appliance; shut off water supply when working on water or drain lines.
• Remove the old clamp and position the replacement so it fully engages the hose or harness, avoiding twists.
• Use appropriate hand tools (pliers or screwdriver) and secure the clamp evenly; avoid overtightening.
• Inspect surrounding hoses and wiring for damage while installing; replace any components that show wear.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

The Drain Hose is an OEM part for GE dishwashers. This part carries the wastewater from the dishwasher to the household plumbing, ensuring efficient and effective drainage after each wash cycle.

Causes of a bad drain hose can include regular wear and tear, kinks or bends that restrict water flow, or damage from improper installation.

Symptoms of a bad drain hose include:

• Water not draining properly from the dishwasher
• Leaks or puddles of water around the dishwasher
• Visible cracks or splits in the hose
• Unpleasant odors due to stagnant water

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drain Solenoid is an OEM part for GE dishwashers. This component controls the draining function by opening and closing the drain valve, ensuring that water is properly expelled from the dishwasher at the appropriate times during the wash cycle.

Common causes of a bad drain solenoid include electrical malfunctions, buildup of debris or mineral deposits, and general wear over time. These issues can prevent the solenoid from operating correctly, leading to improper draining.

Symptoms of a bad drain solenoid include:

• Standing water at the bottom of the dishwasher after the cycle
• Unusual noises during the draining process
• Error codes related to draining
• Water leakage from the dishwasher

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

2 wire insulator.

Color: white. It measures about 20 inches wide by 14 inches high when fully extended.

This sump cap seals the sump opening at the bottom of the dishwasher tub to contain wash water and protect the pump. Replace a cracked, loose, or missing cap to help prevent leaks and maintain proper wash performance. What it does:

• Seals the sump opening to keep water inside the tub and direct flow to the pump
• Helps keep debris out of the pump intake
• Restores a secure fit when the original cap is cracked, stripped, or warped
• Common symptoms: water leaking from the base, moisture under the dishwasher, visible damage, or a missing cap

• Disconnect power and turn off the water supply.
• Remove the lower rack and, if needed, the lower spray arm to access the sump.
• Remove the old cap and clean the sealing area; install the new cap and hand-tighten until snug—do not overtighten.
• Run a short cycle and check for leaks around the sump.

This spring kit restores proper door tension so the appliance door opens and closes smoothly and stays in position. Use it to replace worn or broken springs that cause a sagging, loose, or hard-to-operate door. What it does:

• Replaces worn or damaged door tension springs to restore smooth opening and closing.
• Helps prevent the door from dropping, sagging, or not staying open.
• Reduces uneven or jerky door movement caused by lost spring tension.
• Matches OEM-design function for safe, reliable door operation when installed correctly.

• Disconnect power (and water, if applicable) before beginning any repair.
• Springs are under tension—use caution and proper tools to avoid injury.
• Follow the appliance's service manual or OEM instructions.

Color: white. It measures about 20 inches wide by 14 inches high when fully extended.

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

Size: 10-12 x 1/2 inch.
