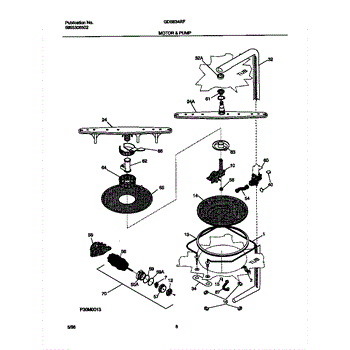

Parts for Frigidaire GDB634RFR1: 05 - Motor & Pump Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Heating Element is an OEM part for Frigidaire dishwashers. This element is responsible for heating the water during the wash cycle and ensuring the dishes are properly cleaned and sanitized. Additionally, it helps to dry the dishes by heating the air inside the dishwasher during the drying cycle.

Causes of a bad heating element can include regular wear and tear, mineral buildup from hard water, electrical failures, or damage from improper loading of dishes. A faulty heating element can lead to inadequate water temperature and poor drying performance.

Symptoms of a bad heating element include:

• Dishes not drying properly
• Water not heating up during the wash cycle
• The dishwasher not completing cycles
• Error codes related to heating issues

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Lower Spray Arm Support is an OEM part for Frigidaire dishwashers. This support provides a secure attachment point for the lower spray arm, ensuring it rotates freely and distributes water evenly throughout the dishwasher for effective cleaning. It helps maintain the stability and proper function of the lower spray arm.

Common causes of a bad lower spray arm support include wear and tear, physical damage from loading or unloading dishes, and blockages that impede the spray arm's movement.

Symptoms of a bad lower spray arm support include:

• The lower spray arm not rotating properly
• Poor cleaning performance on the lower rack
• Unusual noises during the wash cycle
• The lower spray arm falling off or becoming loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This sump gasket seals the connection between the dishwasher tub and the sump/pump assembly. Replacing a flattened or cracked gasket restores a watertight barrier to help stop leaks from the base and protect floors and cabinetry.

• Creates a seal between the tub and sump to contain wash water
• Helps prevent leaks during fill, wash, and drain cycles
• Replace if the gasket is cracked, brittle, deformed, or compressed
• Common symptoms: water under the dishwasher, dripping from the base, moisture around the toe-kick

• Disconnect power and shut off the water supply; pull the dishwasher out if needed for access
• Access the sump area (often by removing the lower rack, spray arm, and filters); note gasket orientation
• Clean mating surfaces; seat the gasket evenly without twists. Do not use sealants unless specified by the manufacturer
• Reassemble and run a short test cycle while inspecting for leaks

Includes one sprayarm.

The Lower Spray Arm is an OEM replacement part for Frigidaire dishwashers. It rotates within the lower dishrack, spraying water during cycles to thoroughly clean dishes. This arm measures approximately 16.00 x 3.10 x 3.10 Inches (L x W x H) NEED TO ORDER 5304518968 SUPPORT,SPRAY LOWER when ordering the lower spray arm

Causes of a bad lower spray arm include normal wear and tear over extended use. Clogs within the arm can also reduce water pressure.

Symptoms of issues with the lower spray arm are:

• Inadequate cleaning performance, especially on lower rack dishes
• Reduced or uneven water coverage
• Difficulty rotating or getting stuck

This OEM replacement part is compatible with Electrolux, Gibson, and Kenmore brand dishwashers too.

Red

This hose clamp secures flexible water or drain hoses to fittings to prevent leaks and keep connections tight. It's a simple replacement that restores a secure seal and helps stop drips or loose hoses. What it does:

• Holds a rubber or plastic hose firmly to a barb or nipple to prevent leaks
• Restores a tight connection when original clamp is corroded, bent, or broken
• Helps eliminate water dripping, puddling, or intermittent leaks at hose joints
• Prevents hoses from slipping off during vibration or normal appliance use

• Disconnect power and shut off water supply before starting any repair
• Tighten clamp securely with pliers or the appropriate tool; avoid over-tightening which can damage the hose
• After installation, restore water and power, then check the connection for leaks

This short connector hose links internal dishwasher plumbing to move water securely between components. Replacing a worn or cracked hose helps prevent leaks and keeps cycles running reliably. What it does:

• Routes water between two internal connection points during the wash cycle
• Helps maintain a watertight seal when properly clamped
• Common symptoms: water leaking beneath the unit, dampness around hose joints, visible cracks/hardening, or a loose fit
• Aging hoses can stiffen and drip at barbed fittings

• 1 connector hose

• Disconnect power and shut off the water supply before servicing
• Remove the toe-kick and pull the dishwasher forward as needed to access the hose
• Expect a small amount of residual water; have towels or a shallow pan ready
• Fully seat the hose on fittings, secure with appropriate clamps, then run a brief cycle and check for leaks

This small check ball helps control water flow inside the refrigerator's water/ice system to prevent backflow and ensure proper filling. It restores reliable water seating where valves or distributor ports use a ball-style check. What it does:

• Acts as a one-way seal to stop water from flowing backward into the supply line or valve bore
• Helps the ice maker and dispenser fill correctly by allowing water in but not back out
• Common symptom: intermittent or incomplete ice maker fills
• Common symptom: slow or continuous dripping from dispenser or valve area

• Shut off water supply and unplug the appliance before starting
• Small part — handle carefully and note orientation/seat before removal
• Inspect valve bores and seals for debris; clean area before installing new check ball

The Rear O-Ring is an OEM part for Frigidaire dishwashers. This small but crucial component ensures a watertight seal within the dishwasher's internal systems, preventing leaks by sealing connections between various parts, such as the pump or valve assemblies. The front O-ring is part number AP2109102

Causes of a bad rear O-ring can include regular wear and tear, drying out or cracking due to age, and damage from chemical exposure or improper installation. A compromised O-ring can lead to water leaks and reduced efficiency of the dishwasher.

Symptoms of a bad rear O-ring include:

• Water leaking from the dishwasher
• Puddles forming underneath the appliance
• Reduced washing performance due to water pressure loss
• Noticeable wear, cracks, or deformation on the O-ring

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Front O-Ring is an OEM part for Frigidaire dishwashers. This component is essential for maintaining a watertight seal in the front areas of the dishwasher's internal systems, such as around the pump or valve connections. It prevents water leaks and ensures the efficient operation of the dishwasher. The rear O-ring is part number AP2109101

Causes of a bad front O-ring can include regular wear and tear, exposure to high temperatures, and chemical degradation from detergents and rinse aids. Over time, the O-ring may dry out, crack, or become deformed, leading to leaks and decreased performance.

Symptoms of a bad front O-ring include:

• Water leaking from the front of the dishwasher
• Puddles forming under the appliance
• Reduced cleaning performance due to water pressure issues
• Noticeable wear, cracks, or deformation on the O-ring

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This support is a refrigerator mounting bracket that stabilizes internal components and keeps assemblies aligned for reliable operation. It replaces worn or broken supports to help reduce rattling and improper panel fit. What it does

• Secures and aligns internal cabinet or component panels to prevent shifting during normal use
• Helps maintain proper spacing for doors, panels, or internal assemblies
• Reduces vibration or rattling caused by loose or damaged supports
• Commonly replaced when a support is cracked, broken, or no longer holds mating parts securely

• High-level replacement: typically accessible from inside the cabinet or behind a trim panel; exact steps depend on model
• Use proper tools and retain all fasteners during removal for reinstallation
• Disconnect power before servicing any electrical components or removing panels near wiring

This base is the lower cabinet support that helps keep the appliance stable and holds internal components in their correct position. Replacing a damaged base restores proper fit, alignment and reduces cabinet movement. What it does:

• Provides structural support for the appliance cabinet and mounting points
• Keeps internal components aligned and maintains correct clearance
• Helps prevent rocking, vibration and gaps at the bottom of the cabinet
• Protects lower components from contact with floor-level debris or uneven surfaces

• Disconnect power and, if applicable, water before beginning work
• Access may require removing the toe kick or lower access panels
• Keep track of mounting screws and brackets; use replacement hardware if original fasteners are corroded

This base is the lower cabinet support that helps keep the appliance stable and holds internal components in their correct position. Replacing a damaged base restores proper fit, alignment and reduces cabinet movement. What it does:

• Provides structural support for the appliance cabinet and mounting points
• Keeps internal components aligned and maintains correct clearance
• Helps prevent rocking, vibration and gaps at the bottom of the cabinet
• Protects lower components from contact with floor-level debris or uneven surfaces

• Disconnect power and, if applicable, water before beginning work
• Access may require removing the toe kick or lower access panels
• Keep track of mounting screws and brackets; use replacement hardware if original fasteners are corroded

The Dishwasher Filter is an OEM part for Frigidaire dishwashers. It plays a crucial role in trapping food particles and debris, preventing them from recirculating in the dishwasher and ensuring that dishes come out clean.

 Causes of a bad filter can include regular wear and tear, accumulation of food particles, or physical damage from sharp objects. A compromised filter can lead to poor cleaning performance and potential damage to the dishwasher’s internal components.

Symptoms of a bad dishwasher filter include:

• Dishes not coming out clean
• Debris or food particles left on dishes after a cycle
• Water not draining properly from the dishwasher
• Unusual noises during the wash cycle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dishwasher Drain Trap is an OEM part for Frigidaire dishwashers. It plays a crucial role in preventing debris from clogging the dishwasher's drain system, ensuring efficient water flow during the wash cycle. The drain trap collects food particles and other debris, preventing them from entering the drain pump and causing blockages.

You should replace this drain trap if it becomes clogged, damaged, or worn out. Causes of a bad drain trap include the buildup of food particles, grease, and other debris over time, or physical damage from sharp objects or mishandling during maintenance.

Symptoms of a bad drain trap include:

• Water not draining properly from the dishwasher
• Foul odors coming from the dishwasher
• Visible debris in the bottom of the dishwasher
• Frequent clogging or backup issues

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Heating Element Nut is an OEM part for Frigidaire dishwashers. It plays a crucial role in securing the heating element in place, ensuring it functions effectively to heat water during the wash cycle. This component ensures the stability and proper operation of the dishwasher's heating element, contributing to the machine's overall efficiency and performance.

Causes of a bad part can include physical damage during maintenance or installation, corrosion over time due to exposure to water and detergents, or general wear and tear that affects its ability to securely hold the heating element in place.

Symptoms of a bad Heating Element Nut include:

• Loose heating element, leading to inefficient heating or water not heating at all
• Water leakage from the heating element area, potentially caused by a poor seal
• Unusual noises during the dishwasher cycle

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

No.10 - 16 x 3/8

This thermostat retainer is the mounting clip that keeps the dishwasher's thermostat secured to its base or bracket. Proper retention helps maintain accurate temperature sensing and consistent heater safety through the wash and dry portions of the cycle. What it does:

• Holds the thermostat firmly in place on the base or mounting bracket
• Prevents the thermostat from shifting, vibrating loose, or falling out of position
• Supports accurate temperature sensing and overheat protection
• Common signs of a bad/missing retainer: broken or warped clip, thermostat hanging loose, intermittent heat/drying performance

• 1 thermostat retainer

• Disconnect power and shut off water before servicing
• Remove the lower access/toe-kick panel to reach the thermostat area
• Note the thermostat's orientation; transfer it to the new retainer and snap/secure the retainer to the existing mount/hardware
• Ensure the thermostat is fully seated and wiring is routed clear of sharp edges and hot/moving components

This is a genuine replacement mounting screw used to secure components in compatible Frigidaire appliances. It restores proper fastening so panels and parts stay aligned and stable during normal operation. What it does:

• Fastens appliance components, panels, or brackets to maintain secure assembly
• Replaces worn, stripped, or missing screws that cause rattling or loose parts
• Helps eliminate vibration-related noise by restoring correct fastening
• Matches OEM fit and function for reliable, long-lasting hold

• One replacement mounting screw, as pictured

• Use the proper size driver to avoid stripping the head; tighten until snug but do not overtighten
• Match screw location and length to the original for correct fit; keep any removed hardware for reference
• Disconnect power to the appliance before working in internal areas to reduce shock risk

NO.8 - .625 Truss

F127-20

The Side Mount Kit is an OEM replacement part for Frigidaire dishwashers. It contains mounting brackets, screws, and other hardware required to securely install the dishwasher against cabinetry in a side-by-side configuration. Proper attachment is necessary for stability and safety during operation.

Symptoms of damaged or missing mounting hardware include:

• Excessive movement or rocking of the dishwasher body
• Potential detachment from cabinets
• Screws pulling loose from repeated vibrations
• Improper door alignment causing difficulty closing fully

Causes related to normal wear over extended use periods. Damage may occur if weight is applied during improper lifting or installation attempts.

Compatible models include Electrolux, Gibson, and select Kenmore units.
