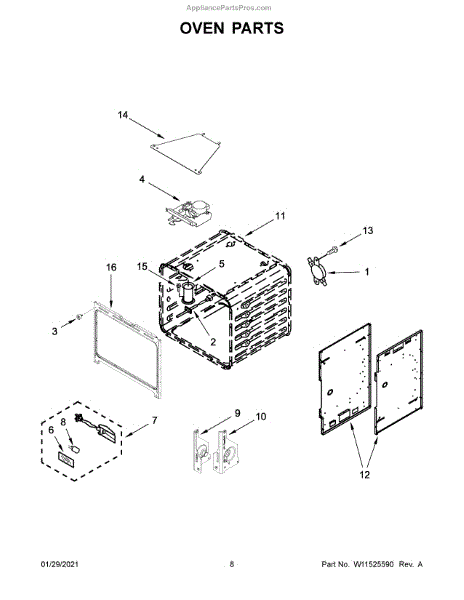

Parts for Kitchenaid KFDC500JIB01: Oven Parts

The High Limit Thermostat is an OEM replacement part for Whirlpool ovens. It acts as a safety mechanism that monitors the oven's temperature to prevent overheating. When the oven exceeds a specific temperature, the high-limit thermostat interrupts the electrical flow to the heating element, ensuring the appliance remains within safe operating conditions.

Causes of a bad High Limit Thermostat can include a malfunction due to electrical issues or component failure. It may become unresponsive over time, failing to cut off the power to the heating element when the oven overheats.

Symptoms of a bad High Limit Thermostat include:

• The oven not heating up adequately or overheating
• Inconsistent oven temperatures leading to undercooked or overcooked food
• The thermostat being unresponsive or failing to regulate the oven’s temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This sensor monitors moisture inside the microwave cavity during Sensor Cook/Reheat cycles so the control can automatically set time and power. Replace it if sensor-based functions stop working or the unit shows a sensor error during cooking.

• Detects steam/humidity during sensor cycles to help the control adjust cook time and power
• Helps improve cooking results on Sensor Cook/Reheat programs
• Common failure signs: sensor-cook options won't start or end early, or the display shows a sensor error
• Intermittent or inconsistent results on sensor-only programs can also indicate a failing sensor

• Disconnect power before service. Microwaves can retain dangerous high voltage even when unplugged—use extreme caution
• Access is typically behind the control panel or top grille; note wire routing and connector orientation before removal
• Handle the sensor by its body/connector—avoid touching the sensing element
• After installation, run a sensor-cook cycle to confirm proper operation

A 6-32 machine screw used to secure panels, brackets, and components in many Whirlpool appliances. Replaces worn or missing fasteners to restore proper fit and stop loose parts from rattling or shifting. What it does:

• Secures panels, trim, brackets, and small assemblies
• Helps stop vibration and rattling caused by loose fasteners
• Restores proper alignment for parts held by a 6-32 thread
• Prevents further wear from movement or improper fit

• Disconnect power to the appliance before beginning any repair
• Use the correct driver for the screw head to avoid stripping
• Thread gently and avoid overtightening to prevent damage to threads or components
• Keep removed fasteners organized to ensure correct reassembly

This door latch secures the appliance door and signals the control that it's safely closed. Replacing a worn or broken latch restores reliable door closure and proper cycle operation. What it does:

• Holds the door closed and aligned during use
• Engages the door strike to complete the door/lock switch circuit
• Resolve issues such as: door won't latch or pops open; cycles won't start; intermittent "door open" messages; needing to press/hold the door to run

• One door latch

• Disconnect power before servicing
• Access is typically from the door/front panel; note screw locations and latch orientation
• Transfer any mounting hardware from the original latch if needed
• After installation, verify smooth latch engagement with the strike and run a test cycle

This clear interior light lens protects and diffuses the refrigerator light, restoring even illumination inside the fresh-food compartment. Replace a cracked, yellowed, or missing lens to improve visibility and protect the bulb from spills. What it does

• Covers and shields the interior light bulb from splashes and debris
• Diffuses light for more even illumination throughout the compartment
• Helps prevent direct contact with the bulb, reducing breakage risk
• Common symptoms: cracked or discolored lens, uneven or glaring light, or a missing lens

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the lens gently—it is a molded plastic part that can crack if dropped
• Inspect the bulb and socket while the lens is removed; replace any damaged components
• No special tools typically required; your model's service instructions for safe removal/replacement steps

This oven light lamp assembly replaces a burned or broken interior oven light so you can clearly see cooking progress without opening the door. Fits compatible Whirlpool-built ranges and ovens that use this OEM-style lamp assembly. What it does:

• Provides interior oven illumination so food and bake performance can be checked without opening the door
• Replaces a cracked lens, damaged socket, or non-functioning oven lamp
• Restores normal lighting when the oven light fails to turn on or flickers
• Helps identify spills, browning, or burn spots inside the oven cavity

• Disconnect power to the appliance before servicing to prevent shock or injury
• Handle the lens and bulb carefully; allow the oven to cool completely before replacing
• Typical replacement requires removing the oven light cover and unplugging the socket.

The Light Bulb is an OEM part for Whirlpool ranges and ovens. It provides illumination inside the oven cavity, allowing users to monitor the cooking process without opening the oven door.

Causes of a bad light bulb can include burnout from regular use, electrical issues, or damage due to high temperatures and vibrations within the oven.

Symptoms of a bad light bulb include:

• The light not turning on when the oven door is opened or the light switch is activated
• Flickering or dim light
• The bulb appears visibly damaged or burned out

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This hinge receiver is the replacement door hinge support that helps secure and align the appliance door for proper closing and sealing. Restores stable door pivoting and reduces sag or misalignment. What it does:

• Provides the pivot point and structural support for the door hinge assembly
• Helps keep the door properly aligned so it seals and closes evenly
• Commonly replaced when the door droops, binds, or won't stay level
• Prevents excessive wear on hinge pins and surrounding trim

• One hinge receiver

• Unplug the appliance or disconnect power before starting any repair
• Support the door while removing hinge fasteners to prevent dropping or damage
• Use appropriate hand tools; do not force parts or overtighten fasteners

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
