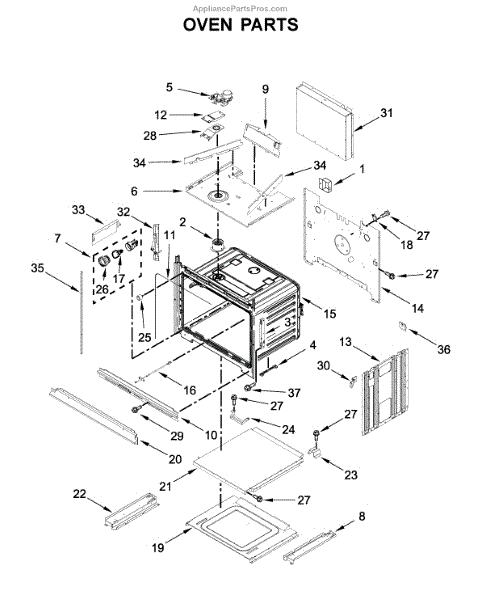

Parts for Whirlpool WOC75EC0HS01: Oven Parts

This wire cover is a protective sleeve that helps route and shield appliance wiring to reduce wear and prevent accidental contact. It restores a neater harness run and helps maintain safe electrical routing inside the appliance. What it does:

• Protects wires from abrasion and chafing against sharp edges or moving parts
• Helps prevent exposed conductors that can cause shorts, arcing, or burning smells
• Keeps wiring bundled and routed to reduce pinching and stress on connectors
• Reduces risk of intermittent electrical issues caused by damaged insulation

• Disconnect power before beginning any service to avoid shock or injury
• Inspect surrounding wiring and connectors for damage; replace any frayed or exposed wires
• Slide cover over the wiring harness or route harness through sleeve as needed; secure with existing clips or approved fasteners

This tube-vent is the replacement exhaust tube that channels hot, moist air from the dryer to the external vent, helping the dryer remove moisture efficiently and operate safely. What it does:

• Routes dryer exhaust from the drum area to the vent outlet for proper airflow
• Prevents exhaust air leakage that can reduce drying performance
• Helps avoid lint buildup in the cabinet area when intact
• Commonly replaced when cracked, crushed, or collapsed and causing poor drying or unusual odors

• One tube-vent

• Disconnect power (and gas, if applicable) before starting any repair
• Inspect and clear the external vent path; secure tube with appropriate clamps or fasteners
• Do not kink, stretch, or sharply bend the tube — ensure a smooth airflow path
• If you detect heavy lint buildup or damage to ducts, clean or replace the entire venting run and follow local building codes

The Door Hinge Receiver is an OEM part for Whirlpool ranges. It receives and pivotally mounts the range door hinges, facilitating smooth opening and closing of the door.

Causes of a bad range door hinge receiver include normal wear and tear over time, repeated opening and closing stress, and damage or warping from excessive heat exposure.

Symptoms of a bad door hinge receiver include:

• Cracks or wear on mounting surfaces that could compromise safety
• A loose, wobbly or misaligned range door that does not seal properly
• The door being difficult to open and close smoothly
• Potential for the door to fall off if mounting surfaces fail

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.


This spacer provides a small, rigid gap between appliance components to maintain proper alignment and prevent contact. It restores correct spacing so panels, doors, or assemblies fit and move as intended. What it does:

• Maintains proper clearance between parts to prevent rubbing, binding, or wear
• Helps align panels, trim, or assemblies for smooth operation
• Supports fasteners or clips to ensure a secure fit
• Can reduce vibration-related noise when spacing is correct

• One spacer

• Disconnect power or gas before servicing the appliance
• Inspect mounting area and fasteners; replace any worn clips or screws as needed
• Install in the original orientation; do not force into place or over-tighten fasteners

This door latch keeps the door securely closed and engages the door switch/interlock so the appliance operates as designed. Replacing a worn or broken latch helps resolve door-related errors and restores reliable, safe operation.

• Secures the door against the strike for proper closure and alignment
• Actuates the door switch/interlock so controls recognize a closed door
• Helps prevent operation when the door is open or not fully latched
• Common symptoms: door won't latch or stay closed; unit won't start or shows a "door/open-close" message; broken or loose latch hook

• Disconnect power before servicing; use proper PPE and beware of sharp edges
• Access the latch through the door panel/trim as applicable; use non-marring tools to avoid damage
• Transfer any reusable clips/springs from the old latch to the new part
• After installation, verify smooth door closure and that the control detects the door as closed

This indicator light is a small control-panel lamp that signals oven/cooktop status and helps you know when elements or functions are active. It restores visible status indication for better, safer operation. What it does:

• Illuminates the control panel to show when a function or heating element is on
• Commonly used as a power/status indicator on ranges and cooktops
• Fixes symptoms like a dark or non-responsive status light on the appliance
• Helps when controls or timed functions are active

• One indicator light

• Disconnect power to the appliance before beginning any work to avoid shock
• Handle the lamp carefully; avoid force — some panels or bezels must be removed first
• Replace with the exact OEM part number to ensure correct fit and function
• After installation, restore power and verify the light operates with appliance functions

This oven vent assembly directs hot air and steam out of the oven cavity to help maintain proper temperature and prevent moisture buildup. It replaces a damaged or missing vent to restore normal oven exhaust. What it does:

• Channels heat and steam from the oven cavity to the exterior vent path
• Helps maintain consistent cooking temperatures and prevents excess moisture
• Stops drafts, rattles, or visible damage caused by a cracked or broken vent
• Useful when the original vent is warped, cracked, or missing

• One oven vent assembly

• Turn off power at the breaker or unplug the range before starting work
• Basic disassembly of the console or outer door trim may be required; keep fasteners organized
• Use appropriate hand tools and avoid forcing parts to prevent damage

The Cavity Gasket Pyro 30" is an OEM part for Whirlpool ovens. This gasket seals the oven door to the oven cavity, preventing heat from escaping and ensuring optimal cooking temperatures are maintained. It helps in improving energy efficiency and cooking performance by keeping the heat contained within the oven.

Over time, the cavity gasket can wear out, become brittle, or get damaged due to repeated exposure to high temperatures and regular use. Improper cleaning methods or accidental tearing can also cause the gasket to fail.

Symptoms of a bad Cavity Gasket include:

• Heat escaping from the oven door
• Longer preheating times
• Uneven cooking or baking results
• Visible cracks or gaps in the gasket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This sensor monitors moisture inside the microwave cavity during Sensor Cook/Reheat cycles so the control can automatically set time and power. Replace it if sensor-based functions stop working or the unit shows a sensor error during cooking.

• Detects steam/humidity during sensor cycles to help the control adjust cook time and power
• Helps improve cooking results on Sensor Cook/Reheat programs
• Common failure signs: sensor-cook options won't start or end early, or the display shows a sensor error
• Intermittent or inconsistent results on sensor-only programs can also indicate a failing sensor

• Disconnect power before service. Microwaves can retain dangerous high voltage even when unplugged—use extreme caution
• Access is typically behind the control panel or top grille; note wire routing and connector orientation before removal
• Handle the sensor by its body/connector—avoid touching the sensing element
• After installation, run a sensor-cook cycle to confirm proper operation

The Light Bulb is an OEM part for Whirlpool ovens. This bulb is illuminates the oven's interior, allowing you to monitor the cooking process without opening the door and losing heat.

Causes of a bad light bulb can include regular wear and tear, exposure to high temperatures, or electrical surges.

Symptoms of a bad light bulb include:

• The bulb not lighting up
• Flickering or dim light
• Intermittent lighting issues
• Visible signs of a burnt-out filament

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The High Limit Thermostat is an OEM replacement part for Whirlpool ovens. It acts as a safety mechanism that monitors the oven's temperature to prevent overheating. When the oven exceeds a specific temperature, the high-limit thermostat interrupts the electrical flow to the heating element, ensuring the appliance remains within safe operating conditions.

Causes of a bad High Limit Thermostat can include a malfunction due to electrical issues or component failure. It may become unresponsive over time, failing to cut off the power to the heating element when the oven overheats.

Symptoms of a bad High Limit Thermostat include:

• The oven not heating up adequately or overheating
• Inconsistent oven temperatures leading to undercooked or overcooked food
• The thermostat being unresponsive or failing to regulate the oven’s temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This oven vent directs heated air out of the oven cavity to help maintain consistent cooking temperatures and protect surrounding cabinetry. It's a direct-replacement vent piece that restores proper airflow and clears steam and heat from the oven area. What it does:

• Channels exhaust and steam from the oven cavity to the exterior vent path
• Helps improve temperature stability and reduce internal heat buildup
• Reduces the chance of heat damage to surrounding surfaces and components
• Commonly replaced when vent is cracked, warped, or blocked

• One oven vent

• Disconnect power to the appliance before starting any service
• Remove oven door or inner panels as required to access the vent per your model's service instructions
• Inspect surrounding seals and clips; replace any damaged hardware for a secure fit

This bottom vent assembly mounts at the lower front of the oven and channels hot air out of the cavity. Replacing a damaged or missing vent helps maintain proper airflow and a clean, finished appearance.

• Directs oven exhaust and heat away from the cavity and surrounding cabinetry
• Helps guide airflow to reduce heat buildup at the front of the appliance
• Covers the lower opening for a clean, finished look
• Common replacement for vents that are cracked, bent, discolored, loose, or missing

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Access from the front; remove the fasteners securing the original vent and support it during removal
• Transfer any reusable brackets or hardware from the old vent to the new one
• Align and secure the new vent; ensure it sits evenly and does not interfere with door operation

This chassis bottom duct is the lower access cover that protects internal components and channels airflow under the appliance cabinet. It helps keep wiring and parts shielded while allowing proper ventilation. What it does:

• Covers and protects the appliance chassis bottom area from dust, debris and accidental contact
• Directs airflow under the cabinet to support cooling/ventilation paths
• Prevents loose items from entering the chassis and interfering with components
• Can be replaced when cracked, warped, missing, or causing gaps that expose internals

• Intended for use as a direct-replacement exterior cover; verify fit before installation
• Power off and unplug the appliance before removing or installing the duct
• Remove any obstructing panels or fasteners to access the mounting points; retain hardware if reusing
• If damage extends to adjacent components, inspect internal wiring and mounts for service

A 6-32 machine screw used to secure panels, brackets, and components in many Whirlpool appliances. Replaces worn or missing fasteners to restore proper fit and stop loose parts from rattling or shifting. What it does:

• Secures panels, trim, brackets, and small assemblies
• Helps stop vibration and rattling caused by loose fasteners
• Restores proper alignment for parts held by a 6-32 thread
• Prevents further wear from movement or improper fit

• Disconnect power to the appliance before beginning any repair
• Use the correct driver for the screw head to avoid stripping
• Thread gently and avoid overtightening to prevent damage to threads or components
• Keep removed fasteners organized to ensure correct reassembly

This light lens replaces a damaged or missing lamp cover in your appliance. It protects the bulb and diffuses light so the area is safely and evenly illuminated again.

• Covers and diffuses the appliance light for clearer, more even illumination
• Shields the bulb from contact, moisture, grease, and debris
• Helps restore proper brightness if the old lens is yellowed or cloudy
• Common signs of failure: cracked or missing lens, discoloration, loose/broken retaining tabs, dim or harsh lighting

• Disconnect power to the appliance before servicing and allow the area/bulb to cool
• Remove any screws or release retaining tabs; note the lens orientation for reinstallation
• Install the new lens carefully; do not overtighten fasteners to avoid cracking
• Reuse your existing bulb and mounting hardware

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This cover is a replacement cabinet trim piece that protects internal components and helps maintain the appliance's appearance. It restores a finished look and shields wiring and parts from incidental contact. What it does

• Covers and protects internal components and wiring from debris and accidental contact
• Restores the appliance's finished exterior where the original cover is cracked, broken, or missing
• Stops rattling or loose-panel noise when a damaged cover is removed
• Helps prevent small items from entering internal compartments

• Disconnect power to the appliance before beginning any service.
• Installation typically requires removing adjacent trim or panels; keep fasteners for reuse.
• Handle carefully to avoid scratching the finish; wear gloves if needed.

This cover is a replacement cabinet trim piece that protects internal components and helps maintain the appliance's appearance. It restores a finished look and shields wiring and parts from incidental contact. What it does

• Covers and protects internal components and wiring from debris and accidental contact
• Restores the appliance's finished exterior where the original cover is cracked, broken, or missing
• Stops rattling or loose-panel noise when a damaged cover is removed
• Helps prevent small items from entering internal compartments

• Disconnect power to the appliance before beginning any service.
• Installation typically requires removing adjacent trim or panels; keep fasteners for reuse.
• Handle carefully to avoid scratching the finish; wear gloves if needed.

This factory fastener secures components inside your appliance, keeping panels, brackets, and assemblies properly attached. Replacing a worn, stripped, or missing screw restores a tight fit and helps prevent vibration, rattling, and misalignment.

• Fastens parts to frames, panels, or brackets as specified in your model's parts diagram
• Helps maintain alignment and reduce vibration/rattling during operation
• Replace when the original screw is missing, corroded, stripped, or no longer holds
• Direct OEM hardware for the designated locations on applicable models

• Disconnect power; shut off gas/water if applicable. Allow hot surfaces to cool.
• Use the correct driver size; start threads by hand to avoid cross-threading.
• Tighten until snug—do not overtighten, especially into plastic or thin sheet metal.
• If a mating clip, insert, or nut is damaged, replace that hardware per your model diagram.
