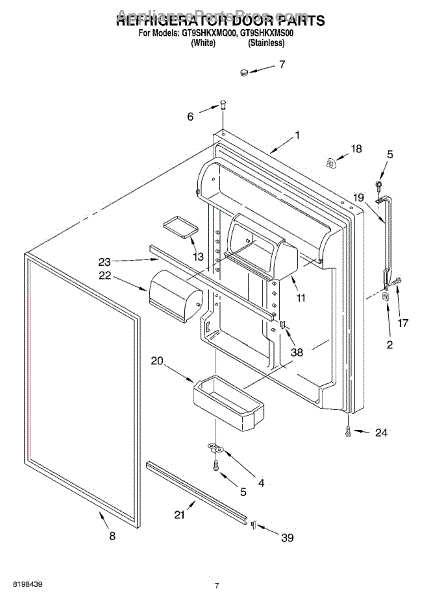

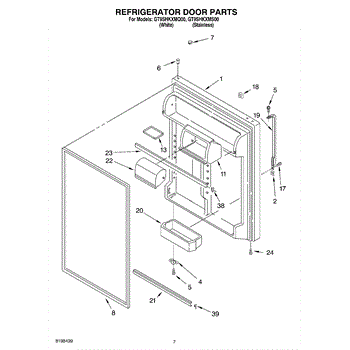

Parts for Whirlpool GT9SHKXMS00: 04 - Refrigerator Door Parts

Color: white. It measures about 1 inch wide by 2 inches high.

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM fastening component specifically designed for securing interior panels and assemblies of Whirlpool brand appliances.

Causes of a problematic screw include stripping, corrosion, or shearing from repeated installations and removals during service procedures.

Symptoms of faulty screws include:

• Loosened or detached interior panels rattling behind appliance exteriors
• Reduced structural integrity allowing unnecessary vibrations and noise

Compatible models include brands produced by KitchenAid, Maytag, and some Kenmore.

This thimble is a small insert used in the freezer compartment. It reinforces a mounting hole, prevents liner wear, and helps keep attached hardware stable and properly aligned for smooth, quiet operation.

• Serves as a protective bushing for a hole in the freezer compartment liner
• Helps stabilize and align the component secured at that location
• Replaces cracked, worn, or missing inserts that can cause loose hardware, wobbling, or rattling
• Restores proper fit while helping prevent further wear to the liner

• Unplug the refrigerator and clear the work area in the freezer before service
• Remove the fastener/component to access the insert, then pull the old thimble straight out
• Press the new thimble fully into the hole; reinstall hardware without overtightening
• Use care—cold plastic and liner edges can be brittle or sharp

Color: Black

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This magnetic door gasket creates a tight seal around the refrigerator door opening to keep cold air in and warm air out. A fresh, pliable gasket helps maintain temperature, reduce frost buildup, and improve efficiency.

• Forms an air-tight magnetic seal between the door and cabinet
• Helps prevent temperature swings, condensation, and frost around the door
• Common failure signs: torn/cracked rubber, gaps at the corners, door not sealing, moisture or frost near the door
• Restores proper door closure to protect food freshness

• Unplug the appliance and remove food from the door before starting
• Soften the gasket in warm water or with gentle heat to ease installation and improve fit
• Loosen perimeter screws or trim as designed, seat the gasket groove fully, then retighten evenly
• Check for uniform contact all around; adjust door alignment if needed

The Fresh food door gasket is an OEM component for Whirlpool refrigerators. As the main door seal, this rubber gasket works to prevent air and moisture exchange between the refrigerator interior and exterior. It plays a crucial role in maintaining optimal freshness levels.

Causes of a bad fresh food door gasket include cracks, tears, or compressed sections that no longer form an airtight seal. Prolonged use of 10+ years can cause rubber to break down. Entering/closing the door carelessly could damage the gasket over time as well.

Symptoms of a bad fresh food door gasket include:

• Frozen items thawing in the fridge shelves
• Increased moisture inside causing ice/fog buildup
• Higher electricity bills from inefficient cooling
• Warm air entering when opening the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door compartment housing provides a durable replacement section for the refrigerator door, restoring secure storage and proper fit for your door bins. It helps return stable support to stored items and keeps the door interior sealed. What it does:

• Replaces a cracked, broken, or warped door compartment housing to restore bin stability
• Supports door bins and helps keep stored items from shifting or falling
• Restores proper spacing and alignment of the door interior for consistent use
• Can reduce rattling or movement caused by a damaged housing

• Designed for drop-in replacement; remove door bins and fasteners before installing
• Inspect surrounding clips and mounting points; replace if damaged to ensure secure fit
• Use basic hand tools; disconnect power only if working near electrical components

This replacement screw secures appliance components such as panels, brackets, and trim. Replacing a missing, stripped, or corroded fastener restores a snug, rattle-free fit and helps keep parts properly aligned during operation. What it does:

• Fastens panels, brackets, trim, and assemblies in place
• Maintains alignment and reduces vibration or rattling
• Replaces worn, corroded, or missing hardware to ensure safe attachment
• Typical symptoms: loose panel, rattling noises, misalignment, stripped head/threads

• 1 screw

• Disconnect power; shut off gas/water if applicable before servicing
• Match the replacement to the original screw (thread and length) for proper fit
• Start threads by hand to avoid cross-threading; use the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

This black handle hole plug fills and covers the exposed mounting hole on appliance handles for a finished, factory appearance and to help keep debris and moisture out. Snap-in design provides a clean cosmetic repair without replacing the whole handle. What it does:

• Covers an unused or damaged handle mounting hole to restore appearance
• Helps prevent dirt, moisture, and pests from entering through the handle opening
• Snaps into the handle recess for a secure, low-profile fit
• Commonly used when a missing or worn plug leaves a visible hole on the handle

• One black handle hole plug

• Repair is typically a simple snap-in replacement; plug aligns with handle recess before seating
• Use a flat plastic tool to remove the old plug to avoid scratching surrounding finish
• Disconnect power and follow appliance manufacturer's safety guidance when accessing handles near electrical components
• Do not force the plug; if fit is tight, handle style to avoid damage

Color: White.

Replacement handle set for refrigerator doors that restores a secure grip and smooth door operation while refreshing the appliance's appearance. Direct-fit replacement designed to match original mounting points for a factory look. What it does:

• Replaces cracked, broken, loose or missing refrigerator door handles so doors open and close safely.
• Provides the proper leverage and grip for normal door operation.
• Matches original mounting locations for a secure, aligned fit.
• Refreshes the appliance's appearance when handles are worn or damaged.

• Unplug the appliance or switch off power as a safety precaution before starting work.
• Remove any trim or decorative covers to access mounting screws; retain original fasteners unless replacements are provided.
• Use the correct hand tools and avoid overtightening screws to prevent cracking the handle.
• Check handle alignment and door operation after installation; adjust if necessary.

The Handle Set is an OEM part for Whirlpool refrigerators. This set includes the handles used to open the refrigerator and freezer doors, providing a secure grip and ease of access to the appliance's interior.

Causes of a bad handle set can include frequent use leading to wear and tear, accidental impacts causing cracks or breaks, or discoloration and staining over time.

Symptoms of a bad handle set include:

• Loose or wobbly handles
• Cracks or breaks in the handles
• Difficulty in opening the refrigerator or freezer doors
• Handles appearing discolored or worn

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Shelf Retainer Bar is an OEM replacement part for Whirlpool refrigerators. It secures interior door shelves securely in place during operation.

Causes of a faulty retainer bar include stress cracks or fractures from repeated door opening/closing over time.

Symptoms of a bad retainer bar include:

• Shelves detaching from the refrigerator door
• Items falling or spilling due to unstable shelves
• Exposed sharp edges posing a safety hazard

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door shelf trim replaces a cracked, broken or worn front edge on a refrigerator door shelf to restore a clean look and help keep items contained. Fits the shelf edge and snaps or screws into place depending on your model. What it does:

• Replaces a damaged or missing door shelf front/trim for a finished appearance
• Helps prevent stored items from sliding off the door shelf
• Restores proper alignment and support for the door bin or shelf
• Useful when the shelf lip is chipped, cracked, or has cosmetic damage

• Typically installs by snapping or fastening into the front edge of the door shelf; you may need to remove the shelf/bin first
• Use basic hand tools if fasteners are present; keep track of any clips or screws
• Inspect mating surfaces for debris or broken clips and replace clips if needed
• No electrical disconnect is required for this cosmetic/mechanical part, but follow manufacturer safety guidance when working on the appliance

This replacement screw secures panels, brackets, or trim within your appliance. Replacing a worn, stripped, or missing screw restores a tight, rattle-free fit so components stay aligned and operate as intended. What it does:

• Fastens components at the original factory locations specified for this part
• Replaces missing, damaged, or stripped screws to restore holding power
• Helps reduce vibration and rattling from loose parts
• Maintains proper alignment of panels, covers, brackets, and trim

• Disconnect power (and gas, if applicable) before servicing
• Match to the original screw and install in the same location and orientation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver or nut-driver; transfer any washers or spacers from the original hardware if present

This end cap is a small door trim piece that restores the finished look and edge protection on the appliance door. It helps cover exposed edges and fasteners for a clean, factory appearance. What it does:

• Replaces damaged, cracked, or missing door trim end caps to restore appearance.
• Covers and protects exposed screw holes and door edges from wear.
• Prevents loose trim and helps keep the door surface smooth and snag-free.
• Commonly used when door trim pulls away, is broken, or shows cosmetic damage.

• High-level replacement: usually snaps or fastens into place from the door edge; remove trim carefully to avoid cracking adjoining pieces.
• Disconnect power (or water supply on dishwashers) before removing panels if access requires panel removal.
• Use gentle, even pressure and the correct trim tools; avoid excessive force to prevent breakage.
• Follow the appliance's service manual or OEM diagram for removal and reassembly steps.

The Shelf Trim Endcap is an OEM replacement part for Whirlpool refrigerators. This component fits on the end of the refrigerator shelf trim, providing a finished look and securing the trim in place. It helps to maintain the integrity and appearance of the refrigerator shelves, preventing items from sliding off and ensuring the shelves are securely held in place.

Causes of a bad shelf trim endcap can include regular wear and tear, physical impact from loading and unloading items, or exposure to temperature changes that can cause the plastic to become brittle.

Symptoms of a bad Shelf Trim Endcap include:

• The shelf trim being loose or not staying in place
• Items sliding off the shelf due to instability
• Visible cracks or breaks in the endcap
• Difficulty in securing the shelf trim properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
