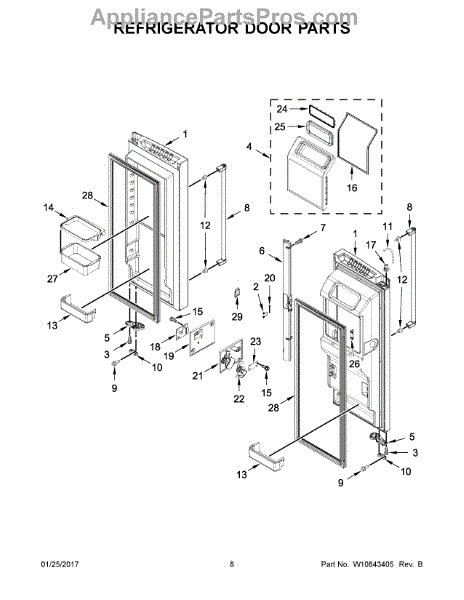

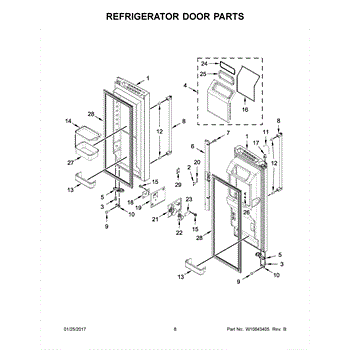

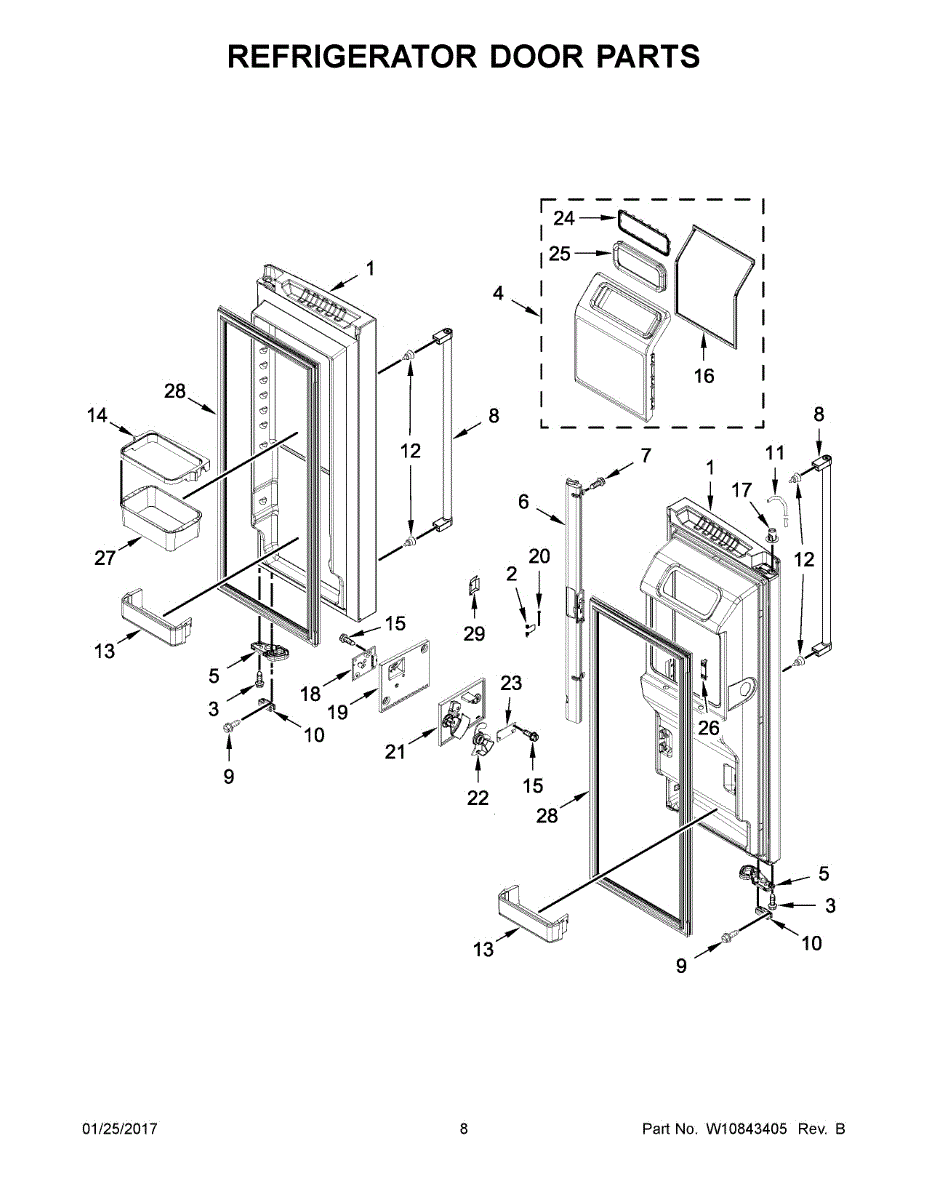

Parts for Kitchenaid KRFF707ESS01: 05 - Refrigerator Door Parts

This flipper spring returns the refrigerator's ice dispenser door (chute flapper) to the closed position after dispensing. It helps keep warm air and moisture out to minimize frost at the chute and reduce ice clumping in the bin.

• Provides the closing tension for the ice chute door/flapper
• Helps maintain a proper seal at the dispenser opening
• If worn or broken, you may notice the flapper not closing fully
• Frost/condensation around the chute or ice clumping in the bucket may occur

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control to access the ice chute door assembly; note spring orientation and anchor points
• Install the new spring in the same orientation; the flapper moves freely and closes under spring tension
• Wear gloves and use caution—metal edges in the dispenser area can be sharp

This factory screw fastens appliance components securely. Replacing a missing, stripped, or rusty screw helps stop rattles, keep panels and brackets aligned, and restore a solid, as-designed fit.

• Secures panels, brackets, and trim to the appliance cabinet or frame
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces damaged, corroded, or missing hardware
• Can resolve loose or shifting components

• Disconnect power and shut off gas/water to the appliance before service.
• Use the correct driver; start threads by hand to avoid cross-threading and do not overtighten.
• Install in the original location and match the OEM fastener type specified in your model's parts diagram.

This door assembly replaces the ice compartment door on compatible 36-inch refrigerators, restoring a proper seal and access to the ice area for reliable ice dispensing and storage. Designed to match OEM fit and finish. What it does:

• Replaces a cracked, warped, or damaged ice compartment door to prevent drafts and ice melting
• Restores proper alignment for the ice chute and door closure
• Helps stop moisture buildup and ice clumping inside the compartment
• Improves appearance by replacing a scratched or discolored door

• One complete ice compartment door assembly

• Disconnect power to the refrigerator before starting any work
• Handle the assembly carefully to avoid damaging trim, clips, or the finish
• Installation may require removing interior panels or freezer shelving; keep track of fasteners

Left Hand Closer

Right Hand Closer

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

The Handle is an OEM part for Whirlpool refrigerators. Located on the outside front center of the refrigerator cabinet, this handle provides an ergonomic grip point for easily opening and closing the refrigerator door. This handle measures 30 3/4 inches.

Causes of a bad handle can include wear and tear over time allowing door seals to leak, or damage such as cracks, breaks, or loose mounting from falls or repeated forceful closing of the door.

Symptoms of a bad handle include:

• Difficulty opening/closing the refrigerator door
• Leaks developing around the door seals
• Cracked, loose, or broken handle mounting

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and some Kenmore refrigerator models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This door bumper cushions the door against the frame to prevent metal-to-metal contact. Replacing a worn or missing bumper restores smooth, quieter closing and helps protect surfaces from chips, scuffs, and vibration.

• Absorbs impact where the door meets the cabinet/frame
• Reduces slamming noise and vibration during closing
• Helps protect paint, glass, and trim from wear
• Typical symptoms: missing/cracked bumper, loud clunk when closing, marks on frame, rattling

• Disconnect power and, if applicable, shut off gas/water; allow hot surfaces to cool
• Open the door to access the bumper location
• Remove the worn bumper and clean the contact area for proper seating
• Install the new bumper fully seated and aligned; test door operation

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Trivet is an OEM part for Whirlpool refrigerators. It is responsible for providing convenient storage within the refrigerator door for items that need to be easily accessible, such as condiments, drinks, eggs, and other small items. The door bin is designed with adjustable shelves and dividers to accommodate containers of various sizes and shapes.

Causes of a bad door bin can include wear and tear over time, broken or cracked shelves, or damage to the bin itself.

Symptoms of a bad door bin include:

• Items falling through cracks or gaps in the bin
• Shelves that no longer support weight
• Difficulty inserting or removing the bin due to misalignment

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Frame-Shelf is an OEM part for Whirlpool refrigerators. It is a sturdy plastic frame and shelf that provides organization and storage space inside the refrigerator door. The frame-shelf is designed to hold condiments, snacks, beverages, and other small food items that need frequent access. It assists in keeping these items within easy reach and in view while also preventing them from toppling over during opening and closing of the refrigerator door.

Causes of a bad frame-shelf can be normal wear and tear from frequent usage, accidental damage due to dropping heavy items, or stresses from overloading the shelf's weight capacity.

Symptoms of a bad frame-shelf include:

• Cracking or breaking of the plastic material
• Difficulty installing or removing items due to a poorly fitting shelf
• Warping or bending of the frame over time

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door gasket seals the refrigerator door to help maintain consistent internal temperature and improve energy efficiency by preventing warm air from entering. It replaces a worn, torn, or compressed seal to restore proper closure. What it does:

• Creates an airtight seal between the refrigerator door and cabinet to help keep food cold.
• Helps prevent frost buildup and reduces moisture intrusion around the door.
• Can stop cold air leaks that may cause the compressor to run more frequently.
• Commonly replaced when the seal is cracked, torn, flattened, or no longer seats properly.

• One door gasket as shown

• Remove power or unplug the appliance before starting any repair.
• Install by seating the gasket into the door channel and tightening any retaining screws or clips if required; some gaskets require gentle heating to form correctly.
• Inspect the door liner and mounting channel for damage or debris before installing.

This chute door retainer secures the ice chute door in place so the dispenser opens and closes properly, helping keep ice inside the bin and preventing jams at the dispenser opening. What it does:

• Holds the ice chute/door assembly in the correct position during dispensing
• Helps ensure the ice door seals and swings closed to keep cold air in the bin
• Reduces jammed or stuck ice at the dispenser opening
• Works with the chute/door linkage so the dispenser actuates smoothly

• One chute door retainer as shown

• Disconnect power to the refrigerator before beginning any service
• Remove ice bin and any obstructions, then unclip or unscrew the old retainer and replace with the new part
• Reassemble components in reverse order and verify proper door movement before restoring full use

This vent directs and protects an appliance's exhaust, helping airflow move from the appliance to the ductwork for safe, efficient venting. It replaces a worn or damaged exhaust outlet to restore proper ventilation. What it does:

• Provides the finished outlet for appliance exhaust, guiding airflow into the duct system
• Helps reduce backflow and air leakage when properly installed
• Prevents larger debris and physical damage at the exhaust opening
• Can correct symptoms like reduced venting efficiency, unusual airflow, or visible damage at the vent opening

• One vent outlet piece

• Disconnect power (and gas if applicable) before servicing the appliance
• Use basic hand tools; avoid over-tightening fasteners that could distort the part
• If ductwork shows heavy lint, corrosion, or damage, repair or replace ducting for best results

The Door Bin is an OEM part for Whirlpool side-by-side refrigerators. Located internally on the refrigerator door, it provides convenient storage for taller items like bottles and cartons.

Symptoms of a faulty door bin include:

• Cracked or broken plastic that causes items to fall out
• Detached or loose mounting brackets unable to securely hold the bin
• Warped or collapsed bin walls reducing usable capacity

Causes can be normal wear and impact damage over time from loading/unloading. Temperature fluctuations may also cause brittle plastic to crack or warp.

This OEM replacement is compatible with additional Whirlpool, Maytag, and some Kenmore side-by-side models.

Color: Grey
