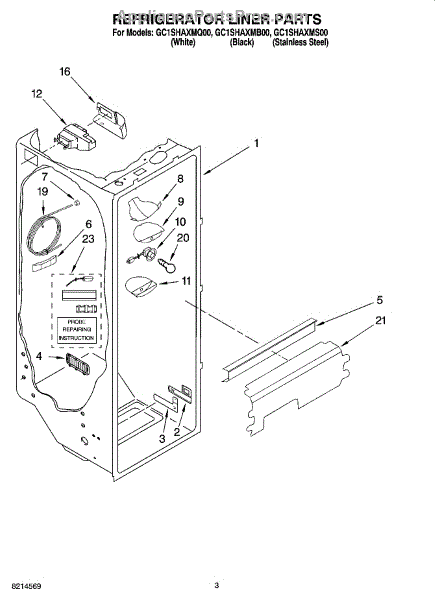

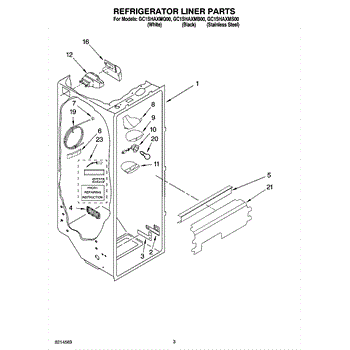

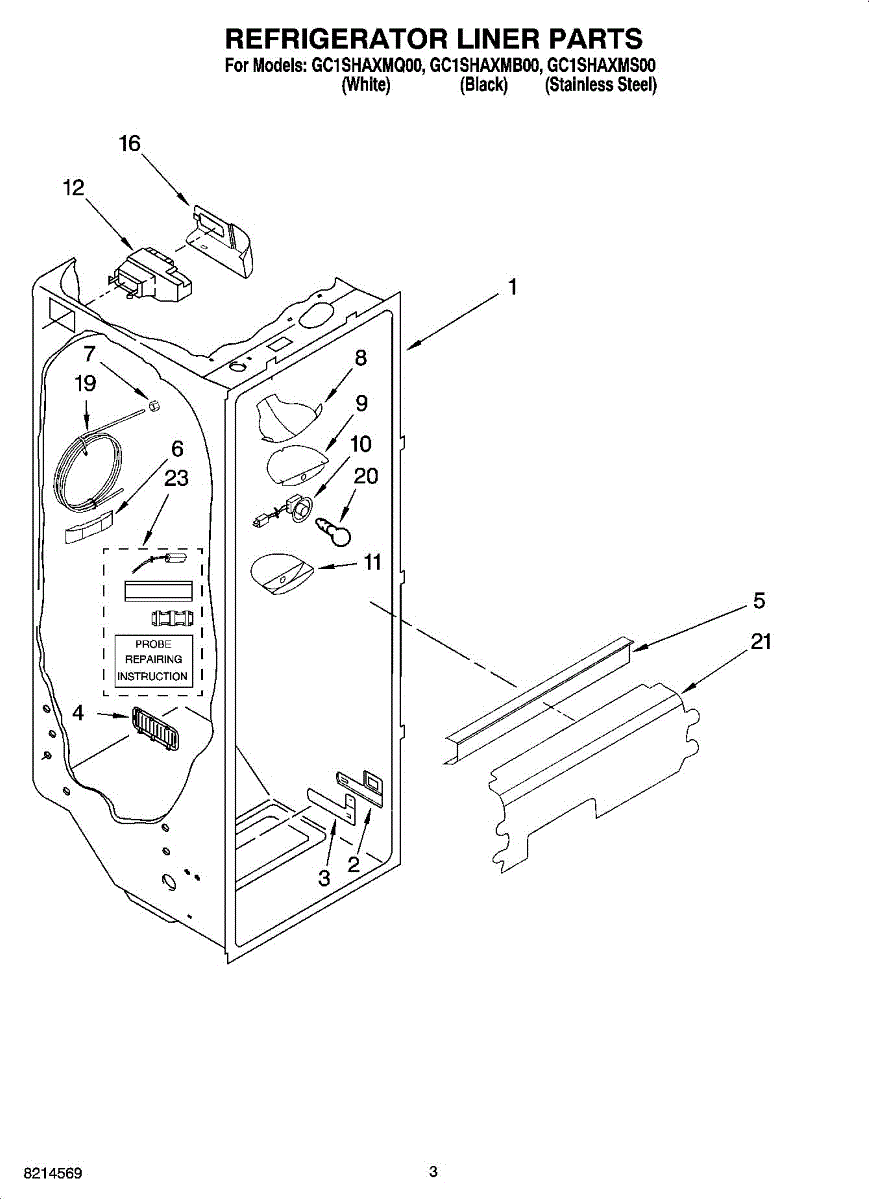

Parts for Whirlpool GC1SHAXMB00: 02 - Refrigerator Liner Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

Comes with 4 nuts and 2 inserts. Instruction sheet included.

The Air Diffuser is an OEM part for Whirlpool refrigerators. It regulates the flow of cold air from the freezer compartment to the refrigerator compartment, ensuring proper temperature control and even cooling throughout the fridge.

Over time, the diffuser can fail due to mechanical issues, obstruction by ice or debris, or wear on the moving parts. This can result in uneven cooling, leading to spoiled food and inefficient operation.

Symptoms of a bad air diffuser include:

• Inconsistent temperatures in the refrigerator
• Frost buildup in the freezer
• Warm spots in the refrigerator compartment
• The refrigerator running constantly or not cooling adequately

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Reservoir is an OEM part for Whirlpool refrigerators. It stores and chills water before it is dispensed through the refrigerator's water dispenser. This component ensures that you have a steady supply of cold water available directly from your fridge.

Common causes of a bad water reservoir include cracks or leaks from regular use, exposure to extreme temperatures, or blockages from mineral deposits.

Symptoms of a bad water reservoir include:

• Water leaks inside the refrigerator
• The water dispenser not dispensing properly
• Unusual tastes or odors in the water
• Visible cracks or damage to the reservoir

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
