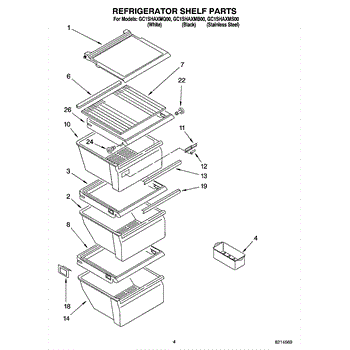

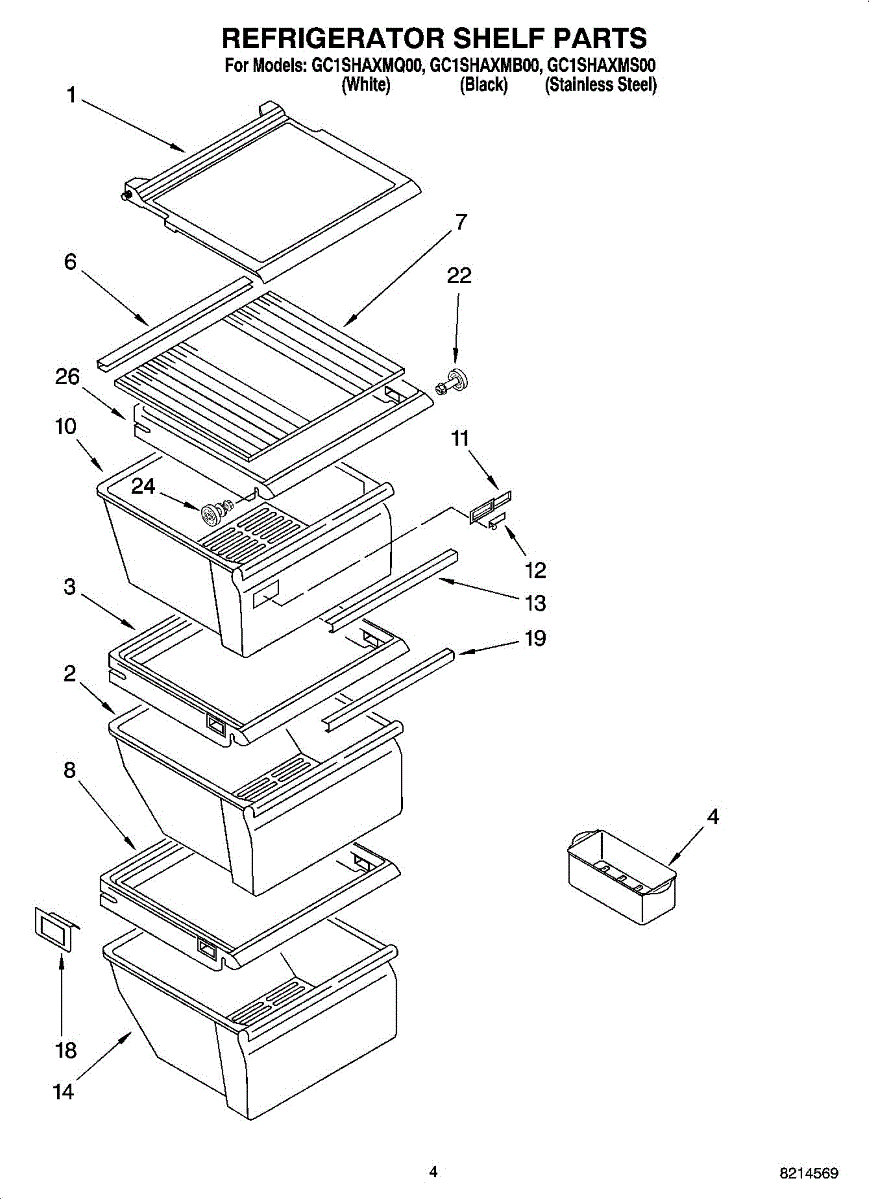

Parts for Whirlpool GC1SHAXMB00: 03 - Refrigerator Shelf Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.

This humidity control body is the fixed housing for a refrigerator crisper vent. It mounts to the crisper cover or drawer and provides the track for the slider so you can open/close the vent and help manage drawer moisture. What it does:

• Serves as the stationary housing for the crisper's humidity control vent
• Guides and secures the humidity control slider so it moves smoothly
• Helps regulate airflow into the crisper to influence moisture levels
• Common signs of failure: broken/missing housing, loose slider, vent won't adjust or stays stuck

• One humidity control body

• Disconnect power and remove the crisper/bin or cover for access
• Note slider orientation and position before removal
• Transfer the slider to the new body and secure the body to existing mounting points
• Avoid overtightening to prevent cracking; verify smooth slider travel before reassembly

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

This shelf support stud anchors a refrigerator shelf to the cabinet liner so it stays level and secure. Replace a cracked or missing stud to restore proper support and prevent shelves from tilting, slipping, or dropping.

• Locks into the liner wall to provide a mounting point for the shelf frame or bracket
• Keeps the shelf aligned and at the correct height
• Common symptoms: broken/missing stud, shelf won't sit flat, shelf sags or falls on one side
• Helps prevent items from sliding due to an unstable shelf

• Disconnect power; remove the shelf and any items resting on it. Handle glass shelves carefully and consider wearing cut-resistant gloves.
• Remove the damaged stud (release the locking tab or twist out, depending on design).
• Insert the new stud into the existing hole until fully seated and locked.
• Reinstall the shelf and verify it sits level before reloading.
