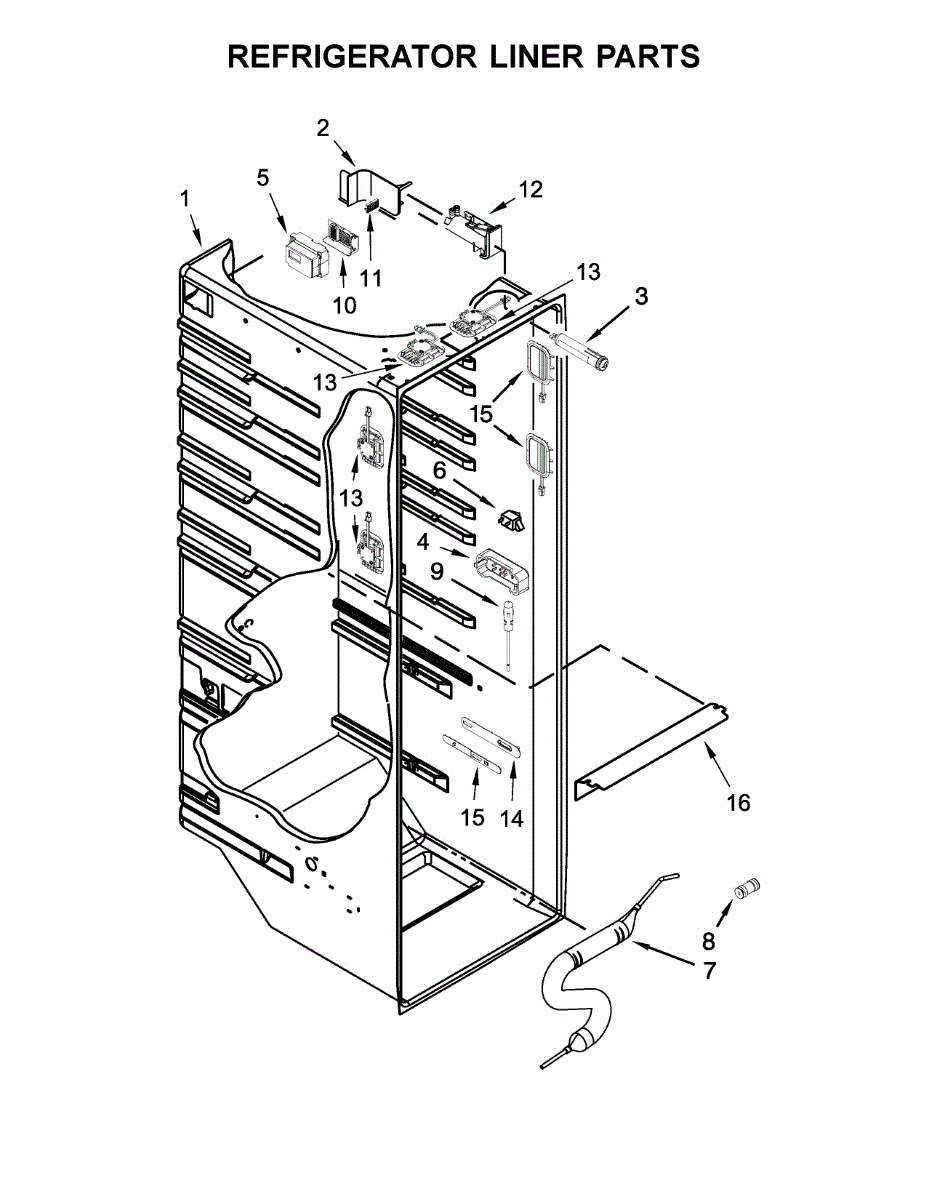

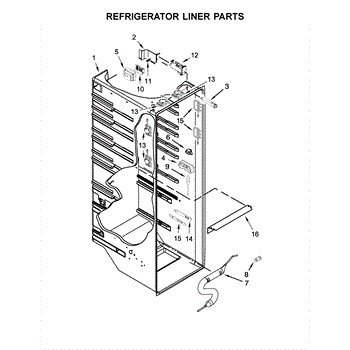

Parts for Kenmore 106.51713411 (10651713411, 106 51713411): Refrigerator Liner Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This small white water filter cover secures and protects the refrigerator's inline/replaceable water filter, keeping the filter seated and helping direct water flow for the dispenser and ice maker. Replaces a cracked, warped, or missing cover to restore a proper seal. What it does:

• Holds the water filter in place so it seals correctly and prevents leaks
• Shields the filter from dirt and damage inside the housing
• Helps maintain correct water flow to the dispenser and ice maker
• Commonly replaced when cover is cracked, broken, or will not latch

• One water filter cover (small, white)

• Turn off the refrigerator water supply and dispense any remaining pressure before removing the old cover
• Handle gently to avoid damaging the filter housing or sealing surfaces
• Ensure the replacement cover is fully seated and latched; check for leaks after restoring water

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

The Air Diffuser is an OEM component for Whirlpool refrigerators. Located inside the refrigerator compartment, it distributes cold air evenly to all storage shelves and ensures balanced temperatures throughout the space.

Causes of a bad air diffuser can include cracks in the plastic housing from years of fluctuating temperatures or jammed louvers obstructing optimal circulation patterns.

Symptoms of a bad air diffuser include:

• Warm or cooler spots noticed on certain shelves
• Faster melting of ice packs or frost buildup in some areas
• Increased humidity causing moisture condensation issues

This Whirlpool replacement part is also compatible with KitchenAid, Jenn-Air, Amana, and select Kenmore models.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Water Line Union is an OEM part for Whirlpool refrigerators. It connects sections of the water line, ensuring a secure and leak-proof connection that facilitates the proper flow of water to the ice maker and water dispenser.

Causes of a bad water line union can include wear and tear from prolonged use, exposure to fluctuating temperatures, or physical damage from handling.

Symptoms of a bad water line union include:

• Leaks or water pooling around the refrigerator
• Reduced water flow to the dispenser or ice maker
• Water line disconnections
• Visible cracks or damage on the union

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Temperature Sensor is an OEM replacement part for Whirlpool refrigerators. It is a crucial component responsible for accurately monitoring and regulating the temperature inside the refrigerator and freezer compartments.

Symptoms of a faulty temperature sensor include:

• Inconsistent or fluctuating temperatures in the refrigerator or freezer
• The refrigerator running continuously or not cooling properly
• Error codes or indicators related to temperature control issues

Causes of a bad temperature sensor can include normal wear and tear over time, electrical malfunctions, sensor failure, or damage from moisture or condensation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

This refrigerator water filter housing assembly secures the water filter and channels water through the cartridge to the dispenser and ice maker. Replacing a damaged housing restores proper sealing, flow, and leak-free operation at the filter area.

• Holds and seals the water filter, routing water to dispenser and ice maker
• Helps resolve water leaks around the filter or housing
• Can restore weak/no water dispensing caused by a failed housing
• Addresses filters that won't seat or keep popping out

• Unplug the refrigerator and turn off the water supply before servicing
• Relieve water pressure; keep a towel handy for residual water
• Note tube locations and connection style; ensure lines are fully seated and secured when reconnecting
• Restore water and power, check all joints for leaks, and flush water through the dispenser to purge air

The LED Module is an OEM part for Whirlpool refrigerators. This module plays a role in illuminating the inside of the refrigerator and freezer compartments. Properly functioning LED lights are necessary for visibility when accessing refrigerator contents.

Over time, exposure to temperature fluctuations and general use can cause LED modules to fail or burn out prematurely. Replacing this OEM Whirlpool part will restore full illumination inside your refrigerator.

Symptoms of a bad LED Module can include:

• Dim or flickering lights inside the refrigerator or freezer
• Partial lighting with some LEDs not working
• Lights that will not turn on at all

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This light lens fits the refrigerator compartment and covers the interior light source to protect it and diffuse glare. Replacing a damaged or missing lens restores clean appearance and even lighting inside the fresh food section.

• Covers and shields the refrigerator compartment light source
• Diffuses light for more even illumination across shelves
• Helps keep debris and moisture away from the bulb/module
• Typical reasons to replace: lens cracked, loose, missing, warped, or discolored

• Disconnect power to the refrigerator before servicing
• Remove items/shelves as needed for access
• Release the retaining tabs, remove the old lens, and align the new lens
• Press until all tabs fully engage and the lens sits flush
