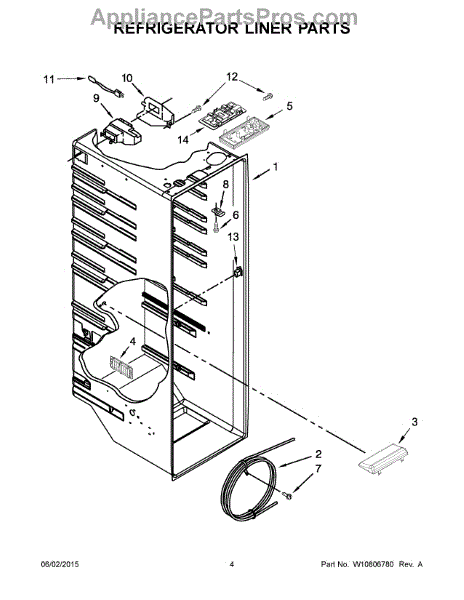

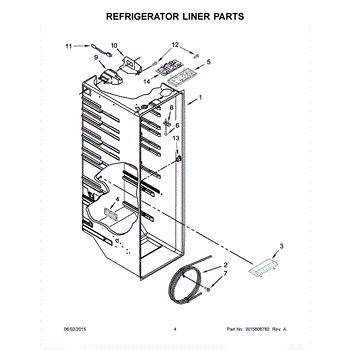

Parts for Maytag MSF25D4MDE02: 03 - Refrigerator Liner Parts

The Water Reservoir Tubing is an OEM replacement part for Whirlpool refrigerators. It is a flexible plastic tubing that replaces the water reservoir and holds the water for the ice maker and dispenser.

Causes can include cracks from heat or cold exposure over time, punctures from sharp edges during installation, or deterioration of plastic tubing that impacts integrity.

Symptoms of bad water reservoir tubing include:

• Inaccurate or inconsistent ice production
• Leaks or water spills near the reservoir or ice maker
• Kinks or ruptures in the tubing that obstruct water flow
• Mineral buildup that clogs or restricts the line

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: As per manufacture this is no longer a tank. The tank style has been updated with coiled tubing.

The LED Light Assembly is an OEM replacement part for Whirlpool refrigerators. This component provides energy-efficient and long-lasting illumination within the refrigerator compartment, ensuring visibility and easy access to stored items. Bracket part number- W10445802

Symptoms that may indicate the need to replace the LED light assembly include:

• Dim or flickering lights
• Lights failing to turn on or off consistently
• Visible damage or discoloration to the light assembly

Causes of a faulty LED light assembly can include normal wear and tear over time, electrical issues or malfunctions, or physical damage due to impact or moisture exposure.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Refrigerator LED Light Assembly is an OEM part for Whirlpool refrigerators. This assembly provides the necessary illumination inside the refrigerator, allowing you to clearly see and access the contents. It features energy-efficient LED technology, which offers bright, long-lasting light while consuming less power compared to traditional bulbs.

Over time, the LED light assembly can become faulty due to electrical issues, component failure, or damage from moisture.

Symptoms of a bad Refrigerator LED Light Assembly include:

• Dim or flickering light inside the refrigerator
• The light not turning on when the door is opened
• Intermittent lighting issues
• Complete failure of the light assembly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This diffuser—often called the refrigerator air damper—controls how much cold air flows from the freezer into the fresh food compartment. Replacing a worn diffuser helps restore even cooling and more stable temperatures throughout the refrigerator. What it does:

• Opens and closes to regulate airflow from the freezer to the refrigerator
• Helps maintain set temperatures and reduce warm spots or over-cooling
• Common symptoms: fresh food too warm while freezer is OK, food freezing on shelves, weak airflow from upper vents, or clicking/buzzing from the diffuser area
• Helps address frost or condensation near the diffuser outlet

• 1 diffuser

• Disconnect power before servicing
• Access from the refrigerator section; remove shelves/air duct covers as needed
• Note wiring and orientation; remove mounting screws/clips and transfer any seals/insulation if present
• After installation, restore power and allow up to 24 hours for temperatures to stabilize

The Thermistor is an OEM part for Whirlpool refrigerators. It plays a critical role in regulating the temperature within the refrigerator and freezer compartments by monitoring and sending temperature readings to the control board, which then adjusts the cooling system accordingly.

Causes of a bad thermistor can include electrical faults, exposure to moisture, or physical damage from mishandling. A faulty thermistor can lead to incorrect temperature readings, causing the refrigerator to overcool or not cool sufficiently.

Symptoms of a bad Thermistor include:

• Inconsistent temperatures within the refrigerator or freezer
• The refrigerator running constantly or not at all
• Spoiled food due to improper cooling
• Error codes related to temperature regulation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A genuine replacement screw used to secure appliance panels, brackets, and components so assemblies stay aligned and stable. Installs quickly with a screwdriver or driver bit to restore proper fit and reduce rattling. What it does:

• Secures panels, trim, brackets or internal components to keep parts properly aligned
• Prevents loose or vibrating panels that can cause noise or wear
• Holds mounting points that keep doors, seals, and assemblies operating correctly
• Replaces stripped, missing, or corroded fasteners that compromise fit

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or deform parts
• Keep removed hardware organized and replace like-for-like for best fit

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This outer cabinet housing provides structural support and protection for internal components, helping maintain panel alignment and prevent damage from dust, moisture, or impact — replace a damaged housing to restore fit and protection. What it does:

• Supports and secures internal parts and exterior panels to keep components properly aligned.
• Protects wiring, controls and mechanical parts from dust, moisture and accidental contact.
• Helps reduce vibration and rattling by maintaining proper cabinet fit.
• Commonly replaced when the housing is cracked, warped, rusted or no longer secures internal components.

• Disconnect the appliance from power (and water supply if applicable) before beginning any work.
• Remove access panels and fasteners; support the assembly during removal to avoid damage to attached parts.
• Inspect and replace any worn gaskets, clips or fasteners; reuse parts only if undamaged.
