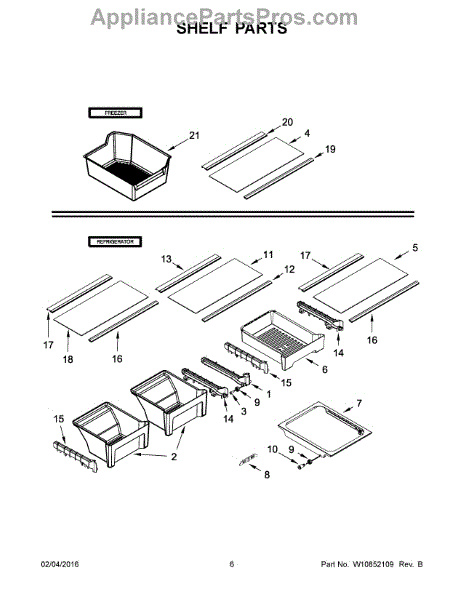

Parts for Whirlpool WRT318FMDM01: 04 - Shelf Parts

This refrigerator crisper pan replaces a cracked or missing produce drawer. It restores smooth sliding and dependable storage for fruits and vegetables, keeping items organized and contained in the fresh food compartment.

• Provides a dedicated bin for produce in the fresh food section
• Slides on the crisper rails beneath the crisper cover/shelf
• Helps contain leaks and prevent items from falling into the compartment
• Replaces a drawer that is cracked, chipped, warped, jammed, or missing

• Fully open the refrigerator door and remove items from the old drawer
• Pull the drawer to the stop, lift the front, then angle up and out to remove
• Inspect/clean the rails and underside of the crisper cover before installation
• Align the new pan with the tracks and slide in until it is fully seated; do not force

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

This refrigerator glass shelf restores a flat, spill-containing surface for food storage. Replacing a broken or missing shelf keeps items level and helps prevent drips onto lower compartments.

• Creates a stable surface for food, beverages, and containers
• Helps contain spills to the shelf level for easier cleanup
• Direct replacement when the original shelf glass is cracked, shattered, or missing
• Restores proper spacing and organization in the compartment

• Remove all items from the area; support the glass with both hands during removal and installation
• Wear cut-resistant gloves and eye protection when handling glass
• If applicable, seat the glass fully into the shelf frame or rails—do not force
• Ensure the shelf is secure and level before reloading items

This refrigerator meat pan is the deli drawer that slides into the fresh food section to organize meats and cheeses and help contain drips. It restores clean, smooth, easy-access storage when the original bin is cracked or missing. What it does:

• Provides a dedicated drawer for deli items in the fresh food compartment
• Slides on existing rails for organized, easy access
• Helps contain spills to keep shelves cleaner
• Common symptoms: cracked bin, broken tabs, drawer won't slide smoothly or falls off track, missing drawer

• 1 refrigerator meat pan

• Remove contents, pull the old drawer straight out, then lift to clear the rails
• Align the new pan with the rails and slide it in until fully seated
• Do not force; if it won't seat, inspect the drawer slides/tracks for damage
• Unplug the refrigerator if removing shelves or working near internal components

The Deli Drawer Shelf Frame is an OEM part for Whirlpool refrigerators. This frame serves as the structural support for the deli drawer, holding it in place and providing a smooth surface for the drawer to slide in and out easily. Additionally, it acts as a shelf for items stored above the drawer, maximizing space utilization within the refrigerator.

Symptoms of a bad Deli Drawer Shelf Frame include:

• Cracks or breaks in the frame that compromise its structural integrity.
• The drawer sagging or sticking due to a misaligned or damaged frame.
• Difficulty in sliding the drawer in and out smoothly.
• Unstable storage as items on the shelf above the drawer shift or fall.

Causes of a bad shelf frame can include overloading the drawer or shelf with too much weight, general wear and tear from frequent use, or environmental factors such as moisture and temperature changes that can warp or degrade the materials.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This humidity control graphic is the replacement label for the crisper drawer humidity slider, restoring clear markings so you can set and read the vent position easily. It helps make humidity settings visible and intuitive. What it does:

• Replaces worn, faded or missing humidity-slider markings on the crisper vent
• Restores clear low/med/high or open/closed indicators for accurate vent position reading
• Helps prevent confusion when adjusting drawer humidity for produce storage
• Matches OEM appearance and placement to maintain original look

• One humidity control graphic/label for the crisper humidity slider

• Disconnect power to the appliance before accessing interior components when required
• Remove the crisper drawer and clean the mounting area; peel-and-stick or snap-in fit may be adhesive-backed
• Align the graphic carefully before attaching to avoid rework; press firmly to ensure full adhesion

The Drawer Roller is an OEM part for Whirlpool refrigerators, specifically designed to facilitate the smooth and effortless sliding of drawers within the appliance. This small but crucial component ensures that the refrigerator's drawers open and close with ease, allowing for convenient access to fruits, vegetables, meats, and other items stored inside.

Causes of a bad Drawer Roller can stem from wear and tear over time, accumulation of debris or food particles in the roller mechanism, or damage from overloading the drawer beyond its capacity.

Symptoms of a bad Drawer Roller include:

• Drawers sticking or jamming when you try to open or close them
• A grinding or squeaking noise during drawer movement
• The drawer sagging or not aligning properly within the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Axle is an OEM part for Whirlpool refrigerators. It is the mechanism that supports and enables smooth extension of shelves and drawers on sliding tracks.

Causes of a bad slide axle can include normal wear to plastic bushings from constant shelf movement, or damage from sharp or heavy items that cause stress and premature failure.

Symptoms of a faulty slide axle include:

• Shelves or drawers that do not fully extend or retract
• Resistance felt while pulling shelves out
• Squeaking or grinding noises coming from sliding areas
• Shelves that do not stay securely in place once extended

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This track guides and supports a drawer so it opens and closes smoothly, restoring proper alignment and preventing sticking or the drawer from falling off its slide. Use when the drawer binds, drops, or moves unevenly. What it does:

• Guides the drawer along its intended path for smooth opening and closing
• Supports and aligns the drawer to prevent binding, catching, or sagging
• Restores even movement when a drawer comes off its slide or won't glide properly
• Helps maintain secure drawer positioning under normal loading

• Disconnect power to the appliance (when applicable) and remove all contents from the drawer before servicing
• Remove the drawer to access the old track; keep original screws/fasteners and note orientation for reinstallation
• Align the replacement track with the mounting points and secure with the original hardware; avoid overtightening
• Test drawer movement and adjust alignment as needed

This left-side bottom crisper track supports and guides the refrigerator's crisper drawer. Replacing a worn or broken track restores smooth sliding and proper alignment so the bin opens, closes, and seats correctly.

• Supports the crisper drawer on the cabinet's left bottom side
• Provides a smooth slide path for consistent opening and closing
• Helps keep the bin level so it seats and seals properly
• Common symptoms: drawer sticks, sags, falls out, won't close fully, or the track shows cracks/broken tabs

• Disconnect power and remove food from the affected drawer area before servicing
• Remove the crisper drawer and any glass shelf above it
• Detach the old track (remove screws or release tabs) and retain hardware for reuse
• Position and secure the new track, then reinstall the shelf and drawer; test for smooth operation
• Orientation note: "Left" is determined when facing the front of the refrigerator

This shelf trim replaces the front edge trim on a refrigerator shelf to restore a finished look and help keep items from sliding off the shelf. It provides a clean, secure edge for proper shelf use. What it does:

• Replaces damaged, cracked, or broken shelf front trim that affects shelf appearance and item retention
• Helps keep cans, jars and other stored items from slipping off the shelf edge
• Restores a flush, finished look to the refrigerator interior
• Compatible with shelves that use an edge trim style

• One shelf trim piece as shown

• High-level, no-specialist install: typically snaps or clips into place along the front shelf edge
• Remove food and glass shelves before installing to avoid breakage
• Wear gloves and eye protection when handling broken plastic or glass

This rear trim shelf replaces the rear trim piece on 30" refrigerator shelves to restore shelf support and appearance. It provides a secure edge that helps keep items in place and hides the shelf rear channel for a finished look. What it does:

• Replaces cracked, chipped or missing rear shelf trim on 30" refrigerator shelves
• Restores the shelf's rear edge to improve item stability and shelf alignment
• Covers the rear shelf channel for a clean, finished interior appearance
• Matches the original white finish for a consistent look

• Designed to snap or slide into the shelf rear channel
• Handle part carefully to avoid scratching; wear gloves if preferred
• Disconnect power and remove food from the shelf area if needed for safe access
• Inspect and replace damaged shelf or supporting brackets as required before installing the trim

This replacement ice cube pan holds and organizes ice in your refrigerator's freezer. Replacing a cracked or warped pan restores clean, contained ice storage and smoother access or dispensing, depending on your model's design. What it does:

• Collects and stores ice produced by the icemaker or manual trays
• Keeps cubes contained and easy to access; fits designated guides in the freezer
• Helps ensure proper ice access or dispensing on applicable models
• Typical symptoms: cracked bin, broken tabs, bin won't seat, ice spilling or clumping

• 1 ice cube pan/bin

• Disconnect power to the refrigerator and turn off the icemaker before starting
• Remove the old pan and empty any remaining ice
• If your model reuses a drive/crusher or other hardware, transfer those parts from the original pan as directed for your unit
• Seat the new pan fully in its tracks/coupler, restore power, and allow normal ice production
