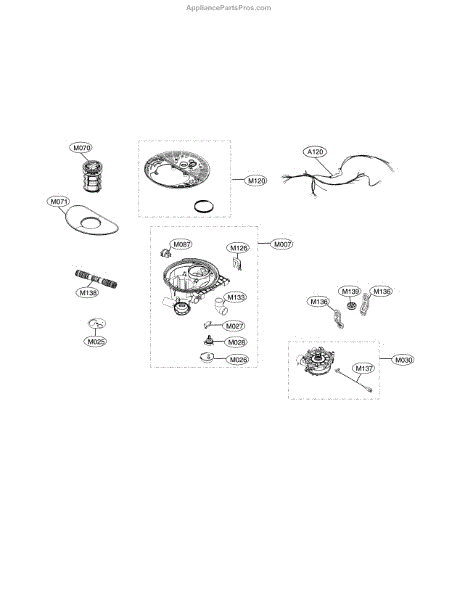

Parts for Lg LDF5545ST/00: Sump Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This factory-assembled replacement installs in the same location as the original assembly on your appliance. It restores proper fit and operation when the original component is broken, worn, or missing.

• Replaces the complete assembly specified for your model
• Restores correct fit, alignment, or movement of the associated mechanism
• Helps resolve issues caused by cracks, wear, or physical damage in that area
• Match by part number and model for an exact fit

• Disconnect power before servicing; shut off water or gas supply if applicable
• Use your model's parts diagram to confirm location and orientation
• Transfer any mounting hardware or brackets from the original assembly
• Handle sharp edges carefully and verify proper operation before final reassembly

Check valve that prevents water backflow in the appliance's supply line, helping restore proper water flow to the ice maker or dispenser. Replaces a failed valve to address leaking, slow fills, or no-fill conditions. What it does:

• Stops reverse flow in the water line so water only moves toward the dispenser or ice maker
• Helps prevent water leaks and cross-contamination of the supply line
• Common symptom fixes: intermittent or no water to ice maker/dispenser, weak fills, or water pooling
• Fits inline with existing water tubing and works with the appliance's fill system

• Shut off water supply and unplug the appliance before replacing the valve
• Confirm tubing size and orientation before installation; install with correct flow direction
• Tighten fittings to prevent leaks but avoid overtightening plastic fittings

The Diverter Motor Assembly is an OEM part for LG dishwashers. It is a critical component used to control the direction of water flow within the dishwasher, ensuring that water is properly diverted between the different spray arms during various wash cycles.

Symptoms of a failing Diverter Motor Assembly include:

• Inadequate cleaning of dishes, with some areas remaining dirty
• Unusual noises, like humming or clicking, indicating the diverter motor is struggling to operate
• Error codes displayed on the dishwasher that relate to water distribution problems
• Water not reaching all spray arms

Causes of a bad diverter motor can include wear and tear from regular use, electrical issues such as faulty wiring or motor failure, and mechanical obstructions or debris that prevent the diverter from moving smoothly.

This OEM LG part is also compatible with Sears/Kenmore models.

The Micro Switch is an OEM part for LG dishwashers. It plays a crucial role in detecting when the door is securely closed prior to starting a cycle. This important safety feature prevents accidental exposure to hot water, detergent, and chemicals.

Causes of a bad micro switch include degradation from years of repeated use, debris interfering with mechanisms, or damage from attempts to force or slam the dishwasher door closed.

Symptoms of a bad micro switch include:

• Cycles failing to start despite a closed door
• Hot water or steam visible escaping when running
• The dishwasher not detecting the closed door position
• Error codes displayed related to door position sensors

This OEM LG part is also compatible with Sears/Kenmore. Replacing only when truly faulty helps ensure safe and reliable dishwasher function.


The Circulation Pump Assembly is an OEM part for LG dishwashers. This part circulates the water and detergent solution throughout the dishwasher tub and spray arms during the wash cycles.

Causes of a bad dishwasher circulation pump assembly can include wear and tear on the pump impeller or seals, blockages or obstructions preventing proper water flow, or electrical or mechanical failures within the pump assembly itself.

Symptoms of a faulty circulation pump assembly include:

• Inadequate water circulation or lack of water spray
• Dishes not getting clean or having food residue left behind
• Excessive noise or vibration during wash cycles
• Leaks or water spillage from the dishwasher

This OEM LG part is also compatible with some Kenmore models.

This dishwasher mesh filter assembly sits in the sump to screen food particles from the wash water. Replacing a damaged or clogged filter helps restore water flow, protect the pump, and maintain cleaning performance.

• Traps food debris before water recirculates through the spray system
• Helps prevent pump and spray-arm clogs that can reduce wash pressure
• Supports cleaner results by reducing redeposit and gritty residue
• Typical signs it needs replacement: torn mesh, warped frame, persistent residue, or grinding noises from debris

• Disconnect power at the breaker and shut off water before servicing
• Remove the lower rack; rotate/unlock and lift out the old mesh filter; clean the sump area
• Seat the new filter flat, align tabs, and lock it in place; reinstall the rack and run a quick test cycle

This refrigerator water filter cartridge helps reduce common impurities and improves the taste and clarity of drinking water and ice. It's a direct-replacement style designed to fit compatible LG refrigerator filter housings. What it does

• Reduces sediment, chlorine taste and odor commonly found in household water supplies
• Helps improve the taste and clarity of ice and dispensed water
• Restores proper filtration when your fridge shows reduced water quality or off-flavors
• Maintains normal water flow when properly installed and not clogged

• Replace with power on and water supply turned on; follow refrigerator manufacturer instructions
• Flush several gallons of water through the filter after installation to remove trapped air and loose carbon fines
• Dispose of used cartridge according to local recycling/disposal rules
• If you continue to experience poor water quality or low flow after installation, check the refrigerator's filter housing and water supply line

This case assembly is the outer housing that holds and protects the appliance's control components and switches, restoring a finished appearance and keeping electronics secure. It's a direct-replacement style part for visible control areas. What it does:

• Provides a protective enclosure for control boards, switches and user interface components
• Restores a secure, stable mounting point for buttons, levers and display elements
• Helps prevent dust, moisture and debris from reaching internal electronics
• Can resolve loose or damaged control bezel issues and improve appliance appearance

• Handle carefully to avoid scratching the visible surfaces and damaging tabs or mounting points
• Power off and unplug the appliance before starting work to reduce risk of shock
• Retain and reuse any clips, screws or gaskets from the original part unless replacements are supplied

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Cover Assembly is an OEM component specifically designed for LG dishwashers. This assembly consists of the outer tub cover and inner mounted components that protect internal mechanisms.

Causes of a bad cover assembly can include cracks, dents, or other physical damage from regular loading and unloading of dishes. Harsh or abrasive cleaners can degrade protective surfaces over time as well.

Symptoms of a bad cover assembly include:

• Water leaks inside or outside the dishwasher
• Loose, unstable, or damaged outer tub cover
• Detached or broken mounting clips for inner components

This OEM LG part is also compatible with Sears/Kenmore dishwashers. Replacing the entire cover assembly restores integrity to protect sensitive inside parts. Proper maintenance extends the lifespan of exterior components.


This hose connector links two components in the appliance's water path to create a flexible, leak-resistant connection. Replacing a worn or cracked connector helps stop leaks and restore proper water flow and performance.

• Joins fittings or assemblies within the internal water system
• Maintains a watertight seal under normal operating pressure
• Helps resolve leaks, pooling, or related error codes/performance issues
• Common failure signs: visible cracks, swelling, brittleness, or a loose fit at the connection points

• Disconnect power and shut off the water supply before servicing
• Note hose routing and orientation; take a photo for reference
• Transfer and correctly position any clamps; tighten securely without over-tightening
• After installation, run a test and inspect all joints for leaks

This connector assembly links a refrigerator's wiring harness to internal components, restoring a secure electrical connection for reliable operation and safe component communication. What it does

• Provides a secure plug connection between the wiring harness and internal modules or components
• Restores power/communication when a broken or damaged connector causes intermittent operation or failure
• Helps stop arcing, loose connections, and related error symptoms from faulty or corroded terminals
• Supports reliable signal transfer for sensors, lights, or control boards where used

• One connector assembly

• Disconnect power to the appliance before inspecting or replacing electrical connectors
• Handle wiring and terminals carefully to avoid bending pins or damaging insulation
• After installation, restore power and test affected functions for normal operation

The Drain Hose Assembly is an OEM component specifically designed for LG dishwashers. It safely directs wash water and waste from the dishwasher to a drain source such as the garbage disposal or vent pipe after each wash cycle.

Causes of failure typically include wear and tear over multiple years of daily use carrying hot, soapy water. Hoses can become weakened from kinking, impact damage or deterioration of plastics from chemical exposure.

Symptoms of a bad drain hose include:

• Puddles or water leakage from the dishwasher
• Inability to fully drain all wash water after cycles
• Damp containers inside from standing water issues

This OEM LG part is also compatible with select Sears/Kenmore dishwashers.
