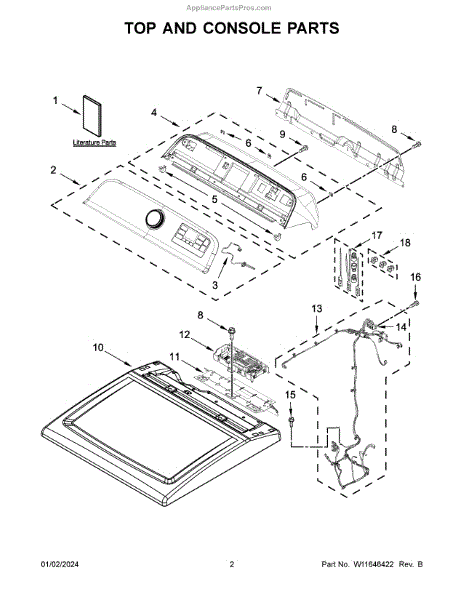

Parts for Maytag MED7230HW3: Top And Console Parts

This console replaces the exterior control area that houses the appliance's buttons and display, restoring a clean, functional interface for selecting cycles and settings. Designed to match the original fit and appearance. What it does:

• Serves as the main user interface for cycle selection, timers and display readouts
• Replaces cracked, faded, or damaged panels that affect button operation or appearance
• Restores secure mounting for switches, buttons and display components
• Helps resolve unresponsive buttons, missing trim, or visible cosmetic damage

• Disconnect power (and gas/water if applicable) before beginning work
• Handle decorative trim and display lenses carefully to avoid scratches
• Typical installation requires removing the old console's retaining screws and reconnecting any wire harnesses; keep fasteners for reassembly

This console is the control panel housing that holds the user controls and display, restoring the cabinet surface and button mounting for proper operation and appearance. It replaces a damaged, cracked, or worn control panel housing. What it does:

• Provides the front housing for the oven/range control area and secures the user controls and display
• Restores a solid mounting surface so buttons, knobs or touch controls operate correctly
• Helps prevent moisture and debris from reaching internal control components
• Common symptoms: cracked or loose panel, missing/misaligned button openings, or visible damage affecting controls

• One console (control panel housing) as shown

• Disconnect power to the appliance before beginning any repair
• Removal typically requires removing fasteners and disconnecting any attached trim or brackets; handle display and control components carefully
• If the old console has attached brackets or clips that transfer to the new piece, they are reused or replaced as needed

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement top panel restores the appliance's outer cabinet for a clean appearance and to protect internal components from dust and debris. It fits above the main cabinet and provides the finished surface beneath controls. What it does:

• Covers and protects internal parts and wiring from exposure and contaminants
• Restores a smooth, finished surface for the appliance cabinet
• Helps maintain proper spacing and alignment for control components
• Replaces a bent, dented, or corroded top that can trap dirt or allow moisture in

• Disconnect power to the appliance before beginning any work.
• Installation may require removing the control console or back panel to access mounting screws.
• Handle edges carefully — replacement panels can have sharp edges.
• Follow the manufacturer's service instructions for fastening sequence and torque.

This electronic control board replaces the console control assembly that manages appliance cycles and user interface functions, restoring reliable control of settings and timed operations. Use when the console is unresponsive or displays errors. What it does:

• Acts as the main user-interface and control module, sending commands to components and timers
• Can cause symptom: touchpad or buttons not responding or display blank
• Can cause symptom: cycles stop, won't start, or timing functions fail
• Can cause symptom: error codes or unexpected shutdowns related to control faults

• Disconnect power before servicing to avoid shock or damage
• Handle the board by edges and avoid static discharge; use an anti-static wrist strap if available
• Reconnect all wiring harnesses and mounting hardware exactly as removed; verify connections are fully seated
• After installation, restore power and run a test cycle to ensure proper operation.

The Terminal Block is an OEM replacement part for Whirlpool dryers. It is responsible for distributing electricity to key components that control drying operations.

Symptoms of a bad terminal block include:

• The dryer not heating up properly or failing to achieve the desired temperature
• Components like lights or timers not functioning
• Strange buzzing or humming noises coming from the dryer

Causes of terminal block failure can be worn or damaged wiring terminals, loose connections due to normal vibration, or corrosion buildup over several years of use.

This terminal block is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore dryer models.

Please note: Please note that this part does not include the wires, screws, and nuts. They must be ordered separately. For the complete block assembly use 279320.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

Includes screws and wire connectors. For the complete terminal block kit use 279320.

The Terminal Block Screw Kit is an OEM replacement part for Whirlpool dryers. It is an assembly of screws used to securely fasten electrical terminal blocks within the dryer's control panel. Includes 3 screws and 3 nuts. Screw kit for dryer cord connector.

Over time, terminal block screws can become loose, corroded, or damaged due to regular use or electrical issues. If the terminal block screws are compromised, it can lead to electrical problems or even pose a safety hazard.

Symptoms of a faulty terminal block screw kit include:

• Intermittent power or failure of heating/fan elements to engage
• Repeated blowing of internal fuses or tripping of circuit breakers
• Hot terminal connections detected during operation
• Arc flashes, sparks, or smoke seen around the control panel area

This genuine Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.
