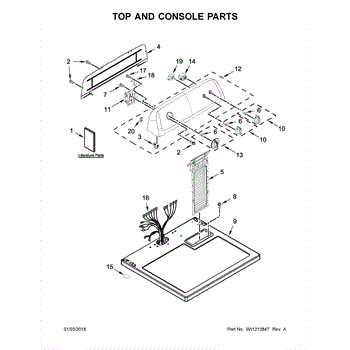

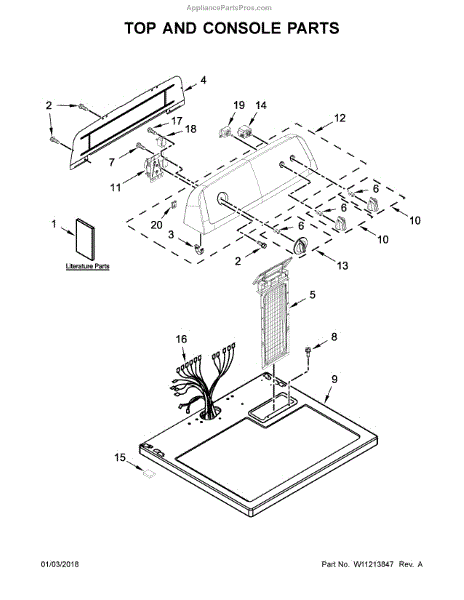

Parts for Whirlpool WED4850HW0: Top And Console Parts

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rear panel replaces the dryer's back bulkhead to restore the appliance's structural enclosure and help protect internal components from dust and debris. It provides a clean mounting surface for internal parts and improves cabinet integrity. What it does:

• Replaces a damaged, dented, or corroded rear cabinet panel
• Protects internal wiring, ducts, and components from external debris
• Restores proper mounting surfaces for internal assemblies and fasteners
• Helps maintain correct airflow paths by sealing the dryer cabinet

• One rear panel/back bulkhead

• Disconnect power (and gas if applicable) before beginning any repair
• Installation typically requires removing the dryer cabinet and several fasteners; keep hardware for reuse unless damaged
• Inspect and replace any worn gaskets, seals, or mounting clips while cabinet is open

This lint screen captures lint during each cycle to keep airflow steady and drying consistent. Replacing a torn or warped screen helps reduce long dry times, overheating shut-offs, and lint buildup in the vent path.

What it does

• Traps lint and debris before air exits the drum
• Maintains proper airflow for efficient, even drying
• Helps keep lint out of the blower and exhaust duct
• Replaces screens that are torn, warped, or won’t seat flush

What’s included
One lint screen.

Install notes

• Power off the dryer before reaching into the lint housing.
• Vacuum and wipe the lint channel clean before installing the new screen.
• Seat the screen fully; don’t operate the dryer without it.
• Clean the screen before every load; wash with mild soap if residue builds up.

Usage tip
If you use dryer sheets or liquid softener, rinse the screen periodically to remove film that can restrict airflow.

This genuine part is an OEM replacement part is also compatible with Amana and KitchenAid models as well.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This is the appliance's main top panel assembly. It restores a clean, sturdy top surface and protects internal components, helping the unit look and function like new after cosmetic or physical damage.

• Forms the finished top surface of the appliance and protects internal wiring/mechanisms
• Provides mounting/attachment points for surface components specific to the model
• Helps maintain proper alignment of surrounding panels and trim
• Common signs it needs replacement: dents, cracks, chips, rust, bowed or loose panel, rattling, or sharp edges

• Disconnect power to the appliance; shut off gas/water if your model requires it.
• Wear cut-resistant gloves and handle carefully to avoid bending or chipping the panel.
• Transfer any reusable brackets, trim, or grommets from the original panel to the new one.
• Reinstall using existing fasteners; avoid overtightening on painted or glass surfaces.

A replacement control knob that restores user control of settings and makes selection easy. Installs on the appliance control shaft to provide a solid grip and clear tactile feedback for reliable operation. What it does:

• Replaces a cracked, worn, missing, or hard-to-turn control knob
• Allows selection of temperature, cycle, or speed settings depending on the original control
• Stops slipping or spinning issues caused by damaged splines or stripped knob bores
• Restores safe, predictable control operation so you can use the appliance as intended

• Disconnect power (and gas if applicable) before servicing the appliance
• Most installations are push-on: align the knob splines with the control shaft and press firmly until seated
• Inspect the control shaft for damage; replace the switch or shaft if the knob does not seat securely

The Timer is an OEM replacement part for Whirlpool dryers. It accurately sequences drying functions during programmed cycles.

Symptoms of a faulty timer include:

• Inability to start or complete dry cycles
• Drying not fully finishing within expected times
• Unexpected shutoff or prolonged run times

Causes can be stripped internal gears or disconnected wiring terminals from extended operation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob is an OEM part for Whirlpool dryers. It attaches to the control shaft or stem located behind the dryer control panel.

Causes of a bad knob can include wear and tear over time, exposure to heat and moisture from drying cycles, accidental damage, improper cleaning techniques, or compatibility issues where the knob no longer fits correctly on the control shaft.

Symptoms of a bad knob include:

• Knob difficult to turn or jammed in certain positions
• Knob incorrectly labeled so settings are unclear
• Loose, cracked, or missing knob that does not securely interface with the control panel

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Push-to-Start Switch is an OEM replacement part for Whirlpool dryers. This component is the button you press to initiate the drying cycle. Once pressed, the switch sends an electrical signal to the dryer's motor, activating the machine and beginning the drying process.

Causes for a malfunctioning Push-to-Start Switch can include electrical issues, wear and tear from frequent use, or damage due to mishandling or accidental impact.

Symptoms of a bad Push-to-Start Switch include:

• Dryer not starting despite pressing the button
• The need to press the button multiple times for activation
• Intermittent starting and stopping of the dryer
• Unusual sounds when pressing the switch

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wire harness is the factory-style electrical assembly that connects and routes power and signal wiring between an appliance's components, restoring reliable electrical connections and control communication. What it does:

• Provides factory-routing for power and signal wires between control, motors, switches, and sensors
• Restores lost or intermittent electrical connections that can cause no-start, no-heat, or erratic operation
• Replaces damaged, frayed, or corroded wiring to reduce short or open-circuit failures
• Maintains correct connector fit and wire length to prevent strain and interference

• One complete wire harness assembly as shown

• Disconnect power (unplug or shut off breaker) before inspecting or replacing wiring
• Compare connectors and wire routing to the original harness before installation
• Use proper strain reliefs and routing; avoid sharp edges and heat sources when reinstalling

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This replacement switch restores reliable electrical switching for the circuit it controls in your appliance, so the connected feature responds consistently when actuated. Worn or heat-damaged contacts can cause intermittent operation, no response, or a function stuck on/off.

• Opens and closes an electrical circuit to signal a control or provide power to a component
• Helps ensure the controlled feature turns on/off at the correct time
• Symptoms can include no response when actuated, intermittent operation, or a function that remains on/off
• Physical clues may include loose terminals, arcing, or burned contacts on the original switch

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Access and mounting location vary by model; remove panels as needed to reach the switch
• Photograph wiring and transfer leads one at a time to matching terminals; avoid pulling on wire insulation
• Secure the switch, restore power, and test the function for proper operation

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair
