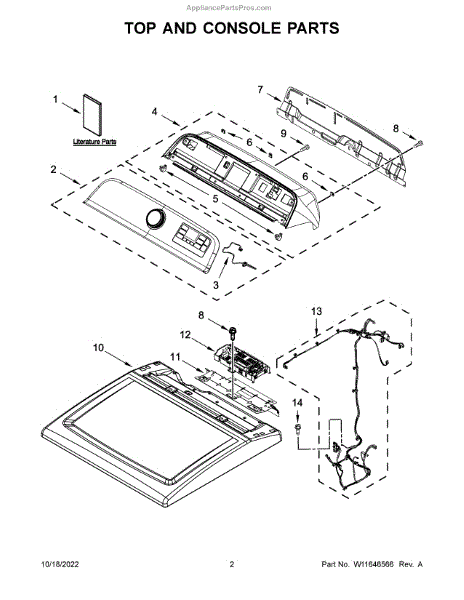

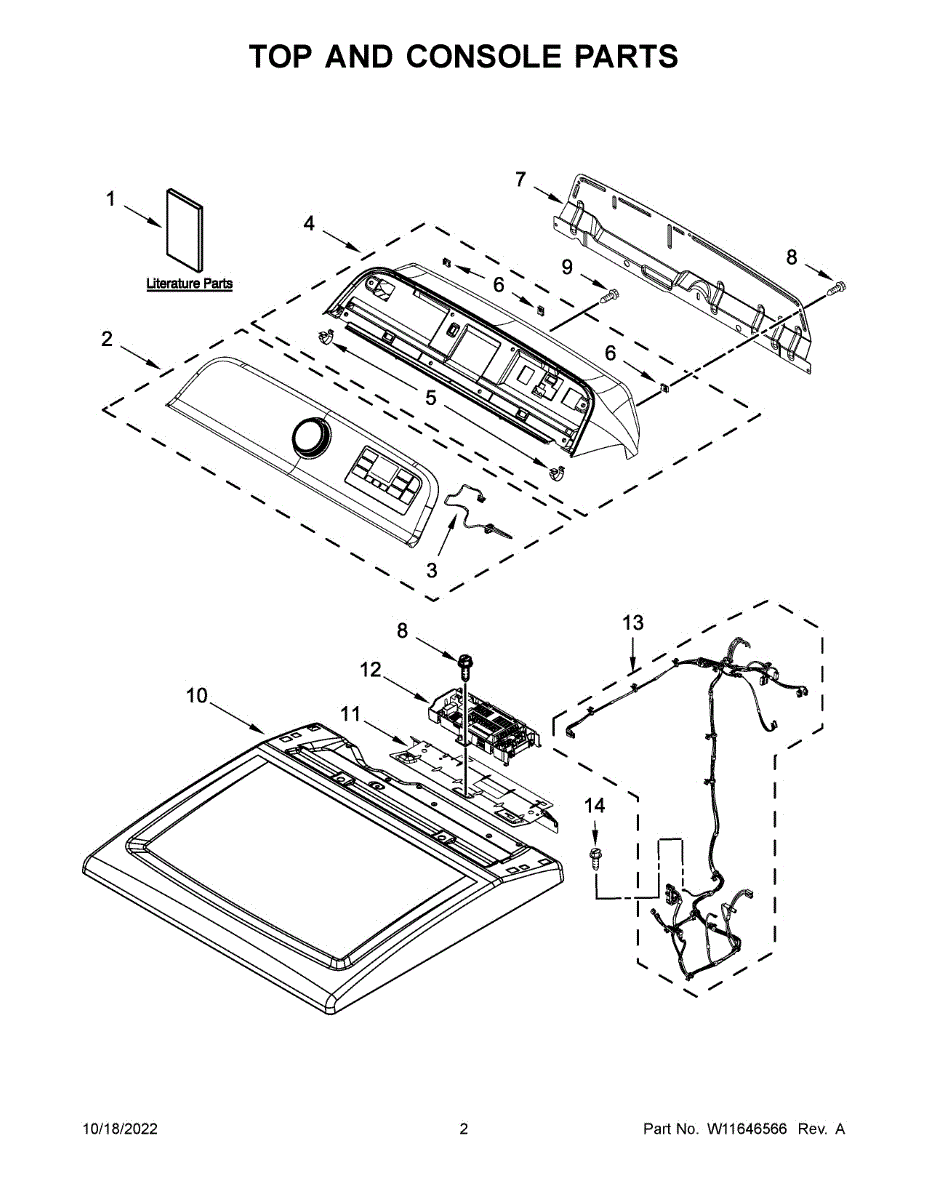

Parts for Whirlpool WGD5100HW3: Top And Console Parts

Fix intermittent dryer power or control issues with this main connector wire harness. Restores electrical connections between control and components.

Secures the control console to the top panel of your dryer. Replace this clip if it's broken, cracked, or missing to keep the console firmly mounted.

Replacement mounting nut secures panels, brackets, and studs in dryers. Restores tight fit for worn, stripped, or missing fastening hardware.

Secures the handle end cap to the center of your refrigerator door. Replace if missing, stripped, or lost during handle repairs. 8-18 x 1/2 inch size.

Fix washer control issues with this switch mounting screw. Secures cycle selector switch in console for reliable function. Simple DIY fix in minutes.

This wire harness assembly routes power and signals between components to restore electrical connectivity and reliable operation. It replaces a damaged or worn harness so controls and motors can receive proper power and communication. What it does:

• Provides factory-style wiring connections between control, motor, and switches
• Restores power or signal continuity when original harness is damaged or corroded
• Stops intermittent operation caused by loose or broken wires and connectors
• Prevents arcing or shorting from exposed or frayed conductors

• Disconnect all power before starting work to avoid shock or injury
• Inspect connector ends and routing; match original wire paths and secure with clips/ties
• Do not splice or patch severely damaged wires—replace the entire harness

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.
