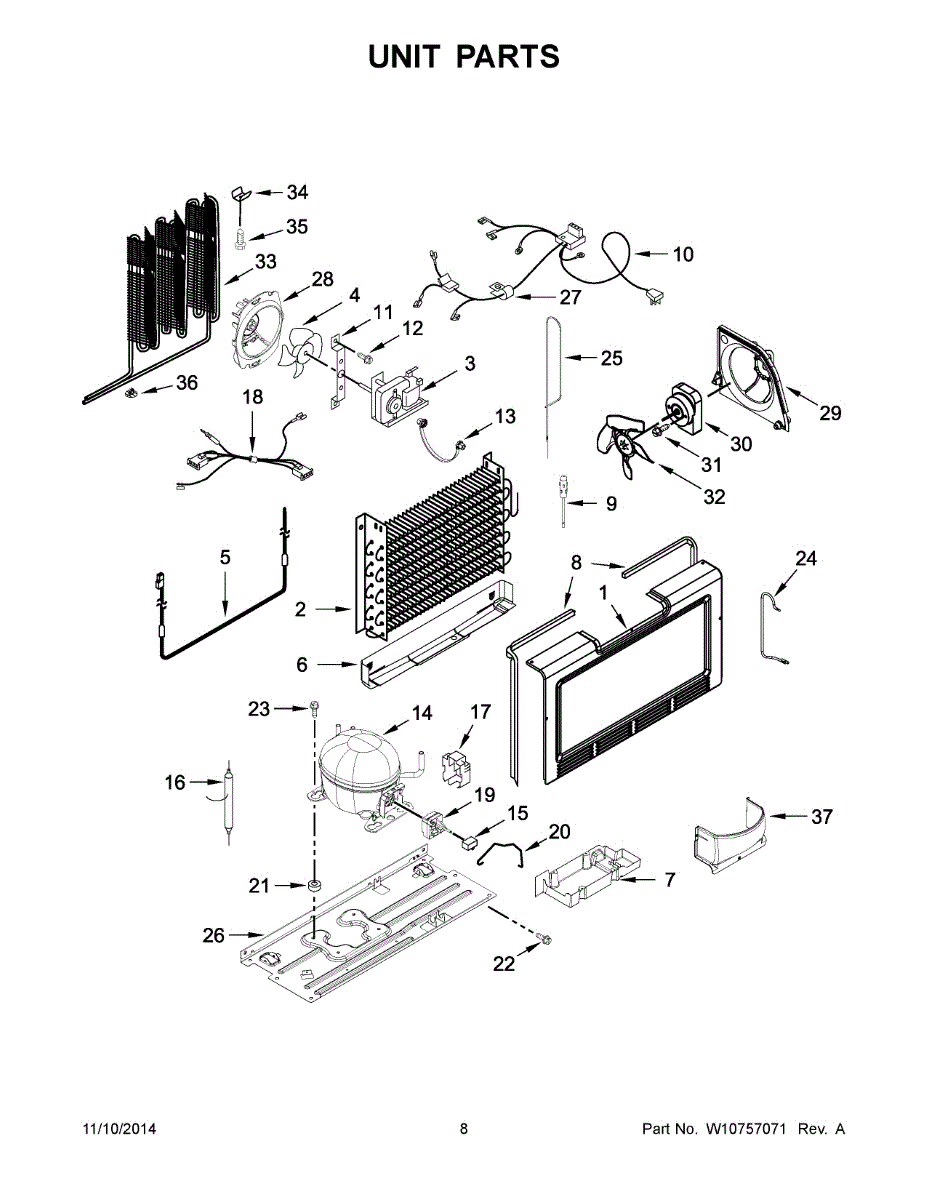

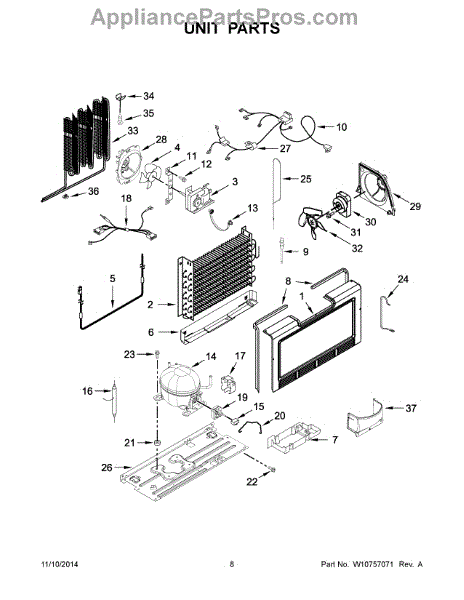

Parts for Maytag AZB33X20DW00: 05 - Unit Parts

The Evaporator Coil is an OEM part for Whirlpool refrigerators. It is responsible for absorbing heat from the refrigerator interior as refrigerant passes through its fine tubes and fins. Cool air is then circulated through convection to maintain consistent temperatures.

Causes of a bad evaporator coil can include mineral deposits or frozen moisture clogging fins over time, physical damage to tubes, or corrosion of metal surfaces.

Symptoms of a bad evaporator coil include:

• Inability to decrease interior temperatures sufficiently
• High energy bills due to inefficient heat transfer
• Abnormal ice buildup inside due to poor airflow
• Warm or lukewarm areas inside the refrigerator compartment

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air, KitchenAid, and some GE models.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Heater is an OEM part for Whirlpool refrigerators. This component is responsible for preventing frost build-up on the evaporator coils by periodically heating them to melt any accumulated ice. This defrost process is essential for maintaining efficient cooling and proper airflow within the refrigerator.

Over time, the heater can fail due to electrical issues, wear and tear, or burnout from frequent cycling. When the heater is defective, it can lead to excessive frost build-up, which impairs the refrigerator's cooling performance.

Symptoms of a bad heater include:

• Frost or ice build-up on the evaporator coils
• Refrigerator or freezer not cooling properly
• Water leakage inside the refrigerator
• Long defrost cycles or constant running of the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This heat shield protects nearby components from high oven temperatures, helping prevent heat damage and maintain safe operation. It's a direct-fit replacement designed to restore proper thermal protection. What it does

• Deflects and shields adjacent parts from radiant heat generated by the oven cavity.
• Helps prevent discoloration, warping, or premature failure of nearby panels and wiring.
• Can stop heat-related smells or scorching around the oven interior or cabinet.
• Restores intended oven airflow and thermal clearance when the original shield is damaged or missing.

• One replacement heat shield

• Disconnect electrical power (and shut off gas for gas ranges) before starting any repair.
• Handle carefully — edges may be sharp; wear gloves and eye protection.
• Verify correct mounting orientation and fasteners; reuse original screws if in good condition or replace with OEM-specified hardware.

This drip pan catches and channels stray water to help protect floors and the appliance base from leaks and spills. It's a simple replacement that restores proper drainage and reduces visible pooling under the machine. What it does:

• Collects and directs small leaks or condensation away from the cabinet and floor
• Helps prevent water damage to subflooring and surrounding cabinetry
• Stops visible pooling under the appliance that can cause corrosion or staining
• Works with the appliance's drain path to route water to the drain system

• Disconnect power and shut off water supply before starting any repair
• Remove access panels per manufacturer instructions to reach and replace the pan
• Inspect surrounding seals and hoses for damage; replace if needed to stop leaks
• After installation, restore power/water and run a short cycle to check for proper drainage and leaks

This replacement door gasket creates an airtight seal for the refrigerator fresh-food compartment to help maintain proper cooling and reduce frost buildup. It restores door sealing to help the appliance run more efficiently. What it does

• Seals the fresh-food compartment door to keep cold air in and warm air out
• Helps reduce frost and moisture buildup inside the compartment
• Supports consistent internal temperature for safer food storage
• Can improve energy efficiency when the door seal is compromised

• Disconnect power to the appliance before starting any repair.
• Remove the old gasket per the manufacturer's instructions; inspect the door surface for damage or debris.
• Warm and flex the new gasket as needed to ease installation; ensure the gasket is seated evenly in the door channel.
• After installation, check the door for a secure, even seal; adjust alignment if necessary.

The Thermistor is an OEM part for Whirlpool refrigerators. It functions as a temperature sensor that helps regulate and monitor the internal temperature of the refrigerator and freezer compartments.

Causes of a bad thermistor can include regular wear and tear, exposure to extreme temperatures, or electrical issues. A malfunctioning thermistor can lead to inaccurate temperature readings, which can affect the refrigerator's cooling performance and efficiency.

Symptoms of a bad thermistor include:

• The refrigerator not maintaining the correct temperature
• Inconsistent cooling, with some areas being too warm or too cold
• The refrigerator running continuously or cycling on and off too frequently
• Error codes related to temperature issues displayed on the control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This clip is a small mounting retainer that secures appliance panels and components to keep parts aligned and reduce vibration. It restores a snug fit for trim, panels, and harnesses so covers stay in place and operate quietly. What it does

• Holds trim, panels or wire harnesses in position to prevent rubbing and rattling
• Keeps access panels and covers aligned for a proper seal and finish
• Prevents electrical harnesses or hoses from sagging or contacting moving parts
• Stops intermittent scraping or vibration noises caused by loose fittings

• Disconnect power to the appliance before replacing the clip to avoid shock or injury
• Replacement typically requires basic hand tools (flat screwdriver, pliers) to remove the old clip and snap the new one into place
• Inspect surrounding trim, fasteners and harnesses and replace any additional damaged clips as needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

A small rubber grommet that cushions and protects wiring or hoses where they pass through sheet metal or plastic openings. Replaces a worn or damaged grommet to help prevent chafing and reduce vibration-related noise. What it does

• Cushions and protects wires, hoses, or tubing from sharp edges
• Helps prevent abrasion that can cause fraying or electrical shorts
• Reduces vibration and rattling where components pass through panels
• Commonly replaced when the original shows cracking, tearing, or visible wear

• One rubber grommet

• Disconnect power before accessing internal wiring or panels
• Remove the damaged grommet and press the replacement into the opening until fully seated
• Use blunt tools or a cloth to avoid cutting or distorting the new grommet

The Compressor is an OEM part for Whirlpool refrigerators. It is the main component responsible for cooling the fridge interior and freezing food. The compressor operates the refrigeration cycle by compressing and condensing refrigerant which allows for the critical exchange of heat.

Symptoms of a bad compressor include:

• Inconsistent or fluctuating interior temperatures
• Frozen foods not freezing properly
• Abnormal vibrations or sounds emanating from the rear of the fridge
• The fridge failing to cool at all

Causes of compressor failure can be a gradual decline in performance over many years of use. Manufacturing defects or damage from moisture or impact can also cause premature failure.

Note: Includes start device, capacitor, drier, and grommets. Also, order tubing kit AP3083228

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Run Capacitor is an OEM part for Whirlpool refrigerators. It is an electronic component that assists in powering the refrigerator's compressor motor. The capacitor functions to provide an electrical boost needed to start the compressor running smoothly during each cooling cycle.

Causes of a bad capacitor can include deterioration of dielectric material over many years of operation or accidental moisture penetration into the capacitor case.

Symptoms of a bad capacitor include:

• The refrigerator compressor failing to turn on/refrigeration cycles not operating
• Loud humming noises coming from behind the refrigerator
• Erratic cooling performance and fluctuating interior temperatures

This OEM part is also compatible with KitchenAid, Jenn-Air, Admiral, and Kenmore refrigerator models.

This start device is the relay that helps the appliance motor or compressor begin spinning, restoring normal operation when the unit needs help starting. It replaces a worn or failed starter relay for reliable restarts. What it does:

• Sends a timed electrical boost to the motor/compressor during startup to help it reach operating speed
• Commonly replaces a relay that has failed, reducing hard-starting or failure to start
• Stops clicking or humming symptoms when the main motor or compressor won't run
• Works as the electrical switching element that engages the start winding or circuit

• One start device (starter relay)

• Disconnect power to the appliance before servicing to avoid shock or injury
• Replace only with the exact part specified for your unit; match mounting and terminal configuration
• Handle terminals carefully; ensure secure connections and proper seating during reinstall

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This genuine replacement screw secures appliance panels and components for reliable operation. Use it to replace stripped, missing, or corroded fasteners and restore proper fit and alignment for safe appliance use. What it does

• Secures panels, brackets, and small components to restore proper alignment and reduce vibration
• Replaces stripped or missing fasteners that can cause loose parts or rattling
• Helps maintain safe electrical and mechanical connections by holding components in place
• Works wherever the original matching screw was used on the appliance

• Disconnect power and water before beginning any repair
• Use the correct driver bit to avoid cam-out and head damage
• Tighten securely but avoid overtightening to prevent stripping threads or cracking plastic
• If threads are damaged, replace mating hardware or use appropriate repair inserts rather than forcing the screw

This part is a grommet. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken or misplaced grommet in a variety of different appliance models.Grommets have a number of uses in different appliances. Typically, grommets are important for letting water pass through the appliance without leaking. Over time, grommets can become brittle, cracked, or lost and may need replacing. Please follow appropriate safety precautions when attempting to replace any appliance parts. Make sure the appliance is completely disconnected from its gas, water, and power sources before attempting any repairs or replacements. Proper tools might be required to replace this part. For more accurate information on how and where to install this replacement grommet, reference the appropriate manufacturer owner's manual and diagrams. As an authentic replacement part, this grommet is suitable for use on several different models of refrigerators, freezers, and washers manufactured by Whirlpool, Kenmore, KitchenAid, Roper, and other Whirlpool brands. Please note that this is a genuine part made of high-quality, durable, rubber material and is sold individually.

This replacement tube routes water safely away from the appliance to prevent pooling and ensure proper draining. It restores intended water flow paths so the appliance can drain reliably and avoid leaks. What it does:

• Channels water from the tub/dispenser area toward the drain or overflow path
• Helps prevent water from pooling or leaking inside the cabinet
• Addresses symptoms such as standing water after a cycle, visible leaks, or water under the appliance
• Used where a damaged, cracked, or disconnected tube is causing improper drainage

• One replacement tube

• Inspect routing and hose clamps; replace clamps if corroded or brittle
• Securely attach both ends and confirm a snug, leak-free fit before use
• Disconnect power and water supply before attempting repair;

This fan scroll is the molded blower housing that channels airflow from the appliance's blower wheel for efficient air movement and cooling. It restores directed airflow to help the appliance vent and operate quietly. What it does:

• Directs airflow from the blower wheel through the appliance to improve ventilation and cooling
• Helps maintain proper airflow for heating, drying or cooling cycles
• Reduces air leaks and vibration-related noise when intact and properly seated
• Worn or cracked scrolls can cause reduced airflow, overheating, rattling or poor performance

• Disconnect power before beginning any repair to avoid shock or injury
• Handle carefully—edges and mounting tabs may be sharp or brittle on older parts
• Ensure the blower wheel is correctly seated in the scroll and mounting tabs align before securing panels
• After installation, verify proper airflow and listen for unusual noises; re-tighten fasteners if needed

This condenser bracket assembly secures the refrigerator condenser in place to prevent movement and vibration, helping maintain proper airflow and reduce noise from loose components. What it does:

• Holds the condenser coil or condenser assembly firmly against the cabinet/frame
• Prevents rattling or vibration that can cause noise during operation
• Keeps the condenser positioned for consistent airflow around cooling components
• Replaces damaged, bent, or missing condenser mounting hardware

• Disconnect power to the appliance before starting any repair
• Wear gloves to protect hands from sharp sheet metal edges
• Basic hand tools (screwdriver/socket) are typically required; verify fastener types before beginning
• Inspect surrounding mounts and hardware; replace any damaged fasteners and torque to manufacturer specs

The Condenser Fan Motor is an OEM part for Whirlpool brand bottom-mount refrigerators. This motor powers the condenser fan which dissipates heat from the refrigeration system coils, maintaining cool interior temperatures.

Causes of failure include normal bearing wear from continuous rotations, or buildup obstructing free blade movement.

Symptoms of a faulty motor include:

• Elevated interior temperatures and frost propagation issues
• Extended run times and higher energy consumption
• Grinding or buzzing noises emanating from the refrigeration system area

This Whirlpool replacement restores efficient heat removal and preserves food freshness. Compatible with KitchenAid, Maytag, and some Kenmore models too, it prevents future repair bills.


This condenser fan blade mounts to the fan motor and pulls air across the condenser coil and compressor. Replacing a cracked or warped blade restores airflow so your refrigerator cools efficiently and the compressor runs at a safe temperature.

• Circulates air through the condenser coil and over the compressor to remove heat
• Helps maintain cooling performance and stable system pressures
• Common symptoms: weak or no airflow at the rear/base, rattling or scraping noises, wobble/vibration, visible cracks or missing fins, warmer-than-normal compartments or hot cabinet sides
• Works with the condenser fan motor and shroud; typically replaced when the hub is stripped or the blade is damaged

• Disconnect power and pull the refrigerator out; remove the rear access cover near the compressor
• Note blade orientation and depth on the motor shaft before removal
• Pull the old blade straight off; press the new blade onto the shaft until fully seated and ensure it spins freely with proper shroud clearance
• Reinstall the cover, restore power, and verify strong, quiet airflow
