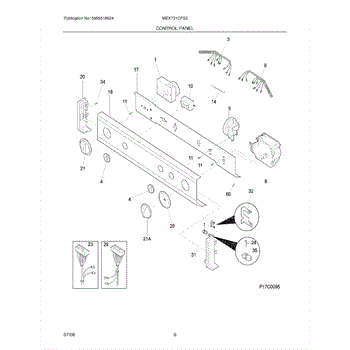

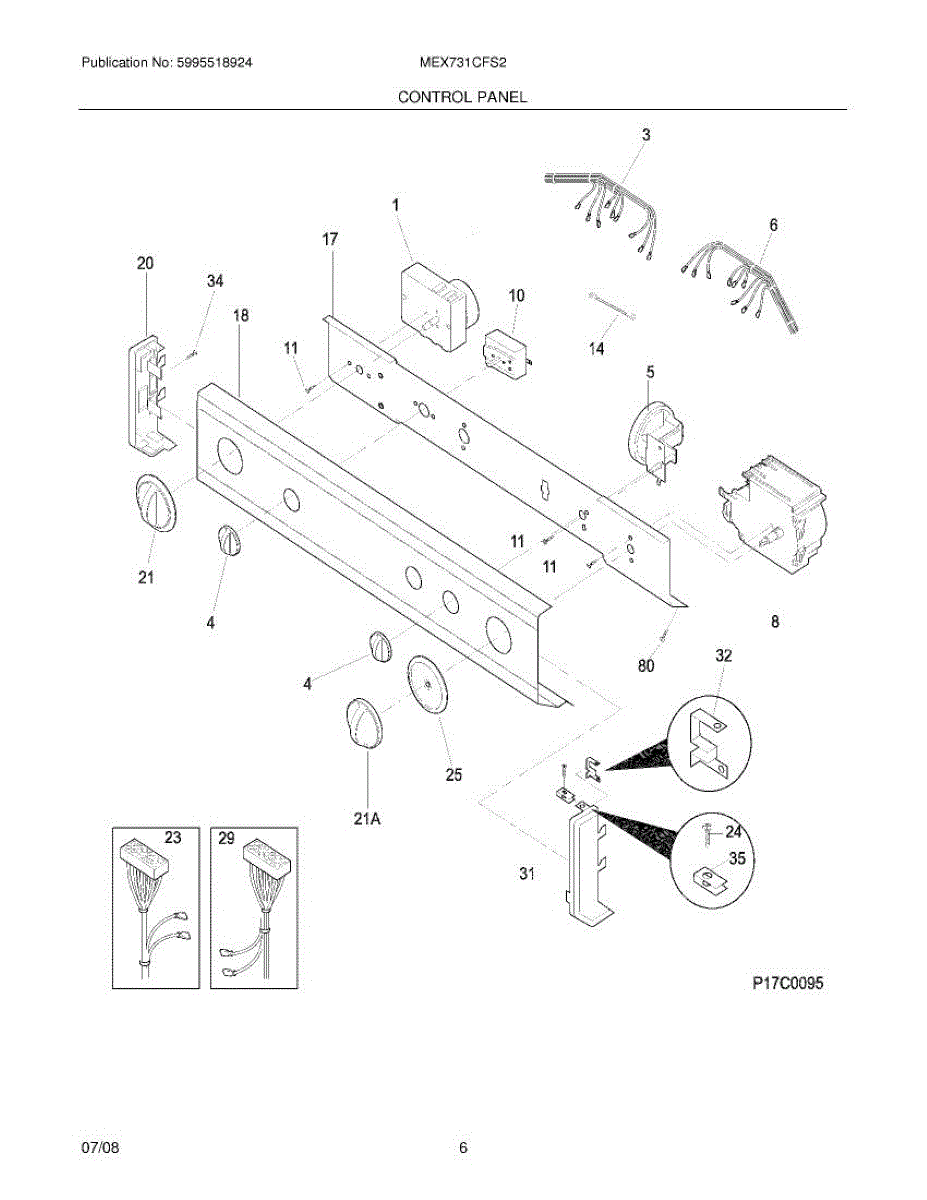

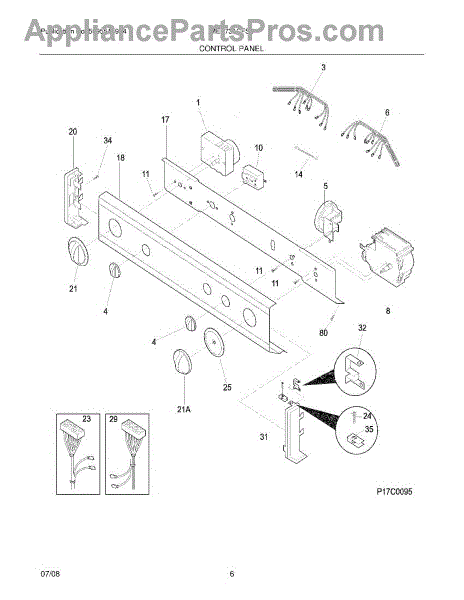

Parts for Frigidaire MEX731CFS2: 07 - Control Panel Parts

This electromechanical timer controls the sequencing and duration of appliance cycles, restoring timed operation for wash/dry/cook functions depending on application. Replaces a worn or non-advancing timer to help return your appliance to normal use. What it does:

• Rotates through cycle positions to start and stop functions at set intervals
• Sends power to motors, heaters, or pumps according to the selected cycle
• Common symptom: appliance fails to advance through cycles or stops mid-cycle
• Common symptom: timer knob feels loose, won't click, or won't engage selected settings

• Disconnect power before servicing to avoid shock hazard
• Follow your model-specific service manual for disassembly and timer alignment
• Verify terminal connections and wiring harness fit before applying power

Color: white. Measures about 1-1/2 inches in diameter.

This is a factory switch used in the appliance's control/safety circuit. Replacing a worn or failed switch restores reliable signaling so the selected function engages properly and the unit responds consistently to user inputs and status conditions.

• Provides an electrical on/off signal to the control or safety circuit
• If faulty, selected functions may not activate or may be intermittent
• Can trigger error codes related to a switch input, depending on model

• Disconnect power before servicing; turn off gas/water if applicable
• Note/photograph wire locations and transfer connectors one at a time
• Verify actuator alignment and secure mounting before reassembly
• After installation, run a test cycle to confirm proper operation

The Start Switch is an OEM replacement part for Frigidaire dryers. This part initiates the dryer's cycle once the user selects the desired settings. By pressing the start switch, the motor activates, and the drying process begins, ensuring clothes are dried according to the selected specifications.

Symptoms of a bad Start Switch include:

• The dryer not starting when the switch is pressed
• Intermittent starting issues, where the dryer sometimes starts and sometimes doesn’t
• The need to hold the switch in place to keep the dryer running
• Unusual noises when the switch is pressed

Causes for a malfunctioning Start Switch can include electrical issues, such as faulty wiring or connections, wear and tear from frequent use, or internal failures within the switch mechanism that prevent it from signaling the motor to start.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore dryers.

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

White. Left hand side

This replacement timer knob mounts to the control timer shaft, allowing you to select cycles and settings with a positive, secure feel. Replacing a cracked or stripped knob restores smooth, accurate control of the timer.

• Attaches to the timer shaft so you can rotate and set the desired cycle
• Restores function when the original knob is cracked, loose, or stripped
• Helps resolve issues like the knob spinning freely, wobbling, or falling off
• Provides firm, reliable engagement for precise timer adjustments

• Disconnect power to the appliance before servicing
• Pull the old knob straight off the timer shaft; retain and transfer any inner spring clip if present
• Align the new knob with the flat side or splines of the shaft and press on until fully seated
• Support the control panel during removal/installation and avoid excessive force

Replacement mounting screw that secures appliance panels, trim or brackets to restore proper fit and reduce rattles. A simple fastener that helps keep components stable for safe, quiet operation. What it does:

• Secures panels, trim pieces or internal brackets in place
• Replaces lost, stripped or damaged screws that cause loose parts
• Helps stop rattling, vibration or misaligned panels
• Restores proper alignment so doors and covers sit flush

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten — snug until secure to prevent damage
• Disconnect power before working near electrical components
• Keep small parts away from children and pets

White. Right hand side

This wiring clip secures a refrigerator's wire harness to the cabinet or components to prevent chafing and keep wires organized. It helps maintain safe routing and reduces strain on electrical connections. What it does

• Holds wiring harness in place to prevent rubbing against sharp edges or moving parts
• Keeps wires organized to reduce the risk of pinching or accidental disconnection
• Helps prevent intermittent electrical faults caused by loose or strained wiring
• Commonly used near compressor, fan, control box, or rear cabinet areas

• Install by snapping the clip onto the cabinet flange or component and routing the harness through the retainer
• Disconnect power before accessing electrical components or wiring
• Inspect surrounding wiring and insulation; replace any damaged wire or harness tape before reinstalling the clip

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

Hex washer head ,10-32 x 0.375. Ground

The Terminal Block is an OEM replacement part for Frigidaire clothes dryers. It is the part the power cord connects to. This kit includes 3 screws and 3 terminals.

Causes of a bad terminal block can include damage from age, overheating from worn wires or loose connections, or improper installation during manufacturing.

Symptoms of a bad terminal block include:

• The dryer not powering on
• Intermittent heating issues
• Loose, frayed, or damaged wires

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.
