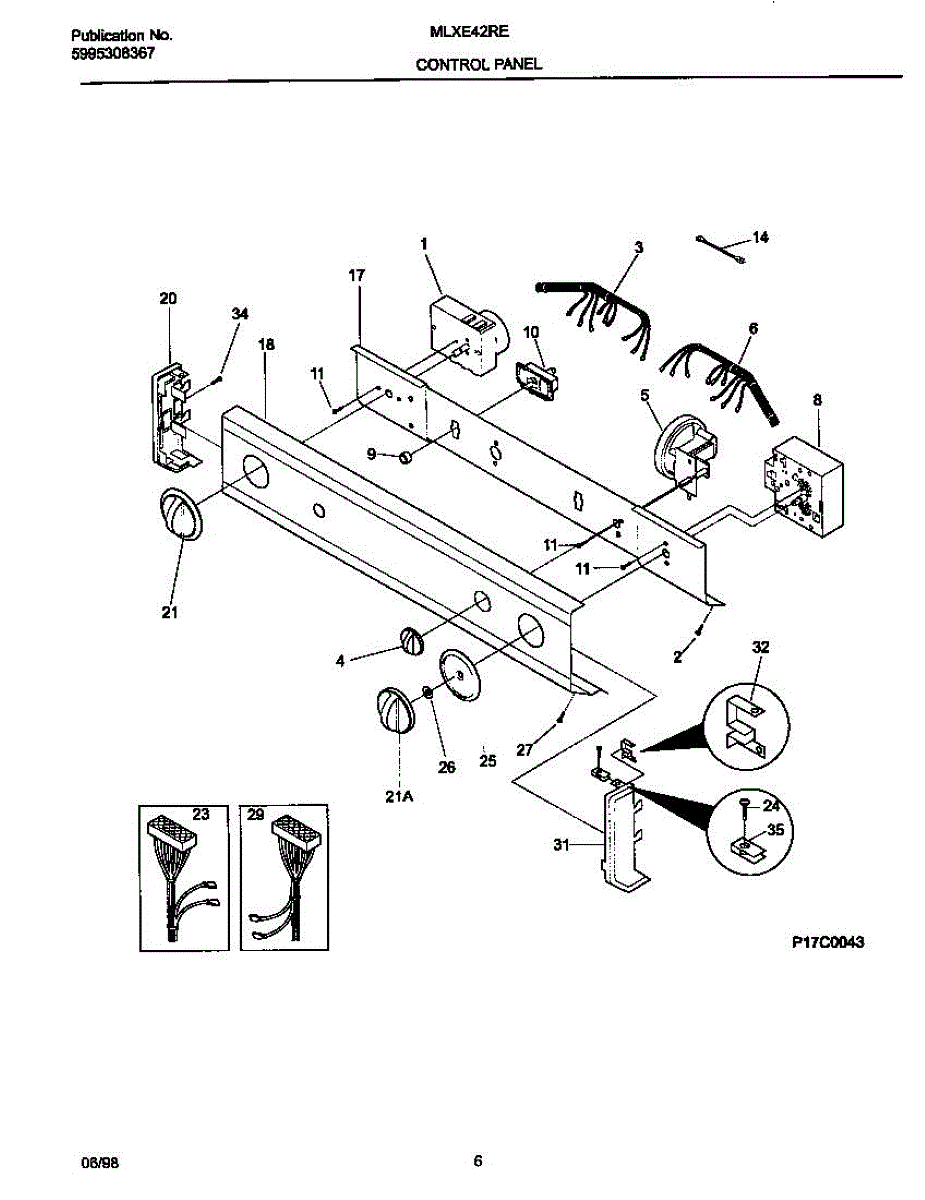

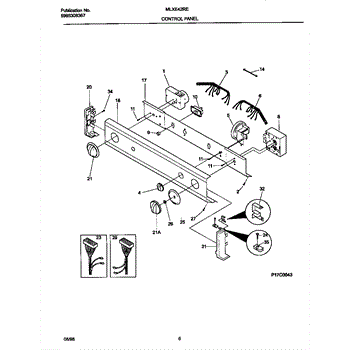

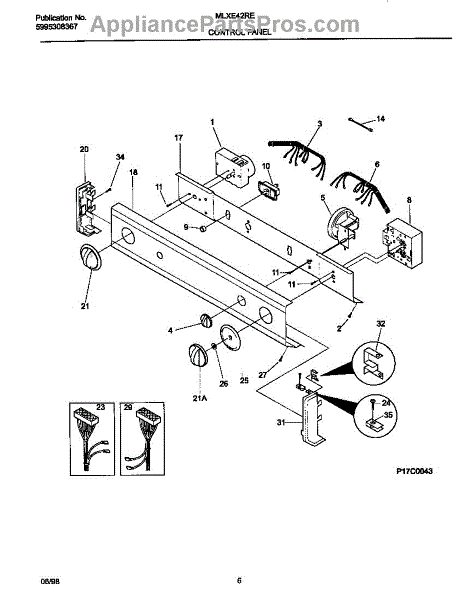

Parts for Frigidaire MLXE42RED4: 04 - Control Panel Parts

This electromechanical timer controls the sequencing and duration of appliance cycles, restoring timed operation for wash/dry/cook functions depending on application. Replaces a worn or non-advancing timer to help return your appliance to normal use. What it does:

• Rotates through cycle positions to start and stop functions at set intervals
• Sends power to motors, heaters, or pumps according to the selected cycle
• Common symptom: appliance fails to advance through cycles or stops mid-cycle
• Common symptom: timer knob feels loose, won't click, or won't engage selected settings

• Disconnect power before servicing to avoid shock hazard
• Follow your model-specific service manual for disassembly and timer alignment
• Verify terminal connections and wiring harness fit before applying power

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

Color: white. Measures about 1-1/2 inches in diameter.

This is a factory switch used in the appliance's control/safety circuit. Replacing a worn or failed switch restores reliable signaling so the selected function engages properly and the unit responds consistently to user inputs and status conditions.

• Provides an electrical on/off signal to the control or safety circuit
• If faulty, selected functions may not activate or may be intermittent
• Can trigger error codes related to a switch input, depending on model

• Disconnect power before servicing; turn off gas/water if applicable
• Note/photograph wire locations and transfer connectors one at a time
• Verify actuator alignment and secure mounting before reassembly
• After installation, run a test cycle to confirm proper operation

This push start switch is the user-operated momentary button that completes the start circuit so the appliance begins its cycle. It replaces a worn or unresponsive start button to restore reliable start control. What it does:

• Acts as a momentary contact to send the start signal to the control
• Commonly used when the appliance does not begin a cycle after pressing the start button
• Can fail from wear, corrosion, or broken actuator, causing no response or intermittent starts
• Works with the factory wiring and mounting for direct replacement

• One push start switch

• Always disconnect power to the appliance before performing service
• Handle terminals carefully; ensure secure, corrosion-free connections
• Test the switch for continuity with a meter after installation and before restoring full use

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

This replacement timer knob mounts to the control timer shaft, allowing you to select cycles and settings with a positive, secure feel. Replacing a cracked or stripped knob restores smooth, accurate control of the timer.

• Attaches to the timer shaft so you can rotate and set the desired cycle
• Restores function when the original knob is cracked, loose, or stripped
• Helps resolve issues like the knob spinning freely, wobbling, or falling off
• Provides firm, reliable engagement for precise timer adjustments

• Disconnect power to the appliance before servicing
• Pull the old knob straight off the timer shaft; retain and transfer any inner spring clip if present
• Align the new knob with the flat side or splines of the shaft and press on until fully seated
• Support the control panel during removal/installation and avoid excessive force

Replacement mounting screw that secures appliance panels, trim or brackets to restore proper fit and reduce rattles. A simple fastener that helps keep components stable for safe, quiet operation. What it does:

• Secures panels, trim pieces or internal brackets in place
• Replaces lost, stripped or damaged screws that cause loose parts
• Helps stop rattling, vibration or misaligned panels
• Restores proper alignment so doors and covers sit flush

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten — snug until secure to prevent damage
• Disconnect power before working near electrical components
• Keep small parts away from children and pets

PPH ab st/z/ch `6 - 18x.60

This wiring clip secures a refrigerator's wire harness to the cabinet or components to prevent chafing and keep wires organized. It helps maintain safe routing and reduces strain on electrical connections. What it does

• Holds wiring harness in place to prevent rubbing against sharp edges or moving parts
• Keeps wires organized to reduce the risk of pinching or accidental disconnection
• Helps prevent intermittent electrical faults caused by loose or strained wiring
• Commonly used near compressor, fan, control box, or rear cabinet areas

• Install by snapping the clip onto the cabinet flange or component and routing the harness through the retainer
• Disconnect power before accessing electrical components or wiring
• Inspect surrounding wiring and insulation; replace any damaged wire or harness tape before reinstalling the clip
