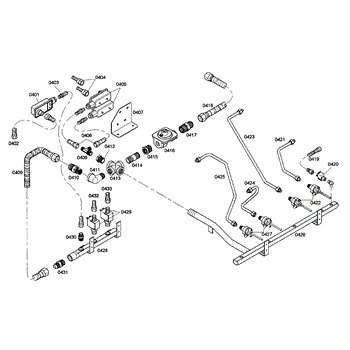

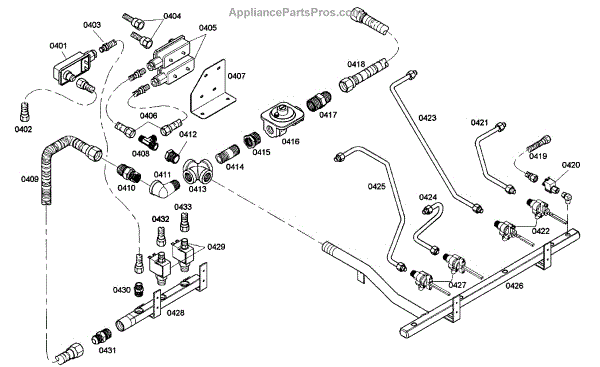

Parts for Thermador PRG484ECG02: Valves Assy Parts

This two-way valve controls water flow into the appliance, restoring proper fill and cycle operation when the valve fails. Direct-fit replacement designed to match OEM function and restore reliable water routing. What it does:

• Opens and closes to direct water to the correct circuit during wash/fill cycles
• Stops water flow when the appliance is off or when a fill cycle is complete
• Commonly replaced for symptoms like no fill, continuous filling, or leaking at the valve
• Provides the solenoid-actuated shutoff function used by the appliance control system

• Disconnect power and water supply before starting; verify the appliance is completely de-energized
• Drain remaining water and take photos of hose/electrical connections before removal to aid reassembly
• Use hand tools and avoid overtightening fittings to prevent damage; inspect inlet hoses and seals while replacing

This 48-inch gas supply tube routes fuel from the appliance inlet to the internal gas valve, providing a direct replacement for damaged, corroded or bent factory tubing. Restores safe gas flow when the original tube is compromised. What it does:

• Directs gas from the inlet to the appliance gas valve for ignition and burner operation.
• Replaces tubing that is cracked, bent, corroded or otherwise leaking.
• Addresses symptoms like a persistent gas odor near the appliance, burners that won't light, or visible damage to the original tube.
• Provides the correct length and routing to match the appliance's original configuration.

• Turn off the gas supply and electrical power to the appliance before beginning work.
• After installation, test all connections for leaks with a soap-and-water solution or a calibrated gas leak tester; do not use an open flame.
• Do not modify or shorten the tube; use the correct routed length and fittings for a proper seal.

This bake solenoid controls gas flow to the main oven's bake burner. When energized by the control, it opens the safety valve so the igniter can light the flame and the oven can heat and maintain your set temperature. What it does:

• Opens and closes gas flow to the bake burner during a call for heat
• Works with the igniter/flame-sensing system to light the bake flame
• Helps maintain set temperature by cycling gas flow during bake
• Typical symptoms of a failing solenoid: bake burner won't ignite, igniter glows with no flame, or the burner lights then shuts off

• One bake solenoid for the main oven

• Disconnect power and shut off the gas supply before servicing
• Access the oven valve/solenoid assembly per your unit's service manual
• Transfer electrical connectors one at a time; ensure proper orientation and secure fit
• After reassembly, restore gas and check all connections for leaks with a soap-and-water solution

The Tube is an OEM part for Bosch gas ranges. It is a hollow metal tube that sits beneath each gas burner on the cooktop and connects the burner to the gas valve and manifold.

Causes of a bad tube include normal wear and tear over extended use. Gas burns at high temperatures and the tubes are constantly exposed to heat which can weaken the metal over time. Accidental damage during cleaning is also possible.

Symptoms of a bad tube include:

• Burners that will not ignite or light inconsistently
• Weak, small flames rather than strong blue flames
• Burners that emit an unusual smell when operating
• Uneven or abnormal cooking temperatures from the burner

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Replacement water inlet valve that controls an appliance's incoming water flow for reliable fill and cycle operation. Replacing a faulty valve can stop no-fill, slow-fill, or continuous-fill issues and restore normal performance. What it does:

• Opens and closes to regulate water entering the appliance during fill cycles.
• Helps ensure correct water levels for proper washing or rinsing.
• Common symptom fixer for appliances that won't fill, fill slowly, or keep filling.
• May cause visible leaks at the valve or trigger fill-related fault behavior if failed.

• Turn off power and shut off the water supply before starting any work.
• Open a cycle or relieve pressure to drain residual water before removing the old valve.
• Inspect and replace any worn seals or inlet hoses when installing the new valve.
• Follow the appliance service manual for specific removal/installation steps.

The Tube is a genuine OEM part for Bosch ranges. This part facilitates the delivery of gas to the surface burners, ensuring that they operate efficiently and safely.

Over time, the Tube may exhibit signs of wear or damage due to rusting, physical damage or natural degradation.

Symptoms indicating the need for a new Tube include:

• A decrease in burner flame quality or uneven flames, which can affect cooking performance.
• The smell of gas in the vicinity of the range, signaling a potential gas leak.
• Difficulty igniting the surface burners or experiencing incomplete combustion.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Broil Solenoid is an OEM part for Bosch ranges. The solenoid receives a signal from the range’s control board and operates based on internal coil and plunger mechanisms. When activated, it opens the gas valve or switches electric current to energize the broil element positioned above the oven cavity.

Symptoms of a faulty broil solenoid can include:

• Inability to initiate or sustain broiling despite selecting the function
• Delayed broil ignition or shutoff not matching timer settings
• Gas smell or abnormal burner activity from improper valve control

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.
