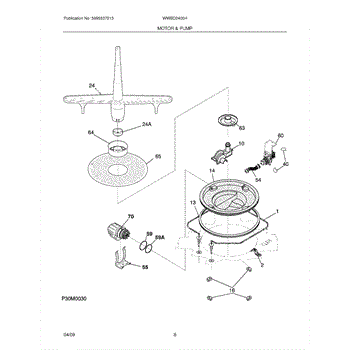

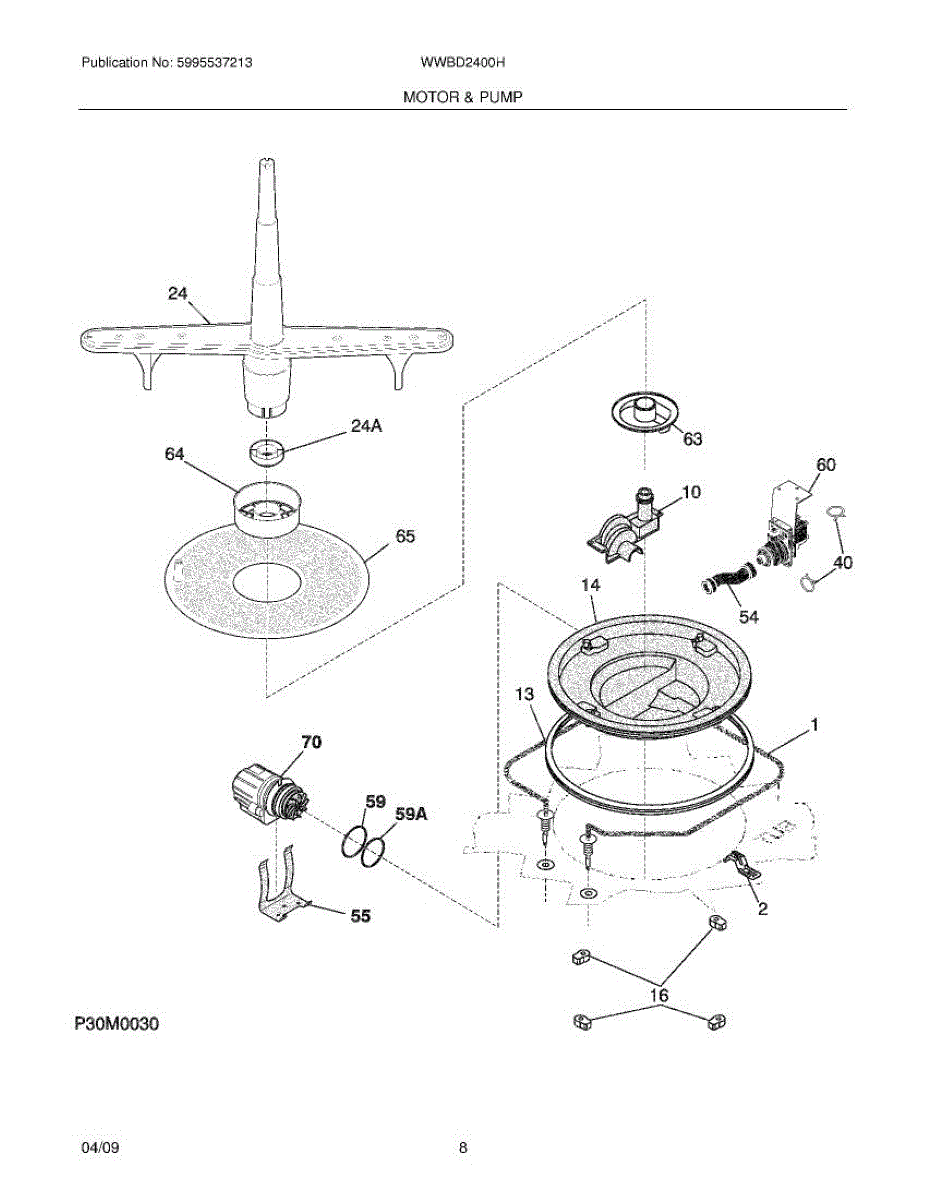

Parts for White Westinghouse WWBD2400HW0: 09 - Motor & Pump Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

The Heating Element is an OEM part for Frigidaire dishwashers. This element is responsible for heating the water during the wash cycle and ensuring the dishes are properly cleaned and sanitized. Additionally, it helps to dry the dishes by heating the air inside the dishwasher during the drying cycle.

Causes of a bad heating element can include regular wear and tear, mineral buildup from hard water, electrical failures, or damage from improper loading of dishes. A faulty heating element can lead to inadequate water temperature and poor drying performance.

Symptoms of a bad heating element include:

• Dishes not drying properly
• Water not heating up during the wash cycle
• The dishwasher not completing cycles
• Error codes related to heating issues

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This sump gasket seals the connection between the dishwasher tub and the sump/pump assembly. Replacing a flattened or cracked gasket restores a watertight barrier to help stop leaks from the base and protect floors and cabinetry.

• Creates a seal between the tub and sump to contain wash water
• Helps prevent leaks during fill, wash, and drain cycles
• Replace if the gasket is cracked, brittle, deformed, or compressed
• Common symptoms: water under the dishwasher, dripping from the base, moisture around the toe-kick

• Disconnect power and shut off the water supply; pull the dishwasher out if needed for access
• Access the sump area (often by removing the lower rack, spray arm, and filters); note gasket orientation
• Clean mating surfaces; seat the gasket evenly without twists. Do not use sealants unless specified by the manufacturer
• Reassemble and run a short test cycle while inspecting for leaks

This sump retainer secures the appliance sump assembly and helps keep the pump seal and surrounding components properly positioned to reduce leaks and maintain correct water flow. It's a small replacement part used during sump or pump repairs. What it does:

• Holds the sump housing or pump assembly in place to maintain a reliable seal
• Helps prevent water leaks from the pump/sump area when installed correctly
• Keeps internal components aligned for proper water circulation and drainage
• Commonly replaced when sump hardware is cracked, warped, or no longer secures the pump

• One sump retainer

• Power off and unplug the appliance before starting any repair
• Verify you have full access to the sump/pump area; removal of panels or racks may be required
• Inspect surrounding seals and gaskets; replace if damaged to ensure a watertight fit

This OEM Replacement Part is a designed nut to secure the Frigidaire dishwasher's spray arm. With dimensions of 2.0" x 2.0" x 0.6", this nut ensures a snug fit between the lower spray arm and the filter. It helps maintain the stability of the spray arm and enhances the overall performance of the dishwasher. The nut plays a role in preventing leakages at the bottom of the spray arm. If such a leak occurs, it may be indicative of a faulty nut. A timely replacement of this nut can ensure the proper functioning of the dishwasher. This part is compatible with select Frigidaire brand models including Crosley, Kenmore, Tappan, White Westinghouse.

This Dishwasher Lower Spray Arm with Heat Shield is an OEM replacement part designed for Frigidaire dishwashers. This component ensures water distribution throughout the dishwasher during cycles, reaching all dishes for a thorough clean. The added heat shield protects the spray arm from the high temperatures during drying cycles, prolonging its lifespan and maintaining its efficiency.

Symptoms of a bad Frigidaire Spray Arm, Lower, with Heat Shield include:

• Dishes not being cleaned properly
• Water not being distributed evenly during cycles
• Noticeable damage or warping to the spray arm

Over time, the spray arm can become clogged with food particles or mineral deposits, or it can become damaged from normal wear and tear. A compromised spray arm can result in poor cleaning performance and inefficient water distribution.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Red

Red

This short connector hose links internal dishwasher plumbing to move water securely between components. Replacing a worn or cracked hose helps prevent leaks and keeps cycles running reliably. What it does:

• Routes water between two internal connection points during the wash cycle
• Helps maintain a watertight seal when properly clamped
• Common symptoms: water leaking beneath the unit, dampness around hose joints, visible cracks/hardening, or a loose fit
• Aging hoses can stiffen and drip at barbed fittings

• 1 connector hose

• Disconnect power and shut off the water supply before servicing
• Remove the toe-kick and pull the dishwasher forward as needed to access the hose
• Expect a small amount of residual water; have towels or a shallow pan ready
• Fully seat the hose on fittings, secure with appropriate clamps, then run a brief cycle and check for leaks

Secures the motor to the dishwasher pump housing. Replace if cracked, bent, or lost tension causing motor looseness or alignment issues during operation.

The Rear O-Ring is an OEM part for Frigidaire dishwashers. This small but crucial component ensures a watertight seal within the dishwasher's internal systems, preventing leaks by sealing connections between various parts, such as the pump or valve assemblies. The front O-ring is part number AP2109102

Causes of a bad rear O-ring can include regular wear and tear, drying out or cracking due to age, and damage from chemical exposure or improper installation. A compromised O-ring can lead to water leaks and reduced efficiency of the dishwasher.

Symptoms of a bad rear O-ring include:

• Water leaking from the dishwasher
• Puddles forming underneath the appliance
• Reduced washing performance due to water pressure loss
• Noticeable wear, cracks, or deformation on the O-ring

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Front O-Ring is an OEM part for Frigidaire dishwashers. This component is essential for maintaining a watertight seal in the front areas of the dishwasher's internal systems, such as around the pump or valve connections. It prevents water leaks and ensures the efficient operation of the dishwasher. The rear O-ring is part number AP2109101

Causes of a bad front O-ring can include regular wear and tear, exposure to high temperatures, and chemical degradation from detergents and rinse aids. Over time, the O-ring may dry out, crack, or become deformed, leading to leaks and decreased performance.

Symptoms of a bad front O-ring include:

• Water leaking from the front of the dishwasher
• Puddles forming under the appliance
• Reduced cleaning performance due to water pressure issues
• Noticeable wear, cracks, or deformation on the O-ring

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

The Drain Pump Assembly is an OEM part for Frigidaire dishwashers. It is responsible for removing water from the dishwasher tub during the drain cycle, ensuring that water is properly expelled to complete the washing process.

Common causes of a bad drain pump assembly include clogs from debris or food particles, electrical issues like a burnt-out motor, or damage due to improper installation or handling.

Symptoms of a bad drain pump assembly include:

• Water not draining from the dishwasher
• Unusual noises during the drain cycle
• Error codes indicating drainage problems
• Water leaks from the pump area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Complete dishwasher filter assembly that strains food particles and debris from wash water. Replace when clogged, cracked, or dishes aren't cleaning properly.

Complete dishwasher filter assembly that strains food particles and debris from wash water. Replace when clogged, cracked, or dishes aren't cleaning properly.

Filters debris from dishwasher sump to protect pump and spray arms. Replace if warped, clogged, or dishes aren't cleaning properly. Verify fit by model.

Includes motor, two o-rings and wire harness.

This is a genuine replacement screw used to secure appliance components and panels, restoring proper fit and function. It's a simple, reliable fastener for repair and maintenance tasks. What it does:

• Secures panels, brackets, trim, or internal components to restore stable assembly
• Replaces a stripped, missing, or rusted screw that prevents proper fastening
• Helps eliminate rattles or loose parts caused by worn fasteners
• Works where the OEM-specified screw is required for correct fit

• Use the correct screwdriver or bit to avoid stripping the head
• Hand-start the screw to ensure correct alignment before tightening
• Tighten only until snug—do not over-torque to avoid damage
• Disconnect power to the appliance before accessing internal components

No.10 - 16 x 3/8

NO.8 - .625 Truss

Brass nut that secures the heating element to the dishwasher tub. Replace if cracked, split, or causing leaks around the element mounting area.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
