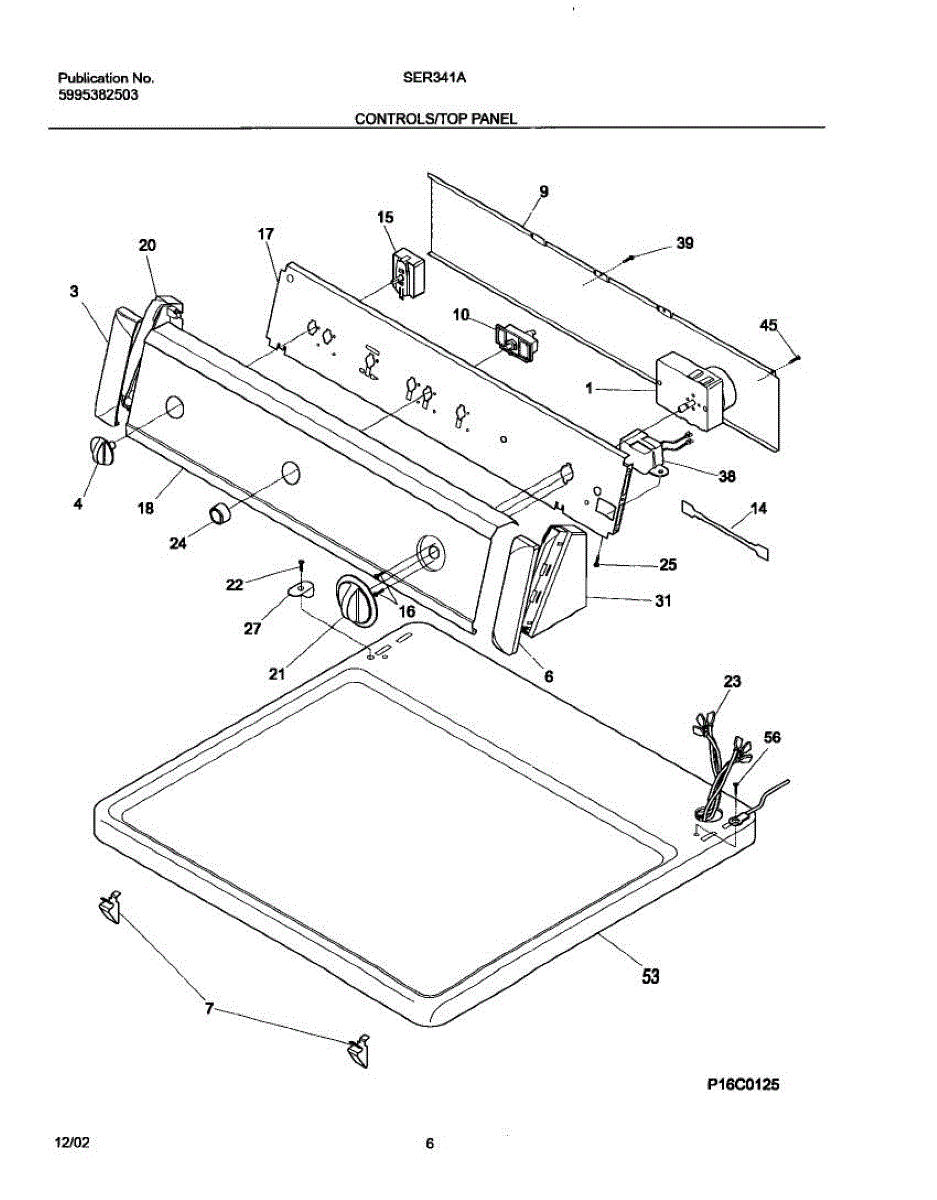

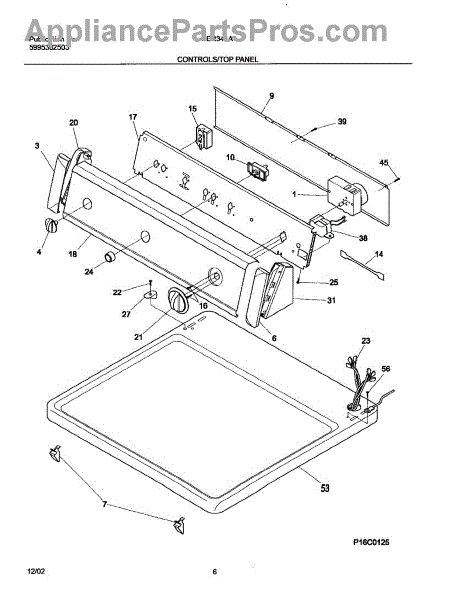

Parts for White Westinghouse SER341AQ2: 07 - Controls / Top Panel Parts

This dryer timer is the cycle control that advances your dryer through Timed and Auto Dry settings. Replacing a failed timer restores proper cycle progression, start/stop, and end-of-cycle shutoff.

• Advances the cam and internal contacts to move the dryer through heat, motor, and cool-down steps
• Governs run time on Timed Dry and Auto Dry cycles
• Routes power to the correct circuits in sequence; a failed timer may not advance or may stop early
• Common symptoms include timer knob not moving, dryer running indefinitely, or not starting on certain settings

• Disconnect power; for gas models, also shut off gas
• Remove knob/dial, open the console, and unmount the timer
• Label or photograph wiring; transfer wires one at a time to the new timer
• Reassemble and test both a Timed Dry and an Auto Dry cycle

Color: white. Measures about 1-1/2 inches in diameter.

This clip is a small plastic retainer designed to secure trim and lightweight panels so they stay in place and reduce rattling or gaps. It restores proper fit and helps keep parts aligned for a finished look. What it does:

• Secures trim pieces, panels, or grill components to the appliance frame
• Prevents loose or rattling parts that can cause noise or misalignment
• Holds components in correct position so doors and panels close properly
• Replaces worn or broken clips that no longer grip reliably

• Remove power or disconnect the appliance before servicing when applicable
• Clip installs by snapping into pre-existing mounting hole or slot; no special tools usually required
• Inspect mating surfaces and replace any additional damaged fasteners for best fit

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

This is a replacement pan-head, locking screw used to secure the top bracket on compatible Frigidaire appliances. It provides a reliable fastener that helps keep the top bracket and panels held firmly in place. What it does:

• Secures the top bracket to the cabinet or chassis to prevent bracket movement or rattling
• Restores proper alignment of top panels and trim that may be loose or sagging
• Uses a locking feature to resist loosening from vibration
• Pan head design provides a low-profile, finished appearance once installed

• One screw as shown

• Use the matching #8-32 driver or bit and tighten until snug; avoid over-torquing to prevent stripping
• Turn off power and remove panels as needed before accessing the bracket area
• Replace only with the same size and thread type to ensure secure fit
• Replace all related screws for even support
