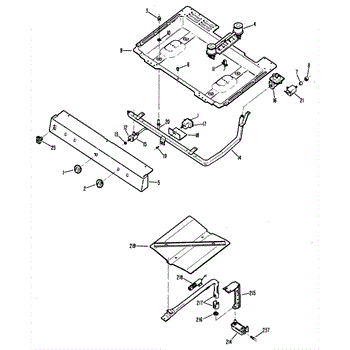

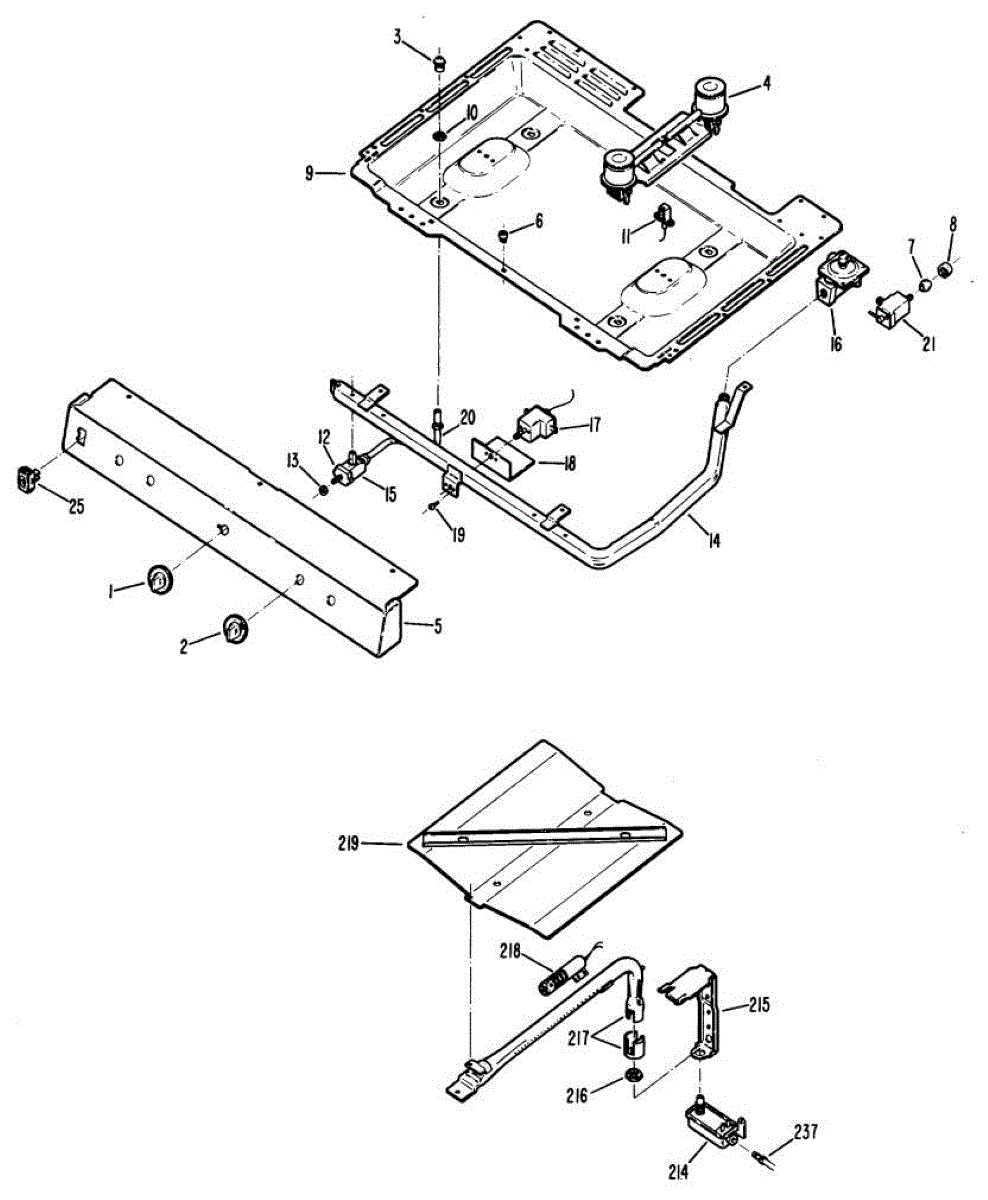

Parts for Ge RGB528EN1: 01 - Section1 Parts

This replacement orifice spud for the cooktop surface burner threads into the orifice holder to meter gas flow, helping ensure proper flame size and reliable ignition for consistent cooking performance. What it does:

• Meters gas flow to the surface burner through a calibrated opening
• Helps produce stable, properly sized flames for even cooking
• Replace if the original spud is clogged, stripped, or damaged
• Common symptoms include weak/low or no flame, yellow/orange flames, uneven heating, or delayed ignition

• 1 orifice spud

• Turn off the gas supply and disconnect power; allow the appliance to cool completely
• Remove grates, burner caps, and burner heads to access the orifice holder
• Use the correct spud for the specific burner position and gas type per your model documentation
• Start threads by hand and tighten snugly without overtightening; after reassembly, check for leaks with a soapy-water solution and verify ignition and flame

The Double Burner Kit is an OEM part for GE gas ranges. This kit includes the necessary components to replace the double burner, which is crucial for efficient cooking on GE gas stoves. The double burner provides two separate flame sources, allowing for versatile cooking options with different heat levels.

Causes of a bad double burner can include normal wear and tear, clogs from food debris, exposure to high temperatures, or physical damage. These issues can hinder the burner's performance and safety.

Symptoms of a bad double burner include:

• Uneven or weak flames
• One or both burners not igniting
• Difficulty in adjusting the flame size
• Noticeable gas odor when the burner is off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.

This surface burner spark electrode creates the electric arc that lights the gas at the burner. Replacing a worn electrode restores consistent, reliable ignition.

• Generates a high-voltage spark at the burner head to ignite gas
• Helps ensure quick, repeatable lighting when the knob is turned to Lite
• Common symptoms: burner won't light, intermittent or weak spark, delayed ignition, lights only with a match
• If other burners spark normally, the affected burner's electrode is a common culprit

• Disconnect power and shut off gas before servicing
• Handle the ceramic insulator carefully to avoid cracking
• Match the new electrode's tip position and gap to the original; transfer mounting hardware as needed
• Route the ignition wire away from heat/sharp edges, ensure a firm connection, then reassemble and test ignition

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This is a replacement mounting screw for the refrigerator/freezer thermostat assembly. It secures the thermostat to the cabinet so temperature sensing and control remain stable and reliable. What it does:

• Secures the thermostat housing or bracket to the appliance cabinet
• Keeps the thermostat properly positioned for accurate temperature sensing
• Common fix when a loose, missing, or stripped thermostat fastener causes rattling or poor contact
• Small hardware part used during thermostat replacement or reassembly

• One thermostat mounting screw

• Turn off power to the appliance before starting any repair
• Use appropriate screwdriver and do not overtighten to avoid stripping the housing or threads
• If original hole or threads are damaged, inspect bracket or cabinet and replace as needed

Right rear.

Color: Black

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine OEM part is an oven safety valve for gas ovens. The oven safety valve is designed to prevent gas from flowing to the burner assembly if the igniter is not hot enough to ignite the gas, or if no electricity is present. Over time, an oven safety valve can become inoperable due to excessive wear and tear. If the oven is no longer heating properly, not turning on, or no longer working as powerfully as it once did, the oven safety valve will need to be replaced.To replace this part, start by unplugging the oven and shutting off the gas supply. After that, move the range away from the wall. Use a wrench to unthread the nut to remove the gas supply tube from the safety valve. Next, open the oven door to gain access to the interior of the oven. Release the hinge locks that secure the door and pull the door off the oven. Remove the oven racks and proceed to unthread the screws that secure the oven's bottom panel. Once removed, locate the safety valve. Next, unthread the screw that holds the mounting bracket into place. Remove the old safety valve and align the new valve with its mounting bracket. Attach the wires to the safety valve terminals and reinstall the bottom panel and oven door.This replacement part is sold individually and is sourced directly from the manufacturer. It is compatible with General Electric, Hotpoint, and RCA brand ovens.

The Round Style Oven or Broiler Igniter is an OEM replacement part for GE gas ranges and cooktops. It has a round design and is responsible for reliably igniting the gas burners with each use.  Range: 2.5 to 3.0 amps.

Causes of a bad igniter can include wear and tear from repeated heating and cooling cycles, damage or defects in the electrical components, or issues arising from long-term exposure to high heat.

Symptoms of a bad igniter include:

• Difficulty starting or unreliable ignition of gas burners
• Burners failing to ignite with the press of the control knob
• Intermittent ignition problems
• Clicking sounds but no ignition

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This oven door hinge assembly controls the door's movement and keeps it sealed against the frame. Replacing a worn hinge restores smooth opening and a tight close, helping maintain temperature and consistent cooking performance.

• Provides spring-assisted pivot to support the oven door during opening and closing
• Maintains alignment and helps the door stay fully closed against the gasket
• Direct replacement for bent, weak, or broken hinges
• Common symptoms: door won't close fully, drops or slams open, sits uneven, squeaks, or allows heat to escape

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door; engage hinge locks or insert hinge pins and support the door while lifting it off
• Springs are under tension—use caution and wear gloves/eye protection
• After replacement, check door alignment and gasket seal; many replace both hinges together for even operation

Right hand side

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This oven back insulation is the replacement rear cavity pad that helps contain oven heat and protect rear components and cabinetry. It restores proper thermal barrier performance for safer, more consistent oven operation. What it does:

• Provides a thermal barrier behind the oven cavity to limit heat transfer to the rear panel and surrounding cabinetry
• Helps maintain more consistent cooking temperatures by reducing heat loss through the back
• Protects wiring, controls, and exterior surfaces from excessive heat exposure
• Replaces missing, damaged, or deteriorated insulation that can cause higher rear-surface temperatures or heat-related odors

• One oven back insulation pad as shown

• Disconnect power to the appliance before servicing
• Remove the range/oven from its enclosure and access the rear panel per your model's service instructions
• Handle insulation with gloves and a mask if fibers are exposed; avoid compressing or tearing the material
• Secure the insulation in the original position with factory fasteners or clips; verify no obstruction of vents or wiring before reassembly

This is the left side broiler hinge. For right side use WB10K5.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Anti-tip kit.
