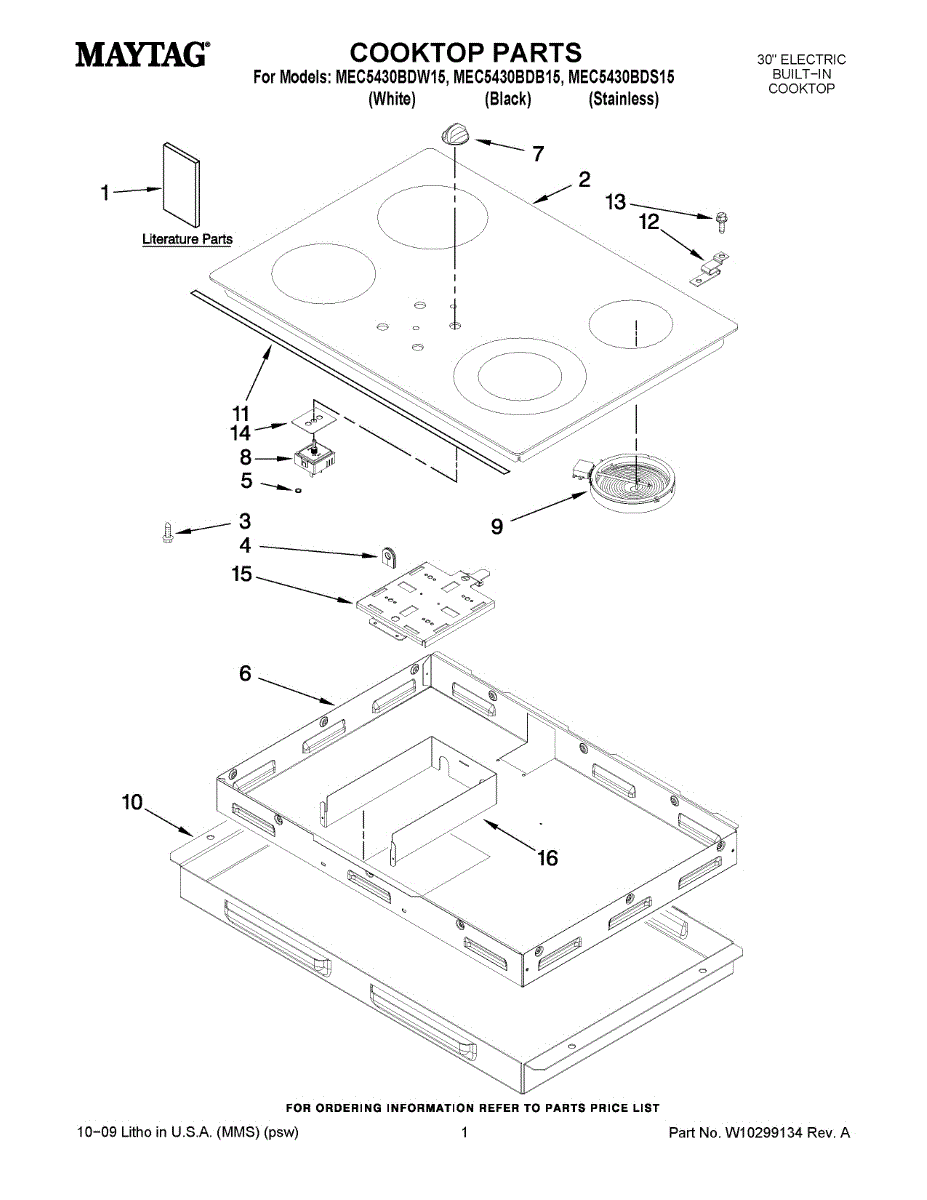

Parts for Maytag MEC5430BDW15: 01 - Cooktop Parts

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

Color: black. Measures about 1-1/2 inches in diameter.

Gas valve burner control knob. Color: White. It measures about 2 inches in diameter. For black order WP74011260.

Gas valve burner control knob. Color: Black. Measures about 2 inches in diameter. For white order WP74011408.

This infinite switch is the user-control that regulates heat output to an electric range surface burner, restoring precise low-to-high heat selection and reliable burnering. It's a direct-replacement control for a single surface element. What it does:

• Controls the power level to a single electric cooktop surface element so you can set low, simmer, and high heat.
• Replaces a switch that causes a burner not to heat, not to change heat settings, or that remains stuck at one setting.
• Works with rotary knob input to vary the element temperature through multiple detents.
• Restores safe, predictable burner response when the original switch has failed.

• One infinite switch only.

• Disconnect power at the breaker or unplug the range before starting any work.
• Verify wiring placement and mark wires before removal; match terminals exactly on the replacement.
• Typical access requires removing the cooktop or rear console—your model's service sheet or OEM instructions.
• Wear work gloves and eye protection.

Replacement infinite switch that restores variable heat control for a surface heating element on an electric range, letting you adjust burner temperature smoothly and accurately. What it does:

• Regulates power to a surface heating element so the burner produces the selected heat level.
• Replaces a failed or worn rotary control that no longer changes element output.
• Common symptoms: burner won't heat, only heats at one setting, temperature jumps or fluctuates, or knob turns with no effect.
• Fits behind the console and connects to existing element wiring and control knob.

• Disconnect the appliance power before removing the console or control panel to avoid electrical shock.
• Confirm wire locations and take a photo before disconnecting to ensure correct reconnection.
• Secure the switch in place and reconnect wires firmly; test all settings after reassembly.

This infinite switch replaces the surface-burner control on electric ranges, restoring variable heat selection for a single cooktop burner so you can adjust cooking temperature reliably. What it does:

• Regulates the power delivered to an electric surface burner to provide variable heat settings.
• Replaces a failed or worn infinite switch that prevents changing burner temperature.
• Common symptoms: burner won't heat, burner remains at one setting, heat level can't be adjusted, or heat is inconsistent.
• Use only with compatible range models.

• Disconnect power to the appliance at the circuit breaker before you begin.
• Access the control panel per your model's service instructions; note wire locations or photograph them before removal.
• Reconnect wires to matching terminals and secure mounting hardware; restore power and test the burner.

This 2000W bake element heats the oven cavity for baking and roasting, restoring oven cooking performance. It replaces a failed or damaged bake element to help your range reach and maintain proper baking temperatures. What it does:

• Heats the oven interior during bake cycles for even cooking
• Restores normal oven temperature when a broken element prevents heating
• Replaces elements with visible breaks, burning, or no heat output
• Helps resolve inconsistent baking and undercooked food when element-related

• Disconnect power to the range at the breaker before starting any repair
• Handle terminals and ceramic insulators carefully to avoid damage
• Basic hand tools typically required; follow your model's service instructions

The Surface Element is an OEM replacement part for Whirlpool ranges and cooktops. Specifically designed for the 7" cooktop element, the entire body of the Surface Element measures approximately 8" in diameter. It generates and distributes heat evenly across the cooktop.

Causes of a bad Surface Element can include electrical issues, such as wiring problems or a malfunctioning switch, and physical damage or wear that impairs its heating capability.

Symptoms of a bad Surface Element include:

• Inconsistent heating or failure to heat
• Visible damage to the element, such as burns or breaks
• The element not responding to the control switch
• Uneven cooking results due to fluctuating temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

This rear trim is a factory-style replacement piece that restores the finished back edge of your 30-inch range or cooktop for a clean, factory look and to help protect internal components from debris. What it does:

• Covers and finishes the rear edge of the cooktop or range for a factory appearance
• Helps block dust, grease and debris from entering the control or rear cavity area
• Replaces damaged, bent or missing trim that can catch food and interfering particles
• Fits the standard 30-inch width for compatible Whirlpool-style ranges

• One rear trim piece (30-inch)

• Disconnect power to the appliance before attempting any service
• Usually secures with screws or clips at the rear; inspect mounting points before installation
• Handle carefully to avoid scratching the finish; use appropriate tools and protective gloves

A replacement support bracket that secures the oven heating element in the cavity so the element stays properly positioned for safe, even heating and reliable operation. Restores stable mounting after breakage or wear. What it does:

• Holds the bake/oven heating element in place so it doesn't sag or contact the oven cavity
• Helps maintain consistent heating and prevents element movement or rattling during use
• Commonly used when the existing support is cracked, bent, or missing
• Works with the oven's internal mounting points to align the element correctly

• Always disconnect power to the appliance before starting any repair
• Handle the heating element carefully; support may attach directly to the element terminals or mounting studs
• Basic hand tools are typically required; refer to your model's service instructions for exact steps

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A replacement gasket that seals the infinite (surface) control switch to the cooktop or console, helping keep moisture, grease and debris out of the switch area for cleaner operation and a better seal. What it does

• Seals the infinite switch to the panel to help prevent liquid and food intrusion into the switch housing.
• Cushions and stabilizes the switch for a firmer knob fit and reduced vibration.
• Helps protect the switch contacts from contamination that can cause intermittent control behavior.
• Use when the existing gasket is cracked, flattened, missing, or allowing spills into the controls.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the control knob and access the infinite switch per your model's service instructions.
• Seat the gasket fully around the switch housing so it lies flat against the console; replace if damaged or compressed.
• Inspect the switch and wiring while replacing the gasket; replace the switch if there is visible damage.
