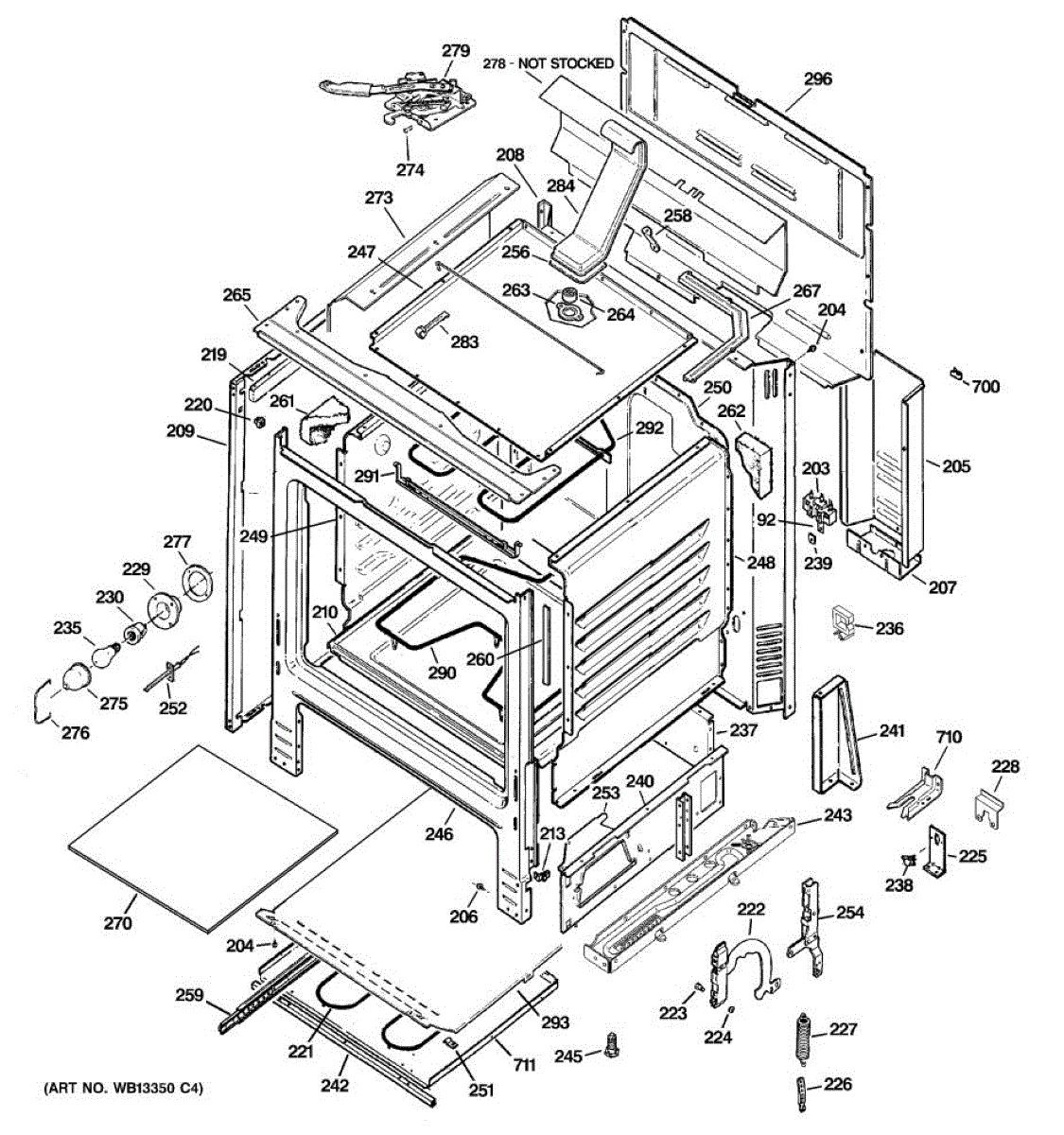

Parts for Ge RB800WJ3WW: 02 - Body Parts

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Silicon controlled rectifier for cooktop power control. Includes 8-32 mounting screw. Replace if damaged, corroded, or missing to restore proper installation.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

Protects wire connection points on your range. Shields exposed terminals from accidental contact and shorting. Replace if cracked, broken, or missing.

Mounting screw for refrigerator doors, shelves, kickplates, and interior components. Replace missing, stripped, or corroded screws during repairs.

Secures the terminal block to your range cabinet. Replace this bracket if damaged, cracked, or missing to properly support the electrical connection assembly.

Replaces the bottom panel inside your electric range oven cavity. Order a new bottom when the original is cracked, rusted, warped, or damaged.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

Oven not heating on bake? This bake element heats the bottom of your oven cavity for even cooking. Fixes broken or visibly damaged heating elements.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

Clip for door hinge.

This thermodisc mounting bracket secures the temperature sensing disc (thermodisc) in the appliance, keeping the sensor positioned for accurate temperature response and reliable operation. Fits replacements where the original bracket is damaged or missing. What it does:

• Holds the thermodisc/temperature sensing element in the correct position for consistent temperature detection.
• Maintains stable contact between the sensing disc and the appliance surface or component.
• Prevents the thermodisc from shifting or rubbing, which can cause irregular temperature readings or cycling.
• Helps restore proper control behavior when a broken or bent bracket causes sensor misalignment.

• One thermodisc mounting bracket

• Disconnect power to the appliance before starting work to avoid shock or injury.
• Inspect the thermodisc for damage; replace the sensing disc separately if needed.
• Handle the thermodisc and wiring gently to avoid bending or damaging the sensor while installing the bracket.

Replacement door spring for electric ranges. Installs inside the door hinge to provide tension and counterbalance. Needed when original is stretched or broken.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

Secures wiring harnesses in your range. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number before ordering.

Oven displaying wrong temperature or won't calibrate? This thermodisc sensor monitors cavity heat levels. Moderately easy DIY fix for temp issues.

Support base for electric and gas ranges. Provides structural support for internal components. Replace if cracked, broken, or missing to restore stability.

Support base plate for electric and gas ranges. Mounts underneath to provide structural stability. Replace if cracked, broken, or missing for secure installation.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Replacement back panel for your range oven. Installs behind the oven cavity to enclose the unit. Needed when the original is cracked, damaged, or missing.

Secures the heating element in your range. Replace if loose, damaged, or causing element misalignment. Confirm fit with your model number for proper installation.

If your oven won't preheat or shows an F3 error code, this temperature sensor monitors oven heat and safety features. Direct plug replacement, 15-minute fix.

Replace your range's access spring cover if it's cracked, broken, or missing. This protective housing installs over the spring mechanism for a complete look.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

Left hand side

Right hand side

This vent gasket provides a reliable seal between appliance venting components to help prevent air and lint leaks and maintain proper airflow. It's a simple replacement that restores a snug vent connection. What it does:

• Seals the joint between vent parts to reduce air leakage and improve airflow
• Helps contain lint and moisture within the vent path for safer operation
• Dampens minor vibration and reduces rattling where vent pieces meet
• Commonly used when you notice reduced airflow, escaping air or lint, or loose vent connections

• Disconnect power (and gas if applicable) before servicing the appliance.
• Access may require removing an exterior vent cover or internal access panel—follow the OEM service manual.
• Verify orientation and seating of the gasket for a full seal; replace any damaged mating parts.
• Replace any excessively corroded or damaged vent components.

Left-hand drawer slide assembly for electric and gas ranges. Replaces cracked, broken, or worn slides that cause drawers to stick or misalign.

Right-hand slide assembly for range warming drawers. Replaces cracked, broken, or worn drawer glides that prevent smooth drawer operation.

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Insulation wrap that fits around the range oven cavity to retain heat and protect surrounding components. Replace if damaged, deteriorated, or missing.

Replace cracked or missing sound dampening insulation in your electric range. Installs inside the unit to reduce noise and provide thermal protection.

Insulation sound dampening pad for electric ranges. Installs inside the range cavity to reduce noise. Replace if torn, compressed, or missing.

Support plate that secures the vent extension housing on electric ranges. Replaces cracked, broken, or missing catalyst support plates. Installs inside vent.

Right hand side

Left hand side

Replacement mounting screw for electric and gas range panels, trim, and brackets. Needed when original fastener is stripped, missing, or damaged.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Oven not heating or baking unevenly? The bake element often fails and causes these issues. This DIY repair takes just 5-10 minutes with basic tools.

Secures the upper broil element to the oven cavity top. Replace if your original bracket is cracked, broken, or missing to restore stable mounting.

Broil element not heating or burned out? This upper oven heating element restores broiling function. Easy DIY repair—remove 4 screws and reconnect wires.

Protects insulation at the bottom of your range. Replace this guard if it's cracked, broken, or missing to maintain proper heat insulation and safety.

Replace your range's back cover panel if it's cracked, dented, or missing. This protective panel installs on the rear of your electric range cabinet.

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

Safety bracket that anchors your range to the floor or wall, preventing tip-over. Replace if missing, damaged, or cracked to secure the appliance.

Range bottom panel that forms the base of the cabinet frame. Replaces damaged, rusted, or missing bottom panels to restore structural integrity.
