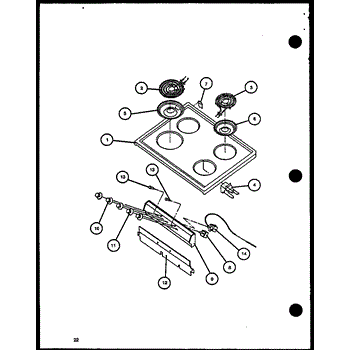

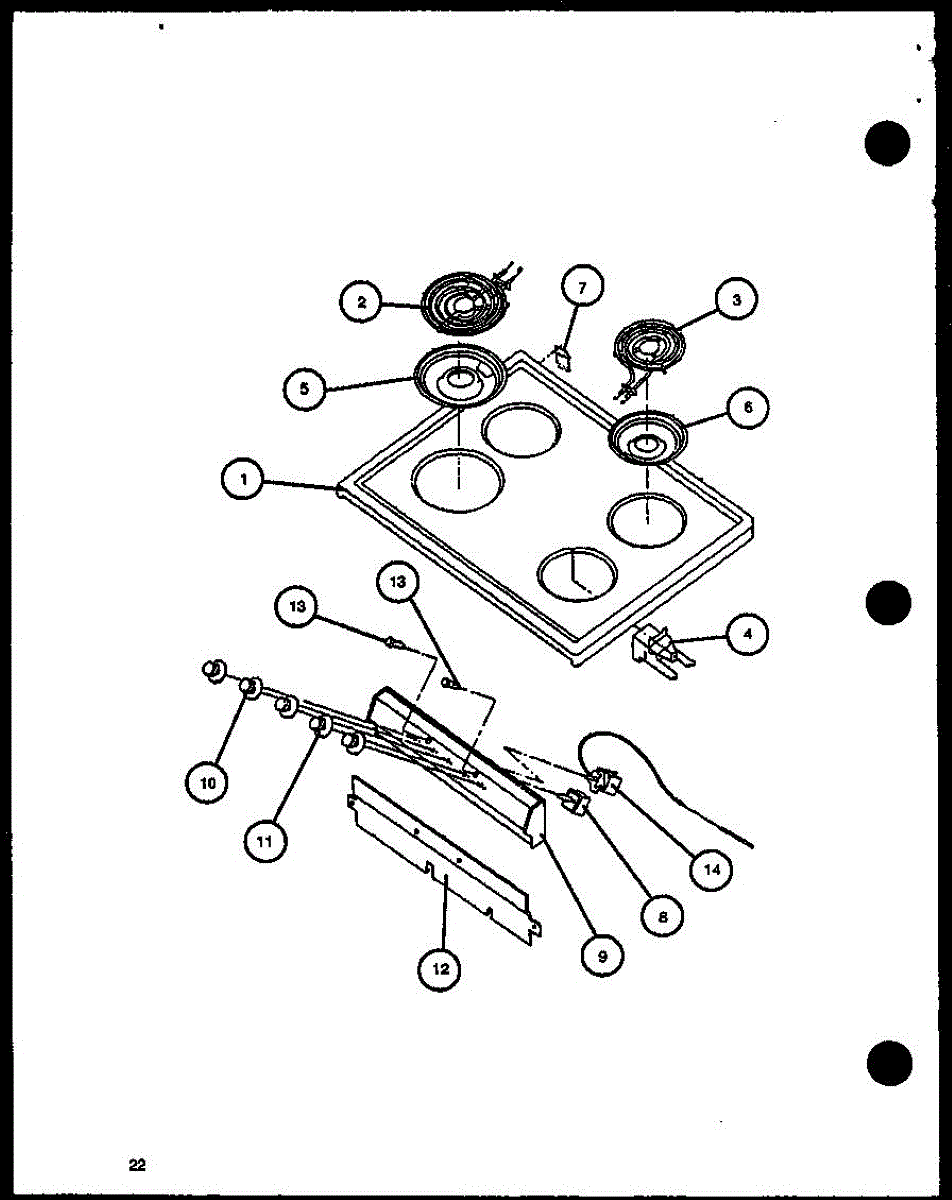

Parts for Amana CBE24AA5 / P1137944N L: 02 - Page 11 Parts

Range burner not heating? This 8-inch surface element restores even heating to your cooktop. Simple plug-in replacement takes under 10 minutes with no tools.

Burner not heating or heating unevenly? This 6-inch surface coil element restores consistent heat to your electric range. Simple plug-in replacement.

Burner not heating? This receptacle kit restores electrical connection to cooktop elements. Most DIYers complete this repair in under 30 minutes.

Shallow metal drip pan installs below burner elements to catch grease and spills. Replace when discolored, rusted, warped, or damaged for a clean cooktop.

Shallow metal pan that sits below burner elements to catch grease and food spills. Replace when cracked, rusted, discolored, or warped for easier cleanup.

Burner stuck on high or won't heat? The infinite switch controls surface element power from low to high. Common DIY fix restores heat adjustment.

Control knob for range burners that fits onto the valve stem. Replace when cracked, broken, yellowed, or missing for proper heat adjustment and control.

This thermostat knob replaces a worn or broken control knob so you can set and change oven or range temperature settings easily. It restores a secure grip and clear position indication for safe, consistent control. What it does

• Fits onto the thermostat/control shaft to allow manual temperature selection
• Provides a stable, easy-to-turn grip when original knob is cracked, stripped, or missing
• Helps ensure accurate user input when the control pointer or index mark is aligned
• Commonly used when the knob will not stay on, spins free, or temperature settings are hard to select

• One replacement thermostat control knob

• Disconnect power to the appliance before servicing to avoid shock or injury
• Pull off the old knob (firm pull or use a flat tool if needed) and press the new knob straight onto the control shaft until seated
• Make sure the knob index lines up with the control pointer or detent positions for correct settings
• If knob does not seat or control still malfunctions, inspect the control shaft and replace the underlying control/thermostat assembly as needed

For the complete terminal block kit order 12001676.
