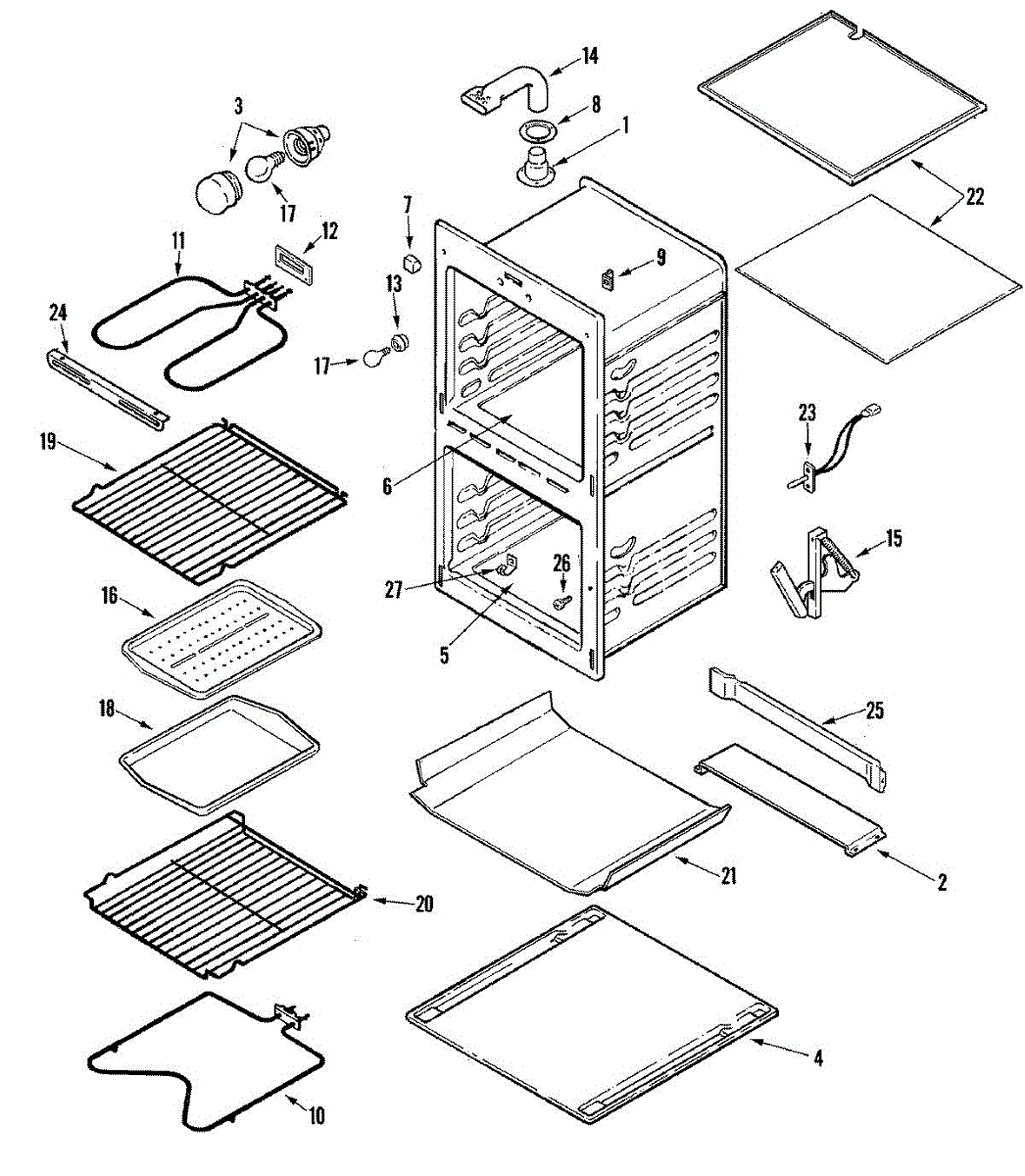

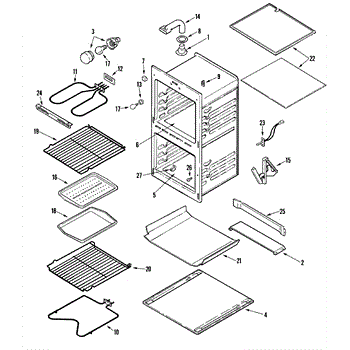

Parts for Maytag CWE5800ACS: 06 - Oven (Cwe5800acs) Parts

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Oven Light Assembly is an OEM part for Whirlpool ranges. This part lights up the interior of the oven, allowing you to monitor the cooking process without opening the oven door.

Over time, the oven light assembly can fail due to normal wear and tear, exposure to extreme heat, or electrical issues.

Symptoms of a bad oven light assembly include:

• The light not turning on when the oven door is opened or when the light switch is activated
• Flickering or dim lighting inside the oven
• A broken or missing protective cover

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM replacement part for Whirlpool ranges. This screw is used to secure various components of the range, ensuring that parts such as panels, brackets, or burners remain firmly in place during operation. It is designed to withstand the high-heat environment of a range, providing long-lasting durability.

Symptoms of a bad or missing Screw include:

• Loose or misaligned range components
• Rattling or unusual noises during operation
• Difficulty maintaining the range's structural stability

Causes of a failing or missing screw can include normal wear over time, accidental loss during maintenance or repairs, or damage from overtightening. Replacing faulty screws ensures the appliance remains safe and functional.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

The Range Element Kit is an OEM part for Whirlpool ranges. This kit typically includes elements used for heating the oven or stovetop, ensuring efficient and even cooking or baking. The element measures 16" wide and 16" from the mounting plate to the other side. The terminal depth is 3", and the total element length is 19". It is rated at 2100 watts and 240 Volts.

Over time, heating elements can become worn out or damaged due to repeated use, exposure to high temperatures, or electrical issues. A malfunctioning element can lead to uneven cooking, longer cooking times, or the range not heating up at all.

Symptoms of a bad Range Element include:

• The element not heating up
• Uneven cooking or baking results
• Visible damage such as burns or breaks in the element
• Sparks or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 3000-watt, 4-pass broil element provides the intense top heat your oven needs for searing and browning. Replace a burned-out top element to restore consistent broil performance.

• Supplies direct, high heat from the top of the oven during Broil
• Common fix for no heat in Broil mode
• Helps resolve weak or uneven browning from the top
• Replace if the element is blistered, cracked, or arcing

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove mounting screws, gently pull the element forward to access wires, and transfer connections one at a time
• Support the element and avoid flexing it; ensure terminal insulators/boots are intact
• Reinstall with existing hardware, secure connections, and test the broil cycle

This upper oven door hinge is a position-specific hinge that supports and controls a side-swing door's movement, helping it open smoothly and seal firmly. Replacing a worn hinge restores proper alignment, closure, and heat retention.

• Provides the pivot and spring action at the door's upper mounting point
• Maintains door alignment for proper gasket contact and heat seal
• Typical symptoms of a failing hinge: door won't close fully, sags, binds/rubs, or pops open
• A poor seal from a worn hinge can lead to heat loss and uneven baking

• Disconnect power and allow the oven to cool completely before service
• Support the door; many models require removing the door to access the hinge
• Install at the factory mounting points and ensure the hinge fully engages the receiver
• After replacement, check door alignment and that the seal contacts evenly

The Door Hinge is an OEM part for Whirlpool ovens. This hinge attaches the oven door to the frame, allowing it to open and close smoothly while maintaining a secure seal when shut.

Causes of a bad door hinge can include normal wear and tear over time, damage from applying too much force when opening or closing the door, or corrosion due to exposure to high temperatures and moisture.

Symptoms of a bad door hinge include:

• The oven door not closing properly or staying ajar
• Difficulty in opening or closing the oven door
• A misaligned oven door
• Unusual noises or stiffness when moving the door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Color: chrome. Measures about 18 inches wide by 17 inches deep.

This oven temperature sensor monitors heat inside the oven and sends that signal to the control to regulate the heating elements. Replacing a faulty sensor restores accurate preheat and steadier baking performance. What it does:

• Continuously measures actual oven-cavity temperature and reports it to the control
• Lets the control board cycle bake and broil elements to maintain the set temperature
• Common symptoms of failure: won't reach set temperature, runs too hot or too cold, extended preheat, or sensor-related error codes on the display
• If the sensor reads open/shorted, many controls will disable heat as a safety

• 1 oven temperature sensor

• Disconnect power at the breaker; allow the oven to cool completely
• Sensor is typically mounted to the rear oven wall; remove mounting screws and gently pull the sensor forward to access the connector (some models require rear-panel access)
• Disconnect the 2-wire plug carefully to avoid losing the connector into the insulation
• Route wiring as original, seat the connector fully, secure the sensor, restore power, and test operation

Size: 10-24X5/16-NI

This mounting clip secures a thermostat, temperature sensor, or capillary bulb in the correct position so it can sense temperature accurately and control the appliance. Replacing a damaged or missing clip helps prevent loose components and erratic readings. What it does:

• Holds the thermostat or sensor firmly against its mounting surface for proper thermal contact
• Helps maintain stable, accurate temperature regulation
• Replaces a bent, broken, or missing clip that won't hold securely
• Common symptoms include a dangling sensor/bulb, rattling, or inconsistent temperature response

• 1 clip

• Disconnect power (and gas, if applicable) and allow the appliance to cool completely before service
• Access the thermostat/sensor area and note original orientation and routing
• Move the component into the new clip and secure it at the original mounting location
• Avoid kinking a capillary tube or damaging sensor leads; the clip is fully seated

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing
