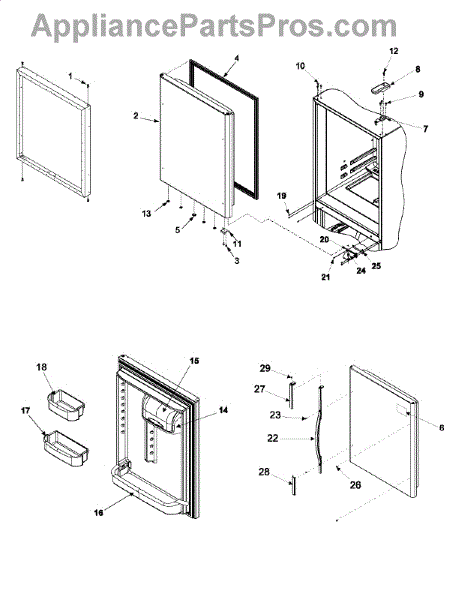

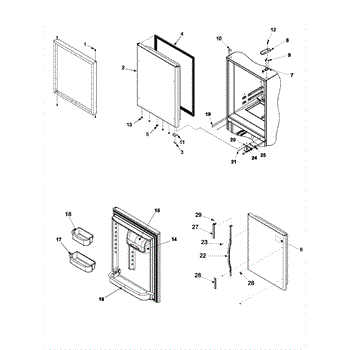

Parts for Maytag MBB1952HEQ: 09 - Refrigerator Door Parts

This door hinge bushing restores smooth, stable movement at the refrigerator door pivot. It sleeves the hinge pin to reduce friction and wear, helping the door stay aligned so it closes cleanly and maintains a proper seal.

• Seats in the door hinge to guide the hinge pin and reduce friction
• Helps maintain door alignment and consistent gasket contact
• Replaces a worn, cracked, or missing bushing that can cause noise or binding
• Typical symptoms: squeaking or grinding at the hinge, door sagging/misalignment, door hard to open or close, or not closing flush

• Disconnect power; clear and support the door to prevent strain
• Remove hinge cover and fasteners; lift the door off the hinge pin as needed
• Remove the old bushing from the hinge area and press the new bushing fully into place, matching original orientation
• Reinstall hardware; adjust hinges/level as needed

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

This door gasket seals the dishwasher door opening to keep wash water and moisture inside the tub. A fresh, flexible seal helps prevent leaks and improves cleaning performance by maintaining proper pressure and heat.

• Creates a watertight seal between the tub and door perimeter
• Helps prevent leaks at the bottom and sides of the door
• Helps resolve symptoms like water on the floor, moisture around the door, long dry times, or visible tears/flattening of the old gasket
• Restores proper door compression and wash chamber containment

• Disconnect power and turn off water supply before service
• Remove the old gasket from the channel; clean the groove of debris and residue
• Press the new gasket evenly into the channel, centering at the top and working down both sides
• Close the door to help seat the gasket; a short run cycle may help it conform

This top hinge assembly mounts at the upper corner of the cabinet to support the refrigerator door and allow smooth pivoting. Replacing a worn hinge restores proper door alignment and helps the gasket seal reliably.

• Supports the door's weight at the top and provides the pivot point
• Helps maintain correct door alignment and closing action
• Aids in consistent gasket contact to minimize warm-air leaks
• Common symptoms of a failing hinge: door sagging or rubbing, uneven gaps, poor sealing, squeaks or popping noises

• Unplug the refrigerator and, if applicable, turn off the water supply
• Have a helper support the door; remove the hinge cover, then the hinge screws
• Note/mark hinge position and transfer any shims or spacers from the original hinge
• Reinstall and adjust for even gaps; verify the door swings freely and the gasket seals all around

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This door stop replaces the small bumper that cushions and limits the door's travel so the door closes smoothly and avoids hard impacts. It restores normal door movement and reduces noise from slamming or catching. What it does

• Acts as a bumper/stop to limit how far the door opens or closes
• Cushions the door to prevent hard impacts and reduce noise
• Helps keep the door aligned and prevents catching or uneven closing
• Commonly replaced when the stop is worn, cracked, missing, or deformed

• One door stop

• Disconnect power (unplug or switch off breaker) before starting any repair
• Removal/installation typically requires basic hand tools and access to the door hinge/stop area
• Align the new stop in the same position as the old one and secure per the appliance's hinge/trim layout
• Reuse the original fasteners unless replacements are specified

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

Color: clear. Measures about 11 inches wide by 7 inches high.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

Used to remove door handles.

This screw kit provides replacement fasteners used to secure appliance panels and internal components, helping restore proper fit and reduce vibration or rattling caused by missing or damaged screws. Ideal for maintenance and small repairs. What it does:

• Replaces missing, stripped, or damaged screws to restore secure panel and component attachment
• Helps eliminate rattling, vibration, and loose or misaligned panels
• Allows reassembly after part replacement or routine service
• Works with the appliance's original mounting points and threaded holes

• Always disconnect power and, if applicable, gas supply before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping screw heads
• Tighten screws snugly but avoid over-torquing which can strip threads or crack panels
• Keep small fasteners away from children and pets; work on a stable, well-lit surface

A replacement center hinge pin that secures the refrigerator door at the center hinge assembly to restore proper pivoting and alignment. Use this pin to correct door sag or uneven closing caused by a worn or bent hinge pin. What it does

• Secures the door to the center hinge so the door can pivot smoothly.
• Restores proper door alignment and helps the door seat evenly against the cabinet.
• Commonly used to address door sag, rubbing, uneven gaps, or difficulty closing.
• Works as a direct replacement for the center hinge pivot in the hinge assembly.

• Always disconnect power to the appliance before servicing to avoid electrical hazards.
• Support the door and follow the appliance manufacturer's hinge removal steps before removing or installing the pin.
• Inspect surrounding hinge components (bushings, brackets) for wear while replacing the pin; replace as needed.

This nonmetal shim acts as a precise spacer/isolator within an appliance assembly to set correct clearance and alignment between parts. Replacing a worn or missing shim can reduce vibration, prevent rubbing, and help maintain smooth operation.

• Maintains proper spacing between mating parts to ensure correct alignment
• Helps reduce vibration, rattling, and premature wear from parts contacting
• Nonmetal construction provides electrical isolation and resists corrosion
• Common signs of a bad/missing shim: scraping noises, visible misalignment, or excess play at the joint

• Disconnect power and shut off water/gas supplies as applicable before servicing
• Match the new shim to the original thickness/position; some assemblies use multiple shims—reinstall in the same locations and order
• Clean mating surfaces and inspect related fasteners/brackets; replace any distorted hardware
• Tighten fasteners evenly to manufacturer specifications and verify smooth, interference-free movement after reassembly
