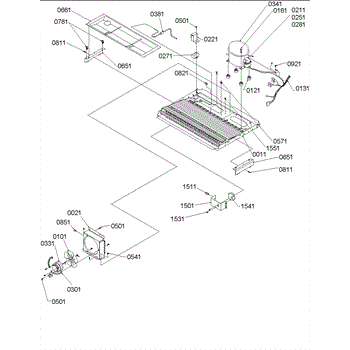

Parts for Amana SX26VL / P1315402W L: 10 - Machine Compartment & Muffler Assy Parts

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

This overload is a thermal protection device that mounts on the motor/compressor and opens the circuit when excessive heat or current is detected. Replacing a weak or failed overload helps restore safe startup and protects the windings from damage. What it does:

• Monitors motor/compressor temperature and current draw
• Interrupts power on overheat/overload to prevent damage
• Aids troubleshooting of start/run issues when paired with the start device
• Common symptoms: hums then clicks off, won't start, intermittent shutdown, frequent tripping

• 1 thermal overload protector

• Disconnect power before servicing; allow components to cool
• Access the terminal area on the motor/compressor; remove any cover
• Note/photograph wire positions; transfer wires and fully seat the new overload on the correct terminal
• Inspect the start relay, capacitor, and terminals for heat damage; replace any compromised parts

Fix a refrigerator that won't cool or clicks repeatedly. This compressor start relay powers the start winding to help your compressor run. DIY repair.

Refrigerator stopped cooling or compressor won't start? This run capacitor provides the electrical boost needed to start the compressor motor. Easy DIY fix.

Refrigerator runs warm or freezer not cooling properly? The condenser fan motor circulates air over the coils. DIY repair takes 15-60 minutes with basic tools.

Refrigerator not cooling or humming without starting? The compressor pumps refrigerant to cool your fridge. Requires EPA certification for install.

Replacement mounting screw for securing components and housings in place. Order a new screw if yours is stripped, missing, or damaged during repairs.

Mounting screw for refrigerators. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during appliance repair.

This timer mounting bracket secures the appliance timer assembly to the cabinet so the timer stays aligned and stable during operation. Replaces a worn or broken bracket to restore proper timer support and reduce vibration. What it does:

• Holds the timer/timer motor firmly in place on the control panel or chassis
• Prevents the timer from shifting or rattling during cycles
• Helps maintain proper gear alignment for accurate cycle timing
• Commonly replaced when bracket is bent, cracked, or missing mounting studs

• One timer mounting bracket

• Basic hand tools required; disconnect power before beginning repair
• Inspect related fasteners and the timer housing for additional damage
• Handle the timer assembly carefully to avoid damaging wiring or connectors

Fridge warm but freezer cold? Frost buildup on coils? Your defrost timer may be failing. This control manages automatic defrost cycles. 15-min DIY fix.

8-32 x .312 inch mounting screw for washers. Replaces lost, stripped, or damaged screws that secure panels, brackets, and components inside the unit.
