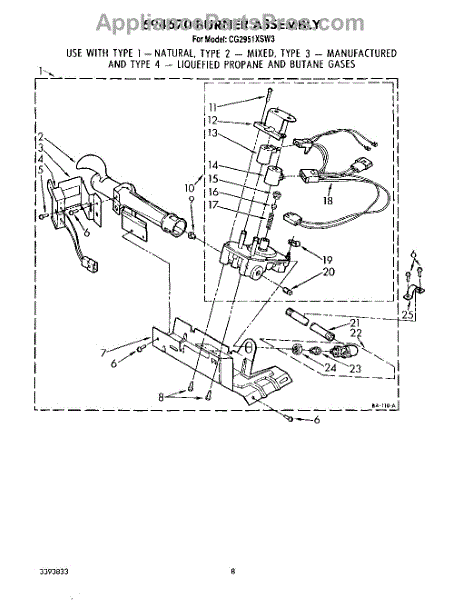

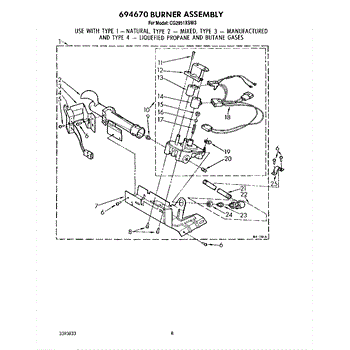

Parts for Whirlpool CG2951XSW3: 05 - 694670 Burner Assembly Parts

This burner tube channels the gas-air mixture to the burner and includes an adjustable air shutter to set proper combustion. Replacing a damaged assembly helps restore reliable ignition, stable flame, and consistent heating performance.

• Directs the fuel/air mixture from the gas valve to the burner port
• Integrated adjustable shutter regulates primary air for proper flame
• Helps maintain efficient heat output and reliable burner operation
• Failure can present as no or intermittent heat, burner that lights then goes out, yellow/lazy flame, or soot

• Disconnect power and shut off the gas supply; allow the appliance to cool before servicing
• Access the burner compartment and transfer any clips/brackets from the original tube
• Note the current shutter position; after installation, adjust for a steady blue flame
• After reassembly, leak-test gas connections with a soap solution and verify burner operation

This bracket is used to attach and is included in the igniter kit. Save money by ordering the igniter kit 279311.

The Igniter Kit and Bracket is an OEM replacement part for Whirlpool dryers. It is a kit that includes the igniter and bracket assembly, which work together to ignite the gas or electric heating element.

Causes of a bad igniter and bracket can include failure due to prolonged or repeated use, damage from impact or mishandling, or failure of integrated electronic components.

Symptoms of a bad igniter and bracket include:

• The dryer not heating or heating intermittently
• Repeated trips of the thermal fuse
• Smell of gas indicating improper ignition
• Visible damage or cracks in the igniter or bracket

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This replacement mounting screw secures appliance panels and small components to restore proper fit and reduce movement. It's a simple, direct part for repairing loose panels, trim, or interior assemblies. What it does:

• Fastens panels, brackets, or assemblies to prevent rattling and vibration
• Restores proper alignment for doors, control panels, or trim pieces
• Helps stop intermittent noise caused by loose hardware
• Use when original screw is missing, stripped, or corroded

• Disconnect power and unplug the appliance before beginning any repair
• Use the correct screwdriver bit and hand-tighten; avoid over-torquing which can strip threads
• Keep small parts away from children and pets; magnetic tray helps prevent loss
• If multiple screws are corroded or hardware threads are damaged, inspect mating parts and replace as needed

Specs: 10-16 x 1/2 inch.

This orifice is the small gas passage that controls burner fuel flow to create a proper flame for cooking. It restores correct gas metering so the burner lights and maintains a steady flame. What it does:

• Regulates gas flow to the burner for a consistent, controllable flame
• Helps fix symptoms like weak or uneven flames, burners that won't stay lit, or delayed ignition
• Fits into the burner assembly where the gas line meets the burner tube
• Works with the appliance's existing valve and burner components to maintain safe operation

• One burner orifice

• Turn off the gas supply and unplug the appliance before servicing
• Inspect for debris or damage and replace if the orifice or seat is corroded or clogged
• Tighten to the manufacturer's torque spec; do not overtighten or force into the seat

This precision-drilled burner orifice is sized for Type 4 butane applications. It meters gas to the burner so flames ignite reliably and burn cleanly when the appliance is configured for butane per the manufacturer's specifications. What it does:

• Regulates gas flow to the burner head for proper flame size and shape
• Type 4 drilling intended for butane gas configurations specified by the manufacturer
• Replaces a missing or stripped orifice during service or gas-type conversion

• 1 burner orifice (Type 4, butane)

• Shut off gas supply and power; allow the appliance to cool before service
• Access the orifice at the burner base/manifold; remove the original with the correct wrench or socket
• Start threads by hand; tighten snugly—avoid overtightening or cross-threading
• After reassembly, leak-check with soapy water and verify flame; gas conversions should be performed following OEM instructions and local codes

The Natural Gas Orifice is an OEM replacement part for Whirlpool gas dryers. Installed within the dryer burner assembly, it regulates gas fuel flow into the burner.

Common causes relate to natural deposits obstructing the small gas port, as well wear inducing intermittent ignition of flames during many years of laundering cycles.

Symptoms of a failed orifice include:

• Slow or inefficient drying times and extended cycles
• Uneven or incomplete drying of loads
• Changes in flame appearance like higher than normal yellow tips

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This replacement gas valve controls gas flow to the burner in a gas dryer, enabling safe ignition and consistent heat. When it fails, the burner may not light and loads can stay damp; replacing it restores proper drying performance.

• Opens and closes gas flow to the burner when heat is called for
• Shuts off gas when the cycle ends or heating is not active
• Common symptoms: dryer runs but has no heat or the burner never ignites
• May present as the ignitor glowing or clicking repeatedly without flame, or intermittent heat

• Disconnect power and shut off the gas supply before servicing
• Work in a ventilated area and allow the dryer and burner to cool
• Use only gas-rated thread sealant on threaded connections
• After installation, turn on gas and check all joints for leaks with a soap-and-water solution

The Dryer Gas Valve Coil Kit is an OEM replacement part for Whirlpool dryers, as well as Kenmore and Samsung dryers. It is a set of coils that control the flow of gas fuel to the burner. The gas valve regulates the precise amount of gas needed to properly combust and generate heat for drying clothes.

Causes of a bad gas valve coil can be wear and tear from regular use, lime or mineral buildup on the coils over time, or physical damage to the coils.

Symptoms of a bad gas valve coil kit include:

• Inconsistent or incomplete drying
• Slow or intermittent drying
• Burning smell from the gas dryer
• Improper burner ignition or non-ignition

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Gas Valve Coil Kit is an OEM replacement part for Whirlpool dryers, as well as Kenmore and Samsung dryers. It is a set of coils that control the flow of gas fuel to the burner. The gas valve regulates the precise amount of gas needed to properly combust and generate heat for drying clothes.

Causes of a bad gas valve coil can be wear and tear from regular use, lime or mineral buildup on the coils over time, or physical damage to the coils.

Symptoms of a bad gas valve coil kit include:

• Inconsistent or incomplete drying
• Slow or intermittent drying
• Burning smell from the gas dryer
• Improper burner ignition or non-ignition

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Natural Gas Limiter is an OEM replacement part for Whirlpool dryers. Located where the gas supply connects, it regulates safe flow levels to fuel burners during heating cycles. Precise control prevents over-firing issues.

Symptoms of a faulty limiter include:

• Dryer not achieving proper temperatures or taking too long
• Yellow flames indicating abnormal gas-to-air ratios
• Fault codes showing problems with gas valve readings

Causes can range from debris accumulation reducing gas flow to mechanical wear of linkage components. This replacement restores optimized operation.

This OEM replacement part is compatible with select KitchenAid and Maytag brand models.

The Natural Gas Regulator is an OEM part for Whirlpool ranges. This regulates the pressure of natural gas entering the appliance, ensuring safe and efficient operation. It maintains a consistent gas flow to the burners and oven, allowing for precise temperature control and optimal cooking performance.

Over time, the natural gas regulator can wear out or become damaged due to exposure to high temperatures, contaminants in the gas supply, or mechanical failures.

Symptoms of a bad natural gas regulator include:

• Inconsistent flame or burner performance
• The oven or burners not igniting or staying lit
• Unusual odors or hissing sounds near the regulator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Natural Gas Spring is an OEM part for Whirlpool ranges. This part assists in regulating the flow and pressure of natural gas to the burners, ensuring consistent and safe operation. The spring helps maintain the correct pressure within the gas regulator, which is vital for efficient cooking performance.

Causes of a bad natural gas spring can include wear and tear from prolonged use, exposure to high temperatures, or contamination from particles within the gas line.

Symptoms of a bad natural gas spring include:

• Inconsistent or weak burner flames
• Difficulty in lighting the burners or oven
• Irregular cooking temperatures
• Unusual noises or gas odors near the regulator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This wire harness connects the gas valve and igniter assembly so the range/oven can receive ignition and control signals. It replaces a worn or damaged connector bundle to restore reliable ignition performance. What it does

• Routes power and control signals between the gas valve and the igniter/spark module
• Restores ignition function when factory wiring is frayed, cut, or has poor connections
• Helps eliminate intermittent sparking or failed ignition caused by damaged wiring
• Matches OEM wiring layout and connector end shapes for a direct replacement

• Disconnect electrical power and shut off gas supply before starting work
• Verify the harness matches your appliance by comparing connector shapes and wire colors to the original
• Route wires away from sharp edges and high-heat areas; secure with existing clips or ties

This pipe plug seals an unused or service opening in a household appliance's plumbing to stop leaks and prevent debris entry. It restores a watertight closure so the appliance can operate safely and without water loss. What it does:

• Plugs open pipe or hose fittings to prevent water leaks
• Helps maintain proper water flow by sealing unused ports
• Keeps debris and contaminants out of the plumbing system
• Can stop intermittent drips originating from service openings

• One pipe plug

• Turn off water supply and power to the appliance before starting work
• Hand-start threads to avoid cross-threading; tighten only to OEM torque or finger-tight plus a quarter-turn if unspecified
• If the original used sealant or gasket, replace with the same type per OEM instructions

The LP Conversion Kit is an OEM component for Whirlpool and KitchenAid gas dryers. It allows conversion from natural gas to liquid propane fuel operation. Over time in gas-powered dryers, improper gas/air mixture causes part wear like weakened burner components. This is risky if overlooked but converting to an alternative fuel safely remedies.

Causes relate to unavoidable deterioration from gas combustion stresses. Conversion using this kit prevents hazardous gas leaks or explosions.

Symptoms involve:

• Diminished or unsafe heat levels from burners
• Gas leaks which exacerbate safety risks over time

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
