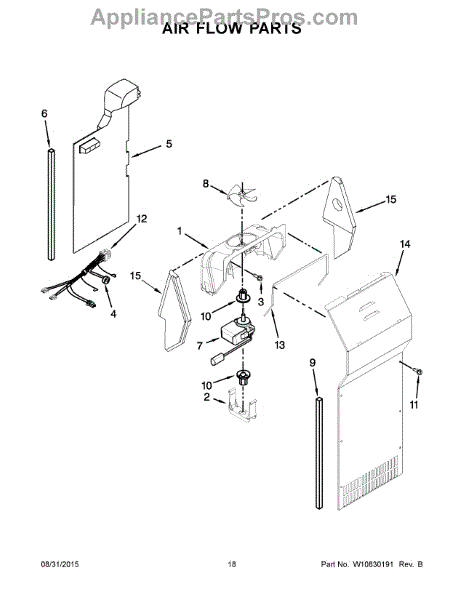

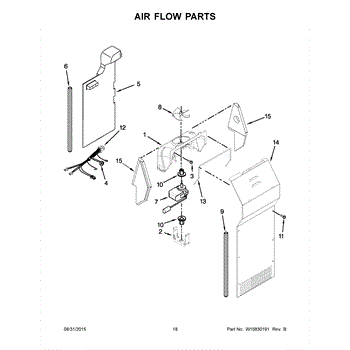

Parts for Whirlpool WRS325FDAD02: 10 - Air Flow Parts

This fan scroll is the plastic housing that surrounds the evaporator fan in the freezer section. It directs air across the evaporator coils and into the ducts, helping your refrigerator move cold air evenly and maintain stable temperatures.

• Channels airflow from the evaporator fan through the coils and into the air ducts
• Helps balance cooling between freezer and fresh food compartments
• Positions the fan motor and blade for proper clearance and reduced vibration
• If cracked, warped, or missing, you may notice weak airflow, temperature swings, rattling noises, or frost buildup on the evaporator cover

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan area
• Transfer the existing fan motor, blade, and hardware to the new scroll
• The fan spins freely and wiring is clear before reassembly and restoring power

This fan motor retainer secures the refrigerator's fan motor to its mounting bracket or shroud, reducing vibration and keeping the fan aligned so air circulates properly for consistent cooling.

• Secures the fan motor to its bracket or shroud
• Maintains proper fan alignment and clearance for consistent airflow
• Helps reduce vibration, buzzing, or rattling from a loose motor
• A worn or missing retainer may present as scraping fan noises or uneven airflow

• Disconnect power to the refrigerator before servicing; allow moving parts to stop and wear cut-resistant gloves
• Access the fan area per your model
• Transfer the motor into the new retainer and reinstall using existing hardware as required
• Ensure the fan blade spins freely and clears the shroud before restoring power

Size: 8 x 1/2 ab.

The Defrost Thermostat is an OEM part for Whirlpool refrigerators. It is responsible for monitoring the temperature of the evaporator coils. When the coils reach a certain temperature, the thermostat signals the defrost heater to turn on and melt any ice or frost buildup. This ensures proper airflow and prevents excessive ice formation.

Causes of a bad defrost thermostat can be attributed to normal wear and tear over time or electrical malfunctions.

Symptoms of a bad defrost thermostat include:

• Excessive ice buildup in the freezer section.
• Inadequate cooling in the refrigerator compartment.
• Frost or ice accumulating on the evaporator coils.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement gasket seals the appliance door to help maintain proper temperature and prevent leaks, keeping the interior efficient and protected. Use it to restore a tight door seal and reduce energy loss from gaps. What it does:

• Forms a secure seal around the door to keep heat or cold inside the appliance
• Prevents water, steam, and air leaks that can cause poor performance or messes
• Helps maintain consistent internal temperature for efficient operation
• Reduces cycling and energy waste caused by a damaged or worn seal

• One replacement gasket

• Disconnect power and empty the appliance before starting any repair
• Inspect the door frame and mounting channel for damage or debris before installing
• Install by seating gasket evenly into the channel or following the OEM mounting clips/adhesive method

The Evaporator Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the refrigerator compartment, it powers the evaporator fan, which circulates air across the cooling coils. This is the motor only. For the blade order part number WP2169142.

Symptoms of a bad evaporator fan motor include:

• No air movement detected coming from vents inside the refrigerator
• Warmer internal temperatures due to inadequate air circulation
• Strange grinding or knocking noises emanating from the rear wall

Causes of failure can be normal wear over time, accumulation of dust obstructing fan blades, or damage to motor windings from moisture penetration.

This OEM part is also compatible with KitchenAid, Jenn-Air, Admiral, and Kenmore refrigerator models.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This evaporator cover gasket seals the evaporator cover to help maintain proper airflow and reduce moisture intrusion in the freezer compartment. It restores the evaporator cover seal to help prevent frost buildup and maintain consistent cooling. What it does:

• Seals the evaporator cover to limit air/moisture exchange that can cause frost and ice buildup.
• Helps maintain designed airflow over the evaporator for more consistent temperature control.
• Reduces the chance of excessive frost on evaporator fins and associated freezer performance issues.
• Commonly used when you see frost accumulation, frequent defrosting, or reduced freezer efficiency.

• Disconnect power to the appliance before beginning any work to avoid electrical shock.
• Allow the evaporator area to fully defrost and dry before installing the new gasket.
• Remove the evaporator cover carefully; take note of fastener locations and any clips for correct reassembly.
• Inspect surrounding components and replace any damaged parts to ensure a proper seal.

The Evaporator Fan Motor Grommet is an OEM part for Whirlpool refrigerators. It is designed to provide a secure and vibration-free mounting for the evaporator fan motor, ensuring proper operation and reducing noise.

Causes of a faulty evaporator fan motor grommet can include wear and tear over time, damage from excessive vibrations or impact, or deterioration due to temperature changes.

Symptoms of a bad evaporator fan motor grommet may include:

• Excessive noise or rattling coming from the refrigerator
• Poor cooling performance or uneven temperatures inside the refrigerator
• Fan motor instability or misalignment

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This wire harness assembly connects key electrical components to restore proper power and signal flow in the appliance. Replacing a faulty harness helps stop intermittent operation and restores reliable control function. What it does:

• Provides the factory routing and connections between controls, switches, and motors.
• Re-establishes power and signal paths to prevent intermittent or no-power symptoms.
• Stops failures caused by broken, burnt, or loose wires and terminals.
• Ensures secure plug-to-plug connections using original-style terminals.

• Disconnect the appliance from power (and water if applicable) before starting.
• Inspect connectors and routing; replace only if matching the original harness.
• Reuse any mounting clips or grommets; secure wires away from heat and moving parts.

This fan scroll gasket seals the evaporator/fan housing to prevent air bypass and maintain proper airflow through the evaporator. Replacing a worn gasket helps restore efficient cooling and reduces frost buildup. What it does:

• Seals the fan scroll/evaporator housing to direct cold air through the evaporator fins
• Prevents air leaks that can cause reduced cooling or temperature fluctuations
• Helps reduce frost or ice buildup by ensuring consistent airflow over the coil
• Can reduce abnormal fan noise caused by air turbulence around a damaged seal

• Disconnect power to the appliance before beginning any work.
• Remove the evaporator/fan housing cover and carefully pull out the old gasket.
• Clean mating surfaces of debris and residue for a flush seal before installing the new gasket.
• Seat the gasket fully around the scroll; reassemble panels and restore power to test operation.

Includes both right and left hand sides.

Includes both right and left hand sides.
