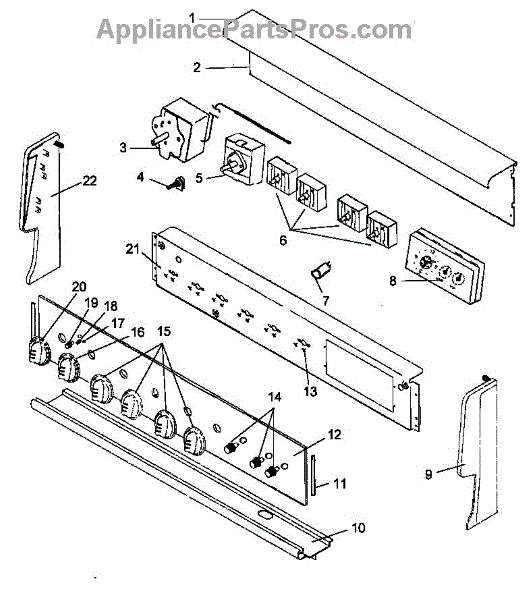

Parts for Amana ARR626L-P1142626NL: Backguard Parts

This surface burner infinite switch sits behind the knob and regulates power to the cooktop/range element. Replacing a failed switch restores accurate heat settings so the burner can turn on, modulate properly, and shut off as expected.

• Regulates on/off cycling of the surface element to achieve the selected heat level
• Sends power to the burner based on knob position
• Common failure symptoms: burner won't heat, only runs on high, won't shut off, or heats erratically
• Knob turns but the burner does not respond

• Disconnect power at the breaker before servicing; surface elements operate at high voltage
• Pull off the knob and remove the control panel/backguard as needed to access the switch
• Transfer wires one at a time from the old switch to the matching terminals on the new switch
• Align the shaft to fit your knob, reassemble the panel, restore power, and test operation

The infinite switch regulates power to your range or cooktop's surface element, letting you set heat from low to high. Replace a failed switch to restore dependable burner control and consistent cooking performance.

• Regulates on/off power cycling to the surface element based on the knob setting
• Helps resolve no-heat, stuck-on-high, won't-turn-off, or erratic/uneven heat issues
• Often controls the surface "on" indicator light circuit; failure may affect the light
• Installs behind the control knob and connects to the existing wire harness

• Disconnect power at the breaker; allow the appliance to cool completely
• Remove the knob and access panel to reach the switch
• Photograph wiring and transfer wires to the same labeled terminals (commonly L1, L2, H1, H2, P)
• Reassemble, restore power, and test multiple heat settings; check the element and wiring

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued and is no longer available.

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

Size: 10-24X5/16-NI

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
