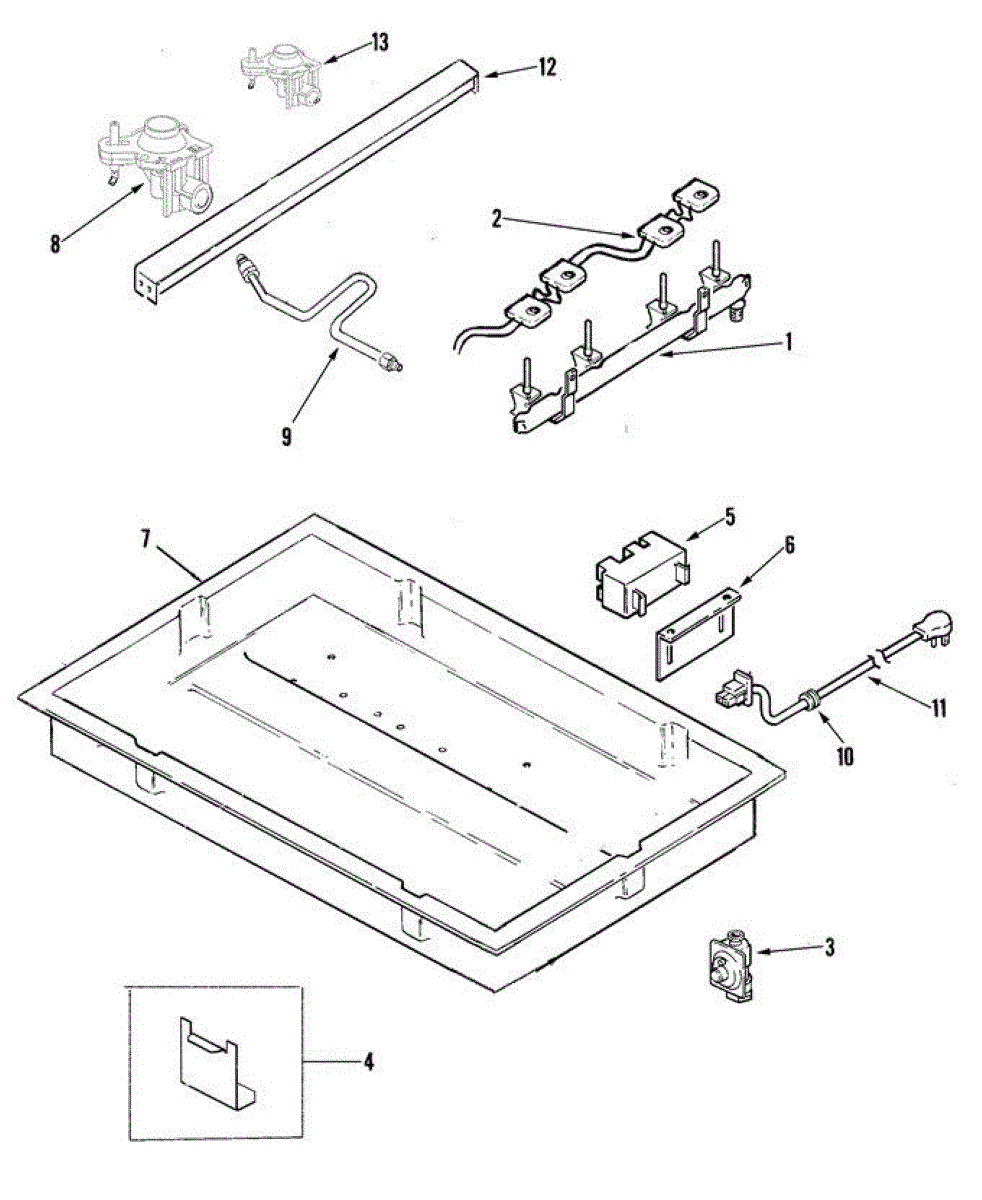

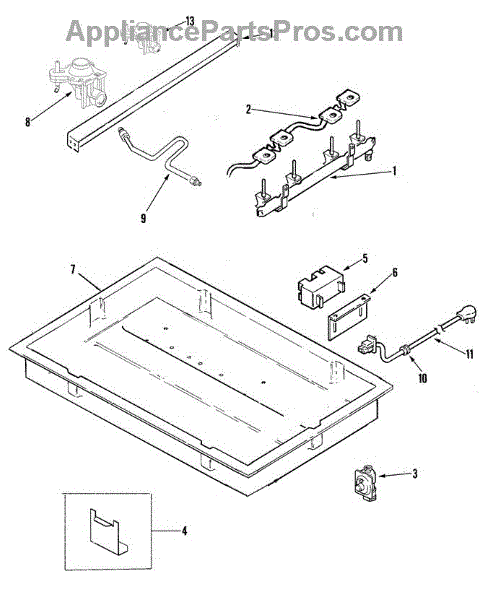

Parts for Jenn-Air JGC1430ADS: Body Parts

This wire harness assembly routes power and signals between a range of appliance components to restore reliable electrical connections and proper component operation. Fits as a direct replacement harness used in compatible Whirlpool appliances. What it does:

• Carries power and control signals between control boards, motors, switches and sensors
• Replaces damaged, frayed or corroded wiring that can cause intermittent or failed component operation
• Restores reliable connector-to-connector connections and prevents shorts from exposed wiring
• Helps resolve issues such as intermittent operation, components that won't respond, or visible wiring damage

• Disconnect power to the appliance before starting any repair
• Take photos of the existing harness routing and connector positions to aid reassembly
• Ensure all connectors are fully seated and any retaining clips or straps are secured
• If wiring shows burn, melting, or damaged insulation, replace the harness rather than repairing temporary sections

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use

This is a #10 x 2 inch appliance screw used to fasten panels and components in household appliances. It provides a simple, reliable hold to keep parts aligned and reduce vibration. What it does:

• Secures trim, panels, brackets, and internal components
• Helps prevent rattling or movement from loose or missing fasteners
• Restores proper alignment where a worn or missing screw causes gaps
• Works wherever a #10 x 2" fastener is specified by the manufacturer

• Disconnect power and water to the appliance before servicing
• Use the correct driver to avoid stripping the head; do not overtighten
• Keep track of removed fasteners and replace with identical-size screws
• Inspect mating threads and replace any damaged hardware

This tie-down bracket secures the appliance during installation so it stays firmly in place. It helps prevent shifting, vibration, or lifting for a solid, stable fit and reliable operation over time.

• Anchors the unit to its opening as designed, helping keep it stable
• Helps reduce movement, vibration, and rattling during use
• Replaces a bent, damaged, or missing bracket to restore a secure install
• Common signs: appliance shifts or rocks, visible gaps/misalignment, loose fit

• Disconnect power; shut off gas before servicing
• Install in the location/orientation specified by your product's installation instructions
• Reuse the model-specific mounting hardware or replace per your manual
• Tighten hardware securely but do not overtighten to avoid damage

This spark module generates high-voltage pulses to ignite the surface burners on your gas cooktop or range. Replacing a failed module helps restore fast, reliable ignition when you turn a burner knob.

• Converts line voltage into high-voltage pulses for the surface igniters to light gas
• Sends spark when a burner switch calls for ignition; multiple electrodes may spark together by design
• May help address: no spark on all burners, intermittent or weak spark, burners that click but won't light
• Continuous rapid clicking can also occur with a failed module or wet/stuck burner switches

• Disconnect electrical power and shut off gas before servicing
• Access the module under the cooktop/top panel or behind the control area; label or photograph wiring and move leads one at a time to the new module
• Mount the new module securely in the original location; ensure all connectors are clean, dry, and fully seated
• Restore power and test each burner for proper spark and ignition

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This orifice holder secures the 17K gas orifice in the burner assembly so the correct orifice stays aligned for reliable burner performance. Replaces a worn or damaged holder to restore proper gas flow location. What it does:

• Holds the 17K burner orifice in the correct position inside the burner/head assembly
• Keeps the orifice aligned so the burner lights and flames remain stable
• Helps prevent orifice movement that can cause uneven flames or ignition issues
• Fits in the valve/burner mounting area to maintain safe gas discharge alignment

• One orifice holder

• Turn off gas supply and power to the appliance before attempting any service
• Replace only with the exact part; ensure orifice is seated correctly and fasteners are secure
• Check surrounding burners and gaskets for damage while servicing

This surface burner orifice holder is a genuine Whirlpool part, sold individually. This surface burner orifice holder can be used as a replacement part in a gas range. This part holds the components of the burners in place, such as the igniter, the burner cap, the retaining nut, the spring clips, and the burner grates.If the surface burner orifice holder of one of the burners is lost or misplaced, the component should be immediately replaced with this genuine OEM replacement part. If the surface burner orifice holder is damaged, the component should be removed and replaced. The repair or replacement process is simple. The repair or replacement will require a putty knife and a screwdriver. Work gloves should be worn during the repair or replacement process.This is an OEM part sourced directly from the manufacturer. This surface burner orifice holder is compatible with the following appliance brands: Whirlpool and Amana.

This orifice holder routes gas from the surface burner valve to the burner head. Sized for a 12K burner, it restores proper gas flow and reliable ignition when the original holder is damaged, clogged, or misaligned.

• Positions the orifice and channels gas to the burner head on a 12,000-BTU burner
• Maintains correct gas flow for a steady, consistent flame
• Common symptoms: burner won't ignite though the igniter sparks, weak/uneven flame, or stripped/damaged threads at the holder
• Match the 12K rating to the correct burner location per your model's parts diagram

• Disconnect power and shut off gas supply before servicing
• Remove grates and burner parts; lift the cooktop as needed to access the holder
• Transfer any brackets/gaskets from the original and install squarely; do not overtighten fittings
• Restore gas and check all connections with a non-corrosive leak-detection solution; verify ignition and flame quality

The Surface Burner Spark Electrode is an OEM part for Whirlpool gas ranges. This electrode is responsible for generating the spark that ignites the gas burner, allowing the burner to produce a flame for cooking.

Over time, the spark electrode can become faulty due to exposure to high temperatures, grease, and general wear and tear. This can lead to unreliable ignition or complete failure to ignite the burner.

Symptoms of a bad surface burner spark electrode include:

• The burner not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Burner flame going out soon after ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This snap-in bushing provides a low-profile bearing surface to support rotating shafts and reduce wear and noise in appliance assemblies. It restores smooth operation where the original bushing is worn or damaged. What it does:

• Provides a replaceable bearing/sleeve for rotating shafts and posts
• Reduces friction and wear on housing and moving parts
• Helps eliminate rubbing, grinding, or rattling noises during operation
• Maintains correct shaft alignment for smooth rotation

• One snap-in bushing

• Disconnect power before servicing and follow all safety instructions
• Access may require removing panels or covers; inspect surrounding parts for wear
• Press or snap the bushing squarely into the housing until fully seated; avoid deforming it
• Replace any damaged retainers or seals and test operation after reassembly

Size: 10-24X5/16-NI

The Surface Burner Spark Electrode is an OEM part for Whirlpool gas ranges. This electrode is responsible for generating the spark that ignites the gas burner, allowing the burner to produce a flame for cooking.

Over time, the spark electrode can become faulty due to exposure to high temperatures, grease, and general wear and tear. This can lead to unreliable ignition or complete failure to ignite the burner.

Symptoms of a bad surface burner spark electrode include:

• The burner not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Burner flame going out soon after ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
