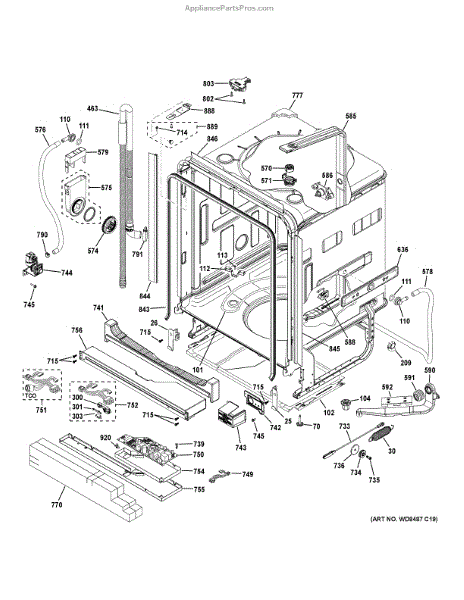

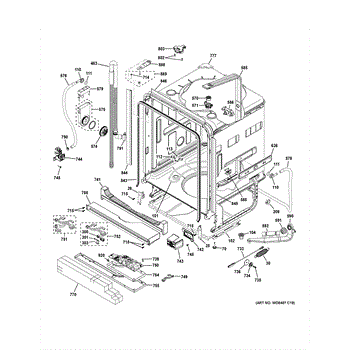

Parts for Ge CDT835SSJ2SS: Body Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Spring is an OEM part for GE dishwashers. This part provides the necessary tension to the dishwasher door, allowing it to open and close smoothly and securely. The door spring helps balance the door’s weight, preventing it from falling open too quickly or slamming shut.

Causes of a bad door spring can include wear and tear from frequent use, stretching or breaking due to overloading the door, or damage from improper handling.

Symptoms of a bad Door Spring include:

• The door falling open quickly without resistance
• Difficulty in keeping the door open at a desired angle
• The door slamming shut instead of closing gently
• Unusual noises when opening or closing the door

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This leveling leg adjusts the dishwasher's height at the base, helping you level and stabilize the unit inside the cabinet. Proper leveling reduces rocking and vibration and promotes a tight door seal and smooth rack operation.

• Screws into the base frame to set height and level the dishwasher
• Supports the unit to prevent rocking or wobbling
• Helps maintain door alignment and sealing; poor leveling can contribute to leaks
• A worn, bent, or missing leg can make leveling difficult and increase vibration/noise

• Disconnect power and shut off water; slide the dishwasher out if needed for access
• Turn the leg with a wrench or pliers to adjust height; replace by threading the new leg into the base
• Use a bubble level to set side-to-side and front-to-back level before re-securing the unit
• Do not overtighten; ensure both legs carry weight evenly on a solid floor surface

The Heating Element is an OEM part for GE dishwashers. It is responsible for heating the water during the wash cycles and for drying the dishes after the rinse cycle. Proper functioning of the heating element ensures optimal cleaning and drying performance.

Causes of a bad heating element can include mineral buildup from hard water, electrical faults, or general wear and tear over time. Damage to the heating coil or connections can also impair its functionality.

Symptoms of a bad heating element include:

• Dishes not drying properly
• Dishwasher cycles taking longer than usual
• Water not heating during the wash cycle
• Error codes related to heating issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Pan Leak is an OEM part for GE dishwashers. It is a machined pan located at the bottom of the tub that collects any residual water after a wash cycle finishes.

Symptoms of a faulty leak pan include:

• Puddles or residual water remaining in the bottom of the tub after a cycle
• Water not properly draining from the bottom tub area
• Potential for water damage issues if left unaddressed

Causes can be cracks in the molded pan housing, mineral deposits clogging the drainage channels, or warping preventing a proper seal.

Replacing with this authentic GE OEM part restores the tub's intended draining and drying functionality. It is compatible with Hotpoint, RCA, and Kenmore models as well to help prevent future water problems underneath the dishwasher.

This Sideblaster inlet restores proper water delivery to the dishwasher's side jets, helping ensure targeted spray along the tub wall. A secure, leak-resistant connection supports consistent cleaning performance on items near the side spray area.

• Feeds water from the circulation system to the side-blaster jets on the tub wall
• Maintains a sealed pass-through to help prevent leaks at the side jet connection
• Helps correct weak/no spray from side jets and poor cleaning near the side of the tub
• Replaces cracked, loose, or damaged inlet fittings that can drip or reduce spray

• Disconnect power and shut off water supply before servicing
• Remove lower rack and panels as needed; you may need to pull the dishwasher out to reach the hose connection
• Transfer and reuse existing clamp/hardware; seat the seal properly and orient the inlet correctly
• Restore water/power and test for leaks and proper side-jet spray before reassembly

This Sideblaster inlet restores proper water delivery to the dishwasher's side jets, helping ensure targeted spray along the tub wall. A secure, leak-resistant connection supports consistent cleaning performance on items near the side spray area.

• Feeds water from the circulation system to the side-blaster jets on the tub wall
• Maintains a sealed pass-through to help prevent leaks at the side jet connection
• Helps correct weak/no spray from side jets and poor cleaning near the side of the tub
• Replaces cracked, loose, or damaged inlet fittings that can drip or reduce spray

• Disconnect power and shut off water supply before servicing
• Remove lower rack and panels as needed; you may need to pull the dishwasher out to reach the hose connection
• Transfer and reuse existing clamp/hardware; seat the seal properly and orient the inlet correctly
• Restore water/power and test for leaks and proper side-jet spray before reassembly

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This hose clip secures the side blaster hose to the spray assembly, keeping the spray system aligned for proper water distribution. It's a simple replacement that restores a loose or disconnected hose connection. What it does:

• Holds the side blaster hose firmly to the spray/spray arm connection
• Prevents hose separation that can cause weak or misdirected spray
• Helps stop leaks or loss of spray pressure from a loose hose
• Common fix for noisy or rattling spray components caused by a loose clip

• Disconnect power and water supply before servicing the appliance
• Access the spray assembly or side blaster per your model's service instructions
• Clip replaces easily by snapping over the hose and mating fitting; use pliers if needed for leverage
• Inspect adjacent hoses and fittings and replace if cracked or damaged

The Flood Switch is an OEM part for GE dishwashers. This critical component detects and prevents potential overflows by monitoring water levels within the dishwasher. When excessive water is detected, the flood switch signals the dishwasher to shut off water flow, preventing leaks and potential water damage.

Causes of a bad flood switch can include electrical failures, physical damage from debris, or wear and tear from repeated use. If the flood switch malfunctions, it may not properly detect water levels, leading to possible overflows or improper operation of the dishwasher.

Symptoms of a bad flood switch include:

• The dishwasher stopping mid-cycle
• Water not filling or overfilling the dishwasher
• Error codes related to water level issues
• Leaks around the dishwasher

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This high loop drain hose creates the required elevated drain loop to help prevent dishwasher backflow and ensure proper drainage. It replaces a worn or damaged drain loop and restores correct drain routing for reliable performance. What it does:

• Forms the high loop in the dishwasher drain line to reduce risk of sink water siphoning back into the appliance
• Directs wastewater from the dishwasher into the household drain properly
• Helps avoid intermittent draining issues caused by a collapsed or split drain loop
• Fits into existing drain connections—used where an elevated drain loop is required

• Designed for in-line replacement; route the hose to create a high loop secured under the countertop or cabinet as shown in the appliance installer instructions
• Turn off power and water supply to the appliance before performing service
• Inspect clamps and fittings and replace if corroded; ensure all connections are snug but not over-tightened

This upper wash impeller circulates water to the upper spray system during the wash cycle, helping deliver thorough cleaning across dishes on the upper rack and throughout the tub.

• Drives water flow to the upper spray arm/manifold
• Worn or damaged impeller can cause weak spray, poor cleaning, or longer cycle times
• Physical damage (warping, cracks, stripped splines) warrants replacement

• Disconnect power and water before servicing
• Access is typically through the sump/pump area; note impeller orientation during removal
• Inspect mating parts (seal, hub, shaft/splines) and replace if worn
• Hand-tighten fasteners to OEM guidance and verify free rotation before reassembly

The Hub is an OEM replacement part for GE dishwashers. It is the central mechanism which attaches to the tub and facilitates rotation of the upper spray arm above dishes.

Causes of a bad hub include wear from years of repeated rotation, accumulation of hard water scale deposits inside moving parts, or accidental impact damage. This reduces proper function over time.

Symptoms of a bad hub include:

• Loud clunking or grinding noises from the center mechanism
• Reduced cleaning performance on upper racks or portions of dishes
• Dishes showing water spots or soil in sections not adequately rinsed
• Inability to attach or move the upper spray arm assembly smoothly

This OEM GE hub replacement is also compatible with Crosley, and KitchenAid models.

The Fill Funnel Service Kit is an OEM replacement part for GE dishwashers. It contains the funnel assembly and seal/gasket used for the water inlet. Reliable filling is important for effective cleaning.

Causes can be cracks, tears, or deformities developing in seals over extended use periods. Mineral buildup may also compromise sealing surfaces.

Symptoms of a bad service kit include:

• Water leaks from around the inlet area
• Inconsistent water filling during dishwasher cycles
• Damp residue or puddles below inlet assembly

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

The Fill Funnel Service Kit is an OEM replacement part for GE dishwashers. It contains the funnel assembly and seal/gasket used for the water inlet. Reliable filling is important for effective cleaning.

Causes can be cracks, tears, or deformities developing in seals over extended use periods. Mineral buildup may also compromise sealing surfaces.

Symptoms of a bad service kit include:

• Water leaks from around the inlet area
• Inconsistent water filling during dishwasher cycles
• Damp residue or puddles below inlet assembly

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This dishwasher fill hose routes incoming water from the inlet valve into the tub. Replacing a brittle or leaking hose helps restore proper filling and reduces the risk of water leaks under the unit.

• Carries fresh water from the inlet valve to the dishwasher during the fill cycle
• Helps maintain correct water level for reliable wash performance
• Common symptoms of a failed hose: leaks near the toe kick, slow fill, or no fill
• Replaces hoses that are cracked, swollen, kinked, or deteriorated

• Disconnect power and shut off the water supply before service
• Place a towel or shallow pan to catch residual water
• Access behind the lower kick panel; transfer existing clamps/fittings as needed
• Route the hose without kinks, fully seat connections, restore water, and check for leaks during a test cycle

This fill hose routes incoming water from the household supply into the washer. It replaces cracked, split, or leaking inlet hoses to restore proper water fill and help prevent leaks during the wash cycle. What it does

• Connects the home water supply to the washer's inlet valve to allow normal water fill.
• Replaces damaged or deteriorated hoses that drip, spray, or fail to maintain water flow.
• Helps eliminate visible leaks and reduces the risk of water damage around the appliance.
• Restores reliable fill performance when the original hose is worn, swollen, or split.

• Turn off water supply and unplug the washer before starting installation.
• Confirm correct hose orientation and thread type before tightening to avoid cross-threading.
• Hand-start threads, then snug with a wrench—do not overtighten; check all fittings for leaks after restoring water.
• Inspect inlet valve and fittings; replace any corroded or damaged connectors for a secure seal.

The Fill Funnel Service Kit is an OEM replacement part for GE dishwashers. It contains the funnel assembly and seal/gasket used for the water inlet. Reliable filling is important for effective cleaning.

Causes can be cracks, tears, or deformities developing in seals over extended use periods. Mineral buildup may also compromise sealing surfaces.

Symptoms of a bad service kit include:

• Water leaks from around the inlet area
• Inconsistent water filling during dishwasher cycles
• Damp residue or puddles below inlet assembly

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

The Conduit Main Assembly is an OEM replacement part for GE dishwashers. It is installed within the dishwasher tub below the upper wash arm, and is responsible for securely mounting and holding the upper wash arm in place during operation.

Causes of a bad upper wash arm support include:

• Symptoms of a bad upper wash arm support include:
• Vibration or noise from an unsecured wash arm
• Improper alignment of spray pattern
• Restricted rotation of the wash arm during washing
• Leaks at the tub connection point

Symptoms can include cracks or breaks that compromise its structure, or wear over extended use without replacement.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This small plastic clip secures a refrigerator's wiring conduit or harness to the cabinet, keeping wires routed and protected from abrasion. It helps reduce strain on connections and prevents wires from contacting moving parts. What it does:

• Holds wiring conduit or harness in place to maintain neat routing
• Prevents wires from rubbing on sharp edges or moving components
• Reduces strain on electrical connections that can cause intermittent faults
• Helps maintain safe separation between wiring and high-heat or mechanical areas

• Turn power off at the appliance and unplug before inspecting or replacing wiring clips
• Remove access panels only as needed to reach the clip; avoid stressing surrounding wires
• Snap the clip into the original mounting slot or replace any damaged fasteners for a secure fit
• If wires show damage or burns, replace the wiring/harness

This flexible silverware bellow seals and guides water flow around the dishwasher silverware basket, helping maintain proper spray circulation and keeping utensils contained for more consistent cleaning results. What it does:

• Replaces a torn or worn bellow that can allow utensils to block spray or shift during a cycle
• Helps direct wash water into the silverware area for more even cleaning
• Prevents small items from falling through gaps beneath the basket
• Reduces the chance of debris collecting where the basket meets the tub

• Disconnect power to the appliance before attempting any service.
• Typically snaps or slides into place; remove the silverware basket for access.
• Inspect surrounding gaskets and the basket for damage; replace if worn.

This side blaster assembly mounts to the dishwasher's tub wall and directs a focused spray into the wash cavity to help scour stuck-on residue. Replace if the nozzle is cracked, clogged, or leaking to restore proper cleaning performance.

• Provides targeted side-wall spray to supplement the main wash arms
• Helps flush debris and improve coverage along racks and corners
• Common failure signs: weak or no side spray, poor cleaning near the side wall, visible cracks, or leaks at the side jet
• Restores intended spray pattern and water distribution when the original is damaged or blocked

• Disconnect power and turn off the water supply before servicing
• Remove the lower rack to access the side blaster location
• Release the retainer/screw, disconnect the hose/tube, and install the new assembly; ensure the sealing surface is clean and properly seated
• Reconnect, secure, and run a test cycle to check for leaks and proper spray

This SCR 8-18 silicon-controlled rectifier replaces the control semiconductor that switches and regulates power to heating or motor circuits in compatible appliances, restoring proper power delivery and control. It's a direct-fit electrical replacement part. What it does

• Acts as a switching device on control boards to allow or block current flow when signaled.
• Regulates power delivered to heating elements or motor circuits to enable proper operation.
• Commonly linked to symptoms like no heat or intermittent heating, motors that won't start, or erratic control-board behavior.
• Helps restore reliable on/off control when a failed SCR is causing open or shorted conditions.

• One SCR 8-18 silicon-controlled rectifier (WD02X10160).

• Always disconnect power before servicing the appliance to avoid shock.
• Handle the part carefully; avoid touching leads and use anti-static precautions if available.
• Inspect surrounding connectors and wiring for damage; replace any corroded terminals.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is a machine screw used to secure dishwasher components. The 10-32 thread and 3/8-inch length with an integrated hex washer head provide a firm, vibration-resistant hold to keep parts properly fastened.

• Secures brackets, panels, or internal assemblies in the dishwasher
• Helps prevent looseness, rattling, or misalignment during operation
• Common symptoms of a missing/stripped screw include panel movement, vibration, or loose mounting points

• Disconnect power and shut off water before servicing
• Use the correct nut driver or socket to avoid stripping the head
• Replace any damaged or missing screws in matching locations
• Do not overtighten; snug to manufacturer's torque guidance when available

The Door Cable and Spring Kit is an OEM part for GE dishwashers. This kit includes the necessary cables and springs that connect to the dishwasher door, allowing it to open and close smoothly and securely. The components work together to provide the right tension and balance, preventing the door from falling open too quickly or not staying closed properly.

Common causes of a bad door cable and spring include wear and tear from regular use, accidental damage, or corrosion over time. When these components fail, the door may become difficult to operate or unsafe.

Symptoms of a bad Door Cable and Spring Kit include:

• The dishwasher door falling open too quickly
• The door not staying closed securely
• Difficulty in opening or closing the door
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Hinge Pulley is an OEM part for GE dishwashers. This part works with the door springs and cables to provide smooth and balanced movement. This pulley ensures that the door operates efficiently, making it easy to load and unload dishes.

Causes of a bad door hinge pulley can include wear and tear from regular use, accumulation of debris or grease, or damage from accidental impacts.

Symptoms of a bad door hinge pulley include:

• The dishwasher door not staying open or closed properly
• Difficulty in opening or closing the door
• Unusual noises during door operation, such as squeaking or grinding
• The door feeling loose or unbalanced

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Friction Washer is an OEM component specifically designed for GE dishwashers. This friction washer is a thin circular part that creates resistance through surfaces rubbing together. It is often used beneath a mounting nut to prevent components from loosening during operation.

Symptoms of a bad friction washer include loose or separating connections where the washer is installed, such as:

• Drain pump mounting fittings that become detached
• Water connections that leak at the threaded joints
• Door handle mounts that allow play in the mechanism

Causes of failure can be cracks, wear or deformities in the washer that reduce its friction capabilities over time. Vibrations from use may also cause premature wear.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.

This front tub spacer cushions and positions the washer tub to reduce vibration and keep the inner and outer tubs properly aligned during operation. It helps maintain smooth spin cycles and prevents metal-to-metal contact. What it does:

• Centers and supports the front of the washer tub to maintain proper drum alignment
• Absorbs movement to reduce vibration and noise during spin
• Prevents rubbing or contact between the tub and cabinet components
• Can be associated with symptoms like excessive vibration, rubbing sounds, or off-center spins

• Designed for direct replacement; inspect surrounding seals and mounts during service
• Use basic hand tools; follow the washer's service manual for safe disassembly and reassembly
• Disconnect power and water supply before beginning any repair

This dishwasher junction box cover encloses the power-connection compartment at the base of the unit. Replacing a damaged or missing cover helps protect wiring from debris and accidental contact, restoring a safe, secure connection area. What it does:

• Covers and secures the dishwasher's electrical junction box
• Helps shield wire splices from moisture, dust, and accidental contact
• Restores proper fit when the original cover is cracked, broken, or missing
• Useful if the junction box won't stay closed or the cover no longer secures properly

• Includes 1 junction box cover

• Disconnect power at the circuit breaker before servicing
• Remove the lower access/kick panel to reach the junction box
• Remove the old cover and screw, position the new cover, and secure with the existing hardware
• Ensure all wiring and the strain relief are fully inside the box before closing; restore power and test

The Water Valve Assembly is an OEM replacement part for GE dishwashers. It consists of multiple valves that work together to control water flow during different stages of the wash cycle.

Causes of a bad water valve assembly can include mineral buildup restricting flow, cracks developing in valve housings allowing leaks, and failure of components like solenoids or inlet/outlet valves.

Symptoms of a faulty water valve assembly include:

• Abnormal sounds or squealing during filling
• Inability to properly fill or wash dishes
• Slow, inconsistent, or no water circulation
• Water leaks in the valve area

This GE replacement is compatible with additional brands like Hotpoint, Profile, and select Kenmore models as well.

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

The Electronic Control Board Jumper Wire is an OEM replacement part for GE dishwashers.

Causes of a faulty jumper wire include fracturing of internal interconnects from normal circuit board flexing during door closes. Overly aggressive cleaning solvents may also damage wire insulation over time.

Symptoms of a problematic jumper wire include:

• Intermittent or unreliable operation of wash cycle features
• Unresponsive touch controls and inability to start cycles
• Error codes displayed and failure to detect cycle outputs

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

The Service Machine Control is an OEM part for GE dishwashers. This part oversees and manages the various functions and cycles of the appliance. Acting as the brain of the dishwasher, this control unit receives input from the user and sensors throughout the machine, then directs operations such as water intake, temperature regulation, cycle duration, and drying processes.

Causes of a bad Service Machine Control can include power surges, moisture exposure, or physical damage to the circuitry.

Symptoms of a bad Service Machine Control include:

• Dishwasher failing to start or complete cycles
• Inconsistent cleaning performance
• Unusual noises or error codes indicating faults in the system
• The dishwasher not responding to controls or inputs

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The AC Harness Assembly is an OEM replacement part for GE dishwashers. It is responsible for connecting the dishwasher's electrical system to the power source, ensuring proper functioning and power supply. This part provides a reliable and secure connection between the dishwasher and the electrical outlet. It is designed to deliver consistent and safe power during operation.

Symptoms of a faulty AC harness assembly include:

• Intermittent power loss
• Electrical shorts or sparks
• Dishwasher not turning on or receiving power

A bad AC harness assembly can occur due to wear and tear over time, loose or damaged wiring, or electrical malfunctions. If you experience issues such as intermittent power loss, electrical shorts, or the dishwasher not turning on, it may be time to replace the old or damaged AC harness assembly with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This wiring harness assembly connects the appliance's DC control and related components, restoring proper electrical connections for control and power signals. Use it to replace a damaged or faulty harness to help recover normal operation. What it does:

• Provides the factory-style wiring connections between the DC control and associated components
• Restores reliable power and signal paths to prevent intermittent operation
• Helps resolve symptoms such as no power to controlled circuits, erratic control behavior, or electrical faults
• Maintains correct routing and connector fit for OEM compatibility

• Disconnect power to the appliance before beginning any work.
• Compare the replacement harness to the original to ensure connector locations and routing.
• Route and secure the harness away from heat sources and moving parts; avoid pinched wires.

This dielectric shield is a small heat-resistant insulator that protects ignition wiring and components from heat and prevents electrical arcing near burners. It helps maintain reliable spark ignition and reduces risk of shorts or damage from high temperatures. What it does:

• Shields spark module wires and electrode areas from direct heat exposure
• Helps prevent arcing and electrical shorts that can interrupt ignition
• Reduces risk of melted or damaged wire insulation near burners or ovens
• Commonly replaced when cracked, deformed, or showing burn marks that affect ignition

• Disconnect power (and gas if applicable) before servicing electrical or ignition components
• Inspect surrounding wiring and connectors; replace any damaged insulation or terminals
• Reinstall using original mounting hardware and ensure the shield fully covers the wire/electrode area

This control box bottom is the lower housing that protects and supports the appliance's control electronics, helping keep wiring and components secure from debris and moisture. Fits into the control assembly to restore proper enclosure and support. What it does:

• Provides a protective lower enclosure for the control board and wiring harness
• Helps keep dust, lint and moisture away from sensitive electronics
• Secures the control board and related connectors in their correct position
• Prevents rattling or movement that can cause loose connections or noise

• One control box bottom (base cover) as pictured

• Disconnect power before servicing to avoid shock or component damage
• Handle electronics carefully and avoid touching circuit contacts
• Installation typically requires basic hand tools and removal of the control housing

This control box top is the plastic cover that protects the appliance's control board and user controls while keeping the front of the console finished and safe. It helps prevent dust, moisture, and accidental contact with internal electronics. What it does

• Covers and protects the control board and internal wiring behind the console.
• Provides the mounting surface and openings for buttons, knobs or touch interfaces.
• Prevents dirt, lint, and moisture from reaching sensitive electronics.
• Restores a secure, finished appearance to a damaged or cracked console area.

• Always disconnect power to the appliance before beginning work to avoid electrical shock.
• Remove any bezel, screws or clips securing the old top and transfer any required mounting hardware or trim pieces.
• Handle the control board and connectors with care; avoid touching circuit components or bending contact pins.

This insulation bag assembly installs around the dishwasher tub to dampen operating noise and limit heat transfer. Replace when the original insulation is missing, damaged, or saturated to help maintain quieter cycles and protect nearby cabinetry. What it does:

• Provides an acoustic and thermal barrier along the tub exterior
• Helps reduce cycle noise and vibration
• Helps minimize heat and moisture reaching surrounding cabinets
• Replacement may help with louder operation, warm exterior panels, or increased condensation

• 1 insulation bag assembly

• Disconnect power at the breaker and shut off the water supply; remove toe panel and slide the dishwasher out for access
• Wear gloves/long sleeves when handling insulation
• Position in the factory location without pinching wiring or blocking vents, door seals, or moving parts
• Reinstall panels, level the unit, restore power/water, and run a test cycle to verify proper operation and no leaks

This dishwasher hose clamp secures internal hoses to pumps or fittings, helping prevent leaks and disconnections. Replace a weakened or damaged clamp to restore a tight, reliable seal at the connection.

• Provides clamping pressure to hold a hose on pump, sump, or drain fittings
• Helps stop water leaking at hose joints
• Resolves: loose or disconnected hoses, water under the unit/base, or poor draining from a slipped drain hose
• Replaces worn, rusted, or deformed clamps after service

• Disconnect power and turn off the water supply before servicing
• Pull the dishwasher forward as needed for access; place a towel or pan to catch residual water
• Seat the hose fully, then compress or tighten the clamp per its design; position just behind the hose barb bead
• Run a short cycle and inspect for leaks at the connection

The Clamp is an OEM replacement part for GE dishwashers. It holds and secures critical components such as tubing or hoses securely in place. Clamps play an important supporting role by fastening tubing and preventing kinking, both of which are essential for proper water flow and circulation within the dishwasher.

Causes of a bad clamp can include cracks, corrosion, or fatigue that causes the clamp to fail in its gripping function over time. Hoses or tubes may also wear down a clamp through constant vibration.

Symptoms of a bad clamp include:

• Leaks from hoses, tubes or connections
• Reduced water pressure or uneven spray patterns
• Moisture or water damage around connections
• Loose hoses that rub or chafe

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 AB TSQ 5/8 SS

The Door Latch is an OEM replacement part for GE dishwashers. It serves the critical function of securely keeping the door closed during wash cycles through its engaging bolt design.

Over extended use, aspects of the latch can degrade such as worn plastic catch areas, loosened screws, or a faulty latch hook mechanism. Causes are generally normal wear and tear.

Symptoms of a bad latch include:

• The door not closing fully or popping open accidentally
• Inability to fully lock or latch no matter how hard the door is pressed
• Damaged or stripped screws holding the mechanism

This OEM replacement part is compatible with Hotpoint, RCA and some Kenmore models as well.

This flexible door gasket seals the dishwasher tub opening to keep wash water inside the cabinet. Replace a worn or flattened gasket to stop leaks and restore a tight, quiet door seal.

• Compresses between the door and tub to prevent water from escaping during wash and rinse cycles
• Helps reduce moisture at the front corners and under the door
• Common failure signs: water leaking at the bottom/front of the door, visible tears, cracks, or permanent flattening of the seal
• Can also help if the door feels loose or doesn't seal evenly

• Disconnect power and turn off water before service
• Open the door and pull the old gasket straight out of the groove; clean the channel of debris and buildup
• To ease installation, warm the new gasket to relax it, then press it into the channel starting at the top center and work evenly down both sides
• Close the door for several minutes to help seat the new seal, then run a short cycle to check for leaks

The Tub to Cabinet Trim is an OEM part for GE dishwashers. This kit includes the trim that fits around the edges of the dishwasher tub, providing a finished look and sealing the edges to prevent leaks and debris from getting into the internal components. The trim measures approximately 26 x 2 inches.

Causes of a bad tub trim can include wear and tear from regular use, damage from cleaning or loading dishes, and exposure to moisture and detergents which can degrade the material over time. Improper installation can also result in poor fitting or gaps in the trim.

Symptoms of a bad Tub Trim Kit include:

• Visible gaps or loose trim around the dishwasher tub
• Leaks around the edges of the tub
• Accumulation of debris in the trim area
• The dishwasher door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Tub to Cabinet Trim is an OEM part for GE dishwashers. This kit includes the trim that fits around the edges of the dishwasher tub, providing a finished look and sealing the edges to prevent leaks and debris from getting into the internal components. The trim measures approximately 26 x 2 inches.

Causes of a bad tub trim can include wear and tear from regular use, damage from cleaning or loading dishes, and exposure to moisture and detergents which can degrade the material over time. Improper installation can also result in poor fitting or gaps in the trim.

Symptoms of a bad Tub Trim Kit include:

• Visible gaps or loose trim around the dishwasher tub
• Leaks around the edges of the tub
• Accumulation of debris in the trim area
• The dishwasher door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Tub to Cabinet Trim is an OEM part for GE dishwashers. This kit includes the trim that fits around the edges of the dishwasher tub, providing a finished look and sealing the edges to prevent leaks and debris from getting into the internal components. The trim measures approximately 26 x 2 inches.

Causes of a bad tub trim can include wear and tear from regular use, damage from cleaning or loading dishes, and exposure to moisture and detergents which can degrade the material over time. Improper installation can also result in poor fitting or gaps in the trim.

Symptoms of a bad Tub Trim Kit include:

• Visible gaps or loose trim around the dishwasher tub
• Leaks around the edges of the tub
• Accumulation of debris in the trim area
• The dishwasher door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Mounting Bracket is an OEM replacement part for GE dishwashers. This bracket secures the dishwasher in place underneath the kitchen countertop.

Causes of failure relate to stresses of a heavy dishwasher pushing down against the countertop edges combined with constant machine vibration over extended service life.

Symptoms of a cracked or damaged mounting bracket include:

• Excessive movement play or sloshing of the installed dishwasher
• Strange noises when the dishwasher is running
• Difficulty removing or installing the dishwasher
• Visible bending of bracket components out of intended position

This genuine GE bracket is compatible with Hotpoint and RCA dishwashers.

The Countertop Screw & Buttonplug is an OEM part for GE dishwashers. This assembly includes screws and button plugs designed to securely fasten the dishwasher to the underside of kitchen countertops.

Causes of a bad Countertop Screw & Buttonplug can include stripped threads from over-tightening, corrosion due to exposure to moisture, or general wear and tear that diminishes the screws' and plugs' ability to maintain a secure hold.

Symptoms of a bad Countertop Screw & Buttonplug include:

• Dishwasher tilting forward when the door is opened
• Visible gaps between the dishwasher and countertop
• Loose feeling or movement of the dishwasher when pushed
• Screws failing to hold or remain in place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control board clip secures the dishwasher's electronic control board to its mounting location, keeping it properly seated during operation. Replacing a damaged or missing clip helps prevent vibration, movement, and wire-connector strain.

• Holds the electronic control board firmly in its designated mount or housing
• Helps prevent board movement, rattling, and connector stress from vibration
• Replace if the clip is cracked, deformed, or missing
• Symptoms include a loose control assembly, rattling noises, or a board that won't stay seated

• Disconnect power at the breaker before servicing
• Access the control area; support the board when removing/installing the clip
• Handle the control board by the edges and observe ESD precautions
• Ensure the new clip is fully seated and the board is secure before reassembly

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
