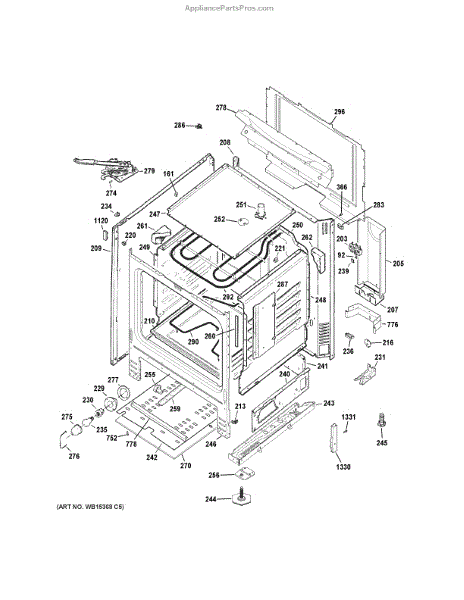

Parts for Ge JB450DF2BB: Body Parts

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

The Terminal Block Assembly is an OEM replacement part for GE electric stoves. It acts as the central wiring connection hub, routing power to critical heating components such as the oven bake/broil elements and stovetop burners.

Symptoms of a bad terminal block include:

• Intermittent or unpredictable burner/heating element operation
• Inability to achieve proper cooking temperatures
• Buzzing or crackling noises from inside the stove cabinet

Causes stem from normal wear over time, as vibration and heat cycling can cause cracks or corrosion in the block's electrical connections.

This OEM GE part is compatible with Hotpoint, RCA, and some Kenmore electric stove models.

This guard terminal protects and covers exposed wire terminals to help prevent accidental contact and shorting. It's a simple replacement that restores the original terminal protection for safe operation. What it does:

• Covers and insulates exposed appliance wire terminals to reduce risk of shorts and arcing
• Helps prevent accidental contact with live terminals during use or service
• Commonly replaced when terminal guard is cracked, melted, or missing
• Restores proper routing and protection of terminal connections

• One guard terminal

• Disconnect power to the appliance before inspecting or replacing terminals
• Remove any panels necessary to access the terminal area; avoid stressing wires or connectors
• Verify the guard aligns with the terminal block and secures over the exposed terminals
• If terminals or wiring show heat damage or corrosion, replace those components.

This bracket mounting terminal secures the appliance's main electrical terminal block to the cabinet, keeping wiring stable for a safe, reliable power connection. It's a direct-fit replacement where terminal block support is damaged or loose. What it does

• Physically mounts and supports the main terminal block so incoming power wires stay secure
• Keeps wiring strain-relieved to reduce the risk of loose connections or arcing
• Restores a stable electrical connection when a broken or bent bracket causes intermittent power or poor contact
• Helps prevent overheating at the terminal connection by maintaining proper alignment

• One bracket mounting terminal

• Disconnect all power before servicing; lock out and tag if needed
• Use basic hand tools; avoid overtightening terminal screws to prevent damage
• Inspect wiring and terminal block; replace any damaged wires or connectors when present

This capillary clip secures the oven thermostat's sensing bulb/capillary to the cavity wall so it stays correctly positioned for accurate temperature control. Replace a missing or damaged clip to prevent a sagging bulb and erratic oven performance.

• Holds the thermostat capillary tube/sensing bulb in place inside the oven
• Helps maintain consistent temperature regulation by keeping the bulb properly located
• Direct replacement for a broken, corroded, or missing clip
• Symptoms include a loose or dangling bulb, uneven baking, or temperature swings

• Disconnect power (and gas, if applicable) and allow the oven to cool completely
• Access the oven cavity; locate the thermostat sensing bulb and capillary along the wall or back panel
• Position the bulb/capillary and secure with the new clip; avoid kinking or crushing the tube
• Restore power, and test operation

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a right-side guide support that secures and aligns a sliding component so drawers or shelves operate smoothly and stay on track. Replaces a worn or broken guide support to restore proper movement and seating. What it does:

• Holds the right-side guide rail or track in place so the drawer or shelf slides evenly
• Prevents the drawer or shelf from sagging, binding, or falling off the track
• Restores proper alignment when the original guide is cracked, broken, or worn
• Works with the existing rail, clips, and mounting hardware to maintain smooth travel

• Disconnect power or unplug the appliance before accessing internal components
• Access may require removing the drawer, shelf, or front panel—use basic hand tools
• Inspect related clips, rails, and fasteners and replace any damaged pieces for best results

Left hand side

Right hand side

This support base is the structural mounting piece that secures the appliance cabinet and helps keep components aligned for stable operation. Replacing a worn or damaged support base restores proper cabinet support and reduces vibration. What it does:

• Provides a stable mounting point for the appliance cabinet and internal components
• Helps maintain alignment of panels and doors for correct sealing and operation
• Reduces excessive vibration and rattling caused by a broken or cracked support
• Prevents further wear to adjoining parts by restoring proper support

• Disconnect power (and water, if applicable) before beginning any repair.
• Inspect surrounding clips and fasteners; replace any damaged hardware for a secure fit.
• Some models may require partial disassembly of the cabinet to access the support base.

This drawer support holds one side of the range's storage/broiler drawer rail in place so the drawer opens and closes smoothly without sagging or binding.

• Supports the drawer slide/rail to keep the drawer aligned
• Helps prevent a sagging, crooked, or hard-to-open lower drawer
• Replaces a cracked, bent, or missing support bracket
• Common symptoms: drawer tilts, drags, or won't stay on track

• Unplug range and allow all surfaces to cool before servicing
• Remove the drawer to access the support
• Retain and transfer existing mounting hardware if needed
• Verify left/right position and orientation to match the original

This oven felt seal fits around the door perimeter to cushion the door and help reduce heat loss. It restores the intended door clearance and soft contact between the oven door and frame for safer, quieter operation. What it does:

• Cushions the oven door edge to prevent metal-on-metal contact and reduce rattling
• Helps limit heat and smoke from escaping the oven cavity when the door closes
• Restores proper door clearance to prevent scraping or uneven sealing
• Commonly replaced when felt is worn, compressed, torn, or missing

• One oven felt seal as shown

• High-level replacement; remove the oven door or open hinge per your service manual before replacing the seal
• Work with the oven powered off and fully cooled; disconnect power for safety
• Press the felt into the channel or adhesive area; ensure even fit around the full perimeter

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bail is the replacement door/handle support used to secure a handle or attach components to an appliance door or panel. It restores a stable grip and proper attachment when the original bail is cracked, bent, or missing. What it does

• Replaces a worn, broken, or missing bail that supports a door handle or accessory
• Restores a secure connection so the handle or component doesn't wobble or detach
• Helps prevent further damage from a loose or improperly supported handle
• Fits into the existing mounting points to re-establish proper alignment

• One replacement bail

• Disconnect power and remove any removable panels or doors before starting
• Use basic hand tools; retain original screws and fasteners unless damaged
• Align bail with existing mounting holes and secure without over-tightening

This wiring divider secures and separates appliance wiring harnesses to keep wires routed away from moving parts and sharp edges, reducing the chance of chafing and intermittent electrical problems while simplifying service access. What it does:

• Holds and separates wiring bundles to prevent rubbing, pinching, or contact with hot or moving components
• Helps maintain reliable electrical connections by keeping wires organized and strain-relieved
• Reduces risk of shorts or intermittent faults caused by damaged insulation
• Makes panel removal and reassembly neater and faster for servicing

• Disconnect power to the appliance before starting any work
• Remove the appropriate access panel to reach the wiring harness routing area
• Position the divider to guide the harness away from edges or moving parts; secure harness in the divider slot or clip as shown in OEM diagrams
• Inspect nearby wiring and connectors for damage; replace any frayed or compromised wires before restoring power

This oven door latch assembly secures the door during normal operation and during the self-clean cycle, helping the oven maintain a safe seal and proper temperature. Replacing a worn latch restores correct door engagement and safety interlock function.

• Locks and releases the oven door; engages safety switch for self-clean
• Can address a loose door that won't stay closed or won't lock for clean
• Can resolve rattling, incomplete seal, or door-ajar error during clean

• Disconnect power before servicing; allow the oven to cool completely
• Access is typically from the top/rear of the range; remove panels as needed
• Transfer any brackets/rods in the same orientation to the new latch
• Test door open/close and self-clean lock function before reassembly

Right hand side

Left hand side

The Bake Element is an OEM replacement part for GE electric ranges. It is the internal heating element located at the bottom of the oven cavity that provides heat for baking and convection cooking functions. This heating element measures 17 1/2 x 18 1/2 inches.

Causes of a bad bake element include failure due to normal wear and tear over extended use. Exposure to spills or splatters inside the oven can potentially damage heating coils or insulators.

Symptoms of a bad bake element are:

• Inconsistent or uneven baking temperatures
• Element does not heat up or turns red but puts out no heat
• Buzzing/humming sounds from beneath oven cavity
• Failure of oven to operate or preheat as expected

This OEM part is also compatible with ranges sold under the Hotpoint, RCA and some Kenmore brands.

This back cabinet cover replaces the lower rear outer panel that protects internal components and helps keep the appliance stable and secure. Restores proper enclosure and helps reduce debris entry and incidental noise. What it does:

• Covers and protects motors, wiring, and components at the appliance's rear
• Helps prevent dust, lint, and small objects from entering internal areas
• Restores proper airflow routing and reduces rattles caused by a missing or damaged panel
• Improves appliance appearance by replacing cracked, bent, or broken rear trim

• Disconnect power before servicing to avoid electrical shock
• Remove access screws or fasteners securing the old panel; retain hardware if reusable
• Handle the cover carefully to avoid bending or damaging mounting tabs

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Package of 12

A protective terminal block guard that shields and secures the appliance's electrical terminal connections, helping prevent accidental contact and wire strain. Fits the original terminal mounting location and restores the factory safety cover. What it does:

• Covers exposed terminal connections to reduce risk of accidental contact.
• Helps keep wires routed and secured to prevent strain or loose connections.
• Restores the factory protective enclosure after terminal service or replacement.
• Commonly used when replacing or servicing terminal blocks, power cords, or controls.

• Disconnect power at the breaker or unplug the appliance before servicing.
• Install over the terminal block so all connection points are fully covered; secure with original fasteners.
• Inspect terminals and wiring for damage while the guard is off; replace damaged wiring or connectors.
