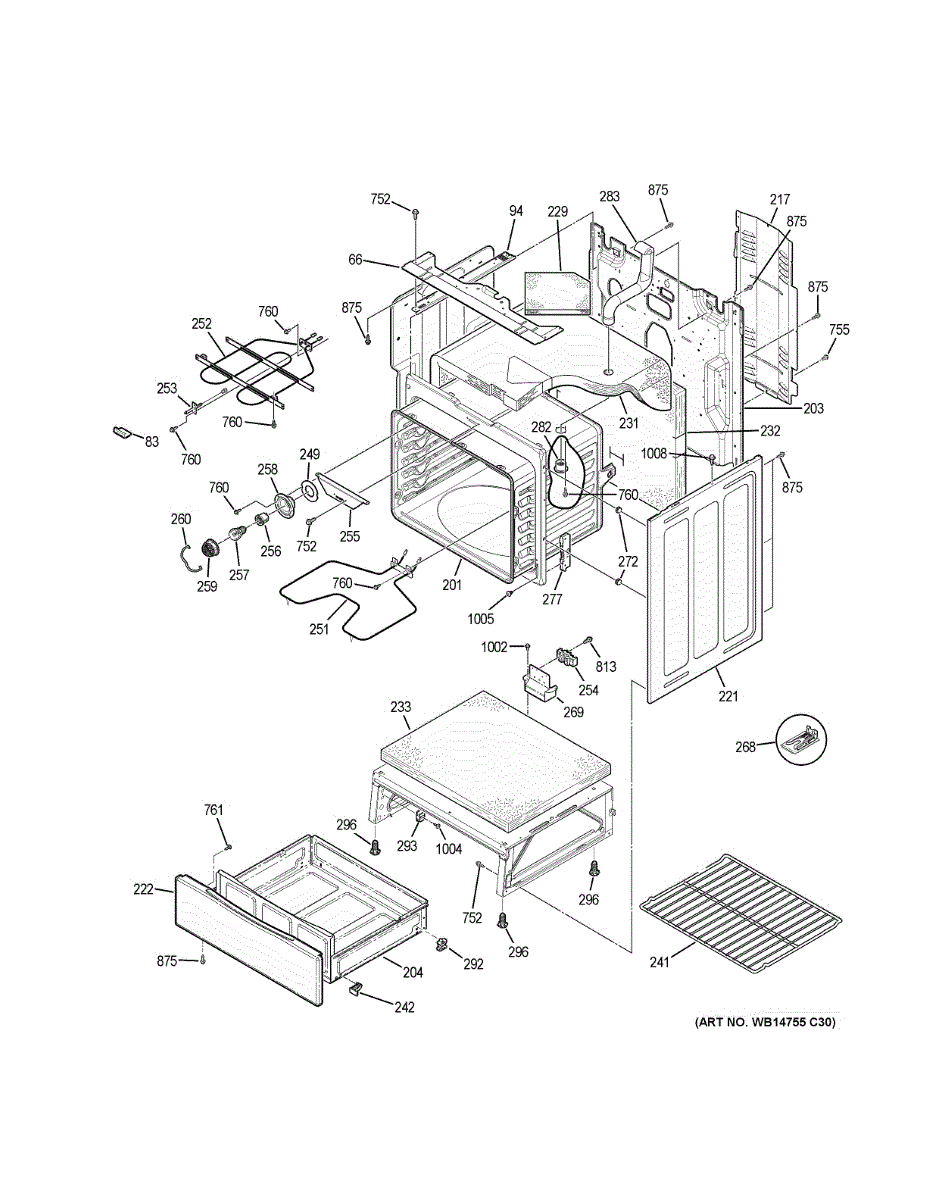

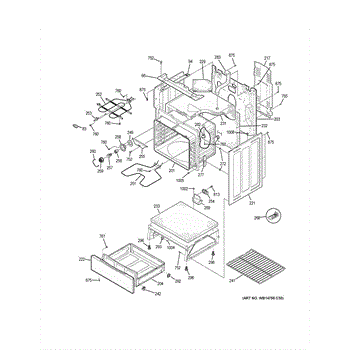

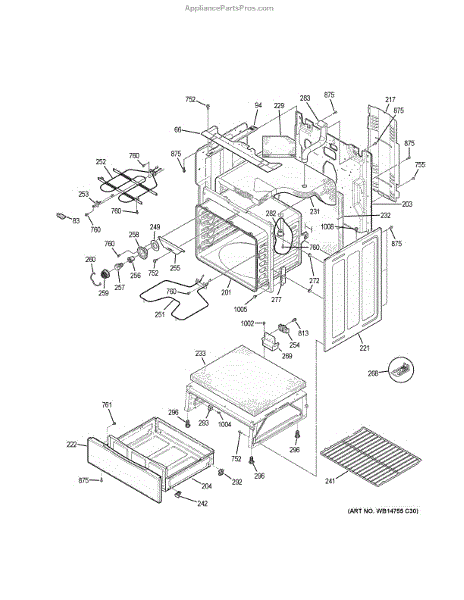

Parts for Ge JB645DK3BB: Body Parts

This replacement drawer-and-slide assembly restores smooth, stable operation of the lower drawer compartment. Swap out a bent, jammed, or missing assembly to regain easy access and proper alignment.

• Supports and guides the lower drawer as it opens and closes
• Helps the drawer travel smoothly and sit flush when closed
• Replaces damaged components causing sticking, wobbling, or misalignment
• Common symptoms: drawer difficult to move, falls off track, or won't close fully

• Disconnect power and allow the appliance to cool completely; shut off gas supply if applicable.
• Remove the existing drawer; retain any screws, brackets, or clips reused on your model.
• Engage the new assembly fully on the track/slide and verify proper alignment.
• Open and close the drawer several times to ensure smooth travel before returning to service.

This oven cavity insulation replaces the thermal lining that surrounds the oven interior to help retain heat and improve cooking performance. Restores proper cavity insulation for safer, more efficient oven operation. What it does:

• Replaces worn or damaged insulation that can deteriorate over time
• Helps keep heat inside the oven for more consistent baking and roasting
• Reduces heat transfer to the exterior cabinet and nearby components
• Can address issues like excess heat felt at the oven exterior or degraded cooking consistency

• One oven cavity insulation pad

• Intended for installation behind the oven liner; access typically requires removing the oven door and interior panels
• Handle with care and wear gloves—insulation fibers can irritate skin and lungs
• Ensure power is disconnected at the breaker before beginning service
• Follow OEM instructions and use factory-fastening clips or screws when reinstalling

This OEM-style oven back insulation replaces the rear insulating panel behind the oven cavity to help retain cooking heat and limit heat transfer to the cabinet — restoring normal oven temperature performance and efficiency. What it does:

• Replaces the oven's rear insulating panel that helps keep heat inside the cooking cavity
• Helps maintain even oven temperatures and prevents excess heat loss
• Reduces heat transfer to surrounding cabinet and console surfaces
• Can address symptoms like excessive exterior heat, reduced baking performance, or visible missing/damaged rear insulation

• One oven back insulation panel (1 piece), as shown

• Disconnect power (and gas if applicable) and allow the oven to fully cool before starting
• Wear gloves and eye protection; handle insulation carefully to avoid irritation
• Reinstall in the original orientation without compressing the panel; secure with the OEM fasteners

This oven bottom insulation replaces the loose pad under the oven cavity to help reduce heat transfer and protect the outer cabinet. It restores proper insulation around the oven floor for more consistent oven performance. What it does:

• Replaces the thermal insulation pad located under the oven cavity to help contain oven heat
• Helps reduce heat transfer to the outer cabinet and surrounding components
• Can address symptoms like higher outer cabinet temperatures, uneven baking, or heat felt at the control console area
• Maintains the intended oven airflow path and component protection during normal operation

• One oven bottom insulation pad (1 piece)

• Disconnect power to the appliance before beginning any repair
• Remove oven racks and the oven bottom panel to access the insulation; handle the insulation gently as it can be fragile
• Reinstall panels and racks securely after replacement; ensure insulation is positioned properly
• If insulation is damaged, contaminated, or shows signs of moisture, replace it rather than attempting repairs

The Oven Rack is an OEM part for GE ovens. This rack provides a stable and durable surface for placing baking dishes, pans, and trays inside the oven. Designed to fit perfectly within the oven cavity, it ensures proper airflow around the food, contributing to even cooking and baking results. The rack measures approximately 24"X17".

Common causes of a bad oven rack include bending or warping from heavy loads, rusting or corrosion due to prolonged exposure to moisture, or accidental damage during cleaning or handling.

Symptoms of a bad oven rack include:

• Warped or bent rack wires
• Difficulty sliding the rack in and out of the oven
• Uneven cooking due to improper rack placement
• Rust or flaking metal on the rack

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The drawer wedge aligns and stabilizes your range's lower storage/warming drawer so it slides smoothly and closes flush. Replacing a worn wedge restores proper fit and helps prevent rattling, scraping, and an uneven drawer gap.

• Keeps the lower drawer centered and level in the cabinet
• Provides a firm stop/spacing for a flush, consistent close
• Reduces side-to-side play and vibration during use
• Common symptoms: crooked drawer, uneven front gap, scraping noises, drawer not closing fully

• Disconnect power and allow the range to cool before servicing
• Remove the lower drawer to access the wedge location
• Note the wedge's orientation; install the new wedge in the same position
• Reinstall the drawer and verify smooth travel and proper alignment

This oven light gasket seals the light lens/cover to the oven cavity. Replacing a worn gasket restores a tight barrier that helps keep heat, steam, and splatter away from the light assembly and lets the lens seat securely.

• Creates a heat-resistant seal between the light lens/cover and oven liner
• Helps keep moisture, grease, and food vapor out of the light assembly
• Supports proper seating of the lens cover to prevent looseness or rattling
• Common signs: cracked/brittle or missing gasket, visible gaps around the lens, condensation or residue behind the lens, lens cover that won't stay tight

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove oven racks for access; open/remove the light lens cover as directed in the manual
• Carefully remove the old gasket and any residue; clean the sealing surface
• Fit the new gasket evenly around the lens/fixture and reinstall the lens cover; restore power and test

The Bake Element is an OEM part for GE ovens. It is responsible for providing the necessary heat for baking, ensuring that the oven reaches and maintains the correct temperature for consistent and even cooking results. Measuring 18" from side to side, 17-3/8" from the mounting bracket to the back, and 2 3/4" between terminal centers, it's designed to deliver 2585 Watts at 240 Volts.

Causes of a bad bake element can include regular wear and tear from repeated heating cycles, electrical failures such as short circuits or blown fuses, and physical damage like cracks or breaks from mishandling.

Symptoms of a bad bake element include:

• The oven not heating up or taking too long to heat
• Uneven cooking or baking results
• Visible damage, such as burns or breaks, on the element
• The oven tripping the circuit breaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The broil element assembly is an OEM part for GE ovens. It is responsible for generating intense heat from the top of the oven cavity, allowing you to broil and brown food.

A bad broil element assembly can lead to issues such as uneven heating, failure to reach the desired broiling temperature, or complete lack of heat during the broiling process. Causes of a bad assembly can include wear and tear over time, electrical malfunctions, or damage to the element itself.

Symptoms of a bad broil element assembly include:

• Uneven browning or cooking of food
• Inability to achieve the desired broiling temperature
• No heat coming from the top of the oven during broiling
• Visible damage or burning on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Temperature Sensor Assembly is an OEM replacement part for GE electric wall ovens. It is responsible for accurately reading the oven's internal temperature to provide precise temperature control and safe operation. Consistent and precise temperature readings are necessary for repeatable cooking results.

Symptoms of a bad temperature sensor include:

• Inability to reach or maintain set cooking temperatures
• Fluctuating temperatures causing inconsistent results
• Error codes or fault messages related to temperature regulation
• Potential safety concerns if temperatures run too high or low

Causes of a faulty sensor can be due to failures over extended usage, exposure to high heat cycles, or impedance changes due to dirt or mineral deposits. Precise temperature readings allow for confident cooking.

This OEM GE replacement sensor is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

The Terminal Block Assembly is an OEM replacement part for GE electric stoves. It acts as the central wiring connection hub, routing power to critical heating components such as the oven bake/broil elements and stovetop burners.

Symptoms of a bad terminal block include:

• Intermittent or unpredictable burner/heating element operation
• Inability to achieve proper cooking temperatures
• Buzzing or crackling noises from inside the stove cabinet

Causes stem from normal wear over time, as vibration and heat cycling can cause cracks or corrosion in the block's electrical connections.

This OEM GE part is compatible with Hotpoint, RCA, and some Kenmore electric stove models.

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This anti-tip bracket assembly secures the rear of your range to the floor or wall. It helps prevent the appliance from tipping forward during everyday use and supports compliance with manufacturer safety and installation requirements. What it does:

• Anchors the range so the rear leveling foot engages the bracket to help prevent tipping
• Helps correct a range that rocks, shifts, or tilts when the door is opened or racks are pulled
• Replaces a missing, bent, or corroded anti-tip bracket
• Supports passing the required anti-tip safety check after installation

• One anti-tip bracket assembly

• Disconnect power; for gas models, also shut off the gas supply before starting
• Mount the bracket to the floor or wall as directed in the range's installation instructions
• Slide the range back so the rear leveling foot fully engages the bracket; verify the unit is level
• Perform the anti-tip test specified in the installation manual to confirm proper engagement

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

This hinge receiver secures the appliance door hinge to the cabinet/frame so the door pivots and seals correctly. Replaces a worn or damaged receiver to restore proper door alignment and operation. What it does

• Mounts on the cabinet/frame to receive and support the door hinge pin
• Keeps the door aligned so it opens and closes smoothly
• Commonly replaced when a door sags, rubs, or won't seal fully
• Helps eliminate clicking, binding, or uneven gaps caused by a broken receiver

• Disconnect power (and water supply for appliances with water lines) and remove food/items from the door area as needed
• Use appropriate hand tools; support the door while removing or installing hinge components to prevent drops or injury
• If hardware is corroded or damaged, replace them—only re-use fasteners that are undamaged and appropriately rated

This vent tube directs heated air and moisture from the appliance to its exhaust path, maintaining proper airflow around internal components. Replace a cracked, warped, or missing tube to restore safe ventilation and help prevent heat and condensation buildup. What it does:

• Channels hot air and steam from the cavity to the outlet
• Helps prevent heat accumulation around controls and adjacent surfaces
• Reduces moisture/condensation at the vent outlet
• Common symptoms: excessive warmth near the console, persistent odors/steam, visible damage, or rattling from a loose/broken tube

• 1 vent tube

• Disconnect power; shut off gas. Allow the appliance to cool completely before servicing.
• Access and attachment points vary by model; refer to your service manual or diagram for location.
• Note the tube's orientation and routing; transfer any brackets or seals from the old part if present.
• Reuse existing screws/clamps and ensure the vent path is clear after installation.

The Rear Door Support is an OEM replacement part for GE ranges. Located at the base of the range, this bracket provides weight-bearing support for the lower oven drawer. It facilitates smooth extension and retraction of the drawer.

Causes of faulty support can include cracks or fractures developing over extended use, worn joints unable to sustain drawer weight, or misalignment from repeated opening/closing stress.

Symptoms of a bad support include:

• Loose or sagging lower oven drawer
• Grinding or binding noises when operating the drawer
• Difficulty fully extending or retracting the drawer
• The drawer not sitting securely in a closed position

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges.

This leveling leg is an authentic OEM replacement part sourced directly from the manufacturer. Leveling legs are used on the bottom of stoves to correct imbalances on the cooking top caused by floors being unlevel. The leveling leg is threaded so that it can be adjusted up or down as needed. There are four holes for leveling legs on the stove's bottom. Each leg can be adjusted independently. If the legs are missing or lost, these replacements will help level the stove for more even cooking. When the stove is not level, the food inside pans will be unlevel and not cook evenly.Make sure the power is disconnected before installing the leveling leg. Tilt the stove back and place a chock underneath one side so that the leg can be screwed up or down as needed. Remove the chock and check for level. If the stove is still unlevel, repeat the procedure on the side that is not level. Continue to adjust until the stove is level. Restore the power to the stove.This leveling leg is a black part that is sold individually. It is designed for use on ranges manufactured by General Electric, Kenmore, and Hotpoint.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Black. 8-18 AB HXW 3/8

Package of 12

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
