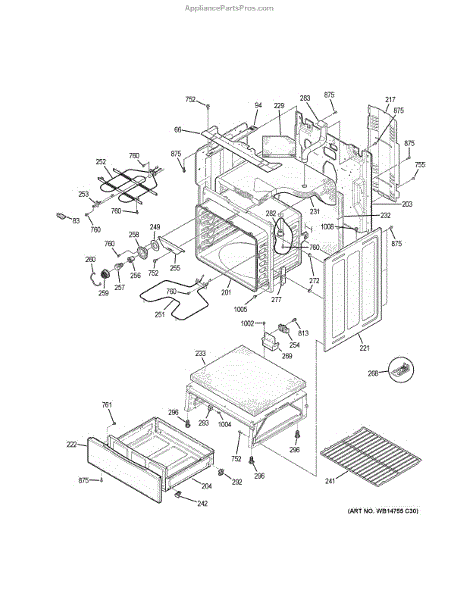

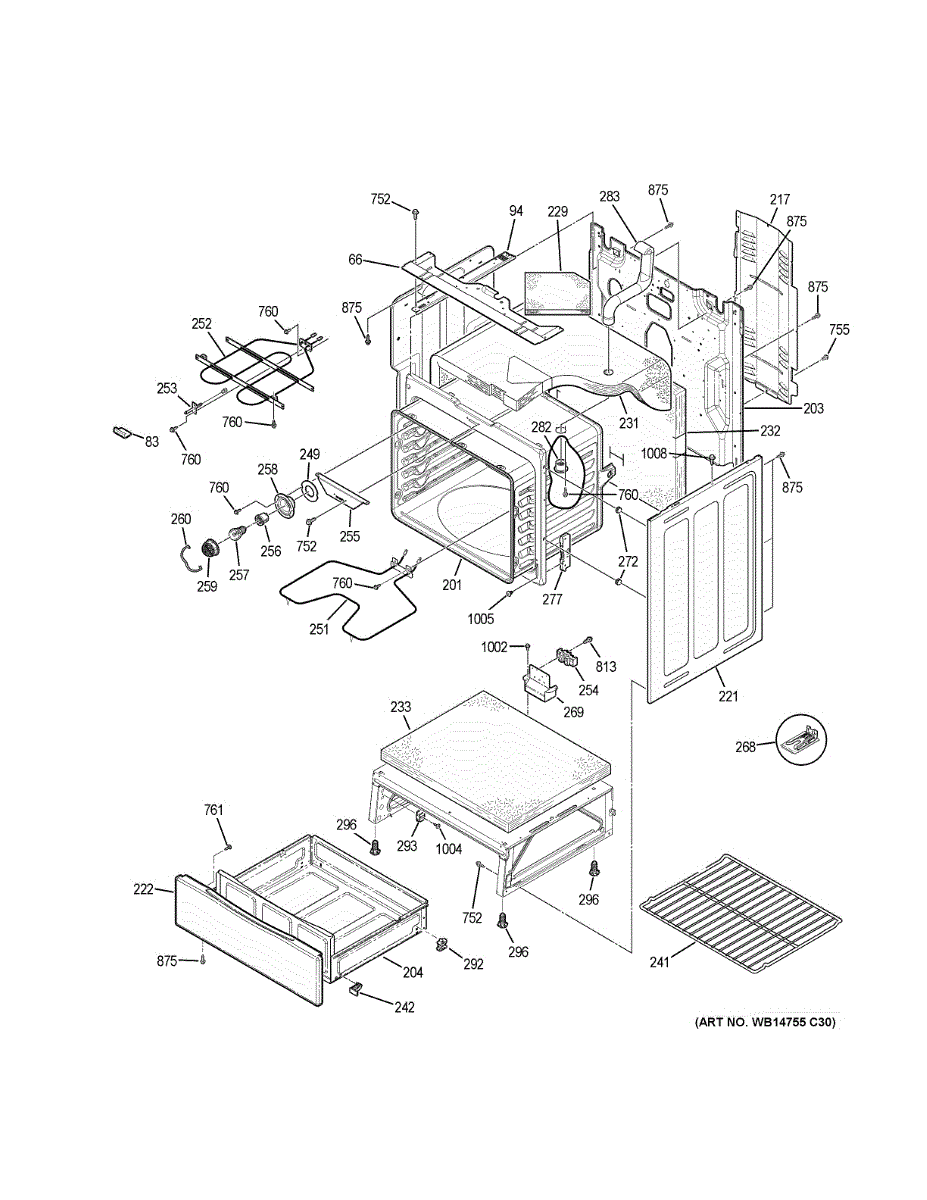

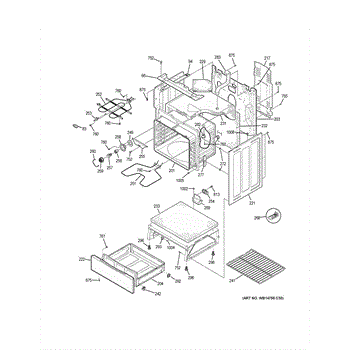

Parts for Ge JB645RK4SS: Body Parts

Rangetop enclosure for electric ranges. Installs on the main cooking surface to contain and support the heating elements. Replace if cracked or damaged.

Range not heating or burners not working? This terminal block connects power to your electric range elements. Common fix for heating failures on ovens and cooktops.

Replace your damaged range oven cavity body assembly. Restores the structural integrity of your oven compartment when the interior is cracked or chipped.

Replace your electric range's lower drawer assembly if bent, jammed, cracked, or missing. Restores smooth glide operation and proper alignment.

Black side panel for slide-in electric ranges. Replaces cracked, chipped, or missing exterior side panels. Restores finished appearance on range.

Decorative front panel for electric range broiler drawer. Replaces dented, scratched, or damaged panels. Restores appearance and completes look.

Oven not heating evenly or exterior too hot? This cavity insulation blanket restores heat retention and improves cooking performance in your range.

If your oven runs too hot or cold, the back insulation panel may be damaged. This rear cavity insulation restores heat retention and temperature accuracy.

Replace worn oven bottom insulation when heat escapes or the cabinet gets too hot. This thermal pad restores proper insulation under the oven cavity.

Oven rack for electric ranges. Slides into oven cavity to hold cookware during baking. Replace if cracked, bent, warped, or missing a second rack.

Aligns and stabilizes your range's lower storage or warming drawer for smooth sliding and flush closure. Replace if cracked, worn, or missing to restore fit.

Seals the oven light lens to the cavity, blocking heat and moisture from the assembly. Replace if worn, cracked, or the lens won't seal properly.

The Bake Element is an OEM part for GE ovens. It is responsible for providing the necessary heat for baking, ensuring that the oven reaches and maintains the correct temperature for consistent and even cooking results. Measuring 18" from side to side, 17-3/8" from the mounting bracket to the back, and 2 3/4" between terminal centers, it's designed to deliver 2585 Watts at 240 Volts.

Causes of a bad bake element can include regular wear and tear from repeated heating cycles, electrical failures such as short circuits or blown fuses, and physical damage like cracks or breaks from mishandling.

Symptoms of a bad bake element include:

• The oven not heating up or taking too long to heat
• Uneven cooking or baking results
• Visible damage, such as burns or breaks, on the element
• The oven tripping the circuit breaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Broil element won't heat or heats unevenly? This electric range broil element assembly generates intense top heat for broiling. DIY-friendly, 15-minute fix.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures your range to the floor or wall to prevent forward tipping. Replace if bracket is bent, broken, or missing during appliance relocation.

Range won't power on or has a loose power connection? This terminal block mount secures the electrical connection. Straightforward install in under an hour.

Secures and aligns the side panel of your range cabinet. Replace if the original bracket is broken, missing, or no longer holds the panel firmly in place.

Secures your range door hinge to the cabinet frame for proper pivot and seal. Replace if door sags, won't close flush, or hinge is loose. Confirm fit with your model number.

Vent tube that channels hot air from your electric range oven to the exhaust path. Replace if cracked, warped, or missing to restore proper ventilation.

Rear drawer support bracket mounts at the base of your range to provide weight-bearing support for the lower oven drawer. Replace if cracked or missing.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Replacement mounting screw for electric ranges, ovens, and wall ovens. Secures panels, brackets, and components. Replace if stripped, missing, or broken.

Replacement mounting screw for cooktops and ranges. Secures cooktop components to the frame. Replace if screw is stripped, missing, or damaged.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Package of 12

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
