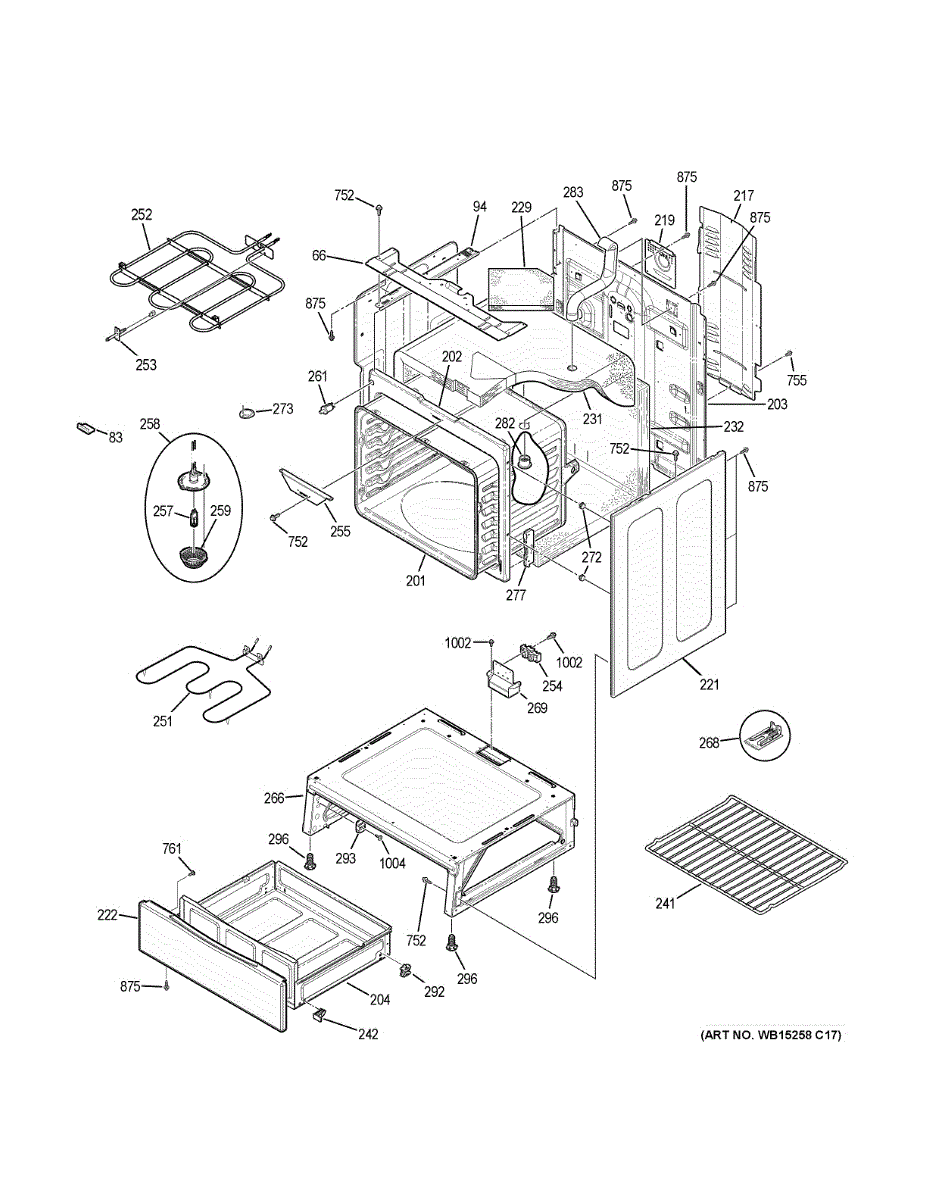

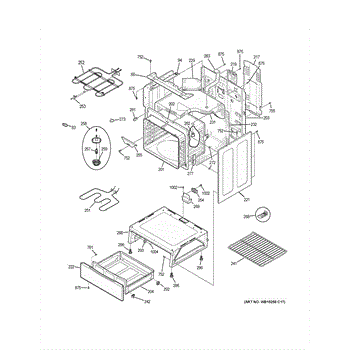

Parts for Ge JB655SK1SS: Body Parts

Rangetop enclosure for electric ranges. Installs on the main cooking surface to contain and support the heating elements. Replace if cracked or damaged.

Range not heating or burners not working? This terminal block connects power to your electric range elements. Common fix for heating failures on ovens and cooktops.

Replaces the welded rear and side oven cavity structure in black finish. Needed when the body assembly is cracked, damaged, or structurally compromised.

Replacement storage drawer lining for range drawers. Protects drawer floor and keeps items stable. Replace worn, stained, or missing liners.

Rear panel that shields your range's internal wiring and components. Replace if cracked, damaged, or missing to protect electronics from dust and heat.

Finished front panel for your range's storage or warming drawer. Replaces cracked, scratched, or damaged drawer fronts. Provides mounting surface for handle.

Insulates oven cavity back and bottom panels to retain heat and improve efficiency. Replace if damaged, compressed, or causing heat loss. Confirm fit with your range model.

Oven rack for electric ranges. Slides into oven cavity to hold cookware during baking. Replace if cracked, bent, warped, or missing a second rack.

Drawer wedge guide aligns and stabilizes your range's lower drawer for smooth operation. Replace if cracked, broken, worn, or missing to eliminate wobble.

The Bake Element is an OEM part for GE ovens. It is responsible for providing the necessary heat for baking, ensuring that the oven reaches and maintains the correct temperature for consistent and even cooking results. Measuring 18" from side to side, 17-3/8" from the mounting bracket to the back, and 2 3/4" between terminal centers, it's designed to deliver 2585 Watts at 240 Volts.

Causes of a bad bake element can include regular wear and tear from repeated heating cycles, electrical failures such as short circuits or blown fuses, and physical damage like cracks or breaks from mishandling.

Symptoms of a bad bake element include:

• The oven not heating up or taking too long to heat
• Uneven cooking or baking results
• Visible damage, such as burns or breaks, on the element
• The oven tripping the circuit breaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Broiler not working or burned out? This broil element radiates intense heat from above to sear and brown foods. Straightforward DIY replacement.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Restores bright interior lighting in your oven or range. Replace when bulb burns out to clearly see food and monitor cooking progress. Verify G9 base fit.

Halogen light bulb assembly that illuminates your oven cavity. Replace if light is dim, flickering, or unresponsive. Verify fit with model number.

Oven won't heat or fan won't run? This high-amp SPDT switch routes power to locks, relays, and fans. Fixes intermittent operation. Moderate DIY fix.

Range base rivet assembly that secures internal components. Replace if rivets are broken, missing, or causing loose structural connections in your range.

Secures your range to the floor or wall to prevent forward tipping. Replace if bracket is bent, broken, or missing during appliance relocation.

Secures and organizes high-voltage wiring connections on your range chassis. Replace if cracked, broken, or missing to restore stable power contact points.

Secures and aligns the side panel of your range cabinet. Replace if the original bracket is broken, missing, or no longer holds the panel firmly in place.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Secures the oven door hinge to the range cabinet frame. Replace if cracked, bent, or damaged to restore proper door alignment and closure fit.

Vent tube that channels hot air from your electric range oven to the exhaust path. Replace if cracked, warped, or missing to restore proper ventilation.

This vent tube directs heat and venting from the oven/radiant element to help maintain proper airflow and protect surrounding components. It's a direct-fit replacement designed to restore proper venting performance. What it does:

• Channels heat and vent airflow away from the radiant element and oven cavity
• Helps prevent hot spots and protect adjacent components from excess heat
• Replace when bent, cracked, corroded or blocking airflow
• Can resolve venting-related cooking issues and uneven broiling

• Vent tube

• Disconnect power to the appliance before starting any repair
• Remove oven panels and allow all components to fully cool before handling
• Handle carefully to avoid damaging ends or mounting tabs; use basic hand tools

Rear drawer support bracket mounts at the base of your range to provide weight-bearing support for the lower oven drawer. Replace if cracked or missing.

Replaces a cracked or broken front drawer support on your range. This plastic guide installs on the front of the warming drawer to stabilize movement.

Replacement mounting screw for electric ranges, ovens, and wall ovens. Secures panels, brackets, and components. Replace if stripped, missing, or broken.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Replacement screw secures panels, brackets, and trim inside your oven or range. Restores tight fit when original hardware is missing, stripped, or damaged.

Package of 12
